Product Code: BOW-PD1

RRP

Features
Details
Inclusions
Specifications

Fits dog tables or dog holes with 19mm (3/4”) diameter.
Secures in dog holes 1/4" and deeper.
Dogs expand symmetrically and uniformly from top to bottom as compressed.
Features low profile ergonomic knobs to accommodate standard tabletop fixtures.
Dog assemblies manufactured from highly durable Glass Filled Nylon.
Packaged in precut EVA tray for safe storage.
Accommodates standard 1/4-20 T-Bolts with T-Bolt Head dimensions 1mm (.446”) by 16mm (.625”).

Bow Products have now released their latest in innovation!

The patented expandable dogs are manufactured from highly durable glass filled nylon and are designed to suit dog tables or dog holes with a 19mm (3/4”) diameter.
These highly innovative pack of dogs are designed to expand symmetrically and uniformly from top to bottom as compressed, gripping in holes ¼” and deeper.

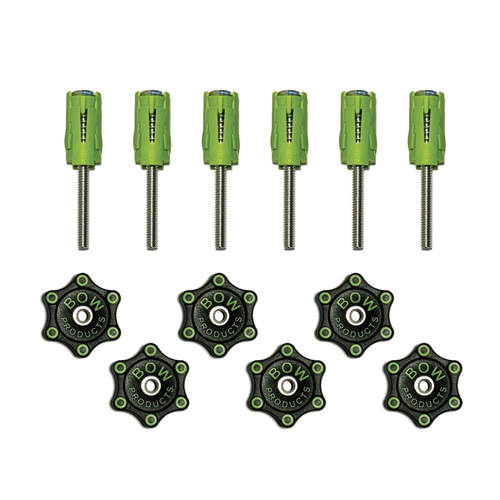

The BOW-PD1 comes in a precut EVA storage tray and includes six Hex Bolts 1/4 -20 x 3” and six Low Profile Ergonomic Bow Knobs to accommodate standard tabletops.
Although not included, the dog assembly will also accommodate standard 1/4-20 T-Bolts with T-Bolt Head dimensions 1mm (.446”) by 16mm (.625”).

Bow Products Pack of Dogs

Product Code: BOW-PD1
