Carbatec 200mm CBN Grinding Wheel 25mm x 5/8in Bore - 180G

Product Code: CT-CBN2002558

$199 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Tags Carbatec
Download PDF
  • Features
  • Details
  • Specifications
  • Smooth grinding from 100 to 3500 rpm.
  • Fine 180G Grinding surface full width and on edges
  • Designed for Carbon and High Speed (HSS) tool steel, cast iron & stainless
  • Cool cutting - no burnt or blue edges
  • Only light pressure required  - easier on your grinder, your tool and you!
  • Wheels retain their shape and size and require minimal or no maintenance.

Carbatec CBN Grinding Wheel for sharpening turning & other edged tools.

Cubic Boron Nitride (CBN) abrasive is a similar product to synthetic industrial diamonds. CBN is composed of nitrogen and boron and utilised as extremely hard crystals - second in hardness only to actual diamond. A single layer of CBN grit on the surface of a metal wheel can grind the hardest steel and last for many years.

Our electroplated CBN grinding wheels are machined from solid steel, electroplated with a layer of CBN grit across their face and extending slightly down both sides. A CBN wheel is far better suited for sharpening high speed steels and will withstand the friction from grinding with much less heat produced than with a traditional Aluminium Oxide (White) or grey wheels.  The fine 180G grinding surface is perfect for almost all sharpening tasks.

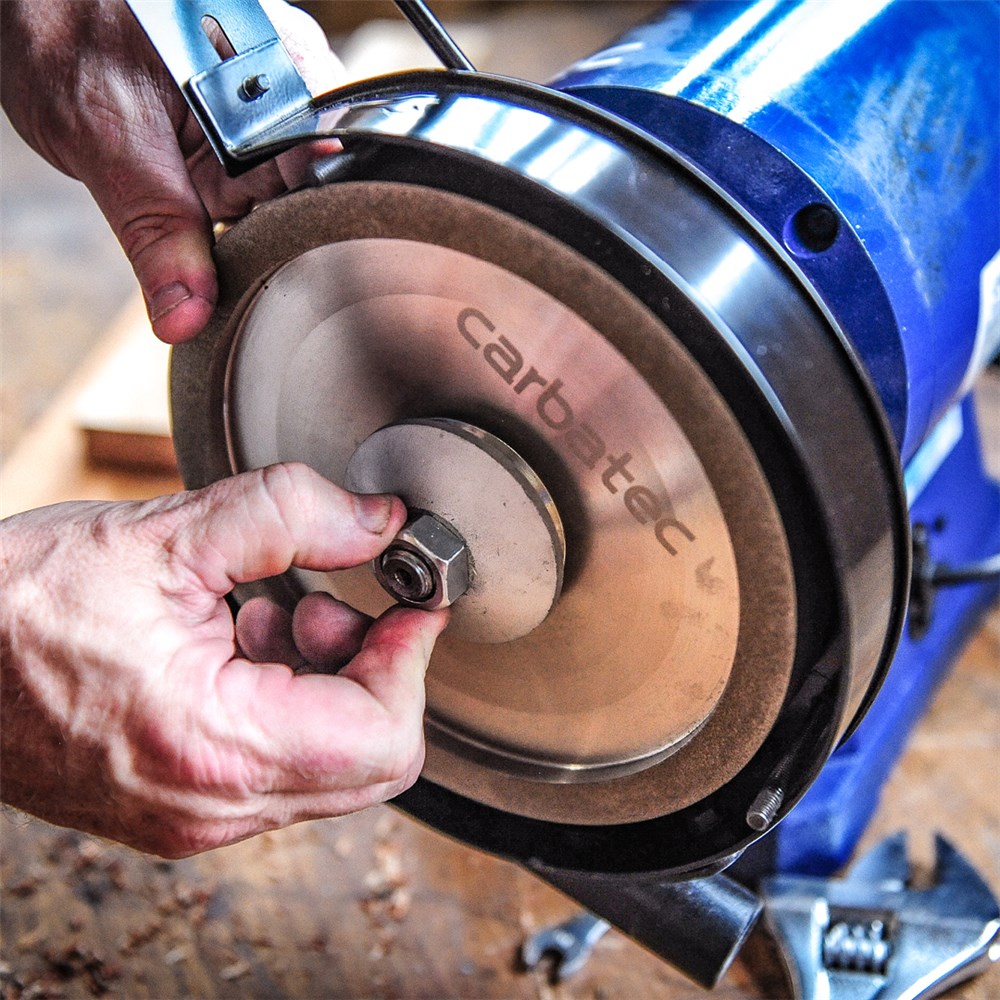

You can sharpen your tools in the same way as you would with a conventional stone wheel on a standard bench grinder, or add this to our Carbatec GR-S200P Slow Speed Grinder for even cooler and simpler sharpening.

Wheel speed can be anything up to 3000 rpm. Only minimal pressure is required.  Suitible for use on Carbon & High Speed steel, cast iron and Stainless. Not designed for use on non-ferrous metals.

Brand Carbatec
Grit 180G
Speed 100 to 3500rpm
Width 25.4mm (1")
Wheel Diameter 200mm
Wheel Type CBN (Cubic Boron Nitride)
Arbor Bore 5/8"
