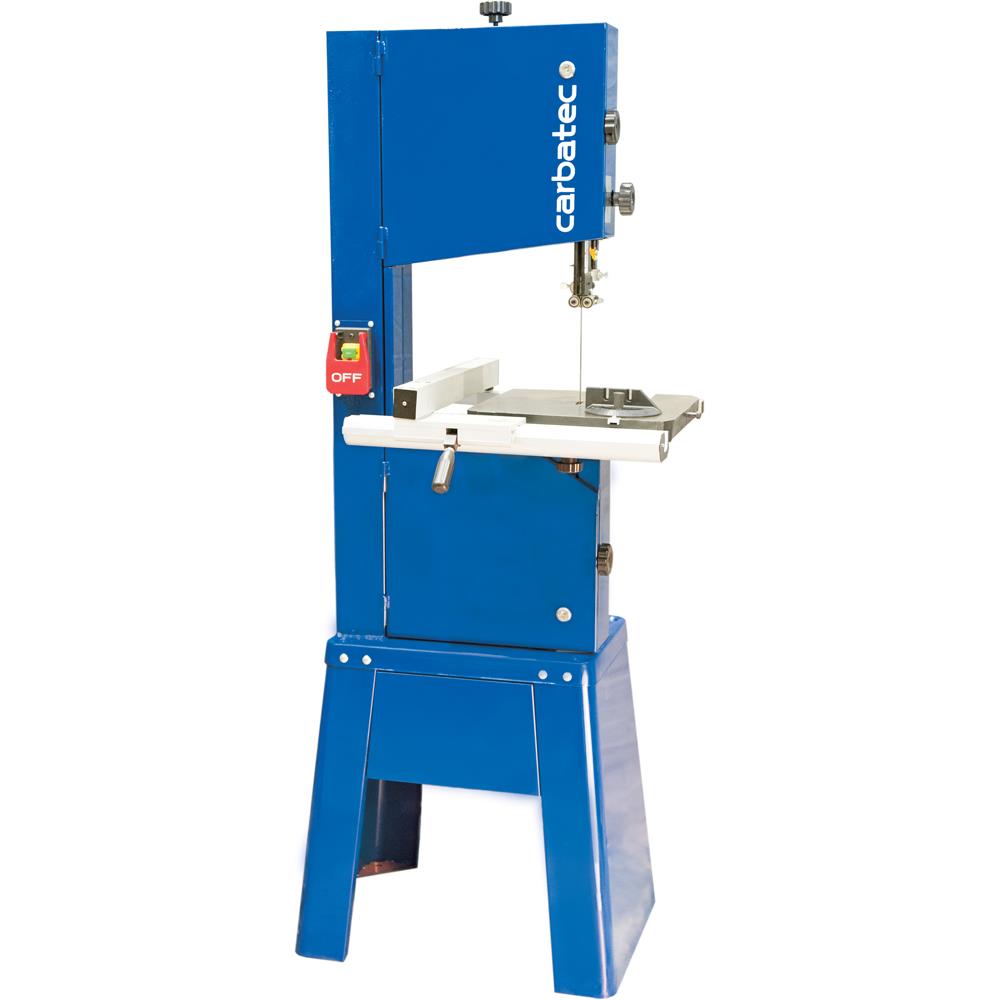

Carbatec 14" (345mm) Heavy Duty Bandsaw

Product Code: BS-345C

$1599 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Specifications
  • 1.5HP induction motor
  • Alloy wheels
  • Large 4" (100mm) dust port
  • Easy to assemble stand
  • Standard 3/4" wide x 3/8" deep mitre track to take aftermarket mitre gauges or jigs
  • Rack and pinion height adjustment with scale
  • Professional rip fence with magnified hairline cursor
  • Hinged wheel covers
  • Micro-adjustable bearing blade guides
  • Includes basic blade: 3/8" x 6TPI (10mm x 6TPI)

A heavy duty 14" bandsaw with all the features, unavailable for some time, now re-released!

This bandsaw has been designed and built to offer competitive features at a competitive price. With 1.5HP at your disposal, it will cut just about anything you throw at it. The table is cast iron and finely ground, providing a sturdy base for your work. The mitre slot is the standard 3/4" wide x 3/8" deep to allow aftermarket mitre gauges to be used, or custom sleds to be made using mitre slot bars. The large 100mm dust port means this bandsaw can be used with a workshop dust extractor without needing to reduce the hose size and air flow.

The slot in the table for blade change is to the right of the blade rather than through the front, so the fence does not need to be removed for blade change. This is a real time and hassle saver when changing your blade! The profiled rail positively engages with the fence bracket, giving a secure fit and lock. There is adjustment in the fence to make it parallel to the mitre slot, or for drift if that's the way you like to set your machine up, creating accuracy and repeatability. Hinged wheel covers and micro-adjustable bearing blade guides round out the features on this machine.

An excellent choice for a workshop that requires a high quality build, accuracy and adjustability in a small footprint at a budget.

Brand Carbatec
Motor 1100W (1-1/2 HP) Induction - Regular 10A Plug
Switch Type Magnetic NVR
Blade Guides Ball Bearing with Rack and Pinion
Blade Length 2553mm
Blade Release Quick Release Lever
Depth of Cut 200mm
Dust Port/s 1 x 100mm (4")
Minimum Blade Width 3.2mm (1/8")
Maximum Blade Width 19mm (3/4")
Maximum Rip Capacity 345mm
Positive Stops 0° Adjustable
Table Height 1070mm
Table Size 360mm x 360mm
Table Tilt -15° / + 45°
Workshop Footprint (WxDxH) 710mm x 710mm x 1760mm
Wheel Diameter 350mm
Wheel Type Cast Alloy
Warranty Period 3 Years
Shipping Weight 85Kg
Nett Weight 77Kg
