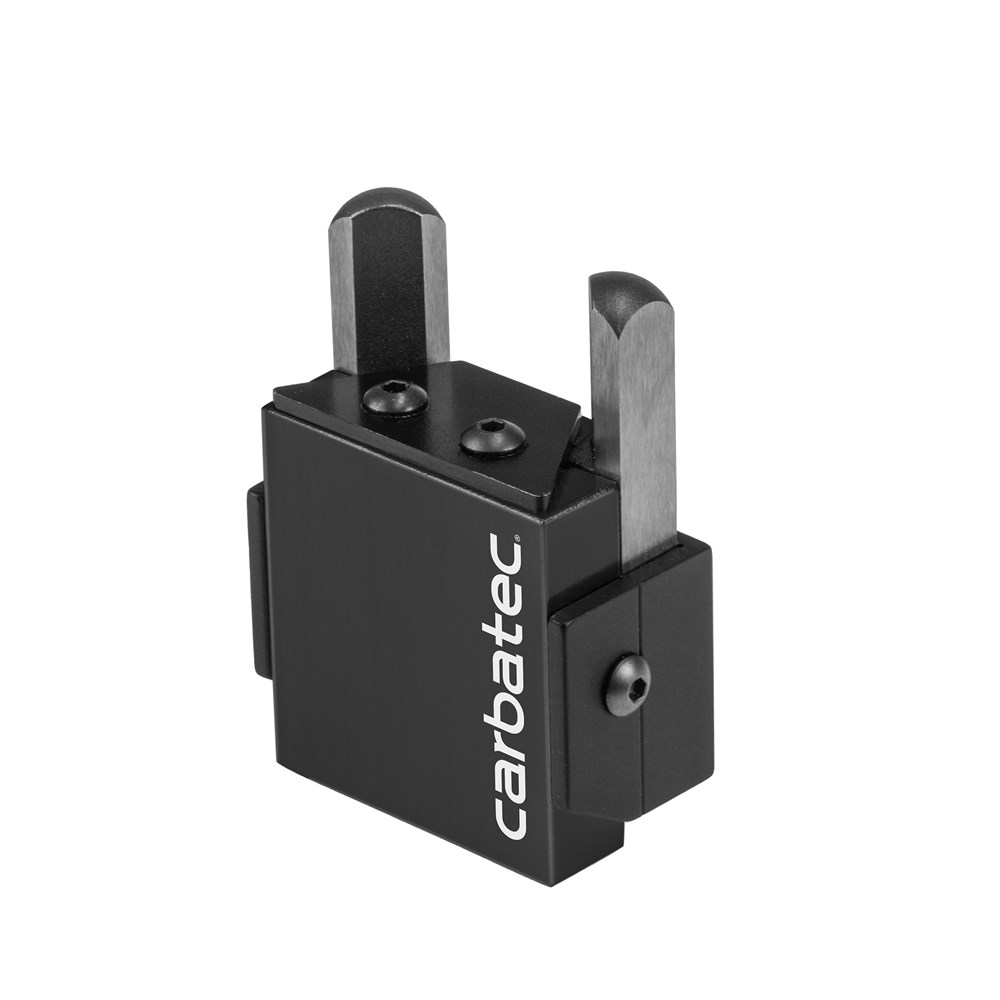

The Carbatec Double Corner Spring Chisel is a must-have for woodworkers who need precise, square corners when installing hinges, lock faceplates, or mortises. Designed for efficiency, this tool eliminates the need for time-consuming manual chiselling, ensuring clean and accurate results with every use.

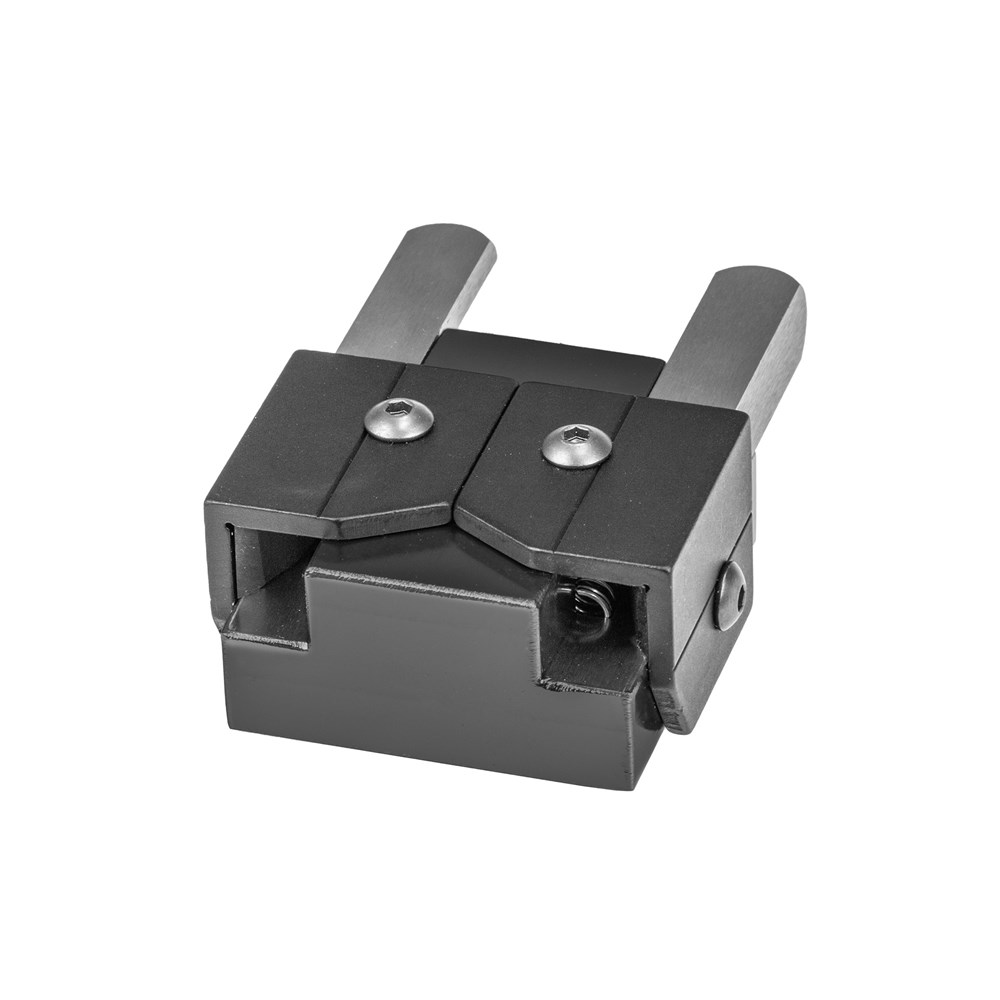

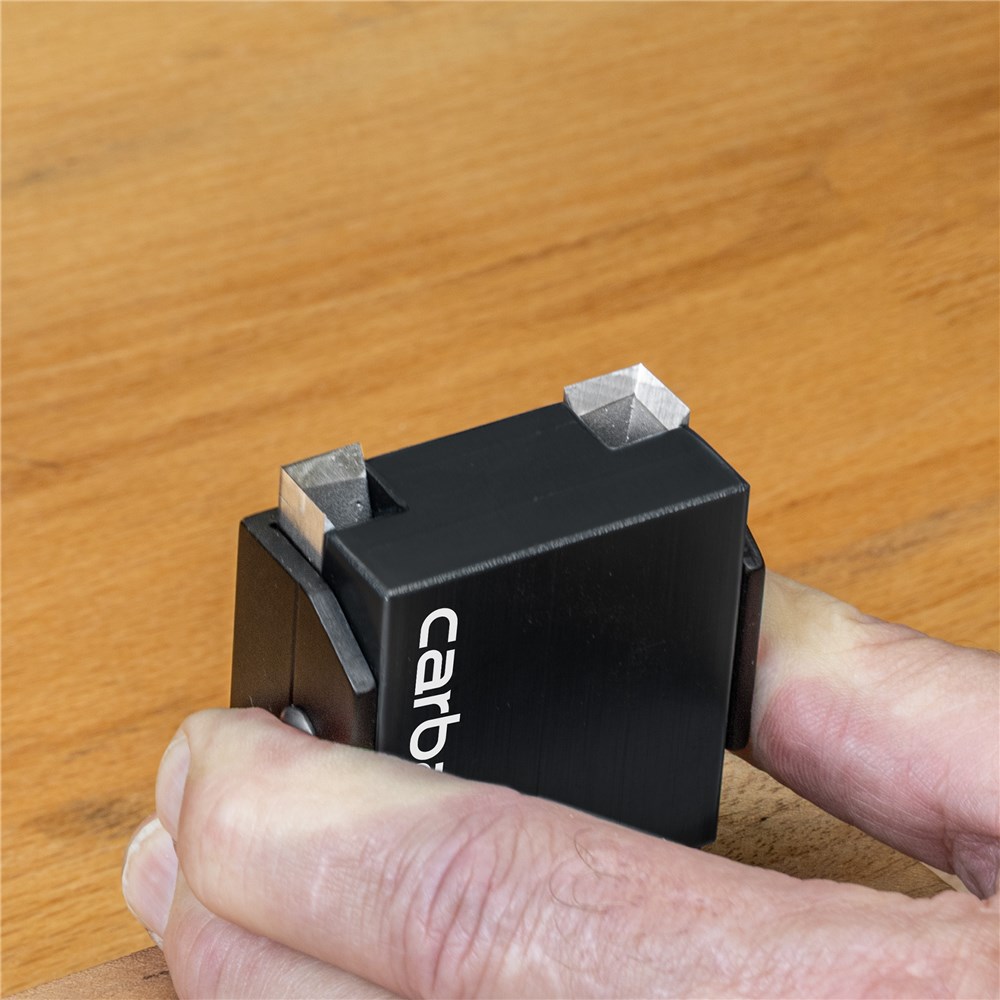

The spring-loaded high-carbon, tool steel blade delivers consistent 90-degree cuts in seconds—just position the chisel in a rounded corner, hammer the spring-loaded mechanism, and create a sharp, clean edge. Its solid aluminium body offers durability while keeping the tool lightweight and easy to handle. The new double-sided version of this tool increases efficiency by cutting down the need to spin and line up the tool for each corner.
This compact chisel fits easily into a tool belt for convenience on-site or in the workshop, perfect for cabinetmakers, joiners, and woodworkers who demand accuracy. Achieve professional-quality results with less effort, saving time and ensuring precise, square corners in timber and MDF.
-

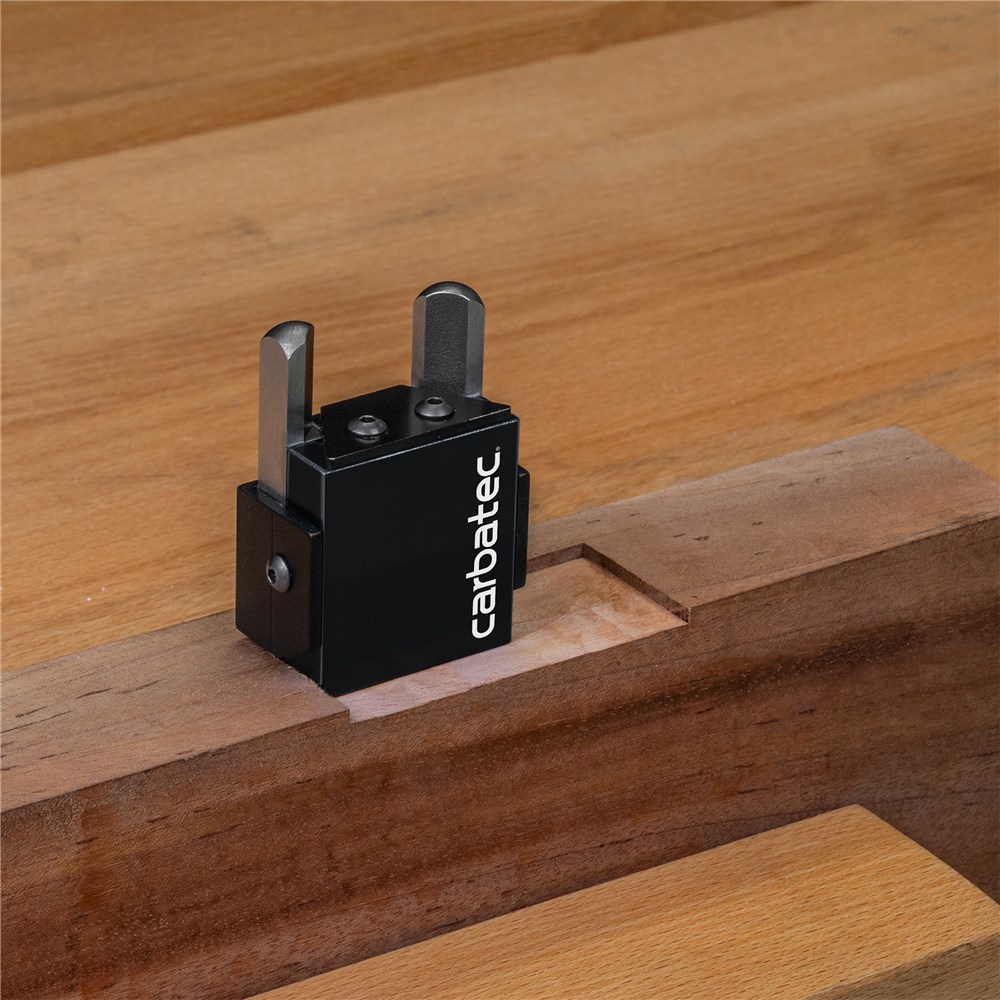

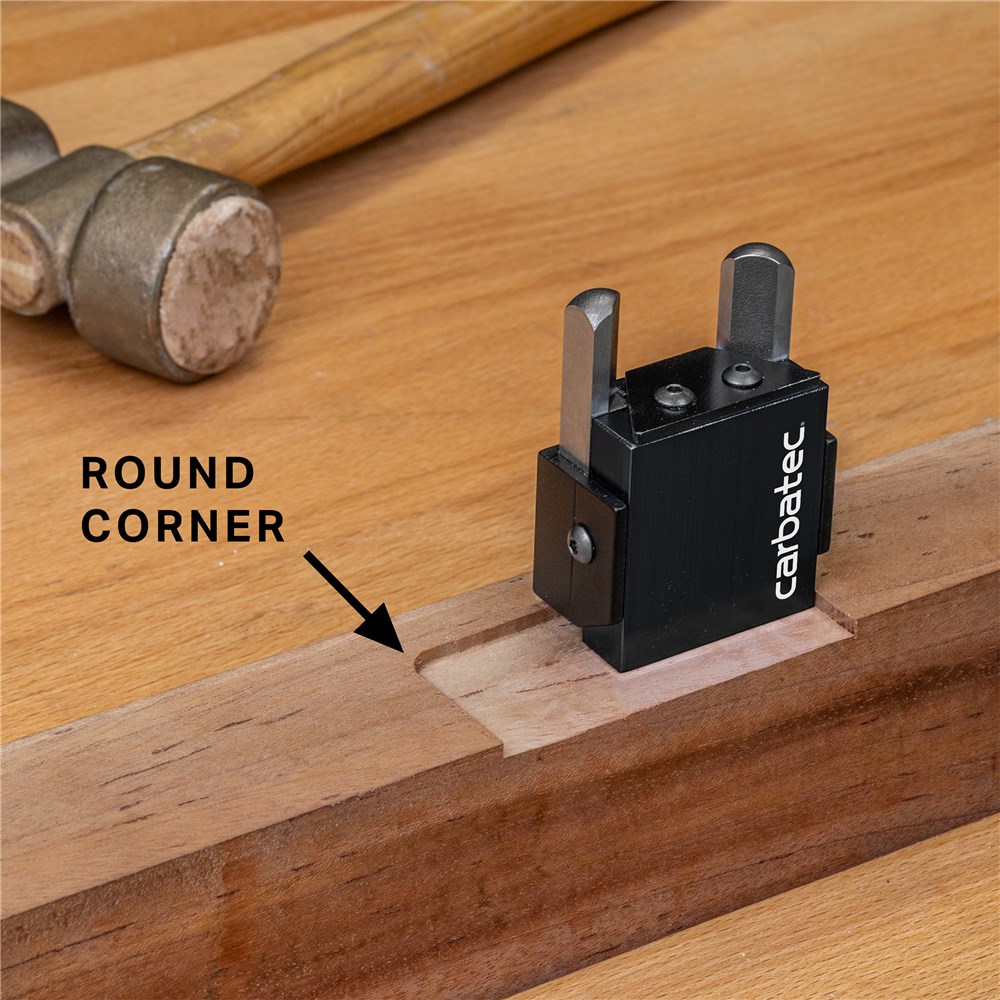

1) Position the Chisel – Place the Double Corner Spring Chisel into the rounded corner of the recess, aligning the edges of the tool with the sides of the cutout for an accurate square finish.
-

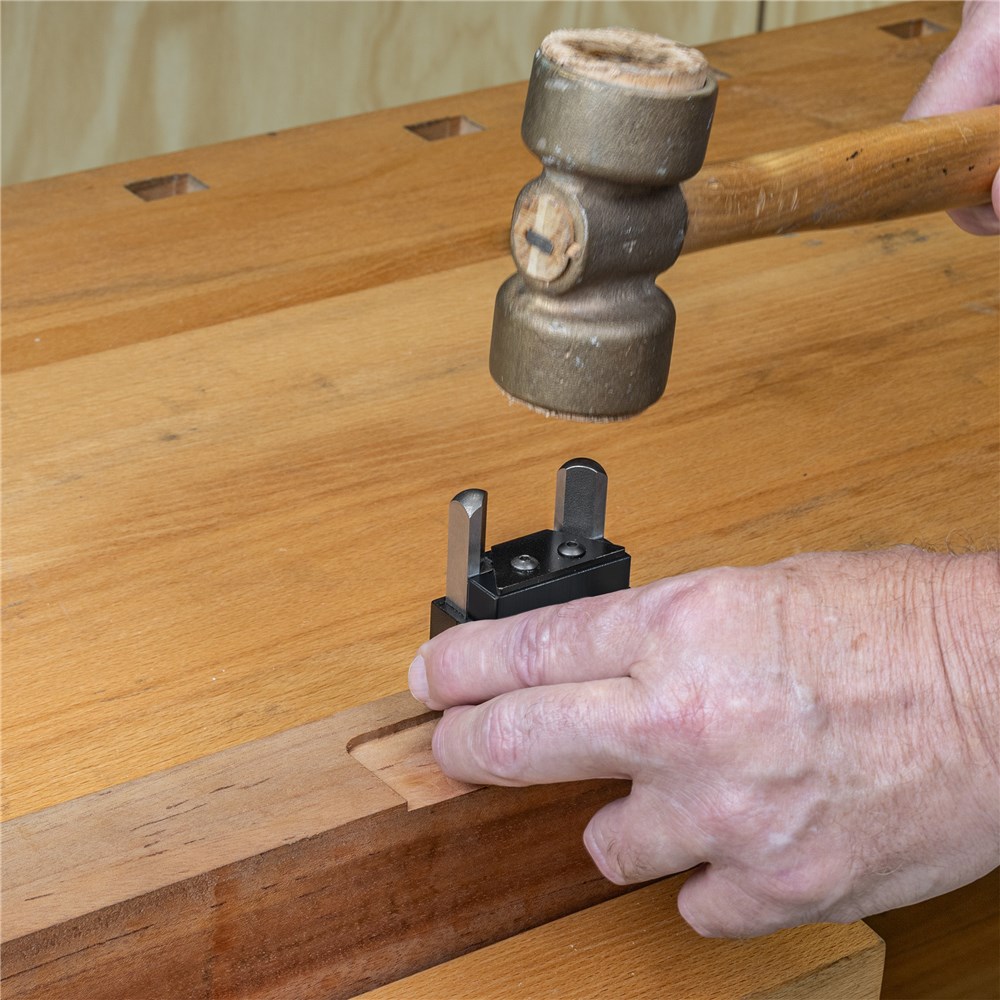

2) Strike with a Hammer – Using a mallet or hammer, firmly strike the top of the chisel. The spring-loaded high-carbon, tool steel blade will engage, cutting a precise 90-degree corner.
-

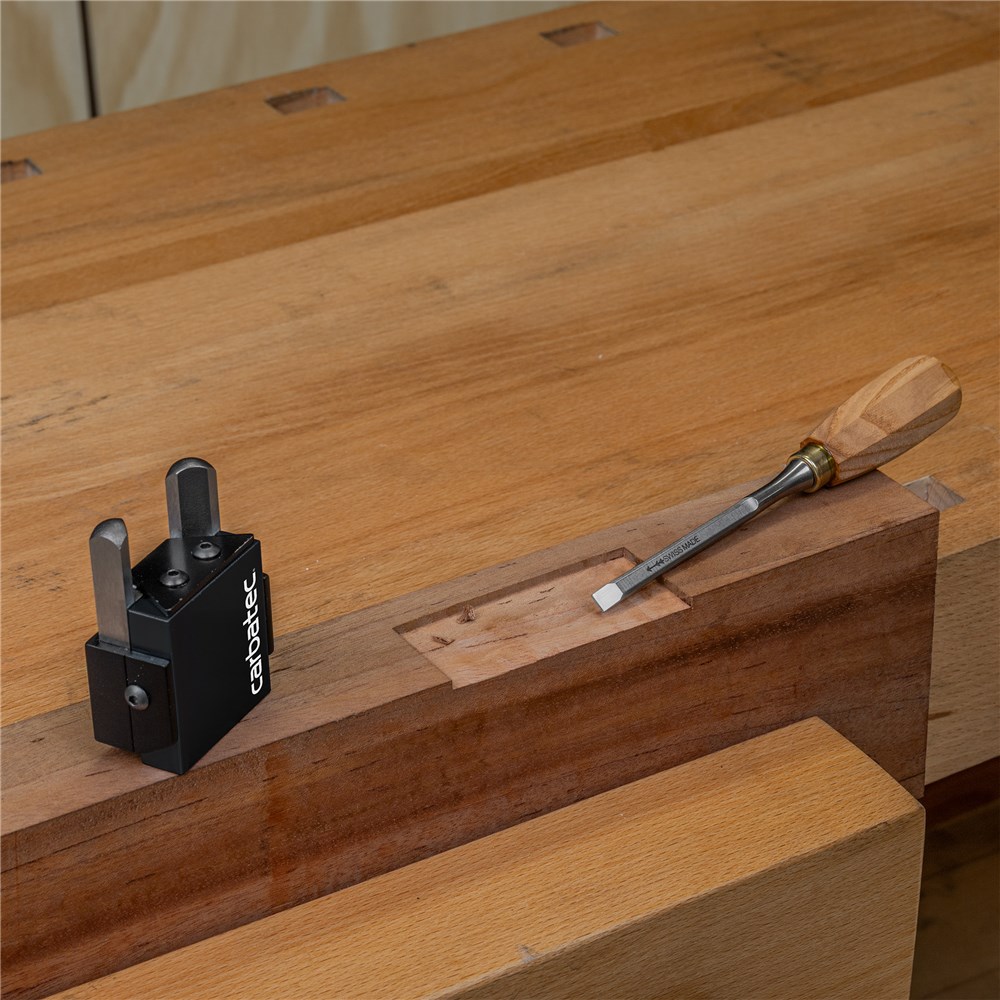

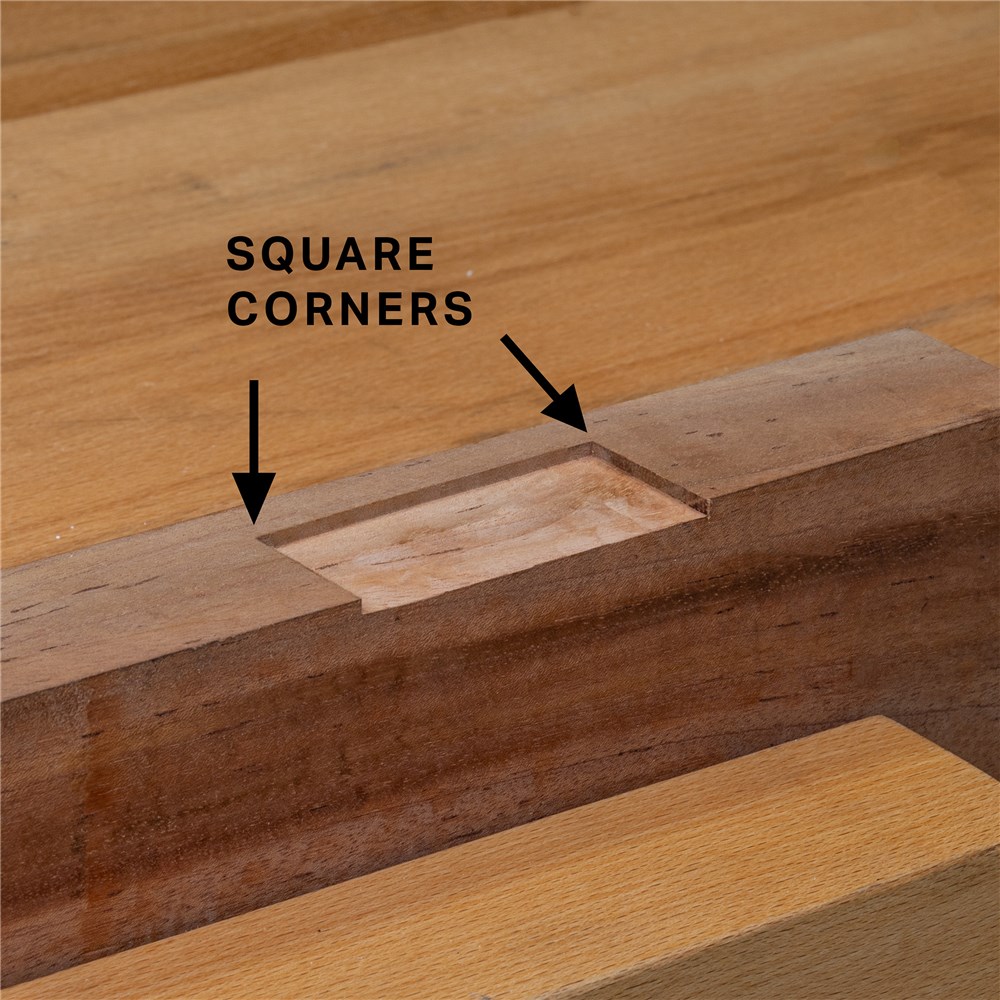

3) Remove & Inspect – Lift the chisel from the recess and check the corner. If necessary, repeat for deeper cuts or clean up any remaining material with a standard chisel.
-
4) Continue Your Work – Once all corners are squared, proceed with hinge or lock installation, ensuring a clean, professional fit.
