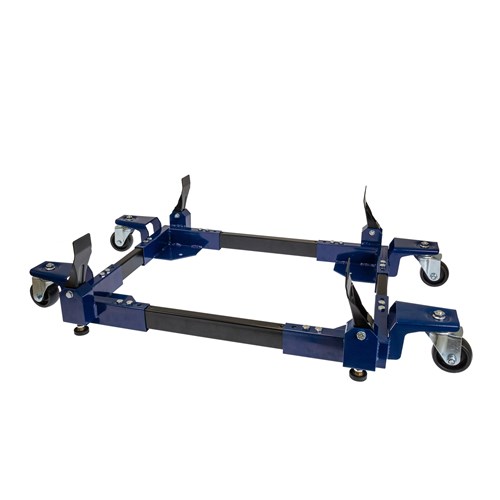

Carbatec Heavy Duty Omni-Directional Mobile Base

This heavy-duty mobile base is designed for larger machines and equipment, supporting up to 400kg. Equipped with four swivel castors, it allows smooth movement in any direction for maximum manoeuvrability. Each wheel features an independent locking mechanism, ensuring the base stays firmly in place when needed. Whether repositioning heavy machinery or optimising workshop space, this base provides reliable mobility and secure stability.

Built with a strong box-section tube frame, the base is designed for maximum durability and load distribution. Unlike side-mounted bolt designs that can allow frame slump over time, this base uses a top-down bolt configuration, which helps maintain structural integrity. By applying force directly downward, this design minimises movement and prevents bolts from being affected by shear force, adding extra strength and long-term reliability.

With an adjustable footprint ranging from 460 x 620 mm to 720 x 850 mm, this base can accommodate a variety of machines and equipment. Its low-profile design keeps machines close to the floor, minimising height increase while maintaining a low centre of gravity for added safety. The combination of a reinforced frame, smooth-rolling castors, and secure locking mechanisms makes it an ideal solution for workshops, garages, and industrial environments that require both mobility and rock-solid stability.
