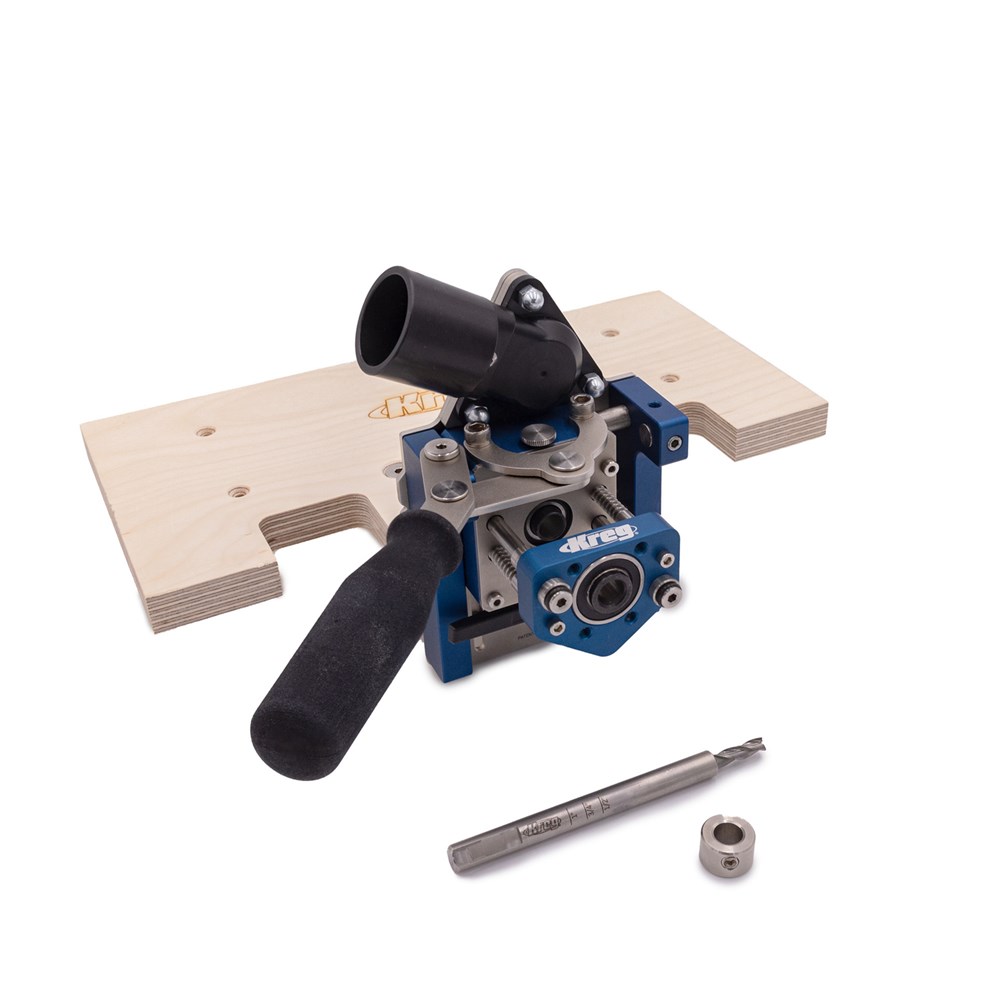

Kreg MortiseMate Loose Tenon Jig

Product Code: KR-KLTJ100

Tags Kreg
$569 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Inclusions
  • Specifications
  • Video & Downloads
  • Cut mortises for loose tenon joinery using a drill—no router required
  • Auto-indexing step-down mechanism lowers cutter in 1.6 mm (1/16") increments
  • Micro adjustment screws let you dial in mortise width for custom fit
  • Integrated mini work surface enables fast, stable clamping with Quick Action and other clamps (not included)
  • Laser-etched depth markings on cutter simplify stop collar setup
  • Quick and accurate alignment for panel, edge, and 90° joints
  • Compatible with tenon thicknesses of 6 mm, 8 mm, and 10 mm
  • Cuts mortise depths up to 19 mm (3/4") with 6 mm cutter, and up to 25 mm (1") with 8 mm and 10 mm cutters
  • Accepts workpieces from 13 mm to 38 mm (1/2" to 1 1/2") thick
  • Includes 6 mm Mortising Cutter (8 mm and 10 mm sold separately)
  • Ideal for both fixed workshop setups and portable applications

The Kreg® MortiseMate™ Loose Tenon Jig brings a new level of precision and simplicity to wood joinery—without needing a router. Designed for use with a standard drill, it allows you to create strong, accurate loose tenon joints with ease.

At the heart of the system is an auto-indexing step-down mechanism, which lowers the cutter by 1.6 mm (1/16") per pass—eliminating the need for complex setups or guesswork. Paired with micro adjustment screws, you can fine-tune each mortise for the perfect tenon fit—tight or loose, depending on your project.

The integrated mini work surface allows for fast, secure clamping using standard trigger-style clamps, whether you're in the workshop or working on-site. Built from precision-machined aluminum and stainless steel, the MortiseMate is engineered for long-term durability and consistent performance.

With support for tenon sizes of 6 mm, 8 mm, and 10 mm, and compatibility with material from 13 mm to 38 mm (1/2" to 1 1/2") thick, MortiseMate gives you everything you need to build solid, professional-grade joints—using just your drill.


Compatibility

  • MortiseMate™ Mortising Cutters (6 mm included; 8 mm and 10 mm sold separately)
  • compatible with commercially available 6, 8 &10mm Loose Tenons (sold separately)
  • Works with standard 1 1/4" (32 mm) vacuum hoses for dust collection
  • Compatible with most trigger-style clamps

Precision joinery made simple—with just a drill.

The Kreg® MortiseMate™ Loose Tenon Jig delivers router-quality results through a rugged, easy-to-use drill-powered system—perfect for anyone who demands fast, strong, and accurate joints.

  • MortiseMate™ Loose Tenon Jig
  • 6 mm Mortising Cutter with stop collar (8 mm and 10 mm sold separately)
  • Mini Work Surface
  • Dust Collection Adapter (fits 32 mm (1 1/4") vacuum hoses)
  • Hex wrenches: 4 mm (5/32"), 3 mm (1/8"), 4.8 mm (3/16")
  • Owner’s Manual
Brand Kreg
