Product Code: SST-TSA-RMG

Tags SawStop

RRP

Features
Details
Specifications

Tool-free setup and adjustment
Sliding wedge system for fence attachments and repeatable stops
Locked angle adjustments at 1/10°, 1/4°, 1/2°, and 1° or free rotation
Smooth glide and secure mitre slot fit with dynamic expansion disks
Flip stop enables micro-adjustment in 0.4mm (1/64”) increments
Sliding flip stop with mounting holes for jigs and fixing to wedge system
Tool-free expansion and adjustment of fence for cuts up to 940mm (37”) in length
Heavy-duty construction and steel mitre plate manufactured with machine tolerances of <.0001” for exceptional precision

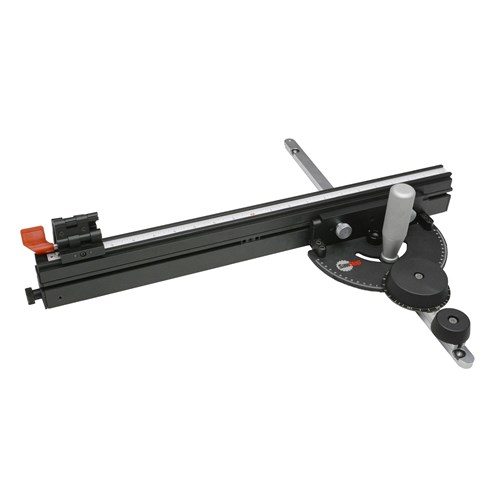

Maximise your SawStop Table Saw's potential with the new Revolution Mitre Gauge!
Get unmatched precision and accuracy with the spin of a dial. Intuitive, tool-free adjustments provide fine-tuning that is exact, reliable, and repeatable.

With the ability of free rotation or quick and easy locked indexable angles, the SawStop Revolution Mitre Gauge features a mitre angle dial that has pre-set increments of 1°, 1/2°, 1/4°, and 1/10°. The dial will click into place with each incremental change, making adjusting easy, reliable, and, most importantly, accurate. The gauge features a telescopic fence that extends from 24" to 37" and an articulating flip stop with micro-adjustment capabilities, allowing you to make repeatable cuts. The Flip stop includes mounting holes for jig accessories and locking into the wedge system. Accessory tracks in the fence allow for easy attachment of a sacrificial fence.

The SawStop Revolution Mitre Gauge heavy duty construction features a steel mitre plate manufactured to precise machine tolerances for precision and durability.

Brand	SawStop
Warranty	1 year
Positive Stops	1 - 1/10 deg
Dimensions	584mm x 508mm
Angle Adjustment Range	0 to 60 deg
