Product Code: I2R-UCR201

Tags i2R

NOTE: Special Order products showing as Out Of Stock are usually held in our suppliers warehouse.

Please note that local supplier orders can take 7 - 14 days to arrive in our stores. Order here, or please call 1800 658 111 to discuss your needs and if you wish to confirm expected delivery times.

Features
Details
Specifications

– Wireless jog pendant for use with UCCNC software on i2R A and B Series CNC machines
– 10-15 meter transmit range (depends on environment)
– up to 6-axis on screen
– Large LCD screen with back-light
– Industrial wheel encoder dial
– USB wireless transmitter connects to the control PC
– Function and custom push buttons
– Battery operation with long life (replaceable)

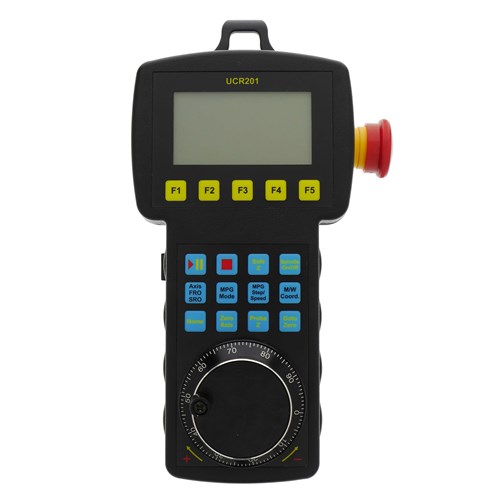

The UCR201 Wireless Jog Pendant is the perfect solution for those with a UCCNC driven machine, that prefer the use of a hand-held control or are more familiar with this setup from previous equipment.

The jog is wireless, so cords wrapping around your machine aren't a problem and you can find the best vantage point to control your machine according to the job at hand. Using the jog pendant can make the zero point pick up and other machining functions easier and faster to establish and undertake.

The jog pendant comes with a large LCD screen which continuously shows and updates the readout values of the axis positions, the stepping mode, feedrate and the spindle’s actual speed giving live feedback to the user without the need to look at your PC monitor.

The product is robust and well built, consisting of 2 main parts; one the jog pendant itself built into an ABS plastic enclosure, with the function buttons and a jog wheel encoder. The other is the USB wireless transmitter module which connects to the computer’s USB port and transfers data between the PC and the jog pendant device.

i2R Wireless Jog Pendant for i2R A and B Series CNC Machines

Product Code: I2R-UCR201
