Product Code: AM-45624-K

RRP

Features
Details
Specifications

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Diameter (D)	1/4
Angle (a°)	60°
Cutting Height (B)	31/64
Shank (d)	1/4
Overall Length (L)	2
B1	7/32
Flutes	3

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Vectric and Fusion 360 compatible tool files for 45624-K available for download, click here.

Brand	Amana Tool
B1	5.55mm (7/32")
Cutting Height (B)	12.3mm (31/64")
Diameter (D)	6.35mm (1/4")
Flutes	3
Overall Length (L)	50.8mm (2")
Shank (d)	6.35mm (1/4")

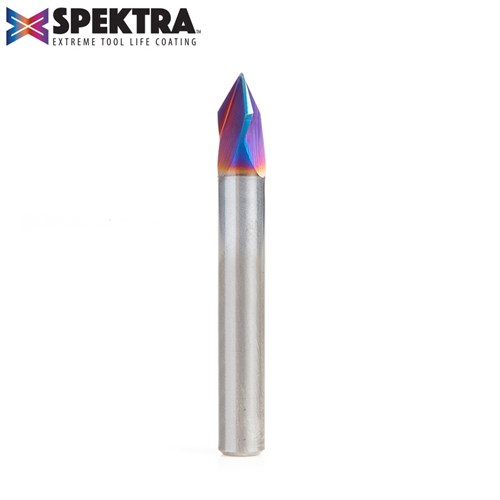

Amana 45624-K Spektra Solid Carbide 3 Flute V-Bit, 60° Angle, 1/4" Shank

Product Code: AM-45624-K
