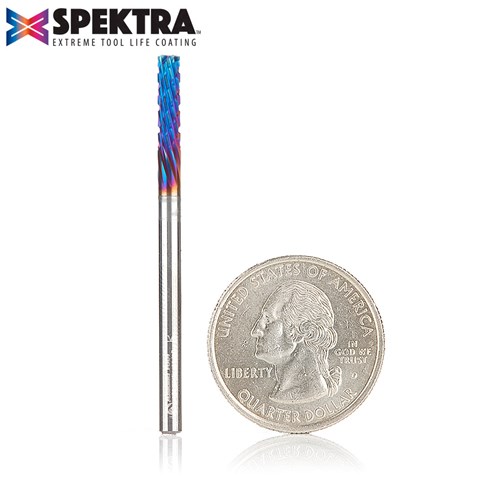

Amana 46260-K Spektra Solid Carbide Carbon Fiber Graphite Spiral Bit

Product Code: AM-46260-K

$45 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Specifications
Introducing Amana Tools®'s carbon graphite and carbon fiber cutting solid carbide router bits designed to produce a minimum failure in composite materials such as layers separating and a significant loss of mechanical toughness.

The rapidly growing use of Carbon Fiber Reinforced Polymers (CFRP) necessitates tooling designed to effectively meet the challenges of such composites. Experts have recognized the need for a tool geometry combining a highly abrasion-resistant carbide substrate generous fluting and an impact zone that not only "shatters" the hard carbon fibers but also keeps heat down.

These industrial router bits combat abrasion heat and the breakdown of composites for clean, accurate cuts.

(D) Diameter 1/8
(B) Cutting Height 1/2
(d) Shank 1/8
Overall Length (L) 2
Flutes 10

Introducing Amana Tools®'s carbon graphite and carbon fiber cutting solid carbide router bits designed to produce a minimum failure in composite materials such as layers separating and a significant loss of mechanical toughness.

The rapidly growing use of Carbon Fiber Reinforced Polymers (CFRP) necessitates tooling designed to effectively meet the challenges of such composites. Experts have recognized the need for a tool geometry combining a highly abrasion-resistant carbide substrate generous fluting and an impact zone that not only "shatters" the hard carbon fibers but also keeps heat down.

These industrial router bits combat abrasion heat and the breakdown of composites for clean, accurate cuts.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Excellent for cutting:

  • Carbon Fiber
  • Carbon Fiber Reinforced Polymer (CFRP)
  • Carbon Graphite
  • Composite Materials
  • Fiberglass
  • Fiberglass PCB Board
  • Fiber Reinforced Plastic (FRP)
  • Glass Fiber Reinforced Polymer - Plastic Materials (GFR)
  • Glass Reinforced Plastic (GRP)
  • G10 = High-pressure fiberglass laminate, a kind of composite material

    Fusion Logo

    Vectric and Fusion 360 compatible tool files for 46260-K available for download, click here.

  • G10 / FR-4 Glass Epoxy Composite Laminate Material
  • G11 / FR-5 Glass Epoxy Composite Laminate Material
  • Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
  • Phenolic
  • Phenolic "Garolite" G-7
  • Plastic PVC & Acrylic
  • Thermoset Composites
  • Thermosetting Plastics
Brand Amana Tool
Cutting Height (B) 12.7mm (1/2")
Diameter (D) 3.2mm (1/8")
Flutes 10
Overall Length (L) 50.8mm (2")
Shank (d) 3.2mm (1/8")
