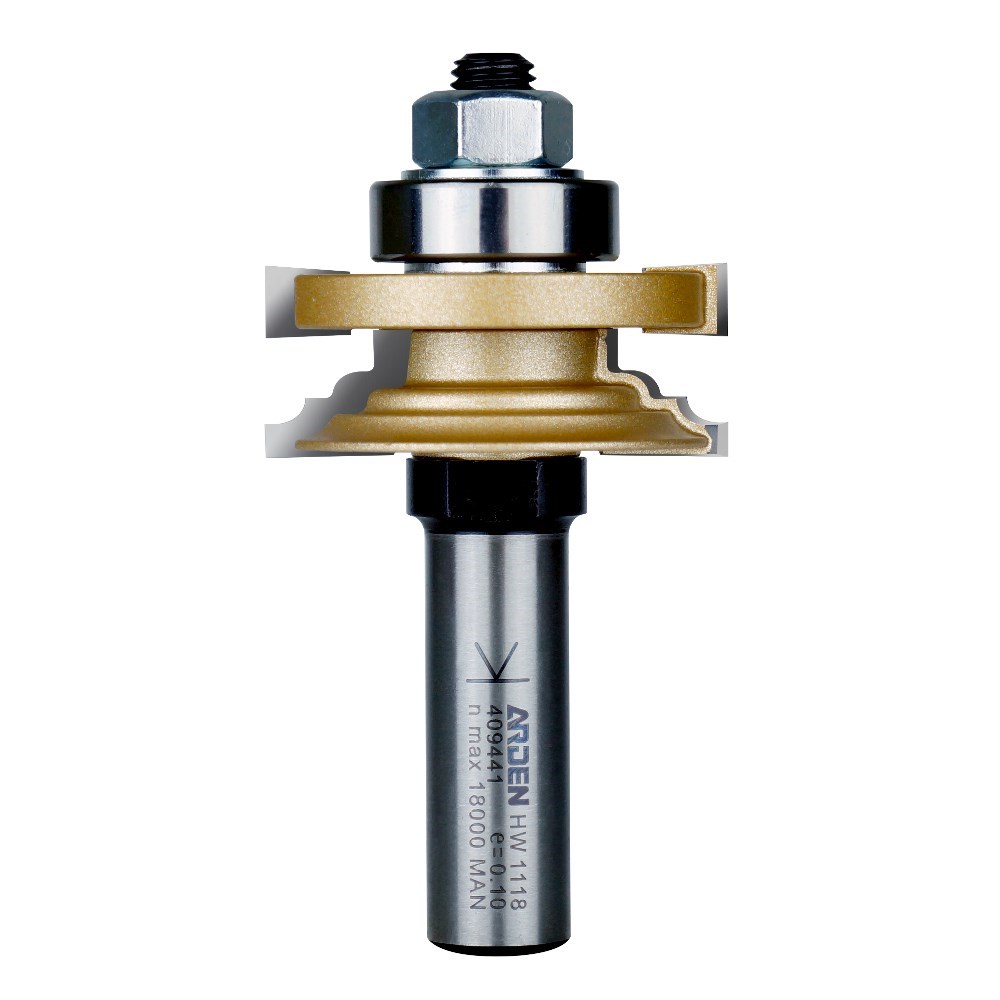

Arden Reversible Rail and Stile Bit - 41.2mm Diameter 1/2" Shank

Product Code: ARD-409441

Tags Arden
$67.46 inc GST
RRP $89.95
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Details
  • Specifications
Rail and Stile joinery makes for a very strong joint due to the larger surface area for gluing, as well as easy alignment of components as they lock together. It also provides a decorative profile to your frame edge. This bit needs to be reconfigured between rail mode and stile mode to create the two components. Simply undo the nut and reverse the positions of the blades to change your cut for matching profiles. The nut secures the assembly each time. Used in a router table, the bearing is set flush with the fence.
Brand Arden
Bearing Diameter 7/8" (22mm)
Bearing ID 8mm
Bit Cut Depth 23.8mm (15/16")
Bit Cut Diameter 41.2mm (1-5/8")
Bit Profile Depth 9.5mm (3/8")
Bit Shank Size 1/2"
