Carbatec 300mm Helical Head Thicknesser Jointer

Product Code: TJ-X300C

$3989.00 inc GST In Stock Low Stock Out Of Stock Please See Attributes
Increase value Decrease value
Quantity in cart:
Tags Carbatec
  • Details
  • Features
  • Specifications
Carbatecs TJ-XC range of Helical Head Thicknesser / Jointer combination machines has a wide, machine ground cast iron bed jointer on the top and a cast bed thicknesser underneath.  Helical Head with radius edge carbide insert knives, angled to give you a shear cut action.  Quiet, clean and superior finish in the crankiest of timbers.  Independent infeed/outfeed table adjustment, precision tilting aluminium fence and all the safety features you would expect on a commecial machine, like Euro bridge guard, NVR switching, and electrical interlock on the cutterhead dust chute.

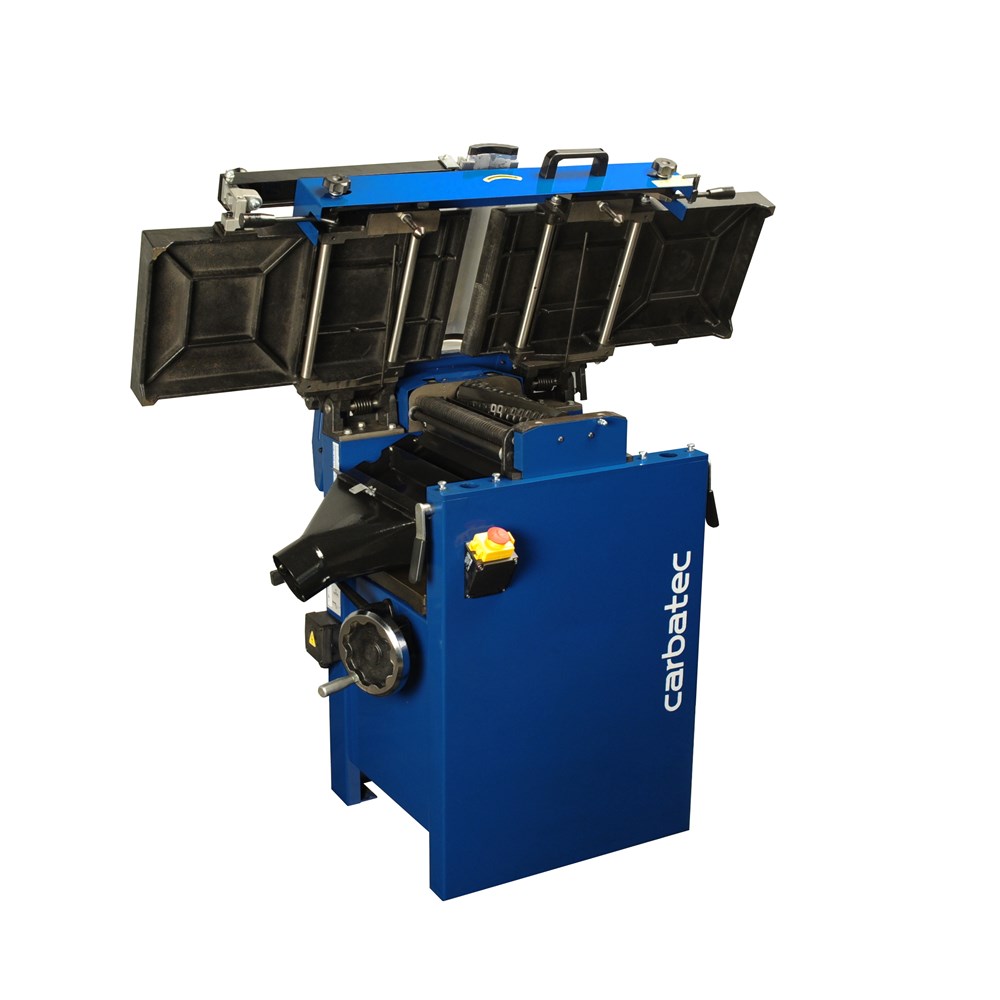

Where space is an issue, these combination machines come into thier own.  They have a compact footprint, but have the same build quality as dedicated stand alone machinery.  Featuring a single lift top, this machine differs from many others as no partial dissasemby, fence removal etc, are required to change from one mode, to the other. Unlock - Lift - Flip and Go!  The top also lift up from the front, so access to the rear of the machine is not required (another important point in a compact workshop).

Weight: 245 kg
Base: 545 x 485
Footprint: 1300 L x 800 W x 1000 H
  • 300mm wide Jointing and thicknessing capacity
  • 230mm deep thicknessing capacity
  • True Helical Cutterhead for cleaner cuts and smoother finish
  • One piece flip up top for quick changes from Jointer to Thicknesser modes

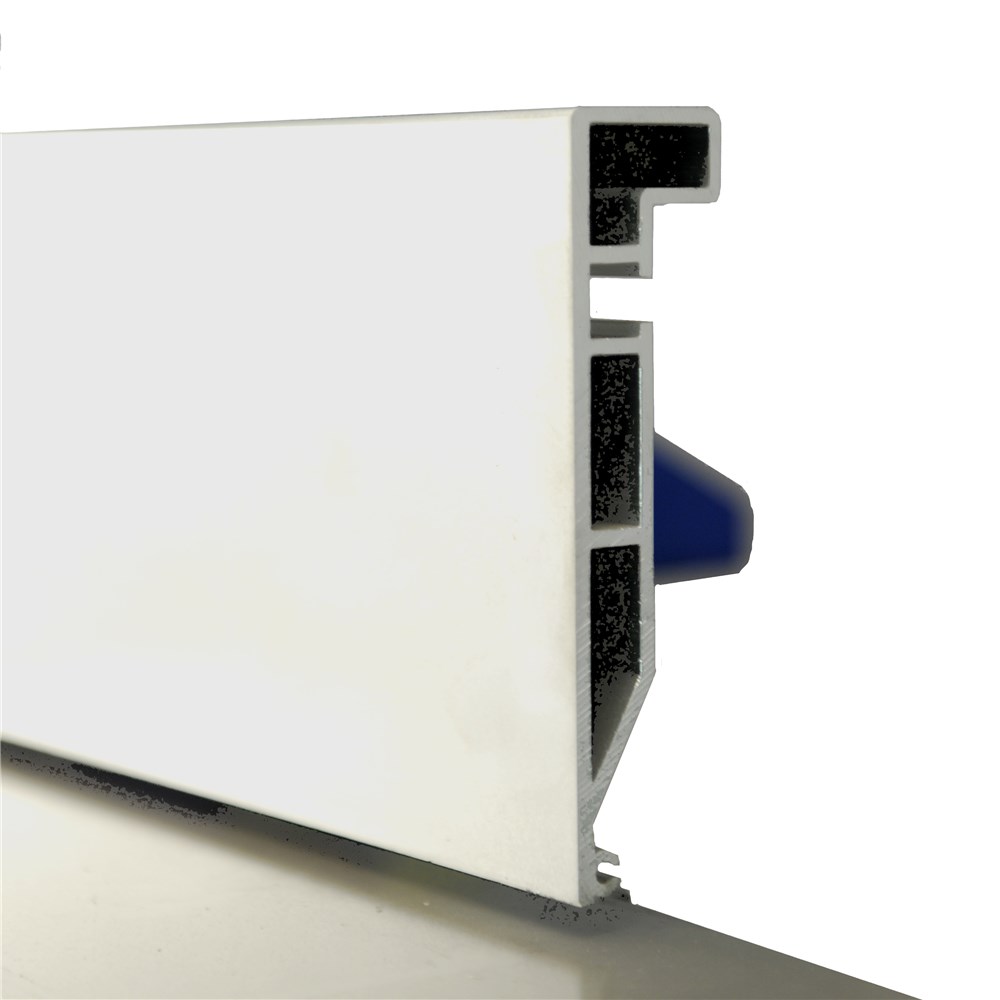

  • Adjustable aluminium tilting jointer fence
  • Electrically interlocaked & intrusion limited dust guard for safety
  • Standard NVR switchgear
  • Machine ground cast iron components
  • Euro Bridge Guard on jointer
  • Rear fence cutterhead guarding
  • Locakable thicknesser table
  • Digital readout on in thicknesser mode.
  • Serrated infeed / rubber out feed rollers
  • Full width anti-kickback pawls.
Brand Carbatec
Warranty 3 Years
Motor 2.2kW (3.0HP) Induction, 15A plug
Switch Type Magnetic Switch NVR
Blade Guard Bridge Guard
Cutterhead Helical
Dust Port 100mm (4")
Fence Tilt 0° / 45° (adjustable)
Maximum Cutting Width 300mm
Maximum Depth Of Cut 3mm
Length Jointer Bed: 1295mm Thicknesser Bed: 545mm
Workshop Footprint (WxDxH) 800mm wide x 1300mm long x 1000mm high
Base size 545mm x 485mm
Planing Depth 230mm Max
Weight 245kg
