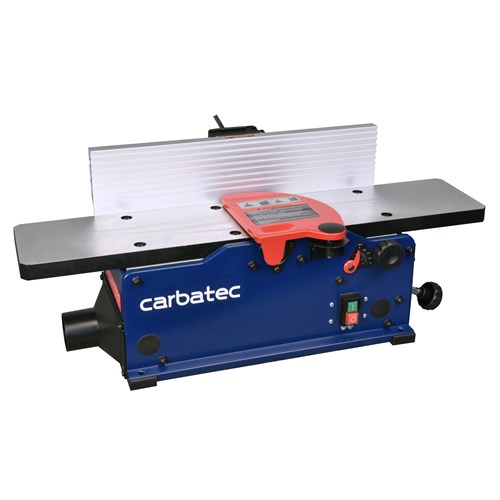

Carbatec 150mm Spiral Head Benchtop Jointer

Product Code: JN-BX150P

$559.20 inc GST
RRP $699.00
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Inclusions
  • Specifications
  • Video & Downloads
  • 150mm wide jointing/planing capacity
  • 1200W Motor
  • 10000rpm high spin rate
  • 6 row spiral cutterhead
  • 12x HSS Insert cutters (optional carbide available)
  • 2-1/2" dust chute
  • NVR Safety Switch
  • 2Yr warranty
  • Infeed table is 364mm long and outfeed is 365mm long

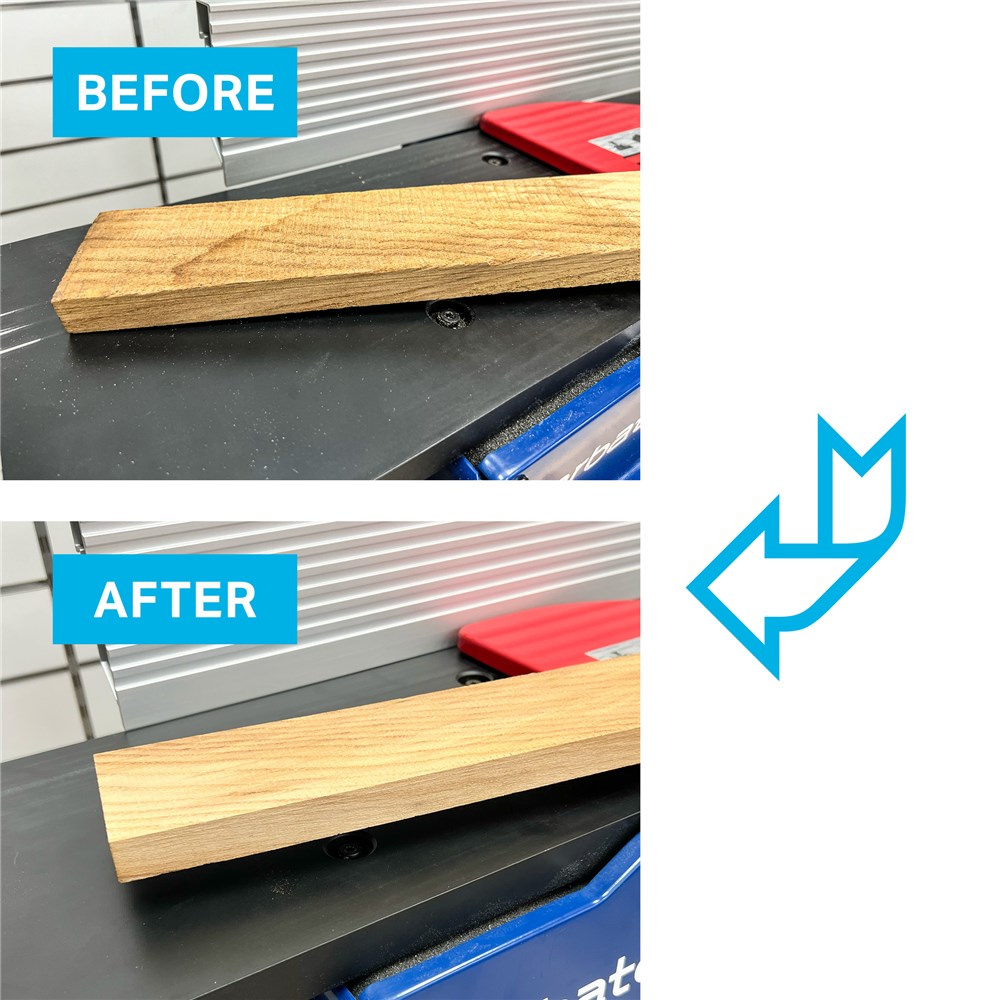

A generously sized machined alloy table and tilting fence that's designed for lighter duty applications - this jointer provides ample power. Factory fitted with a spiral cutterhead, its 12x HSS cutter inserts have two sharp cutting edges, which can be rotated and then easily replaced when required.  Spinning at 10000rpm, the six row cutterhead leaves a fine finish even on cranky grain.  Cutters may also be upgraded to the precision edge and harder wearing carbide inserts.

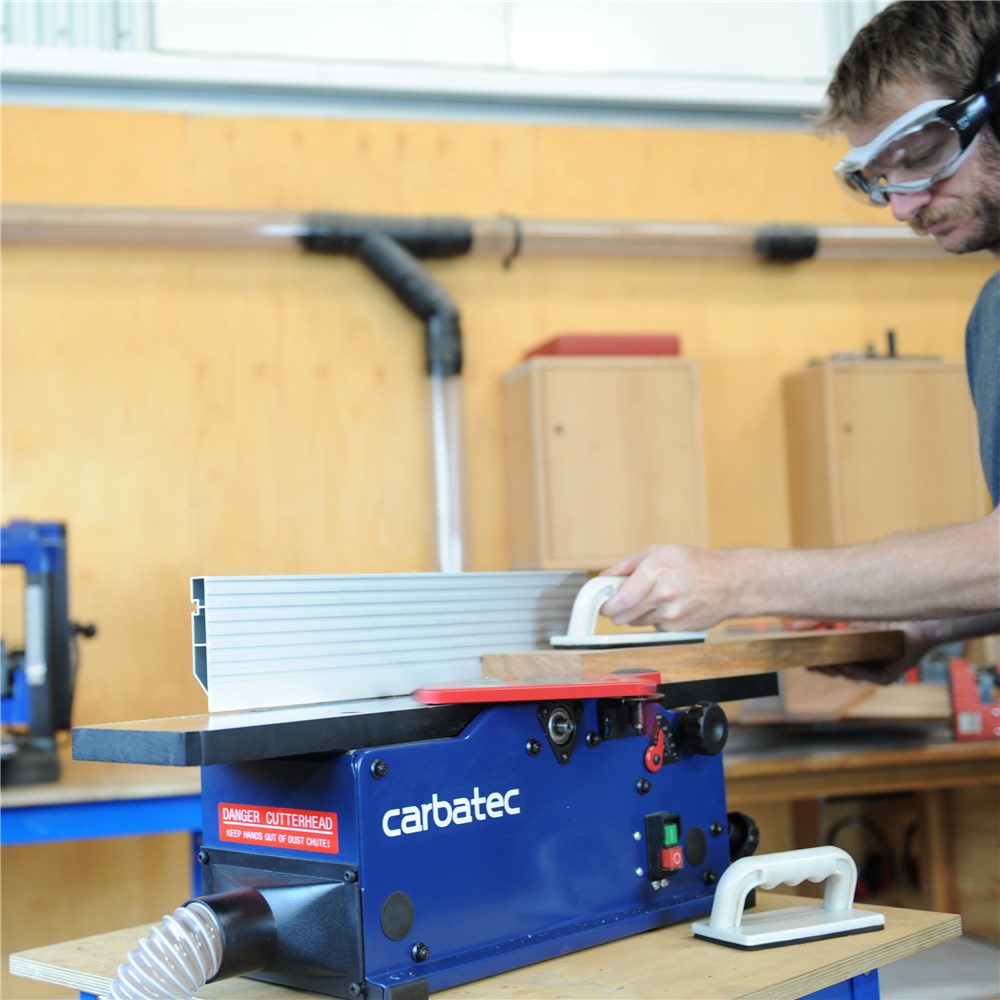

Perfect for the small workshop or for the professional or hobbyist who needs a small machine for smaller jobs.  A well positioned 2-1/2" dust chute ensures effective dust extraction - This machine must be connected to a dust collector or shop vac.  Pivoting cutterhead gaurd, NVR safety switch and the included two pushblocks will help to keep you safe.  The infeed and outfeed tables are factory set but are fully adjustable for important coplaner alignment.  This is a feature normally found on our larger full size cast iron machinery.

Lightweight, portable and a stong performer. The optional stand (PS-330) is perfect for this machine so it can be added as a more permanent solution to your workshop.

Spiral vs Helical - Confusion abounds:
Because the two terms are used in different ways (and interchanged at time) here is our Carbatec definition.
Helical (or true helical) Cutterheads feature rows of cutters that are wrapped around the cutterhead in a very definite helix shaped row.  The cutters or inserts are set at an angle to your workpiece, which gives them a very clean shear cutting action.  The cutters will have a slight radius cutting edge, to help eliminate lines in your work and increase this shear action.
Spiral Cutterheads on the other hand, generally feature blades arranged around the cutterhead, perpendicular to the workpiece (not angled), configured so as the cutterhead spins, the next cutter along will be in contact the work.  As this repeats, the cutting action happen in a spiral path.
The difference?  Many reviews around the world say that with smaller portable machines, Spiral offers very little difference in cut for the added cost of Helical.  With larger cast iron workshop machinery, True Helical cutterheads reign supreme.  Thats why Carbatec only offer you the very best option.

  • Dust Chute
  • Manual
  • Tools
  • Tilting Fence

Brand Carbatec
Warranty 2 Years
Motor 1100W (1-1/2 HP) Universal - Regular 10A Plug
Switch Type Magnetic Switch NVR
Blade Guard Pivoting
Cutterhead Spiral - 12 HSS cutters
Max Material Width 150mm
Dust Port/s 2-1/2"
Fence Tilt 0° / 45° (adjustable)
Fence Tilt 0° / 45° (adjustable)
Rabbeting Capacity n/a
Speed 10,000rpm
Stand Included Or Integral Optional
Workshop Footprint (WxDxH) 760 x 460 x 330 mm
Shipping Weight 19kg
