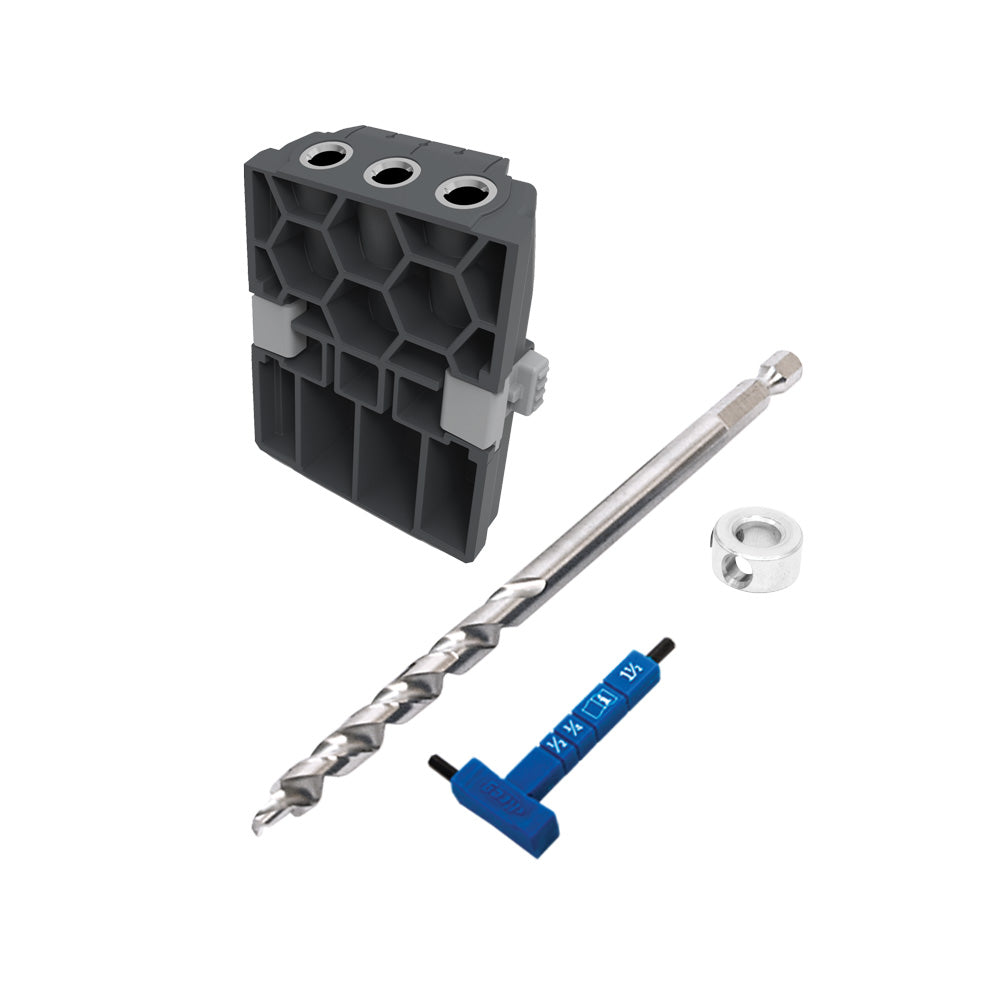

Kreg Micro-Pocket™ Drill Guide Kit 730

Product Code: KR-KPHA730

Tags Kreg
$104 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Specifications
  • Video & Downloads
  • Great for smaller projects, thinner stock, and repair applications
  • Drill pocket holes that are 25% smaller in diameter
  • Works with 1/2" (13mm) stock and narrow stock, down to 1" (25mm) wide
  • Compatible with the Kreg Pocket-Hole Jig 720 and 720PRO
  • For use with Kreg Pan-Head Pocket-Hole Screws (SPS)
Use your 700-Series Pocket-Hole Jig to create compact pocket holes
This unique Micro-Pocket™ Drill Guide Kit creates a 25% smaller pocket hole that works great for smaller projects, thinner stock, and tighter repairs.

Micro-Pocket™ holes work great in virtually every application where you’d use standard pocket holes, and are especially good for 1/2" (12mm) thick material and narrow stock, down to 1" (25mm) wide. Because the bit removes less material, drill strokes are faster and easier.

Just insert the Micro-Pocket™ Drill Guide block into your Pocket-Hole Jig 720 or 720PRO, then use the Micro-Pocket™ drill bit to create the compact pocket holes.

For use with 700-Series Pocket-Hole Jigs. Compatible with Kreg® pan-head pocket-hole screws

  • Kreg Pocket-Hole Jig 720PRO
  • Kreg Pocket-Hole Jig 720
  • Kreg Micro-Pocket™ Drill Bit with Stop Collar & Hex Wrench

Important notes on working with Kreg Micro-Pocket Drill Guide:

Due to material variations (in particular metric vs imperial sheet goods) it is advisable to double-check all jig settings, stop collar position and screw length selection PRIOR to drilling into your workpiece.  Use scrap pieces of the same material and perform test joins to verify a satisfactory Kreg Pocket-Hole join.  Manual adjustments can then be made to ensure the drill point does not break through the bottom of the pocket-hole, and that the tip of the screw does not break out through your workpiece.  This check is an important step when joining ½” to ½” or thinner material, where the margin for error is very small.  Remember that you have three adjustments that can be made to get the perfect Kreg Pocket-Hole joint:

1.       Drill bit stop collar position

2.       Jig position on the workpiece (which may require thin packing material behind workpiece)

3.       Screw length

Brand Kreg
