Kreg Precision Router Lift

Product Code: KR-PRS5000

$499 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Tags Kreg
Download PDF
  • Features
  • Details
  • Specifications
  • Video & Downloads
  • Allows precise above-the-table setup changes for table-mounted routers
  • Above-table collet access allows fast, easy, above-table bit changes
  • 9.5mm thick hard anodised aluminium plate won’t sag and resists scratches
  • Designed to fits all Kreg® router tables, but is compatible with many other brand tables (with a 297 x 235mm opening)
  • Sturdy two-post design with bearing-guided carriage provides smooth operation
  • Precision indexing ring with micro-adjust scale simplifies bit height changes
  • Precise adjustment without backlash ensures accuracy

Take control of your table-mounted router for quick, accurate, reliable, and repeatable setups

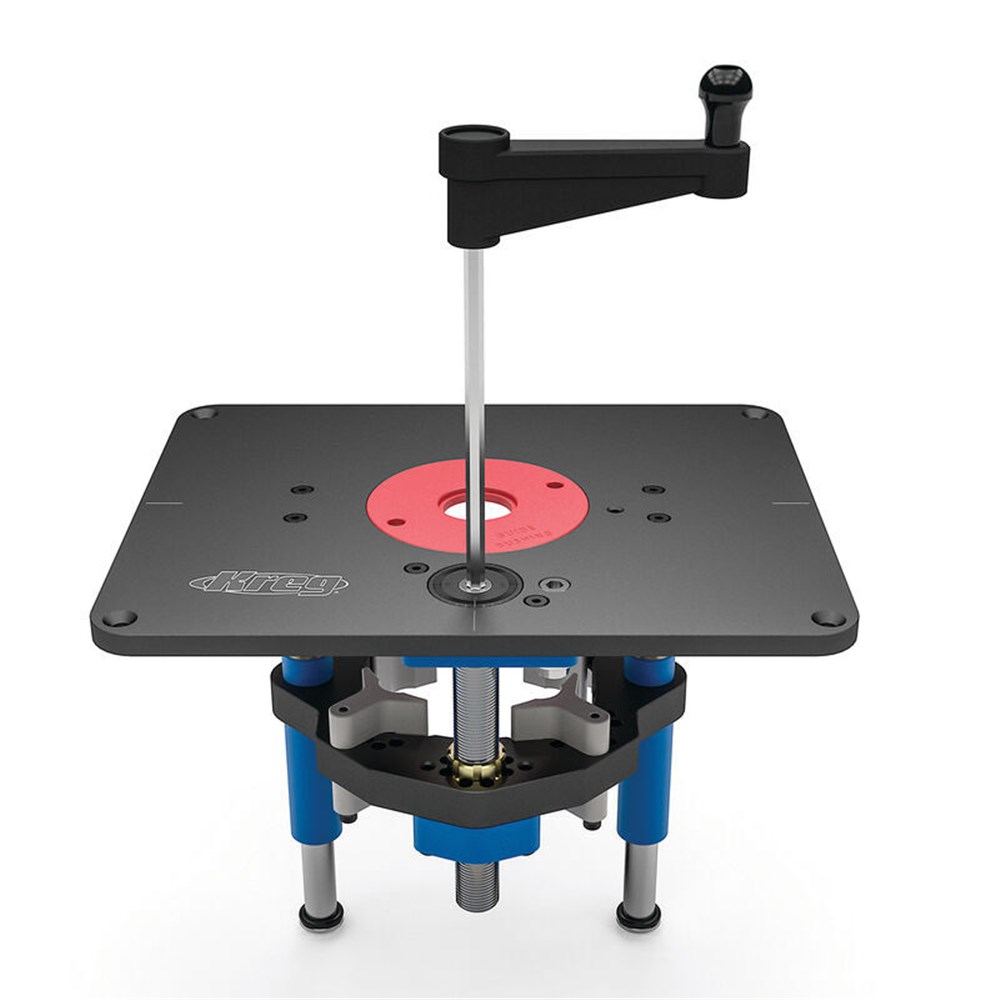

The Kreg® Precision Router Lift helps you elevate your routing capabilities by providing precise control when making router setup changes or changing bits. The lift replaces the standard insert plate in a router table and accepts many barrel type or fixed base router or power units — without the need for adapters or modifications — in a high-performance carriage that you raise, lower and lock, from above the table.

Designed and pre-set to work perfectly with the Carbatec RT-RPU2400 24000W Router Power Unit.

  • Allows precise above-the-table setup changes for table-mounted routers
  • Above-table collet access allows fast, easy, above-table bit changes
  • 9.5mm thick hard anodised aluminium plate won’t sag and resists scratches
  • Designed to fit all Kreg® router tables, but is compatible with many other brand tables (with a 297 x 235mm opening)
  • Sturdy two-post design with bearing-guided carriage provides smooth operation
  • Precision indexing ring with micro-adjust scale simplifies bit height changes
  • Precise adjustment without backlash ensures accuracy

IMPORTANT NOTES:

While this unit drops perfectly into our Carbatec tables, it should be noted that the retention system for the lift itself is somewhat different.  Our router lift is held in the table by two screws positioned in the centre of the short side, where the Kreg unit is designed to be held in the table with 4 screws, one in each corner.  The work around will be pretty simple, only requiring

A/ Drill a countersunk hole to match the Carbatec retaining screw location..
or
B/ a small block or plate underneath the lift, to hold it down.

Of course if you're fitting it into a Kreg table...Drop/Lock 'n GO!

Brand Kreg
