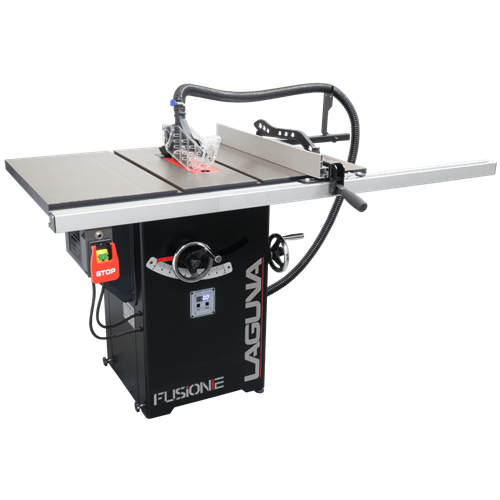

Laguna 2020 Fusion 2 F2 Table Saw

Product Code: LGT-FUSION2

$2749 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Quantity In Cart:


Tags Laguna
Download PDF
  • Features
  • Details
  • Specifications
  • Laguna F2 (Fusion 2) Table Saw
  • Motor 1.75HP (standard 10amp plug)
  • 36" Extruded Alloy Rails with Hi/Lo T-Style Fence Standard
  • 254mm (10") Blade Diameter
  • Zero Clearance Insert standard
  • In-Built Mobility/Wheels included
  • 40 Tooth TCT Combination Blade included
  • Dado Compatible (to 3/4")
  • See DETAILS or SPECIFICATIONS tabs for more information

Fusion2 Tablesaw

A classic US style cabinet mounted table saw which will not only impress, but exceed your expectations.

The first thing that will catch your eye is the large precision ground mirror finished tabletop which allows excellent work piece support.

The classic 'T Style' rip fence, is exceptionally smooth moving and rock solid when locked, a pleasure to use with an easy cam lock handle and will guarantee accurate cuts. The Hi-Lo fence design allows narrow cuts even in thin material, while the measuring scale is marked in both metric and inches for convenience.

The substantial professional 'zero clearance' throat plate is suitable for all blade angles and is supplied as standard. It has fine adjustment grub screws to precisely line up to the table surface and is also easy to remove.

The cast polished hand wheels control the arbor, so that the rise, fall and tilt give a lovely buttery smooth blade movement, courtesy of a 2:1 ratio gear box.

The heart of the saw is the powerful motor which is mounted onto the powder coated one-piece cabinet base via solid cast aluminium trunnions. This mounting method ensures the table top is left unstressed by the motor weight and ensures a perfectly flat working surface.

Dust extraction is a crucial part of any machine for operator safety and machine longevity. A crown guard hose in conjunction with the interior blade shroud are collected from a single side port.

The standard equipment also includes: A wheel kit integrated within the base, on-board storage points for all the accessories, mitre fence that is hyper accurate when travelling in the T slots, 40 tooth TCT sawblade, quick release riving knife with anti-kickback pawls as well as a separate low profile riving knife and a 1.8m power cable.






F2-European-HighLow-Fence

Fusion-Onboard-Tool-Storage

Brand Laguna
Warranty 2 Years
Motor 1300w (1.75hp) 10 amp Motor
Blade Diameter 254mm (10")
Arbor Diameter 15.875mm (5/8")
Blade Tilt 0-45° Left, 3° Right
Dado Capable Yes to 3/4" (19mm)
Dust Port/s 1 x 100mm (4")
Gross Weight 200kg
Insert Zero Clearance
Maximum Rip Capacity 910mm (36") Right, 430mm (17") Left
Workshop Footprint (WxDxH) 1663mm x 1652mm x 1081mm
Fence Style Hi / Lo (80mm / 10mm)
Shipping 1225 x 760 x 1090 mm
Nett Weight 165kg
Mitre Track 2x 19.05mm x 9.5mm (3/4" x 3/8")
Working Height 887mm (35")
