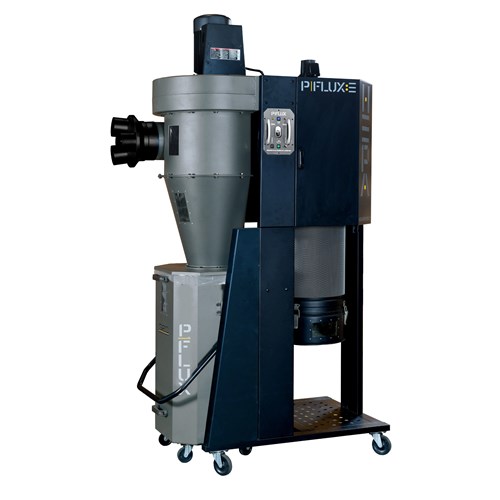

Laguna P-Flux 3 Series Cyclone Dust Extractor

Product Code: LGT-PFLUX3B

$5699 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Tags Laguna
Download PDF
  • Features
  • Details
  • Specifications
  • Laguna P-Flux Series Cylcone Dust Extractor
  • Quiet operation - 76dB @ 3m
  • Huge 174L dust collection capacity
  • 3HP Motor (1phase, 15 amp)
  • 1624CFM and max. 11.2"H2O Static Pressure
  • Remote control operated on/off
  • HEPA rated Pleated Filter Canister filters 100% of 1 micron particles
  • Also filters 94% of particles down to 0.4 micron
  • Standard Auto filter cleaning system
  • Illuminated drum and drum waste level indicator
  • Noise reducing acoustic shroud panels standard
  • Unit is on castors for easy maneuverability
  • Drum features easy lift and seal mechanism
  • See "DETAILS" tab for more information...

The Laguna P Flux cyclone series is one of the most radical designs to ever hit the market. HEPA class canister filtration and many unique innovative features, make these high-end cyclones the market leaders. A perfect choice for those looking to minimise workshop dust to the very lowest level.

All Laguna cyclones have:

  • Remote start & stop
  • Riveted steel fan with backward curved fin design
  • Smart lift collection drum
  • Inlet with splitter and rubber blanking cap
  • Portability with 4 swivel castors

    P Flux series innovative features:
  • Auto clean cartridge fliter
  • HEPA Filtration down to >99% @ 0.4micron
  • LED warning light when collection drum is full
  • LED warning light when HEPA filter needs cleaning
  • Illuminated drum to check dust level
  • Swing away doors with acoustic foam to lower the noise level
The octagonal collection drum is mounted on a set of castors. When locking the collection drum into position, using the quick action lever. Smart features mean faster drum emptying compared to the traditional weighted bag method.

A 100mm (4”) hose port is located on the end of the HEPA filter to allow automated emptying of the very fine dust collected in the chamber. Connect the other end of the hose to the main inlet and run the cyclone which moves the fine dust into the collection drum.

When it comes to measuring airflow, there are many ways to do it. Laguna quote the traditional method, for comparison against other brands, as well as a more realistic method which gives a 'real world' result.

Supplied with remote control, 1 collection bag for main drum and a1.8m power cable.

NOTE:  This industrial machine requires a licensed electrician to complete the final assembly & electrical connections.

Brand Laguna
Warranty 2 Years
Motor 2200w (3.0hp) 15amp
Noise Sound Level 76 dB(A) @ 3m
Dust Extraction Connection Diameter 1 x 200mm or 3 x 100mm (1 x 8" or 3 x 4")
Maximum Airflow 1624CFM
Maximum Airflow Pressure 285mm in water (11.2"/H2O)
Drum Capacity 174L
Filer Cleaning Auto Cleaning System
Filter Rating HEPA (0.4 Micron at 99.2%) - MERV Rating 16+
