Magswitch Universal Saw Indicator Metric

Product Code: MAG-1326

$189 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Specifications
  • Magswitch Universal Saw Indicator Setup Tool
  • Works with Mitre Gauges for easy measurement of table and blade alignment.
  • Allows for micro adjustment of the table saw fence in any position.
  • Fast actuation of 2 magnets with a linked push pin.
  • Compatible with a wide variety of table saw makes and models.
  • Metric Gauge Model!
While factory blade and/or fence settings on your tablesaw are often good, they are not necessarily perfect. This can be the cause of much frustration with slight innacuracies in your resulting work. Aside from your first setup of a new tool, your machine will also require periodic setup adjustments due to movement caused by use and other environmental factors.

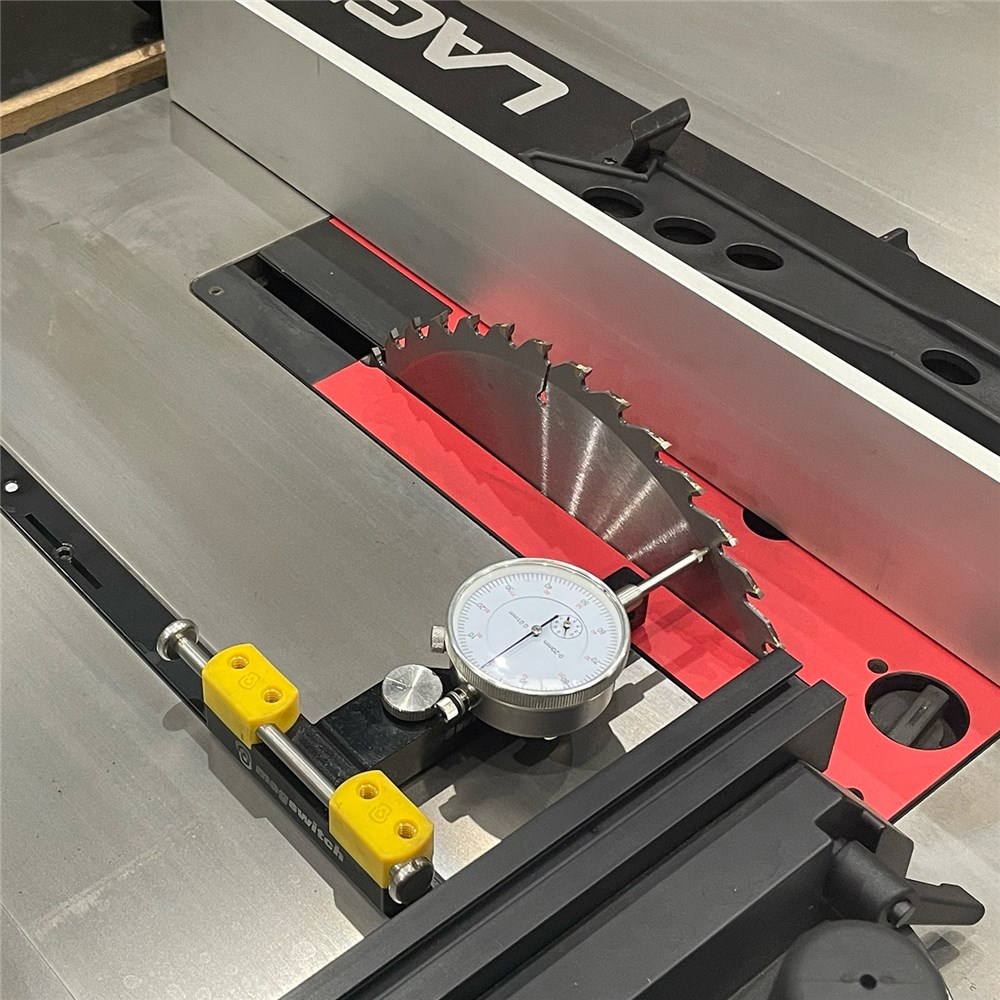

The Magswitch Universal Saw Indicator is used to measure alignment of the table saw blade relative to the table (the miter slot) to allow for fine adjustment of blade parallelism in your setup. When adjusting fence spacing relative to the blade, it can also be used to measure very small changes in fence parallelism.

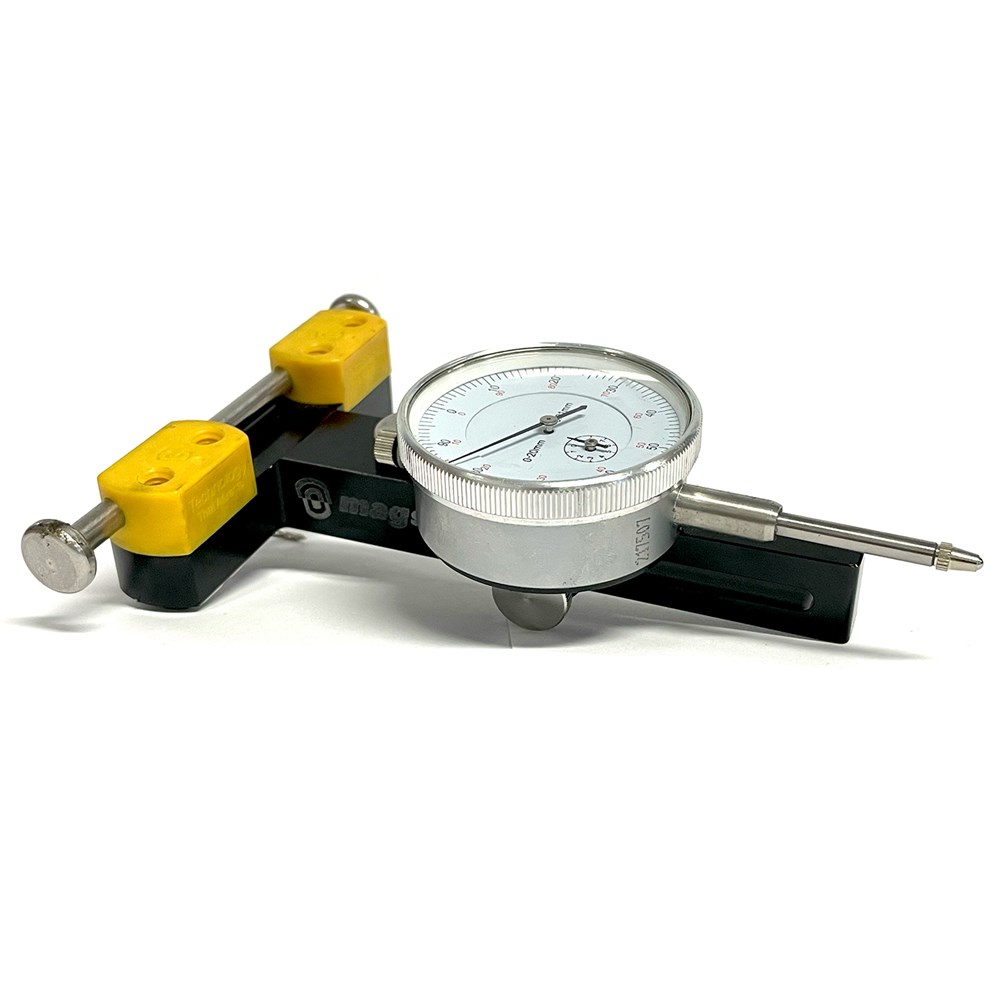

Attach it to steel Mitre fences (which ride in the miter slot) or to ferrous table saw tables via a push-button style on/off magnetic switch. The metric dial indicator is attached via an adjustable slot, allowing it to slide to fit a wide variety of miter slot-to-blade spacings.

A very accurate and useful setup tool.

  • Nominal Max Breakaway Force: 120 lbs/ 54 kg
  • Nominal Maximum Shear: 18 lbs / 8.1 kg
  • Net Weight: 1.2 lbs / 0.55 kg
  • Footprint: 4.9″ x 5.9″/ 125 mm long x 150 wide
Brand Magswitch
