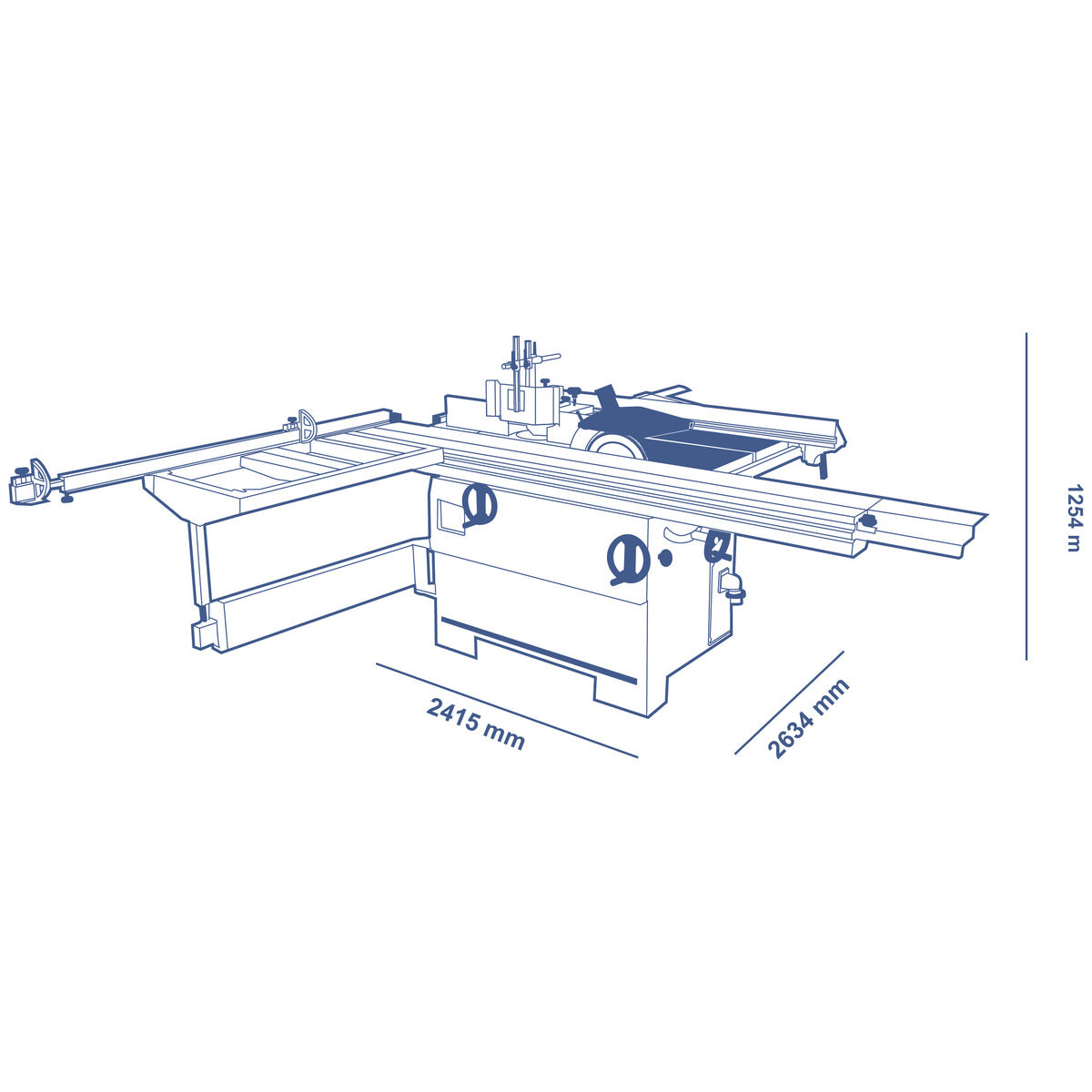

SCM Minimax Classic CU300C26X Combination Machine - Single Phase

Product Code: SCM-CU300C26X1

SPECIAL ORDER NOTE : All SCM Machinery & accessories are held in the supplier warehouse.

Please contact us on 1800 658 111 to confirm local availability and approximate delivery times.

LIMITED STOCK AT THIS PRICE - CONTACT US TODAY


$19066.30 inc GST
RRP $21,849.00
In Stock Low Stock Out Of Stock Please See Attributes
NOTE: Special Order products showing as Out Of Stock are usually held in our suppliers warehouse.

Please note that local supplier orders can take 7 - 14 days to arrive in our stores. Order here, or please call 1800 658 111 to discuss your needs and if you wish to confirm expected delivery times.
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Specifications
  • Sliding table saw with a scorer
  • Quality extendable guide rails system with flip stops
  • Euro type ripping fence
  • Spindle moulder with three speeds
  • 300mm wide Jointer with oversized fence
  • 300mm Thicknesser
  • Three independent motors, one for each operating group

Woodworking excellence with the minimax CU300 Classic. This professional combination machine offers accuracy, reliability, and user-friendly operation. As a genuine European combination machine, it boasts a range of impressive features, including a sliding table saw with a scorer, a spindle moulder with three speeds, a 300mm wide surfacer with an oversized working fence, and a 300mm thicknesser. With three independent motors, one for each operating group, this machine provides optimal power and performance.



Performance without limits:
Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.

Professional and very sturdy:
The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.

Optimal planing:
The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives. For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

Exceptional accessibility:
Thicknessing is more comfortable: during the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine, with a 90° angle, and simultaneously. Work pieces with a maximum height of 230 mm can be machined to the thicknesser. The new design of the dust conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.
Brand SCM
Motor 2400W (3HP) (x3) 230V 15 Amp
Blade Diameter 12" (315mm)
Blade Tilt 90-45deg
Cut Dimensions (crosscut) 2600mm stroke on Sliding Table
Cut Dimensions (rip) 820mm against Rip Fence
Cutterhead SCM 'Xylent' Helical Cutterhead System
Depth of Cut 100mm at 90°, 78mm at 45°
Depth of Cut 4mm (Thicknesser / Jointer)
Min Material Thickness 3mm (Thicknesser / Jointer)
Max Material Width 300mm (Thicknesser / Jointer)
Dust Port/s 120mm
Max Board Thickness 230mm (Thicknesser)
Thicknesser Mode - Feed Rate 7m/min
