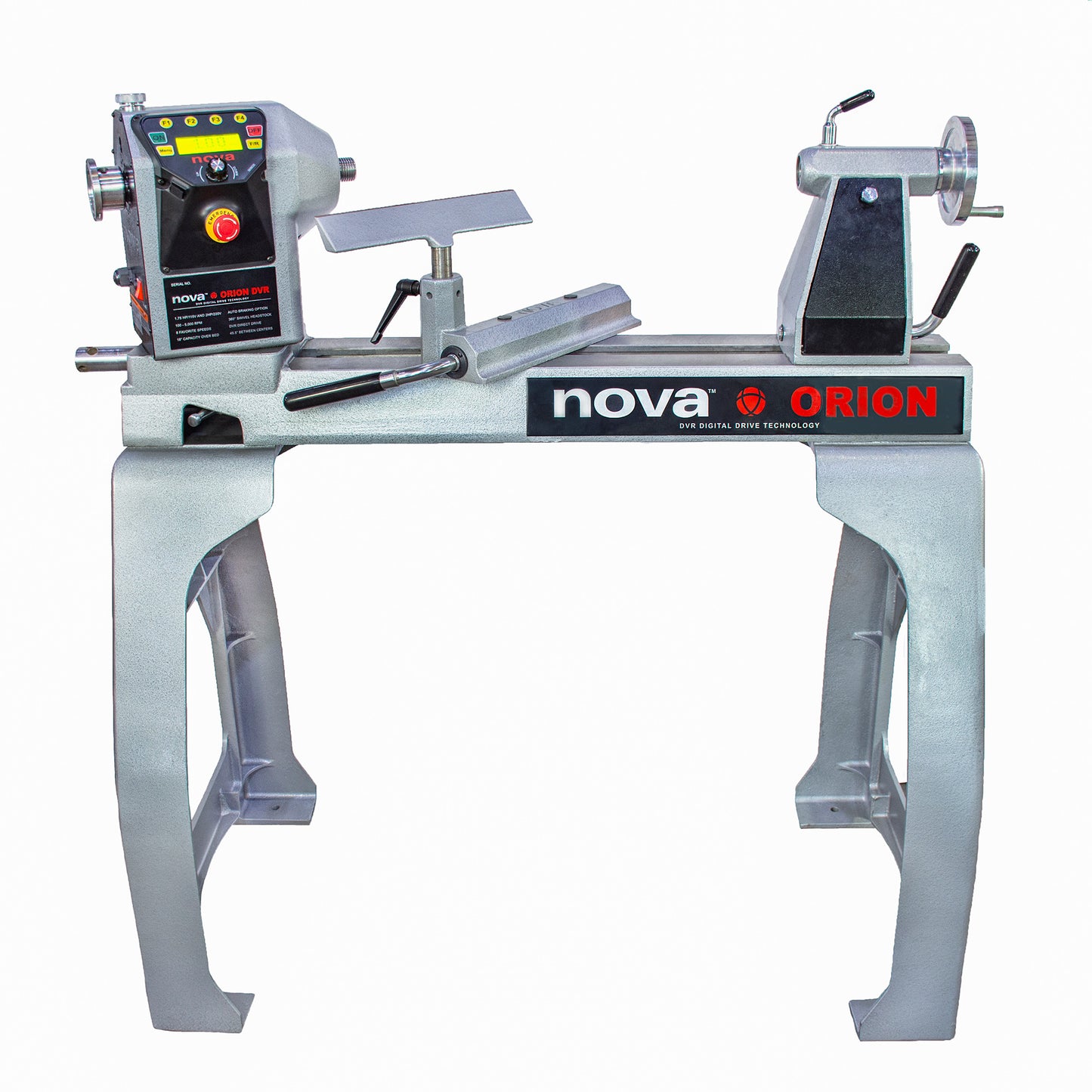

Nova Orion 18" x 22" DVR Lathe

Product Code: TK-ORION

$4199 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Inclusions
  • Specifications
  • 2HP DVR - Power to Turn and Burn - More power/torque than any competitive 18″ lathe
  • Incredible Variable Speed Range – 100 RPM – 5,000 RPM
  • 8 Favorite Speed Settings
  • Electronic Auto Braking
  • Self-Ejecting 2MT Hollow Tailstock

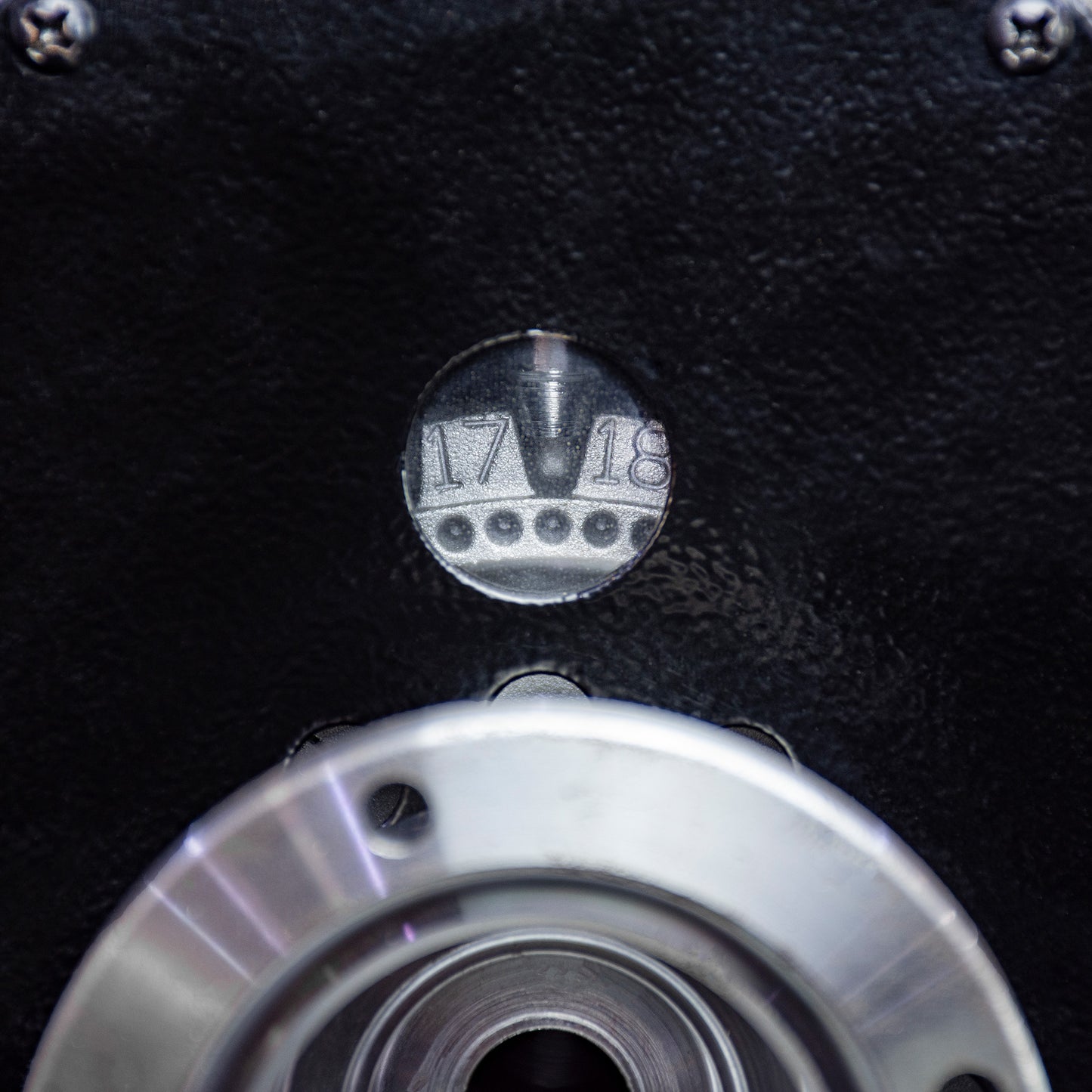

  • 24 Position Indexing
  • Speed Selection Chart
  • Speed Ramp Profiles
  • Idle Motor Detection
  • Upgradeable Firmware
  • 2 x Emergency Stops (one moveable magnetic, one fixed)
  • Vibration Sensing Safety Technology
  • Maximum Torque at Low RPMs
  • 360° Swivel Headstock with pre-set indents at 0°, 22.5°, 45°, and 90°
  • Solid Bed Structure with CAD designed webbing to absorb vibration throughout the bed length, providing exceptional structural strength

This lathe combines the best features of larger lathes – power, capacity and capability with state-of-the-art technology to make your turning more efficient, fun and safer.

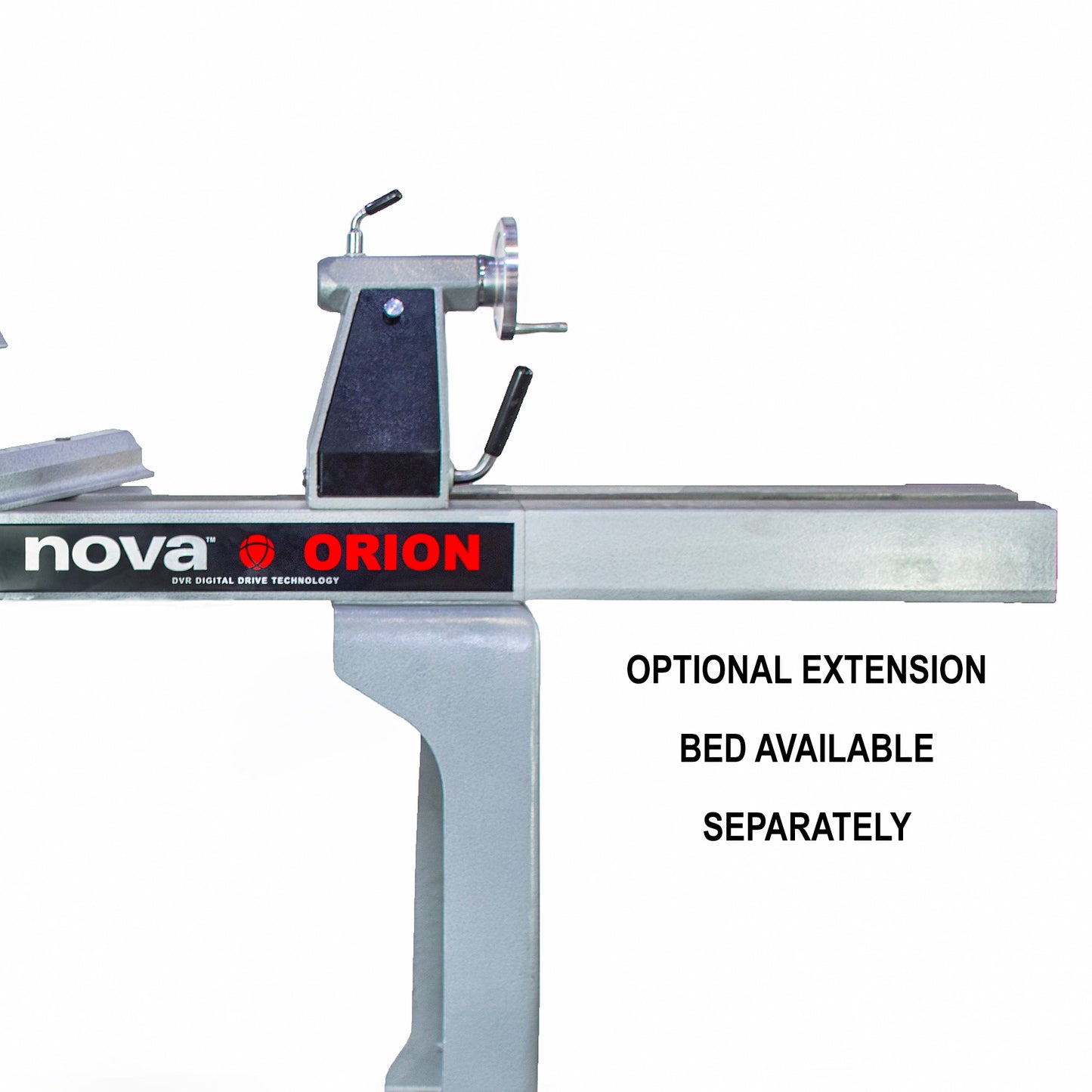

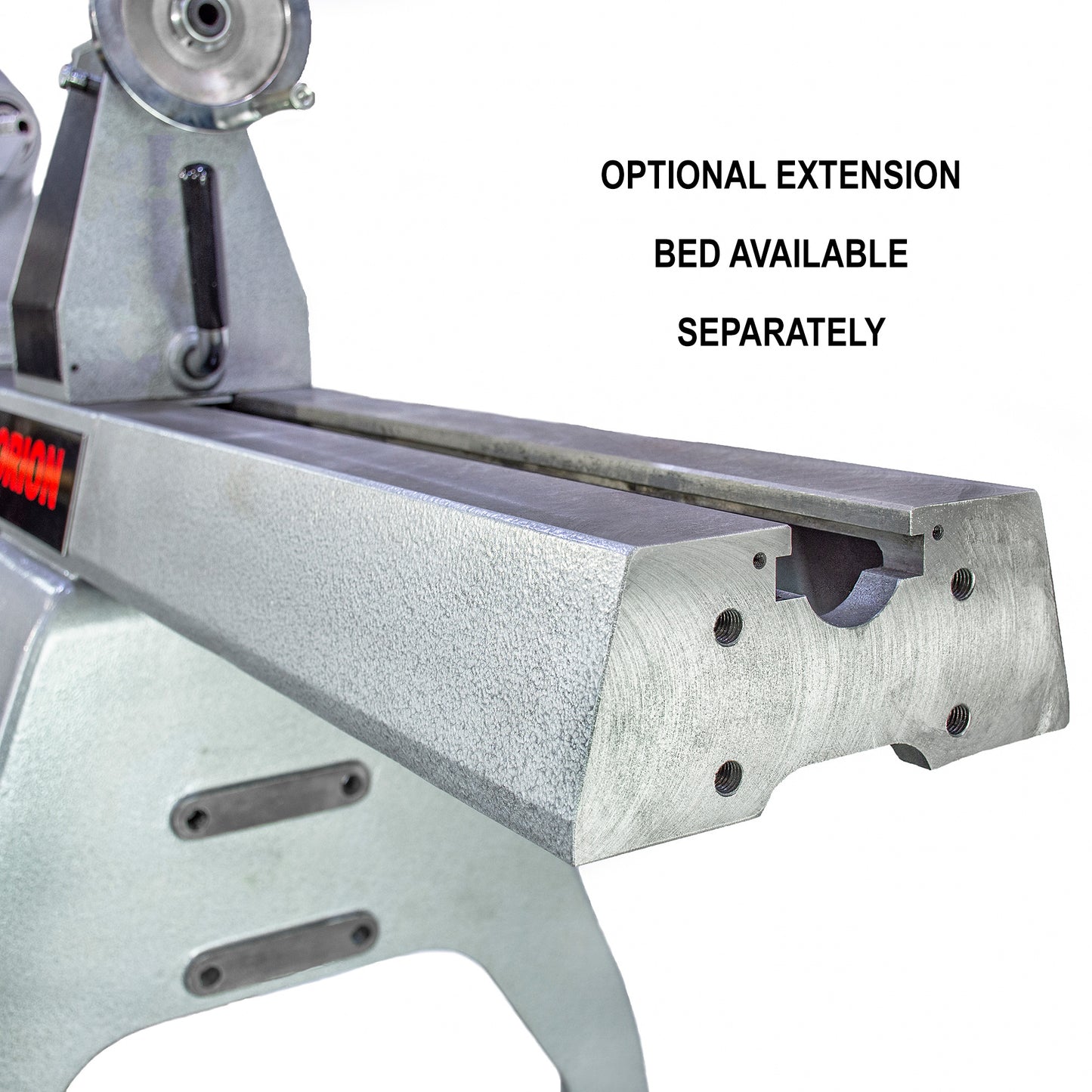

Great for those who need all the workshop space they can get, the Orion features a deep 18" (457mm) over-the-bed swing and a compact 22.75" (578mm) between centres. This lathe is perfect for the avid bowl turner, yet can be expanded with bed extensions (available separately) for longer spindle turning if ever required.

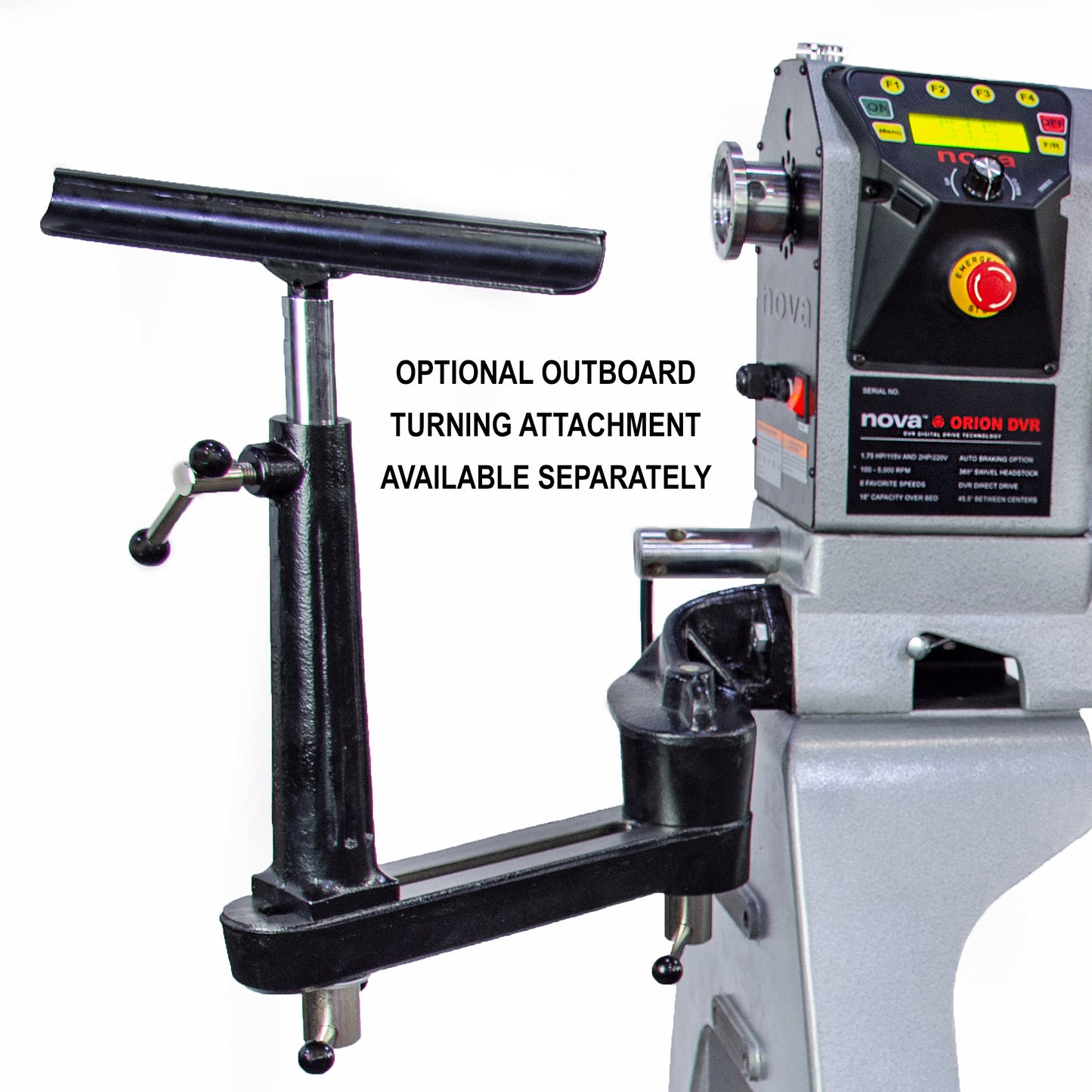

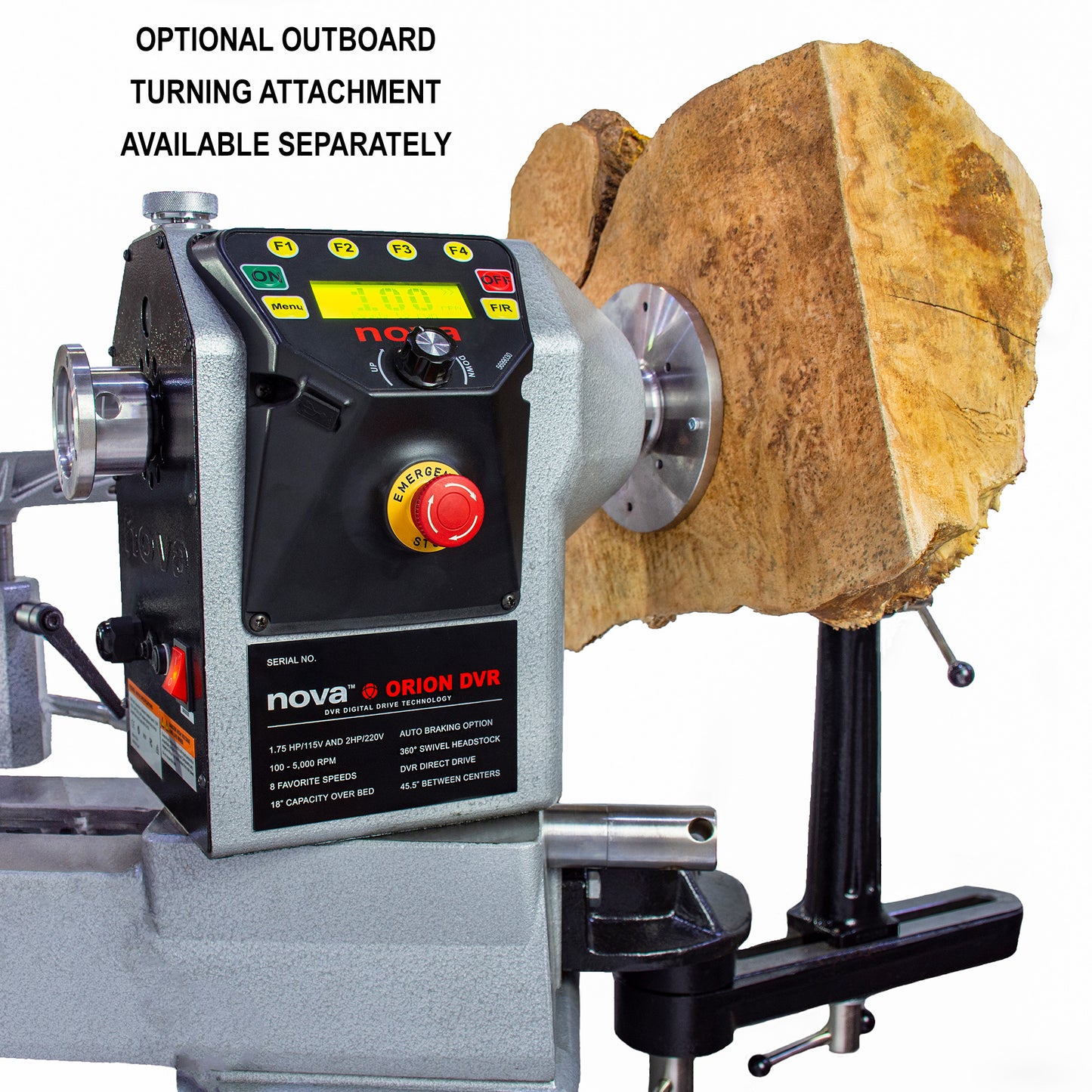

The swivel head can combine with the articulated Outrigger Accessory (available separately), giving an enormous large bowl capacity of 29” (736mm). With no pulleys or belts to vibrate, the Award-Winning DVR Direct Drive Motor is incredibly smooth and delivers intelligent control to your turning experience.

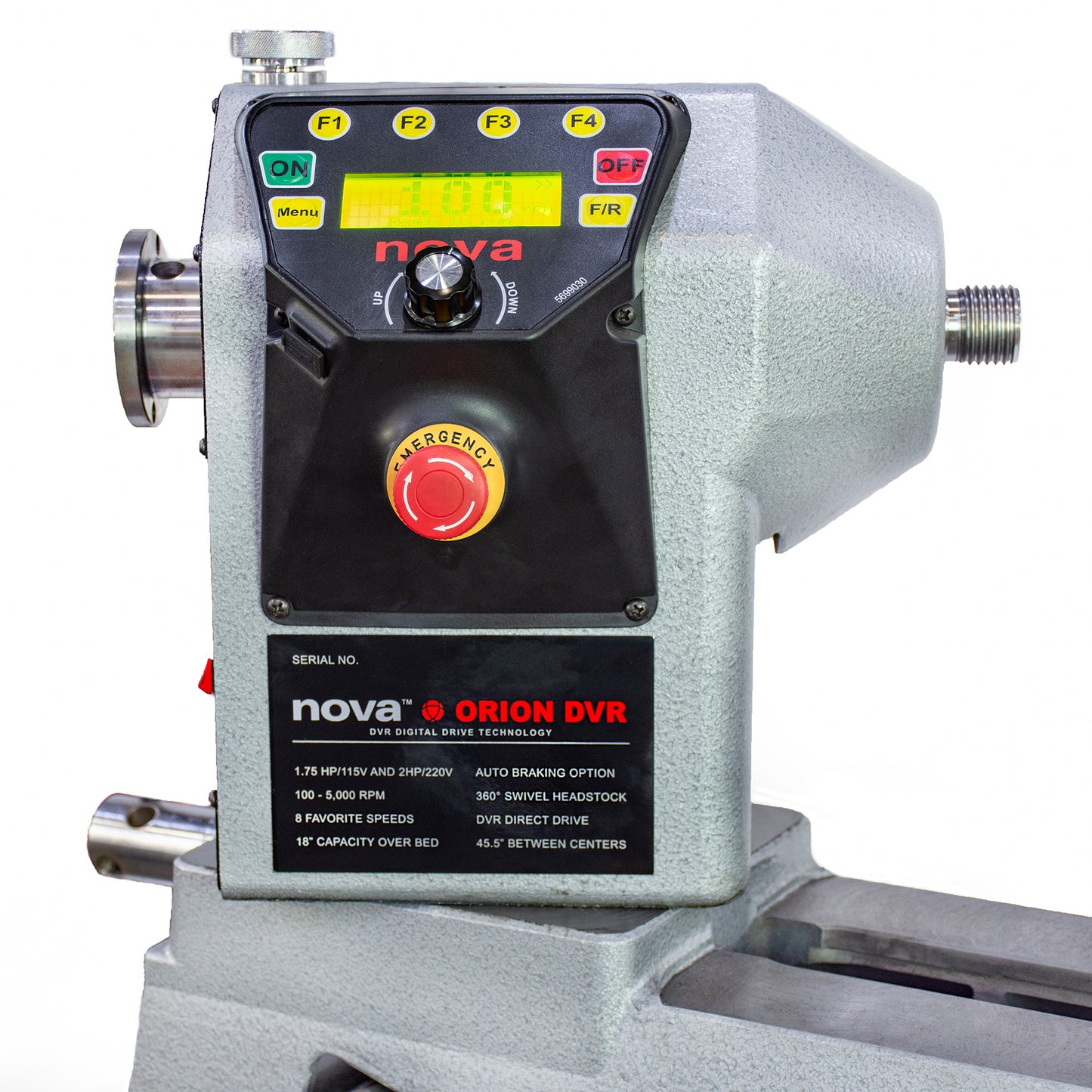

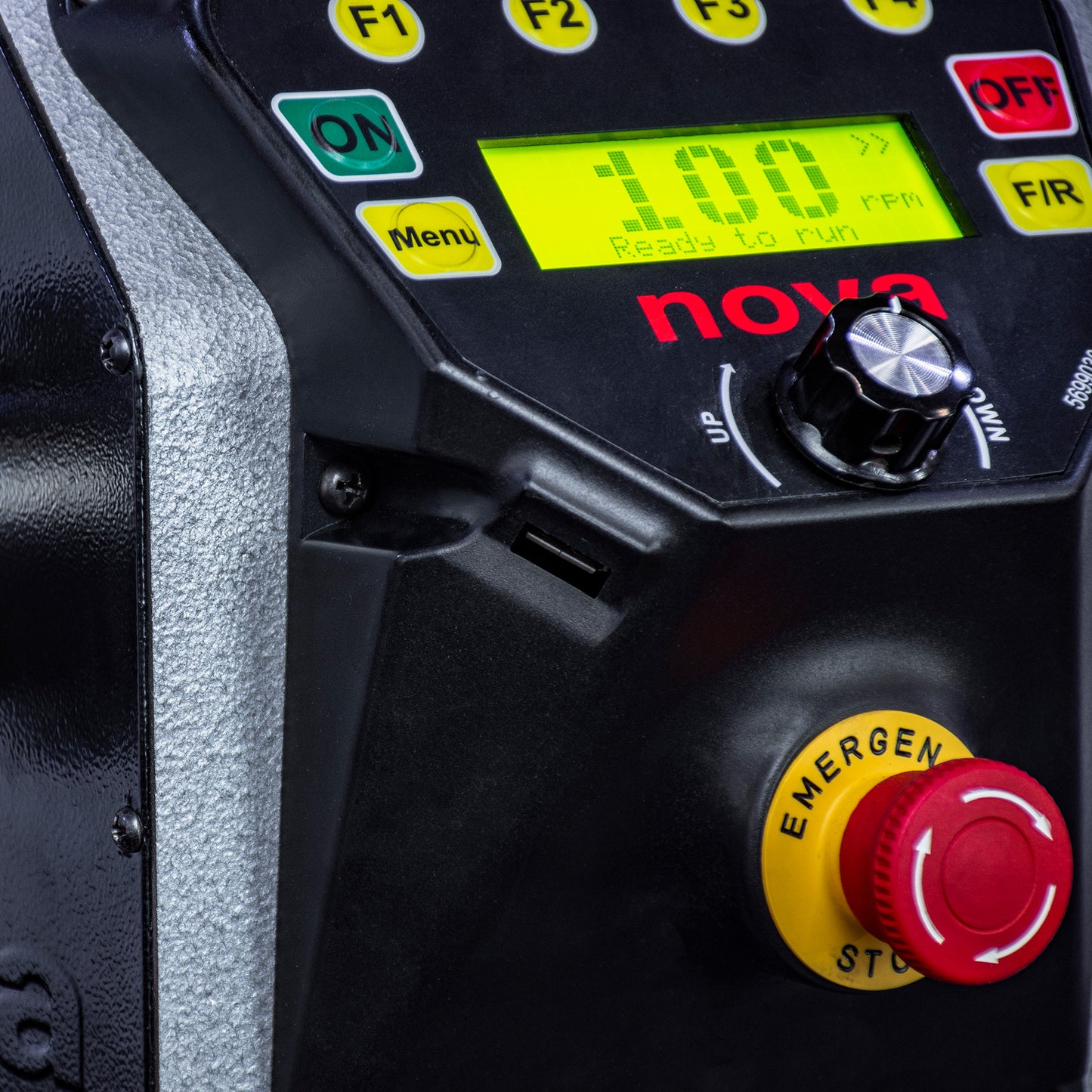

The 2HP Direct Drive Motor senses and adjusts torque according to load - meaning your torque and turning speed remain constant under load. The digital interface features 8 favourite speed settings, forward/reverse, electronic variable speed from 100 to 5000RPM, vibration sensing technology, idle motor detection and more. An E-Stop on the head along with an additional magnetic/moveable E-Stop provides additional safety in use.

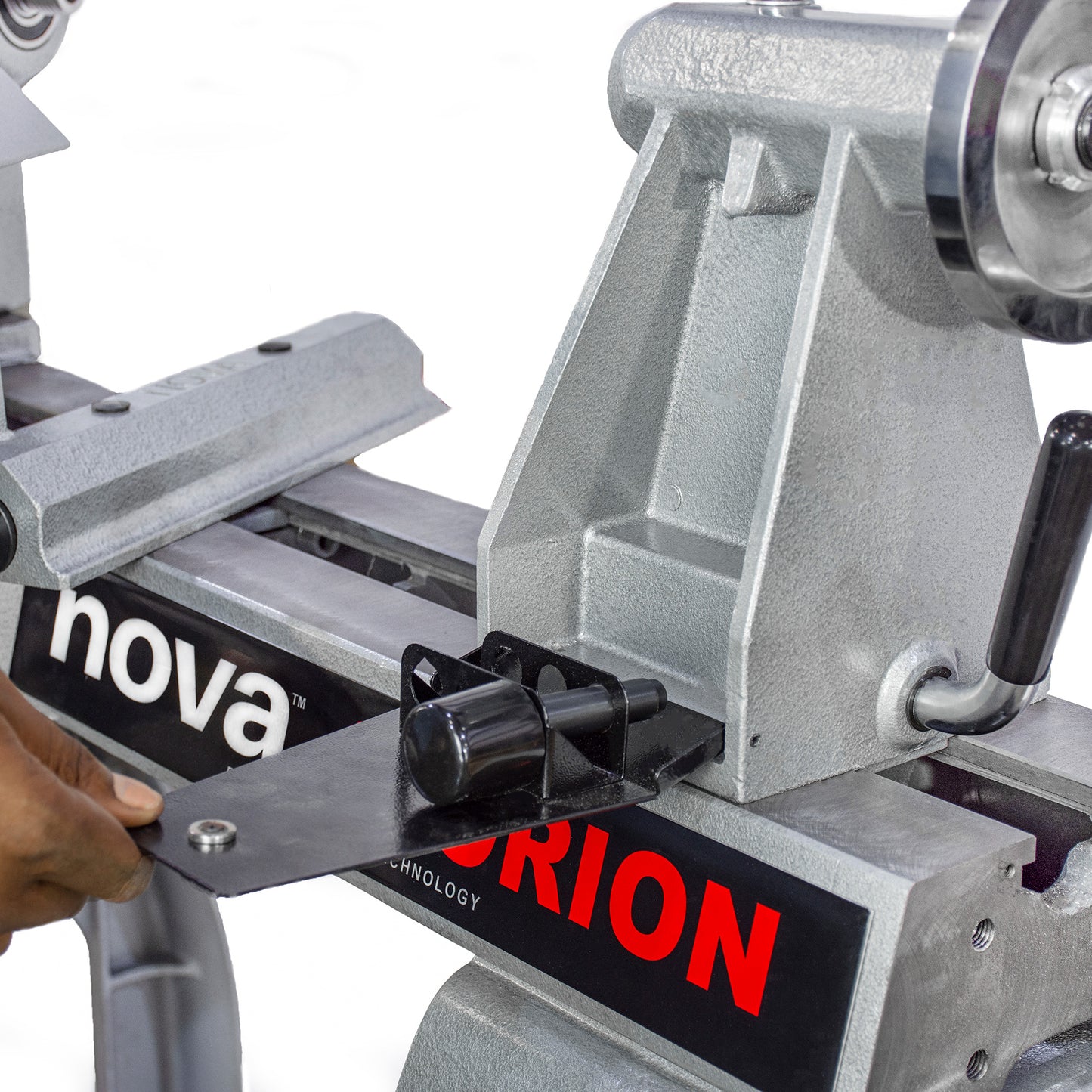

The head can swivel 360°, with pre-set indents at 0°, 22.5°, 45° and 90°. The tailstock features an auto-ejecting centre as well as onboard storage for same. The stand and bed have been significantly beefed up making a very heavy duty, solid and strong lathe.

Perfect for schools, sheds and clubs with its inherent safety technology, this lathe is equally suited to the professional and amateur alike!

Experience what DVR technology can give your woodturning experience. Endorsed by professionals worldwide.

* IMPORTANT NOTE: Voltage fluctuations may cause damage to this machine. Please connect your machine to a dedicated surge protection device to ensure your warranty is protected.

Nova Orion DVR 1822 Lathe
  • STANDARD EQUIPMENT
  • Cast Iron Stand
  • 150mm/6″ Faceplate

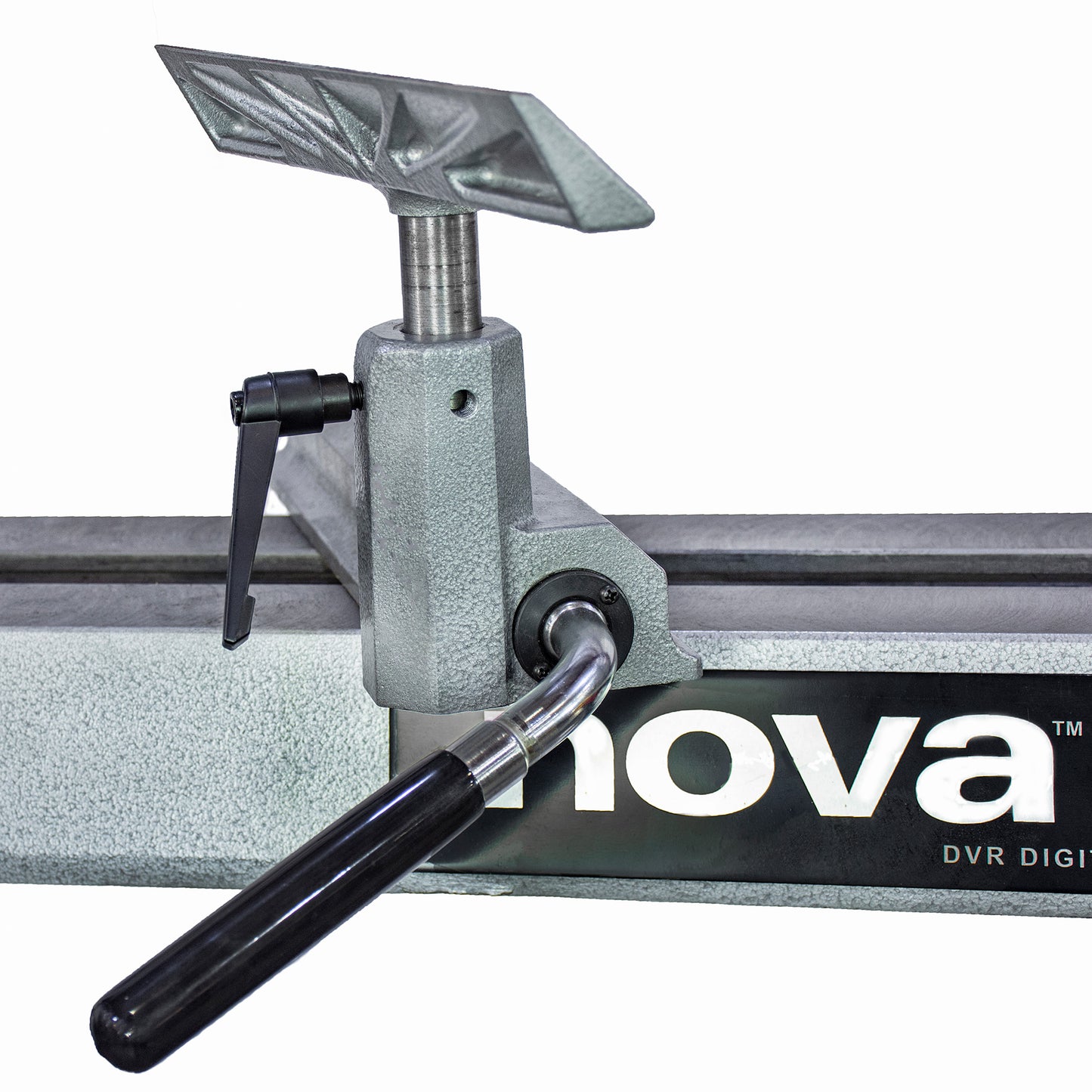

  • 300mm /12″ Toolrest
  • 2MT Live Center
  • 2MT Spur Center
  • NOVA DVR Motor & Controller, 2HP (220v, 10A)
  • Knock Out Bar
  • Manual & Fastenings
Brand Nova
Warranty 2yr Motor/Electronics, 5yr Parts and Components
Motor 2HP DVR Direct Drive Motor, 230V, 10A
Headstock Movement 360 Swivel with indents at 0, 22.5, 45 and 90
Indexing Positions 24
Speed 100 to 5000RPM Electronic Variable

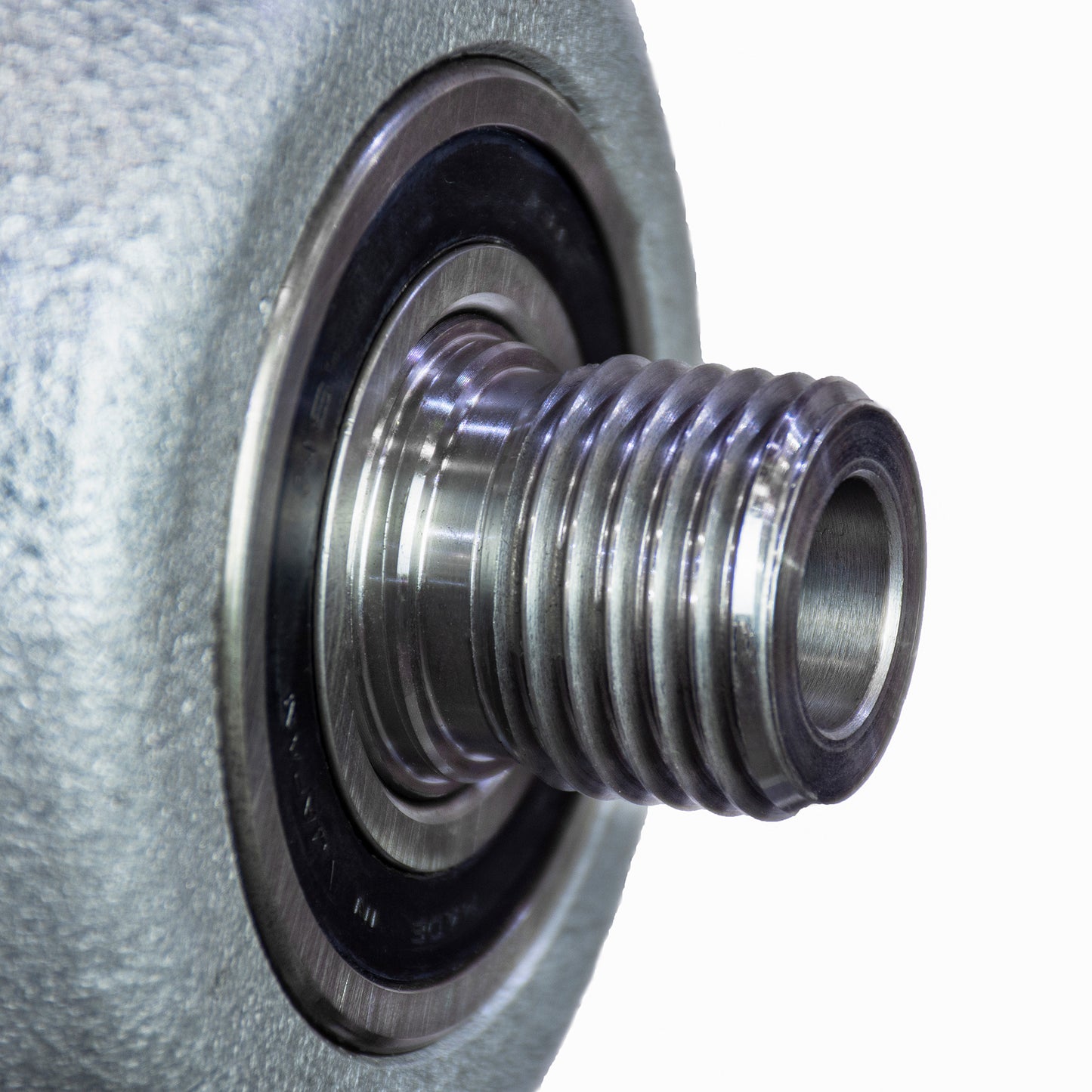

Spindle Thread 1 1/4"x 8TPI RH
Swing Over Bed Capacity 18" (457mm)
Between Centers 22.75" (578mm)
Dimensions 1130mm (44.5")L x 1245mm (49")H x 597mm (23.5")W
Weight 186kgs Nett, 220kg Gross
