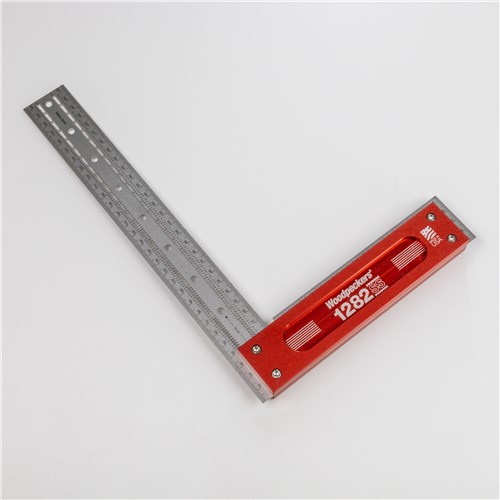

Woodpeckers Stainless Steel Square 300mm SSSQ-300-24

The heart of the design of Woodpeckers Stainless Steel Squares is a one-piece core. Square isn’t determined by pins, rivets, screws or spot-welds like it is in virtually every other square on the market. It’s determined by Woodpeckers' state-of-the-art CNC milling centres. The core is machined square by a computer and verified square by our computer-controlled optical inspection system, which is capable of measuring angularity to 5 decimal places. The 1/16" thick blade gets heat-treated and tempered, ensuring strength and stability. Finally, they’re bead blasted to create a non-glare finish that contrasts nicely with the laser-engraved scales.

Like Woodpeckers' famous aluminium squares, the cheeks added to the central core are narrower, forming a shoulder that keeps your square registered to your stock even when you let go. You’ll love using the stainless-steel squares for lay out work. First, the scales are laser-engraved to a tolerance of ±.004".  The thin blade puts the scale right next to your work, reducing parallax error with laser-cut precisely spaced scribing notches along the blade. Just drop a pencil into the notch of your choice and slide the square along the edge of your stock. With twin points for each notch, it doesn’t matter whether you push or pull; you’ll get a line perfectly parallel to the edge.

To aid machinery setup, there are laser-engraved measurements on the end of the beam, as well as the edges. The squares stand upright without a hand, giving you both hands to dial in the height of your router bit, saw blade or dado stack.  These squares are guaranteed to be within ±.0085°. To put that in perspective, on the 1282SS, the maximum error you could find at the far end of the square would be about half the thickness of a human hair.

Note that some images serve as range illustrations and may not reflect the actual models and quantities. For an accurate depiction, see the first image on a white background.
