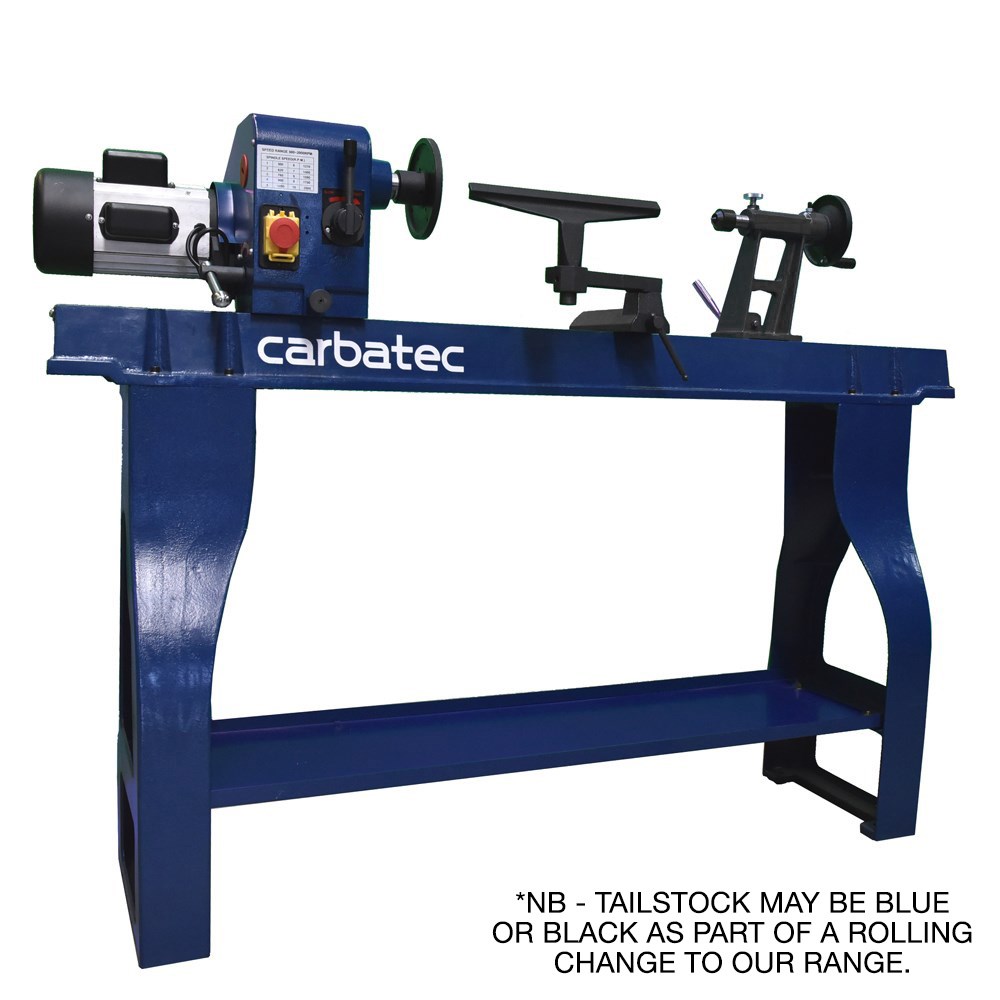

Carbatec Economy 1100mm Variable Speed Wood Lathe

Product Code: WL-1100P

$1159 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:


Download PDF
  • Features
  • Details
  • Specifications
  • 1-1/2HP induction motor
  • Split pulley system produces variable speed range
  • MT2 morse taper
  • M30 x 3.5 spindle thread
  • 15mm hole through headstock

We have updated the look & product code of our MC1100A (now WL-1100P), however be assured, all specifications of this machine are the same as our tried and tested MC1100A.

A tremendous new lathe model with all the features of a larger professional quality lathe.

The speed is variable via a split pulley system that allows the spindle to run between 500 to 2000 rpm. While the motor is running, turn the handle, allowing the pulleys to separate giving a different belt ratio, therefore changing the speed of the spindle. This is done easily and is an economical way to produce variable speed. The headstock can be rotated an impressive 360°, with 4 locking positions, allowing outboard turning. The cast iron bed has a smooth ground surface allowing the banjo and tailstock to move easily along its length. For outboard turning you will need to reposition the banjo and tool rest accordingly.

Both the headstock and tailstock have a No. 2 morse taper, allowing popular turning accessories to be used, with the headstock also having a common M30 x 3.5 thread.

This unit also includes heavy duty cast iron legs with pressed metal tool tray, 300mm tool rest with two piece articulated banjo, face plate, drive centre, revolving centre and hollow tailstock. All the kit you need to get started in the rewarding hobby of woodturning.

Brand Carbatec
Motor 1100W (1-1/2 HP) Induction - Regular 10A Plug
Tool Post Diameter 25mm
Headstock Movement Swivels
Hole Through Spindle/Tailstock 15mm
Indexing Positions None
Max Distance Between Centres 1130mm
Morse Taper MT2
Spindle Thread M30 x 3.5TPI
Swing Over Bed Capacity 410mm
Workshop Footprint (WxDxH) 2000mm x 450mm x 1200mm
Speed Adjustment Variable Speed Lever
Speed Range (RPM) 500 - 2000 RPM
Warranty Period 2 Years
Shipping Weight 182Kg
