Carbatec 317mm (12-1/2") Benchtop Thicknesser

Product Code: TH-B317P

$759 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Inclusions
  • Specifications
  • Video & Downloads
  • 1800W Universal motor
  • Folding infeed and outfeed tables
  • Four (vs two) post cutterhead winding system
  • Snipe reducing adjustment screws
  • Low friction table
  • Double Sided blades factory fitted
  • Blade Knick offset ability
  • Left or Right exit dust chute
  • 2.25" dust port connection

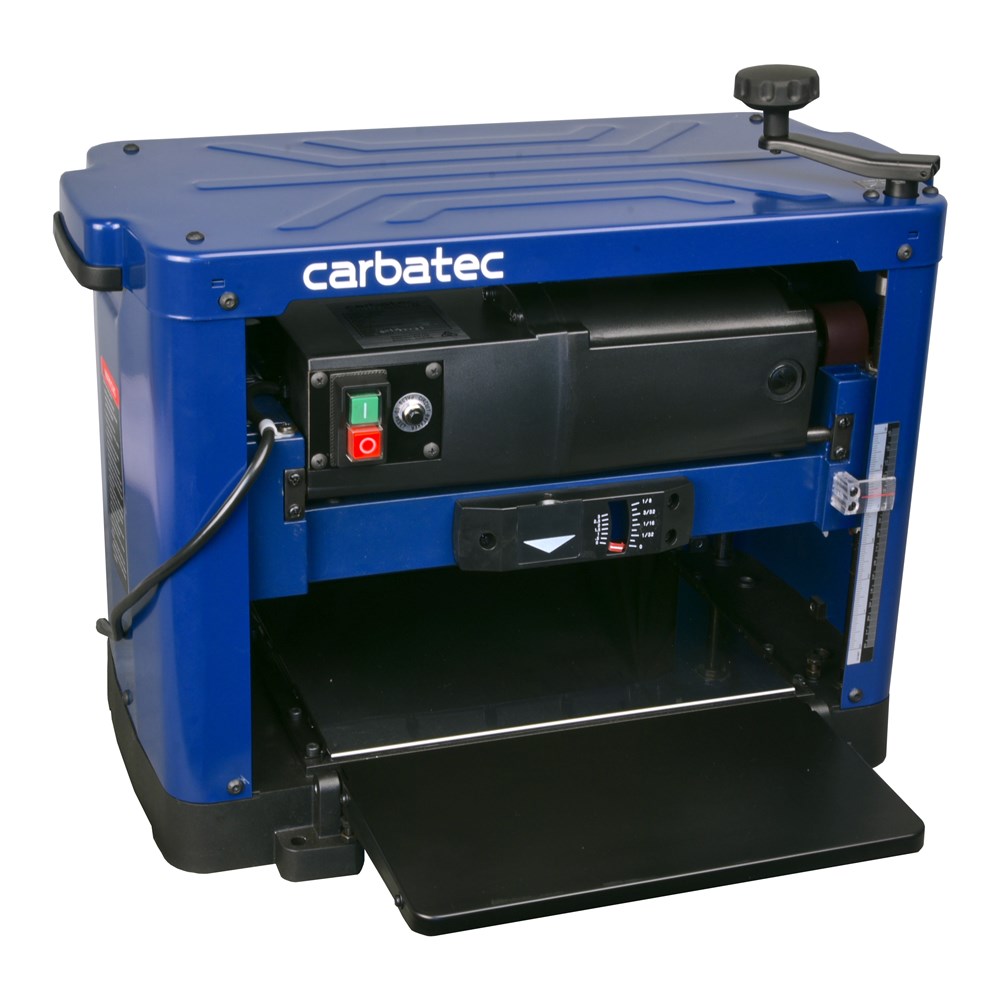

The Carbatec TH-B317P Professional Benchtop Thicknesser features a powerful 1800W motor and can handle full width cuts in all types of timber. It will accept boards up to 150mm deep and 317mm wide and its two double sided replaceable blades will make effortless cuts becoming a valuable addition to your workshop. The slot located blades can be slightly offset from each other, in the case of a 'knick'.  Unlike many similar machines, the Carbatec TH-B317P features a 4-post winding system, were all 4 corners of the cutterhead raise and lower in perfect harmony, just like thier full commercial, cast iron counterparts.  The does away with the need for a separate head locking system and gives you great support through the entire cut, lessening the chance of the dreaded 'snipe'.

This compact unit can cut thinner material up to 3mm per pass (wider boards need less cut depth per pass) and the handy depth cutting gauge make setting this up very simple. Safety features include full width anti kickback pawls and a standard fit No Volt Release (NVR) switch. The included dust chute can be mounted with Left or Right hand extraction and the inbuilt fan helps move wood shavings away from the cutterhead; although connection to a dust collector or vacuum is highly recommended. Folding in/out feed tables have a low friction coating and can be easily adjusted to reduce snipe. The optional stand (PS-330) is perfect for this machine so it can be added as a more permanent solution to your workshop.

Connection to high volume dust collection is necessary on this machine (as with most woodworking machines).  Connection of a 4" dust hose (to the machines 2.25" dust port) is recommended.  See optional adaptors below & fitting method in the pictures to the left.

Click here for more information regarding cutting hardwoods or softwoods with any woodworking machine.

  • LH/RH Dust Chute
  • Cutterhead Guard
  • Blade Handling Tool
  • Manual
  • Setup and Maintenance Tools
Brand Carbatec
Motor 1800W (2-1/2 HP) Universal - Regular 10A Plug
Cutterhead Straight Blade - 317mm Double Sided
Dust Port/s 2-1/4"
Infeed/Outfeed Roller Rubber
Maximum Cutting Width 317mm
Maximum Depth Of Cut Max 3.0mm (narrow cut) - 1.5mm recommended
Minimum Stock Thickness 5mm
Maximum Stock Thickness 150mm
Stand Included Or Integral Optional extra
Table Material Low friction - pressed metal
Warranty Period 2 Years
