i2R Rotary 4th Axis Expansion Kit

Product Code: I2R-RK360

Tags i2R
$1899 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
NOTE: Special Order products showing as Out Of Stock are usually held in our suppliers warehouse.

Please note that local supplier orders can take 7 - 14 days to arrive in our stores. Order here, or please call 1800 658 111 to discuss your needs and if you wish to confirm expected delivery times.
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Details
  • Specifications

i2R 4th Axis Rotary Kit - Expand the potential of your i2R A Series CNC!

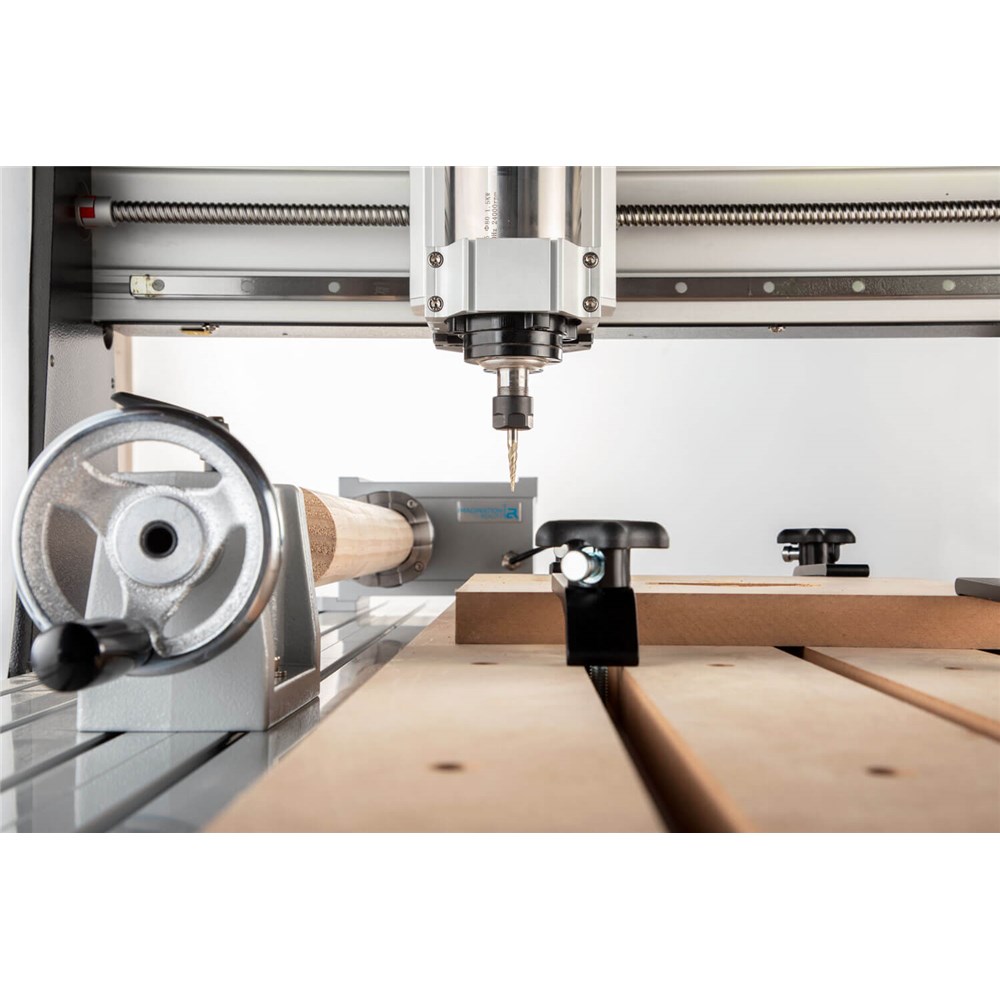

This plug-and-play accessory will allow automated machining on cylindrical objects such as pool cues and more. This expands the capacity of your 3 axis machine, into a 4th Rotary axis for fully controlled rotary machining. Think Barley twists, Decorative Relief Carved Table Legs, Personalised Pens and much more. Simply mount this headstock and tailstock to your slotted aluminium table, and plug it into the dedicated port already found on your machine.

The current release of Vectric's V-Carve includes a 'profile wrapping' function, allowing you to begin creating amazing 3-dimensional work. Master the art of 3D modeling, profile wrapping and extruding to fully realise the potential of your CNC work.

Specifications and inclusions:

  • Mounted on an i2R A24 you will have 1070mm max. between centres
  • Mounted on an i2R A23 you will have 760mm max. between centres
  • Mounted on an i2R A22 you will have 460mm max. between centres
  • Chuck capacity is 80mm (3.14")
  • Chuck diameter is 100mm (3.93")
  • Diameter of through hole is 13mm (.5")
  • Center height is 75mm (2.95") (150mm max diameter swing)
  • Minimum stepper increment is a tiny 0.0023 degree!
  • Overall height is 140mm (5.51")
  • 4th Axis Motor Stepper
  • Tailstock with MT2 live center
  • 4-Jaw chuck (1" x 8TPI)

NB* Will also fit previous Axiom AR Pro+ Series Models

3D Capable software is required. Vectric V-Carve Pro has limited capability for 4th Axis machining. Vectric Aspire has many more advanced features for 3D carving and is recommended for 4th Axis kits. There are however, many CAD/CAM software packages on the market - ensure you select one with capabilities to suit your 4th Axis to get the most from this equipment.
Brand i2R
