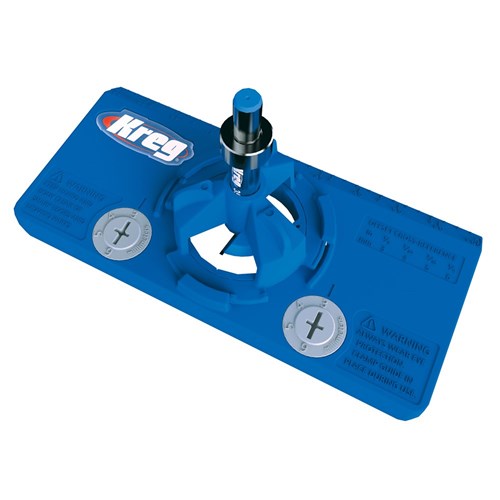

Kreg Concealed Hinge Jig

Product Code: KR-KHI-HINGE

$56.90 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:

Download PDF
  • Features
  • Details
  • Specifications
  • Video & Downloads
  • Accurate hinge positioning with built-in indexing tabs
  • Repeatable results with built-in measuring scales
  • Reliable drilling with bit guide and stop collar
  • Simple to use with any drill—no special tools needed
  • Adjustable cams ensure proper hinge offset
  • Durable carbide-tipped drill bit included
  • Strong, lightweight materials for easy handling

Concealed hinge boring made easy.

Drilling concealed hinges for kitchen style cabinetry is easy using a drill press or specific machine, but not always easy any other way, until now. This jig easily gives the correct position from the edge using the easy to use cam, and the positioning from the end of the door is also easy using the built in measuring scales.

Combined with the matching 35mm forstner style drill bit, and drill and fitting concealed hinges has just become a "hole" heap easier.


  • Jig base with index cams
  • Drill guide
  • 35mm carbide-tipped drill bit
  • Stop collar with Hex wrench
  • Owner’s manual
Brand Kreg
