Kreg Concealed Hinge Jig

SKU:

KR-KHI-HINGE

Concealed hinge boring made easy.

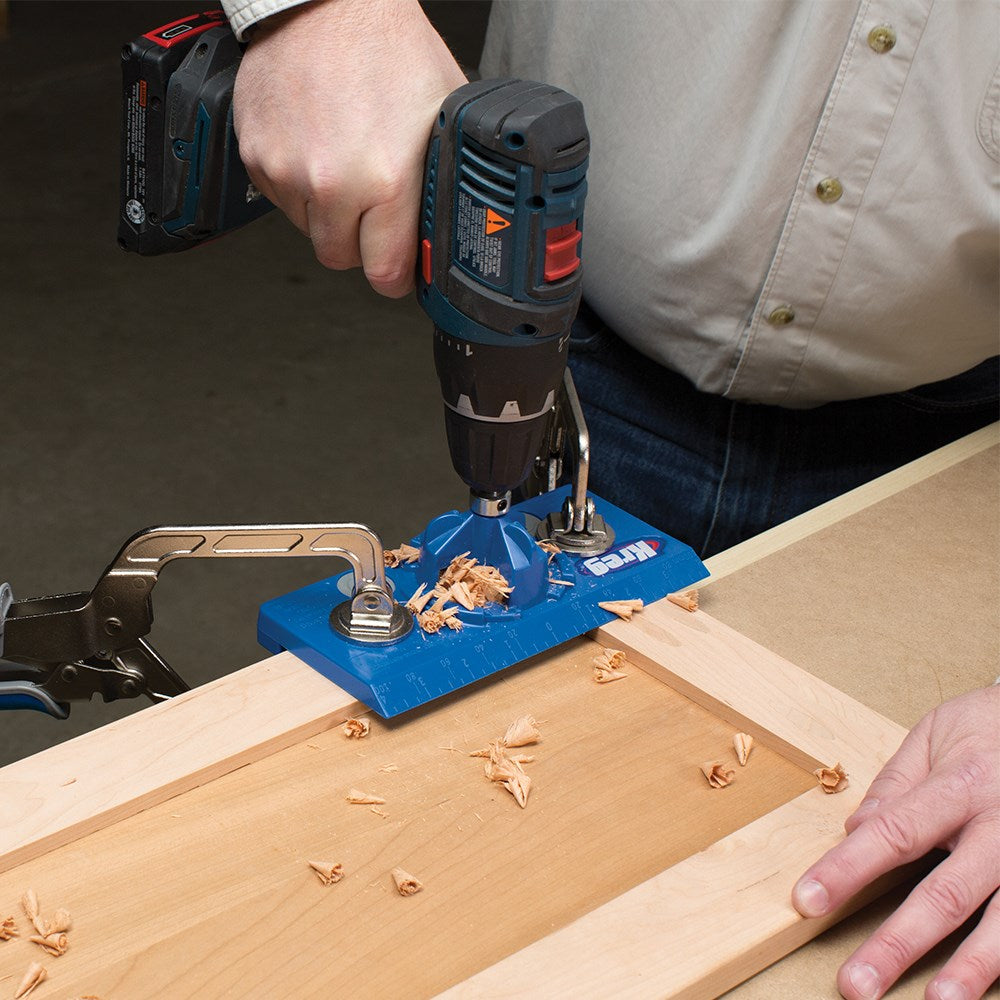

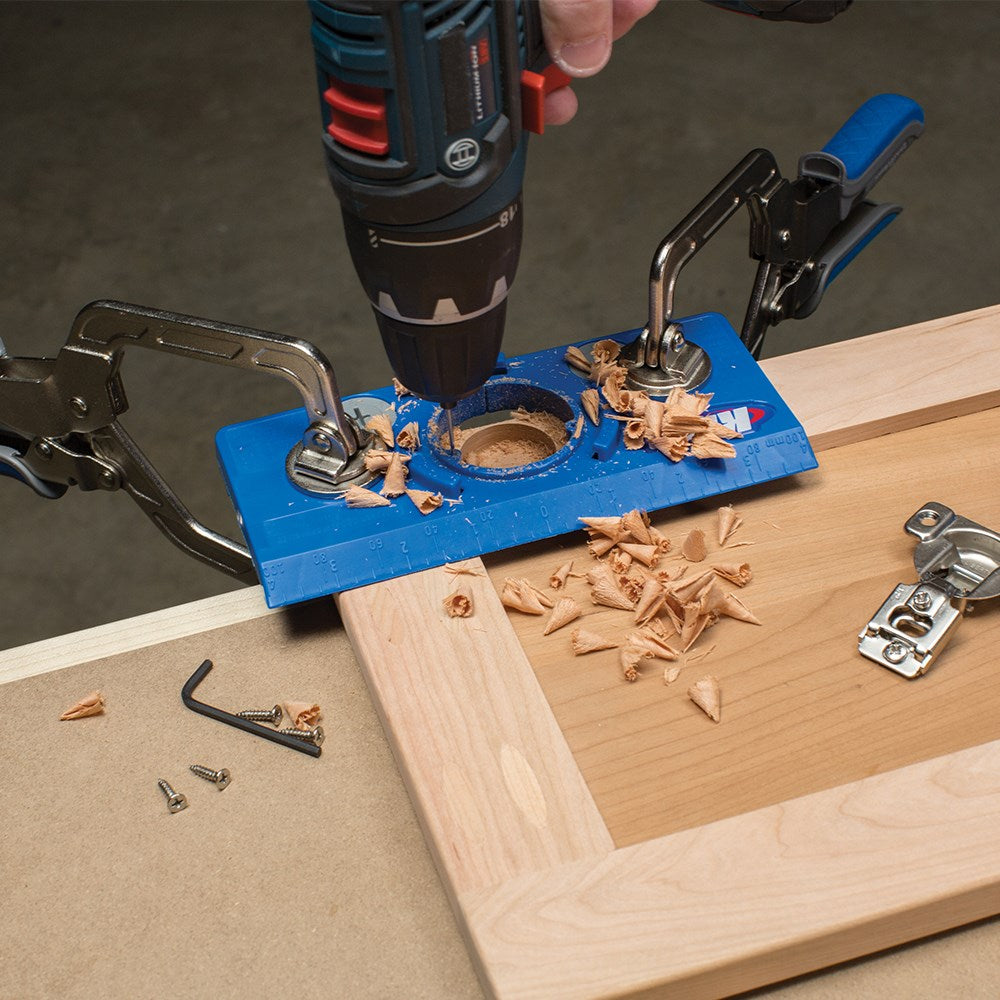

Drilling concealed hinges for kitchen style cabinetry is easy using a drill press or specific machine, but not always easy any other way, until now. This jig easily gives the correct position from the edge using the easy to use cam, and the positioning from the end of the door is also easy using the built in measuring scales.
Combined with the matching 35mm forstner style drill bit, and drill and fitting concealed hinges has just become a "hole" heap easier.
Included:

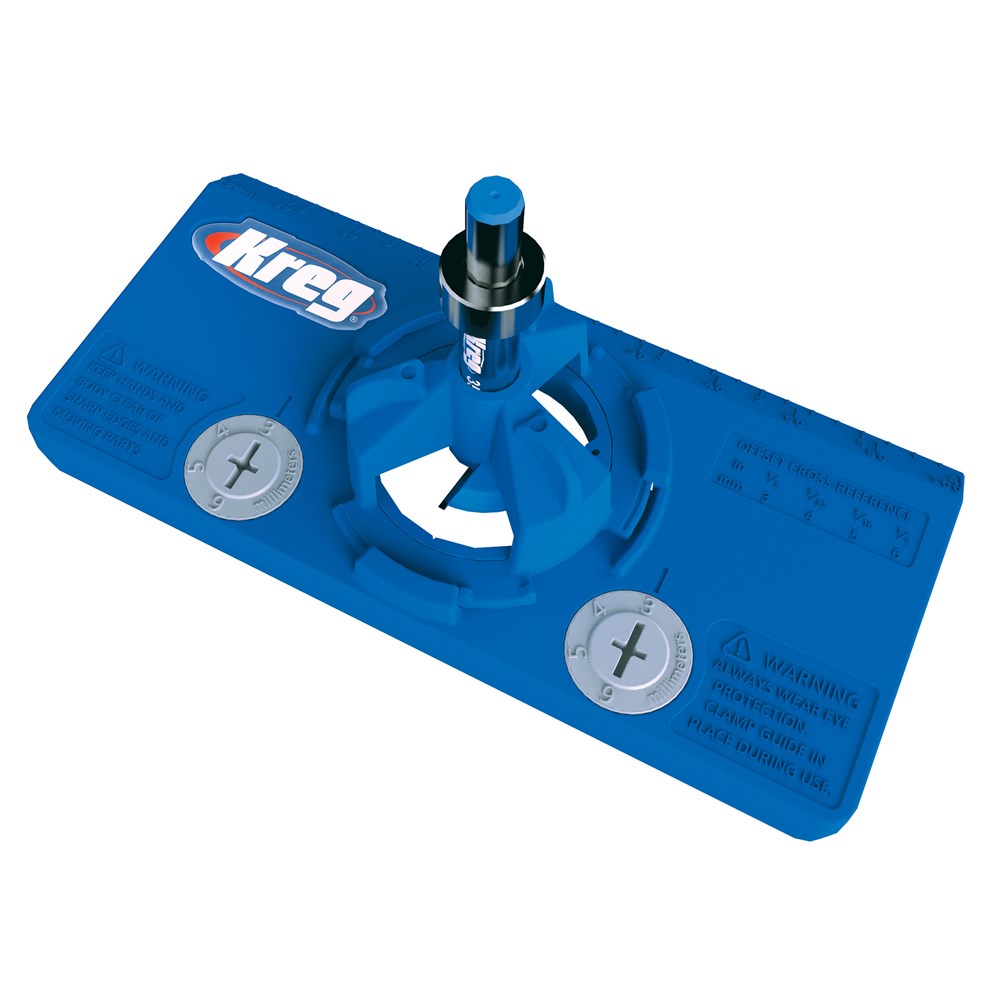

Jig base with index cams
Drill guide
35mm carbide-tipped drill bit
Stop collar with Hex wrench
Owners manual

Read Less

$63.00

~~$0.00~~ $63.00

Tax included. Shipping calculated at checkout.

Or from $10/week with

Product variants

Quantity

Kreg Concealed Hinge Jig

$63.00

Quantity

Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.

Need assistance?

Call centre hours: 9am - 5pm AEST Mon - Fri. Closed weekends & public holidays

1800 658 111 support@carbatec.com.au

View full details

Product Details

• Accurate hinge positioning with built-in indexing tabs
• Repeatable results with built-in measuring scales Reliable drilling with bit guide and stop collar Simple to use with any drill—no special tools needed

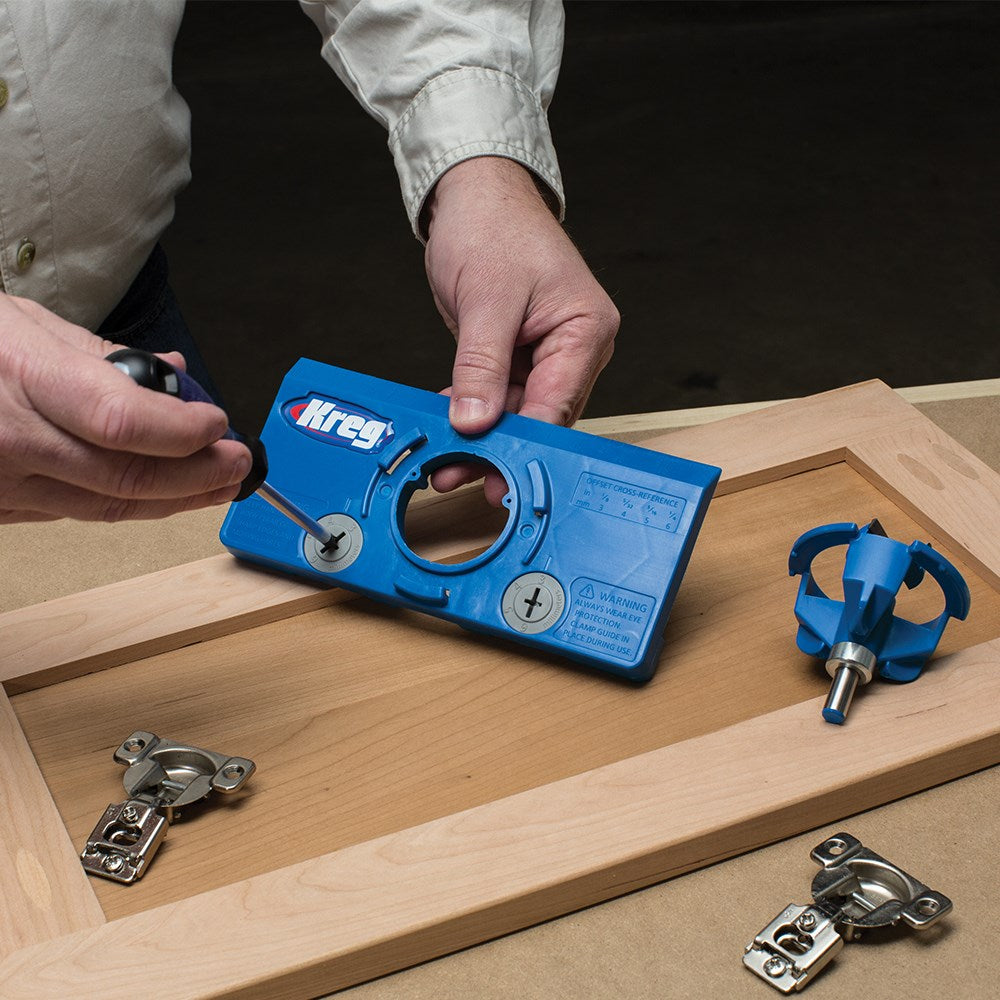

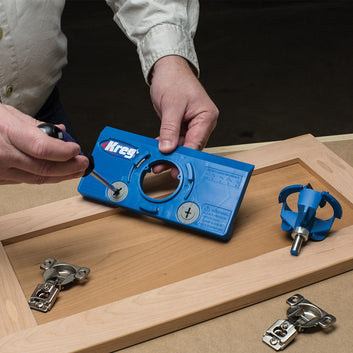

• Adjustable cams ensure proper hinge offset
• Durable carbide-tipped drill bit included
• Strong, lightweight materials for easy handling

Additional information

1 spec...

Compatibility

KR-KHI-BIT

1 spec...

Compatibility

KR-KHI-BIT

0 files...
