Laguna 16" 3HP Sheartec II Thicknesser

Product Code: LGT-TH-16

$6279 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Quantity In Cart:


Tags Laguna
Download PDF
  • Features
  • Details
  • Specifications
  • Video & Downloads
  • Powerful 3HP motor (15 amp plug outlet required)
  • Sheartec II Helical Cutterhead with 60 Carbide Inserts (10 spare blades also supplied!)
  • Wixey Digital Height Readout Built-in
  • Maximum Cutting Width of 406mm (16")
  • Maximum Material Thickness of 203mm (8")
  • Two Feed Speeds of 4.9 and 8.5mpm (16/28FPM)
  • See the DETAILS tab for more information
NEW from Laguna...

The 2021 Model Series, 16" Thicknesser!

The Laguna Thicknesser range has been overhauled with a whole new aesthetic and function.

The Powerful new 16" Thicknesser is now styled more after European models, with the motor housed in the machine cabinet and the "clean-line" box design  to keep dust (and fingers!) away from the moving parts. The cabinet also features a top view window of the cutterhead! A hinged lid provides easy access to the cutterhead for blade rotation or changes. The top of the cabinet has two full width rollers for material return and a 4" (100mm) dust port completes the simple looking, but clever design.

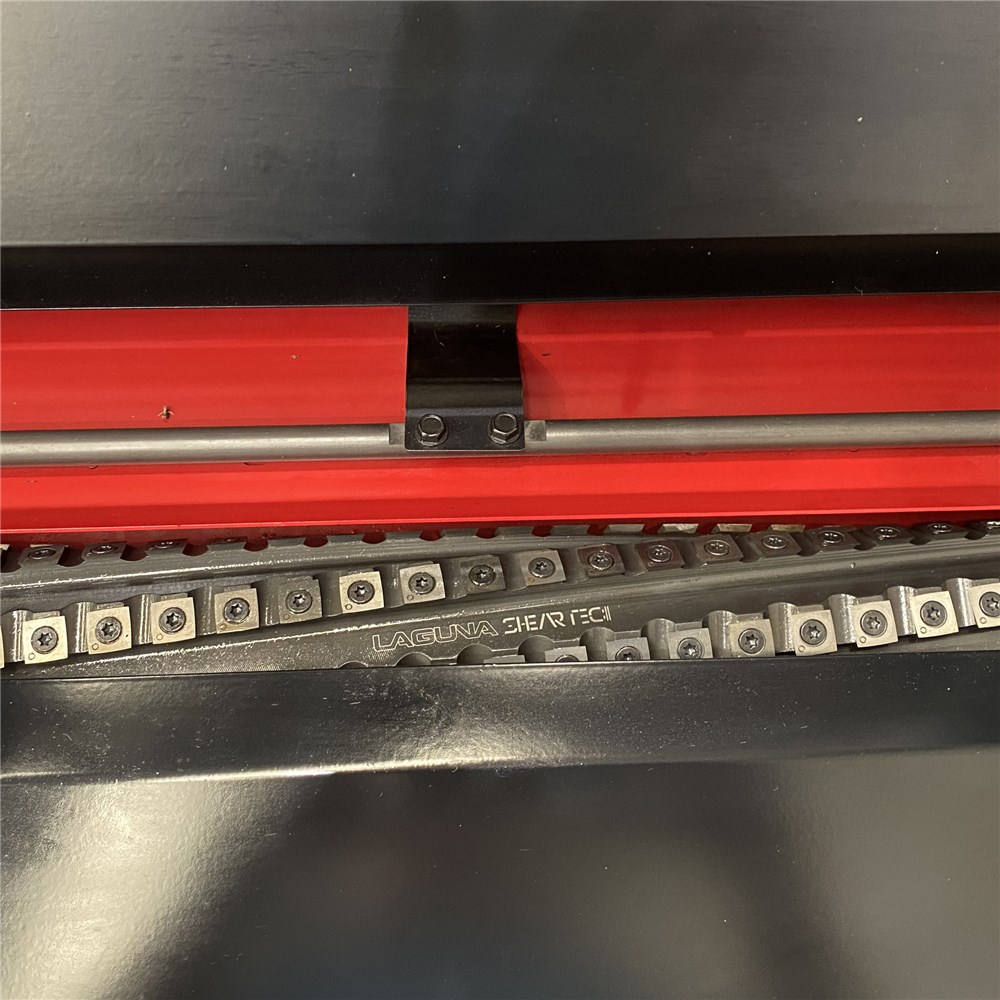

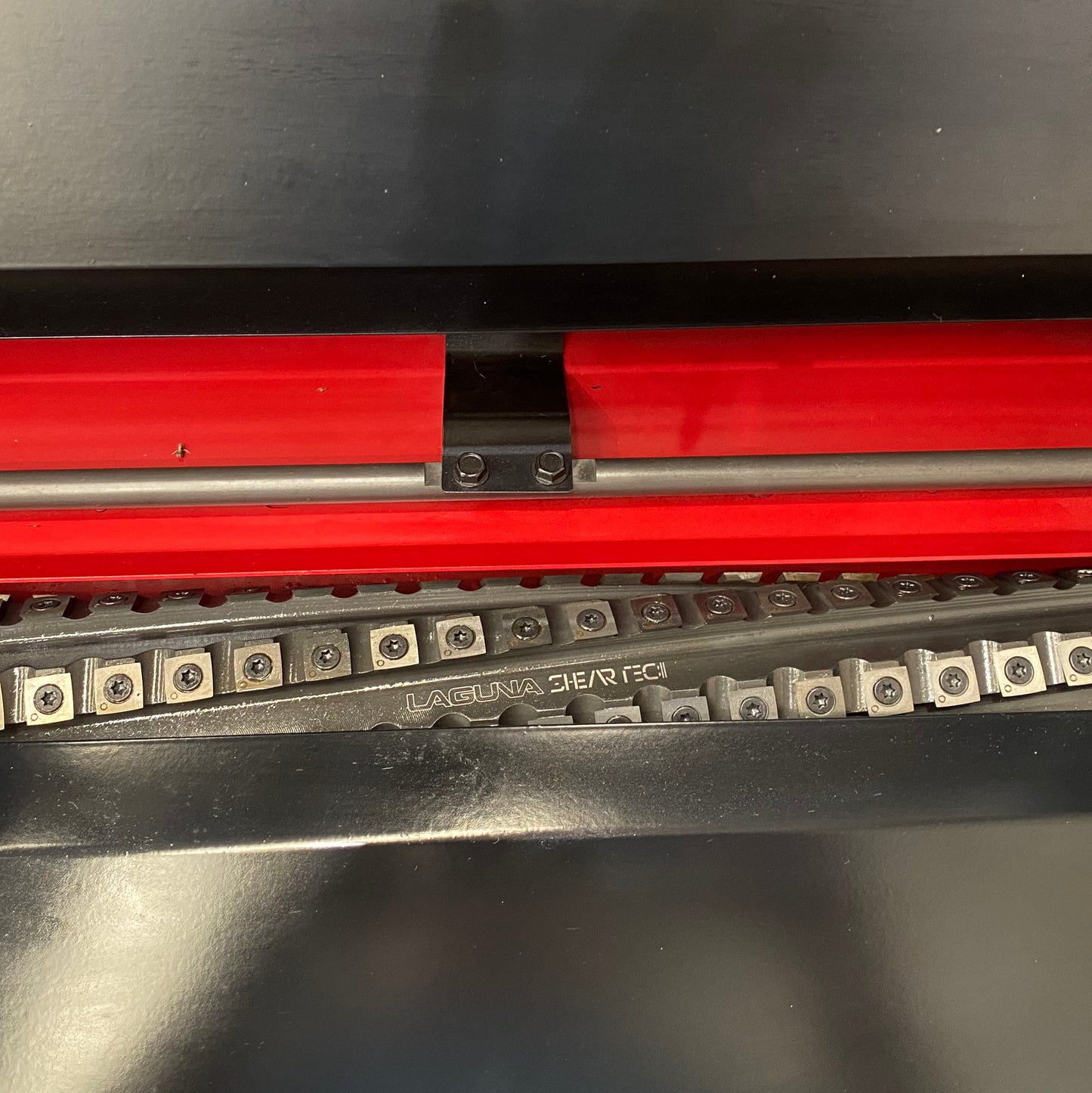

Fitted with a premium Sheatec II Helical Spiral Cutterhead featuring 6 rows of 10 cutters, providing a total of 60 four sided high quality tungsten carbide blades as standard. What does this mean? The ultimate in quiet operation, with a premium fine finish on even the crankiest grain! Helical cutterheads have become the "go-to" option for the finest finish possible off the blade and while eliminating tear-out can never be guaranteed with so many variables, these heads offer the best solution for all timbers, including figured, irregular and interlocked grain. Laguna have even included 10 additional individual blades as replacements should you take a nick out of one.

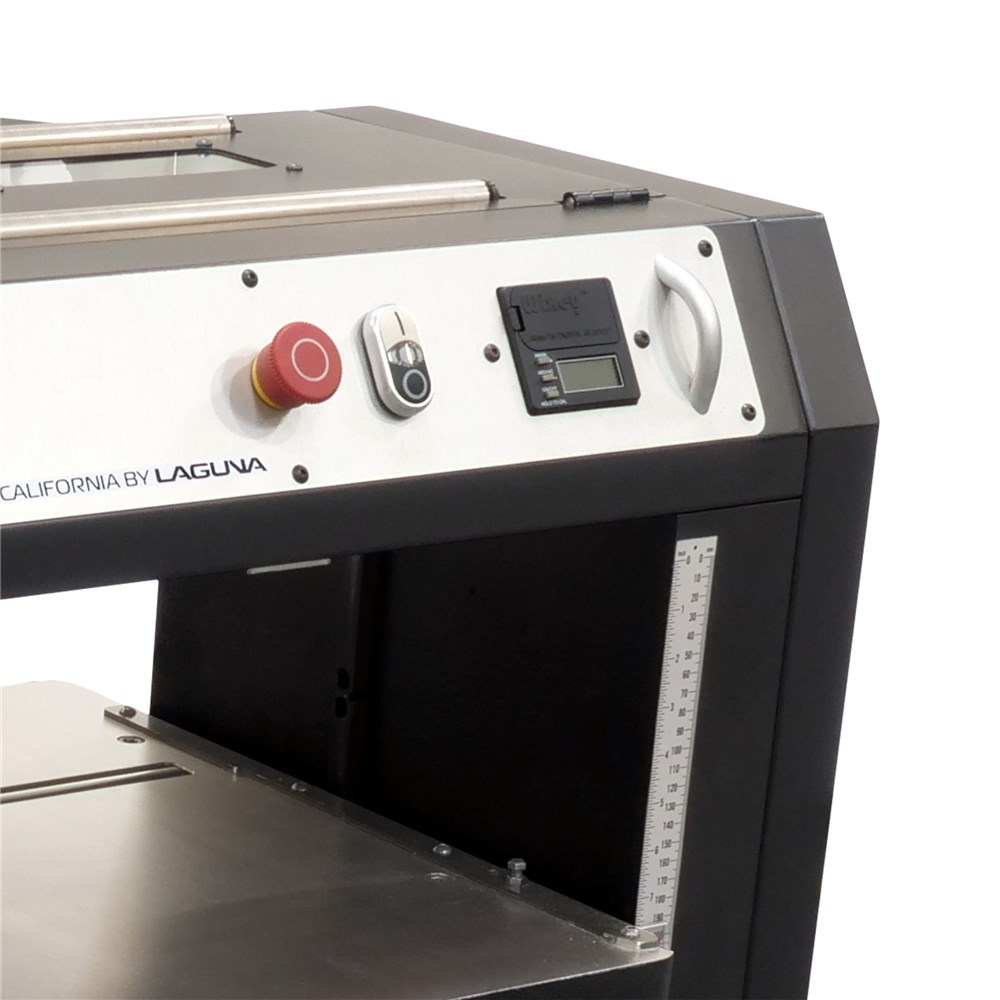

Height adjustment is achieved via a recessed hand wheel in the side of the body, with a Wixey Digital Readout built-in to provide you with accurate and easy-to-read height settings. Two feed speeds are available by shifting a lever with 16 and 28FPM (4.9 and 8.5MPM) on offer. The ground cast iron bed is 406mm x 546mm (16" x 21.5") and features both infeed and outfeed rollers, that are extendable 4" (100mm) from the machine for additional material support. Full width anti-kickback fingers and a serrated infeed roller complete this new model from Laguna.

The unit has the capacity for material up to 406mm wide x 203mm thick (16" x 8"), with a minimum stock thickness down to 6.35mm (1/4").

The new model Laguna thicknessers are a premium quality workhorse, fit for purpose in any workshop from homes, small business to schools.

See the Specifications tab for all of the details.

Brand Laguna
Warranty 2 Years
Motor 2200w (3hp) 15 amp plug required
Cutterhead Sheartec II Helical - 60 Carbide Inserts
Dust Port/s 1 x 100mm (4")
Infeed/Outfeed Roller Yes, both, extendable by (100mm) 4"
Max Board Thickness 203mm (8")
Maximum Cutting Width 406mm (16")
Minimum Stock Thickness 6.35mm (1/4")
Feed Rate 16 / 28FPM (4.9 and 8.5MPM)
Nett Weight 230kg
Table Dimensions 406mm x 546mm (16" x 21.5")
