Laguna Cyclone Dust Extractor C-FLUX 3

Product Code: LGT-CFLUX3B

Tags Laguna
$3899 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Specifications
  • Video & Downloads
  • Laguna C-Flux Series Cylcone Dust Extractor
  • 2200W (3HP) - 15A Induction motor - NOTE: see Details tab for more electical connection notes.
  • 2250CFM comparable (1300CFM real term)

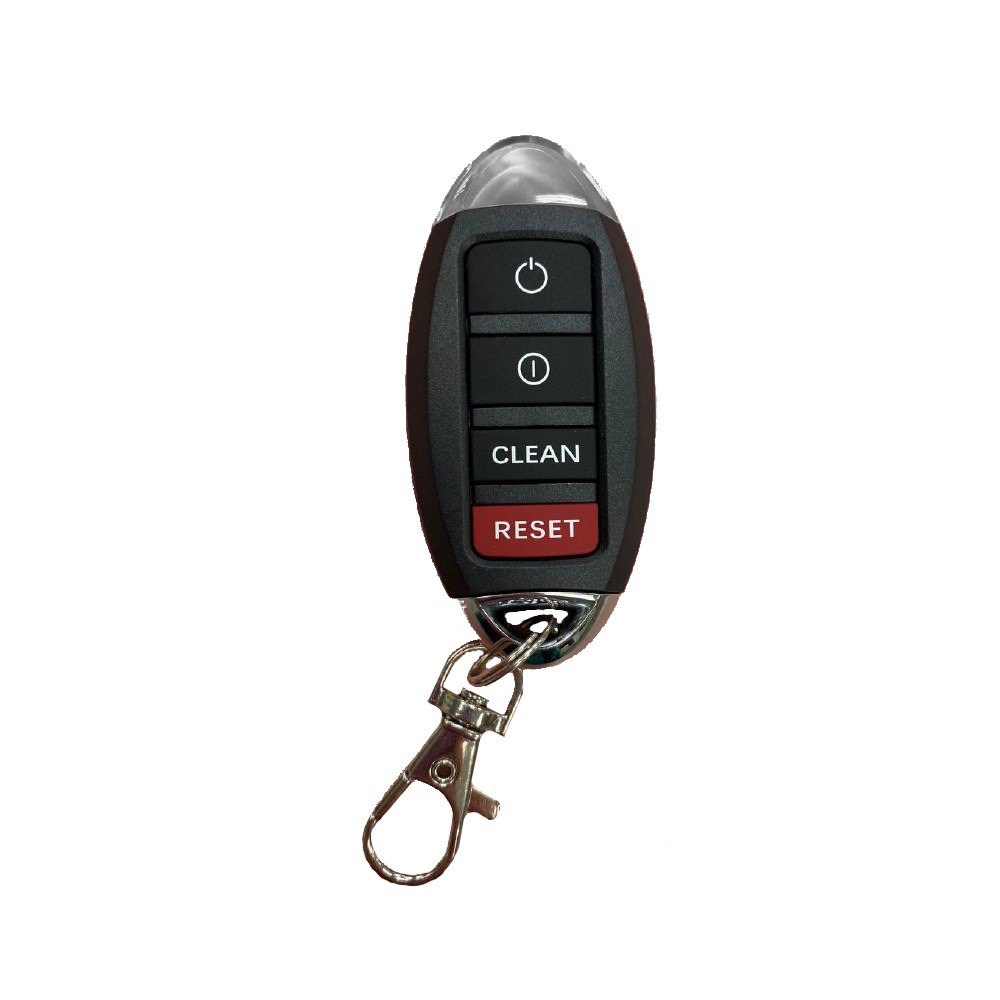

  • Remote control operated on/off
  • Pleated Filter Canister filters 99% of 1 micron particles
  • Hand operated swing arm cartridge filter cleaning
  • Unit is on castors for easy maneuverability
  • Drum features easy lift and seal mechanism

The Laguna C Flux cyclone dust extractor is one of the most radical designs to ever hit the market. HEPA class canister filtration and many unique innovative features, make these high-end cyclones the market leaders. A perfect choice for those looking to minimise workshop dust to the very lowest level.

All Laguna cyclones have:

  • Remote start & stop
  • Riveted steel fan with backward curved fin design
  • Smart lift collection drum
  • Inlet with splitter and rubber blanking cap
  • Portability with 4 swivel castors

    P Flux series innovative features:
  • Auto clean cartridge fliter
  • HEPA Filtration down to >99% @ 0.4micron
  • LED warning light when collection drum is full
  • LED warning light when HEPA filter needs cleaning
  • Illuminated drum to check dust level
  • Swing away doors with acoustic foam to lower the noise level

The octagonal collection drum is mounted on a set of castors. When locking the collection drum into position, using the quick action lever. Smart features mean faster drum emptying compared to the traditional weighted bag method.

A 100mm (4”) hose port is located on the end of the HEPA filter to allow automated emptying of the very fine dust collected in the chamber. Connect the other end of the hose to the main inlet and run the cyclone which moves the fine dust into the collection drum.

When it comes to measuring airflow, there are many ways to do it. Laguna quote the traditional method, for comparison against other brands, as well as a more realistic method which gives a 'real world' result.

Supplied with remote control, 1 collection bag for main drum and a 1.8m power cable.

NOTE:  This industrial machine requires a licensed electrician to complete the final assembly & electrical connections.

Brand Laguna
Warranty 2 Year
Motor 2200W (3 HP) Induction - NOTE: 32A Circuit required
Noise Sound Level 88 dB(A) @ 3m
Workshop Footprint (WxDxH) 1420mm x 720mm x 2350mm
Dust Extraction Connection Diameter 1 x 200mm or 3 x 100mm (1 x 8" or 3 x 4")
Maximum Airflow 2253 cfm (3831 m3/hour) Max - 1299 cfm (2209 m3/hr) Avg Realistic
Maximum Airflow Pressure 285mm in water (11.2"/H2O)
Drum Capacity 174 litres
Filter Rating 99.97% of 0.2-2 Micron
