Laguna SuperMax 16/32 Wide Drum Sander CE Model*

Product Code: LGT-WDS-1632

$1975.00 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Quantity In Cart:


Tags Laguna
Download PDF
  • Details
  • Specifications

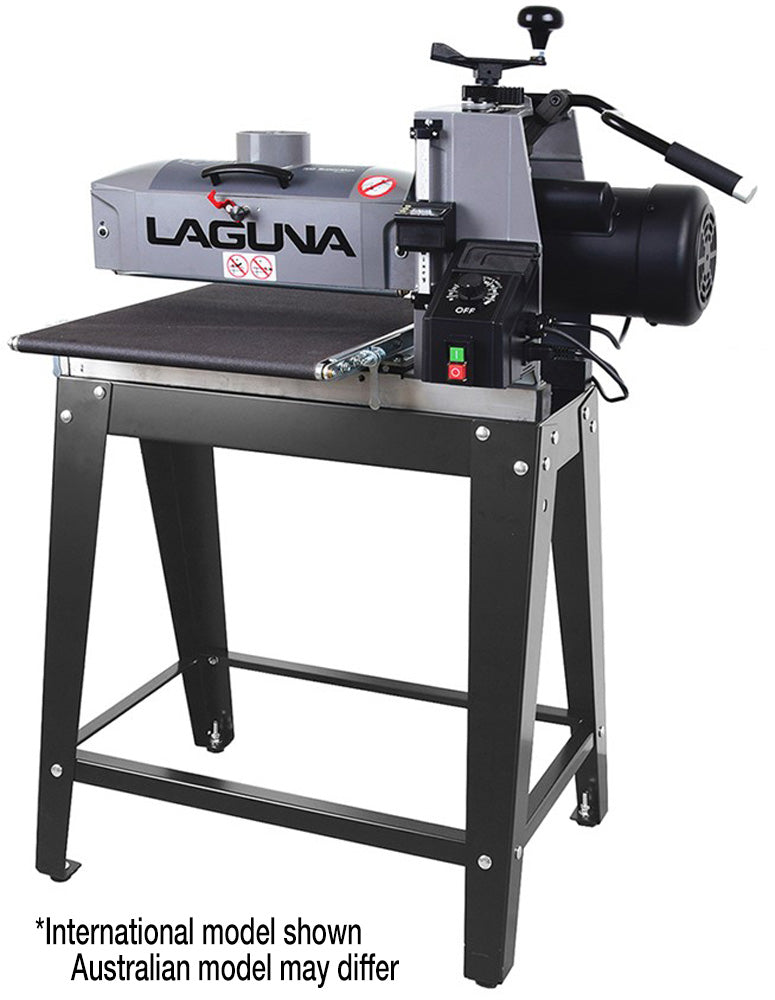

Laguna Supermax 16/32 Wide Drum Sander CE Model*

The designers of the Supermax 16-32 Drum Sander from Laguna, addressed issues common with other drum sanders by engineering exclusive features. No other drum sander on the market has these features!

Patented Quick Adjust Lever design allows full height adjustments, with one pull of a lever versus 48 revolutions of a hand wheel, greatly reducing set-up time and increasing productivity.

Built-in Wixey Digital Read Out helps maintain consistent thicknesses to increase accuracy and output quality.

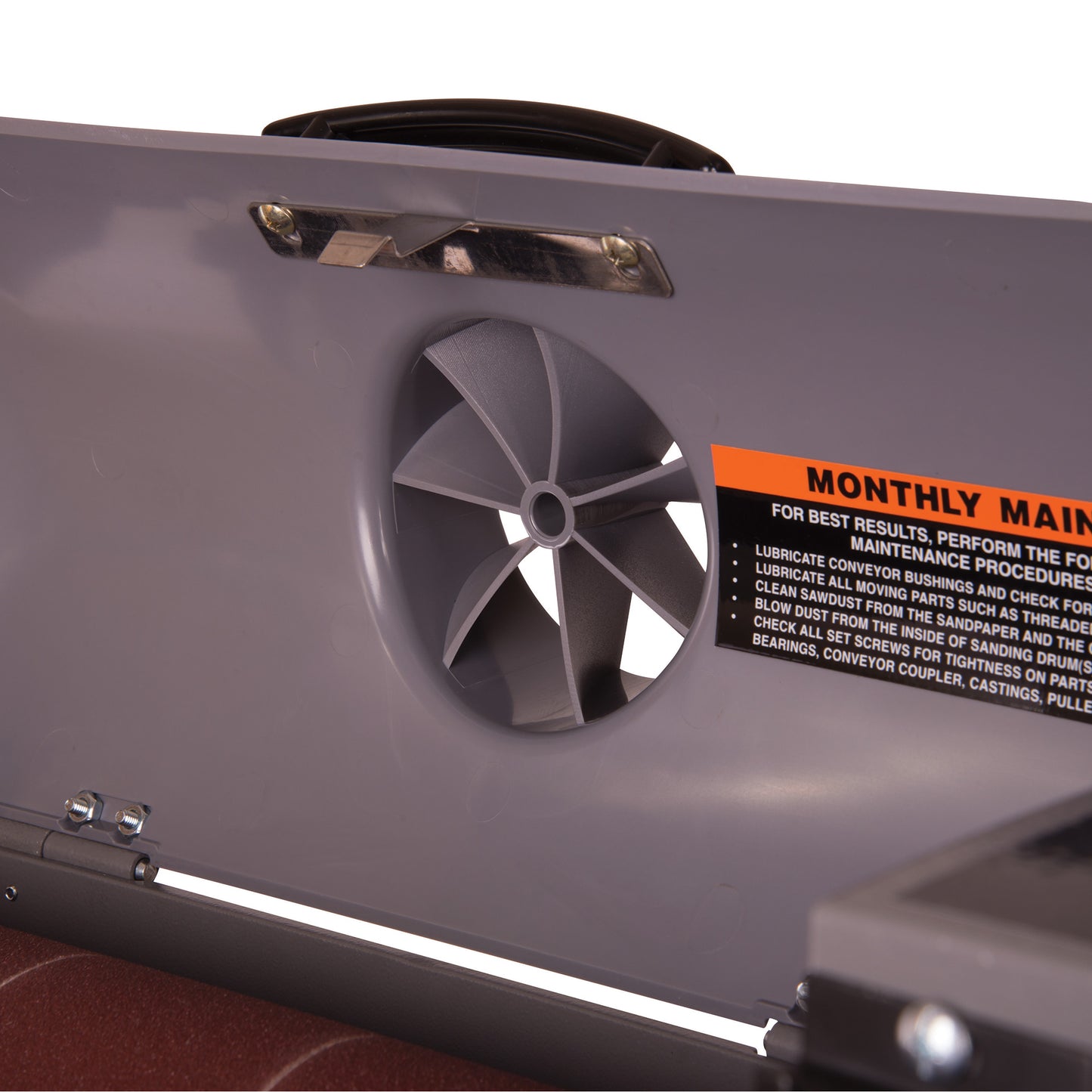

A newly designed Turbo Vented Dust Port increases air-flow to dust collectors by 15%.

Simple Adjustment Feature: Just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head quick and easy.

Flawless Wide Sanding: When sanding stock wider than 405mm (16”) and making 2 passes, the index lever will properly adjust the conveyor to give a seamless finish.

The drum will always keep Perfect Alignment. The drum carriage is bolted to the base, preventing any movement or alignment issues.

INTELLISAND Technology automatically adjusts the feed speed under load, to provide consistent finish even with varying grain pattern and density.

Supplied with floor stand and 1 x 80G wrap.

NB: The nature of wide drum sanders makes use of dust extraction a mandatory requirement. Minimum 600CFM dust extractor recommended.

*New Australian Specification Model (with CE Rated Safety) includes a tool locking sanding belt door. Great for School and Business compliance (always check with your relevant state bodies as to any localised state machinery requirements).

Brand Laguna
Warranty 2 Years
Motor 1100w (1.5hp)
Drum Diameter 127mm (5") (x 405mm (16"))
Drum Speed 1400 rpm
Dust Port 100mm (4")
Gross Weight 80kg
Minimum Stock Thickness 0.8mm (1/32")
Maximum Stock Thickness 75mm (3")

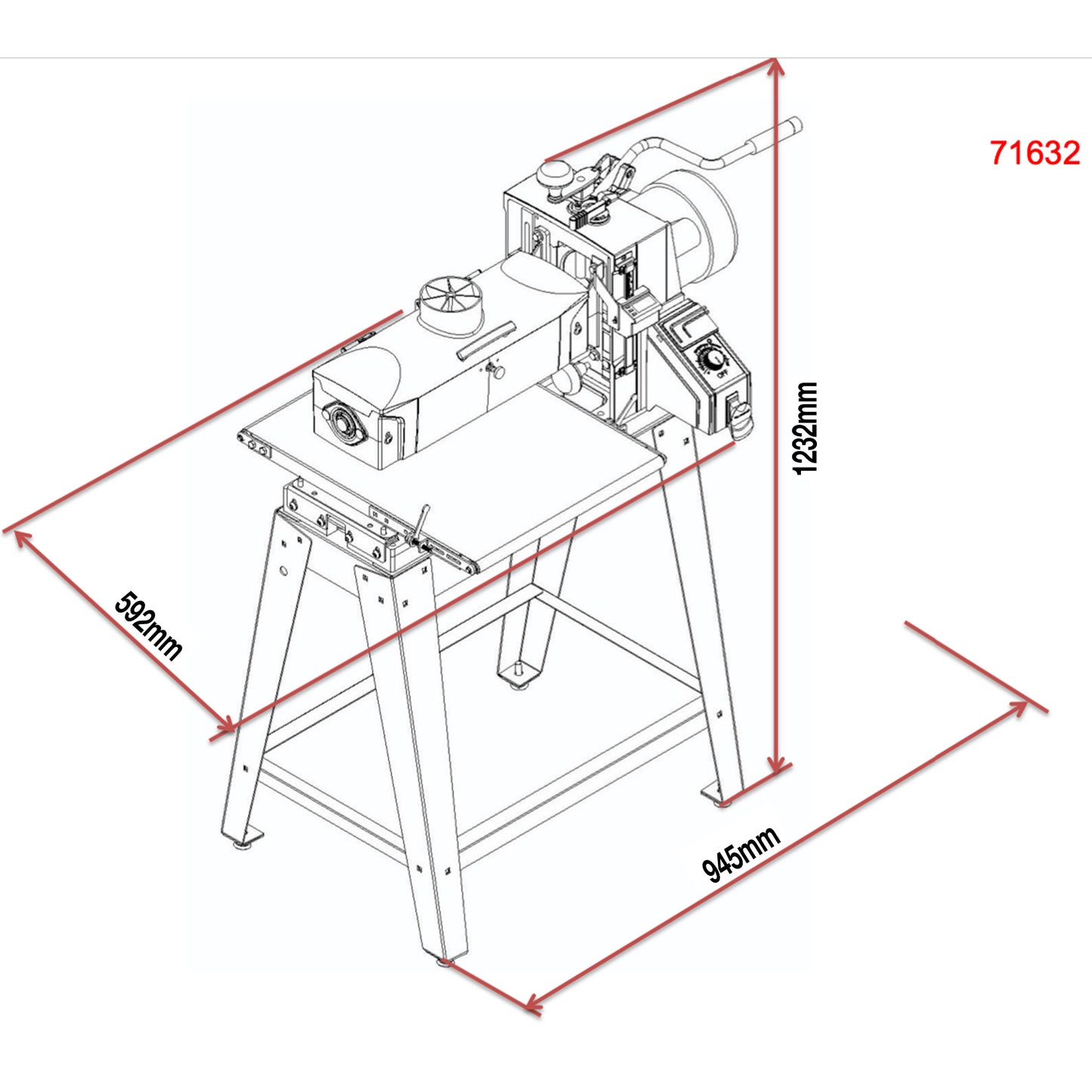

Workshop Footprint (WxDxH) 860mm x 560mm x 1220mm
Feed Rate 0-3 m/min (0 - 10 fpm)
Shipping 940mm x 660mm x 550mm
Nett Weight 72kg
Conveyor motor 40w (1/20hp)
Maximum width 405mm (16") / 810mm (32")
