SCM LAB300PX Single phase Universal Combination Machine - Single phase

Product Code: SCM-LAB300PX1

SPECIAL ORDER NOTE : All SCM Machinery & accessories are held in the supplier warehouse.
Please contact us on 1800 658 111 to confirm local availability and approximate delivery times.
Tags SCM
$17379 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
NOTE: Special Order products showing as Out Of Stock are usually held in our suppliers warehouse.

Please note that local supplier orders can take 7 - 14 days to arrive in our stores. Order here, or please call 1800 658 111 to discuss your needs and if you wish to confirm expected delivery times.
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Specifications
  • Saw Unit with 315mm maximum blade diameter.
  • Extruded anodized aluminium sliding table (dimensions 270x124x1600mm) sliding on high precision hardened steel guideways.
  • Squaring Frame complete with telescopic fence with 1 retractable stop.
  • Integrated fence for parallel cuts and and surface planing. Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers
  • Second Spindle Moulder fence for shaped or template work
  • Both surfacing tables opening at 90 degrees towards the inside of the table.

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.

The system of surfacing worktable opening toward the inside of the machine guarantees an excellent ergonomics.
All woodworking combined machines are equipped with anodized-extruded guides with support and rapid locking and an effective feeding system for the planer. These features make these machines easy-to-use for any type of machining.


Maximum flexibility when using the cutters, with the spindle moulder unit equipped with various speeds. The machines are equipped with spindle moulder hood with micrometric adjustment, very useful for moulding working.
The tenoning operations (optional) are easy thanks to the aluminum carriage and the dedicated speed

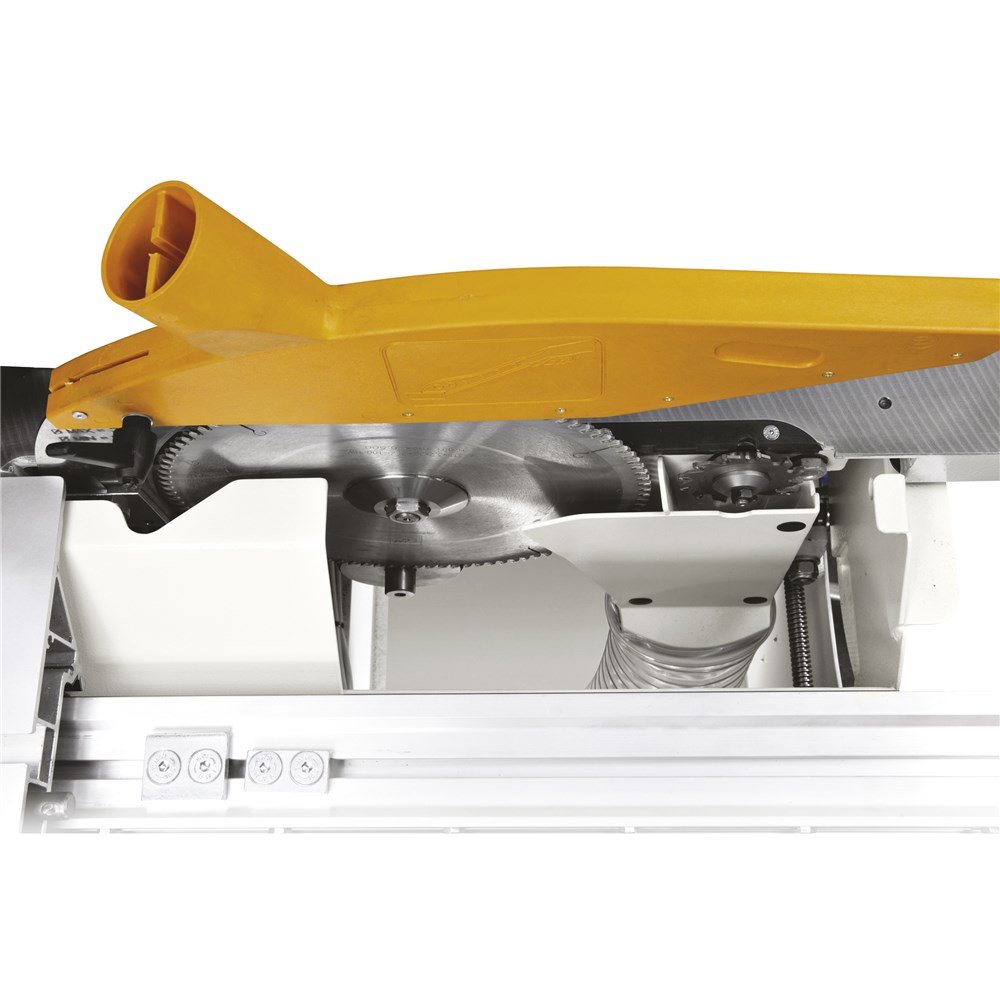

A tiltable saw unit, with sliding of the anodized aluminum carriage next to the blade for a better cutting precision are only some of the standard equipment of the minimax woodworking combined machines.
The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining.


Rich European quality CE safety devices, like the shaft protection to carry out shaping operation and working on curved profiles. The machining on the planer is very easy thanks to the large dimensioned surfacing tables


  • Precision and efficiency, with up to 5 machines on one compact space
  • Dedicated power for each function, with 3x separate motors
  • Quick changeover between modes, meaning minimal down time.
  • Wide, supported panel cuts from the 1600mm travel, crosscut table
  • 800mm sheet ripping capacity
  • High speed spindle (up to 9000RPM) allows for routing options
  • Optional Mortising attachemnt for full 5-in-one capability.
Brand SCM
Motor 2500w (3.4hp) 15 amp (x3)
Blade Diameter 12" (315mm)
Cut Dimensions (crosscut) 1600mm
Cut Dimensions (rip) 800mm
Planing Width Max 300mm
Spindle Diameter 30mm
