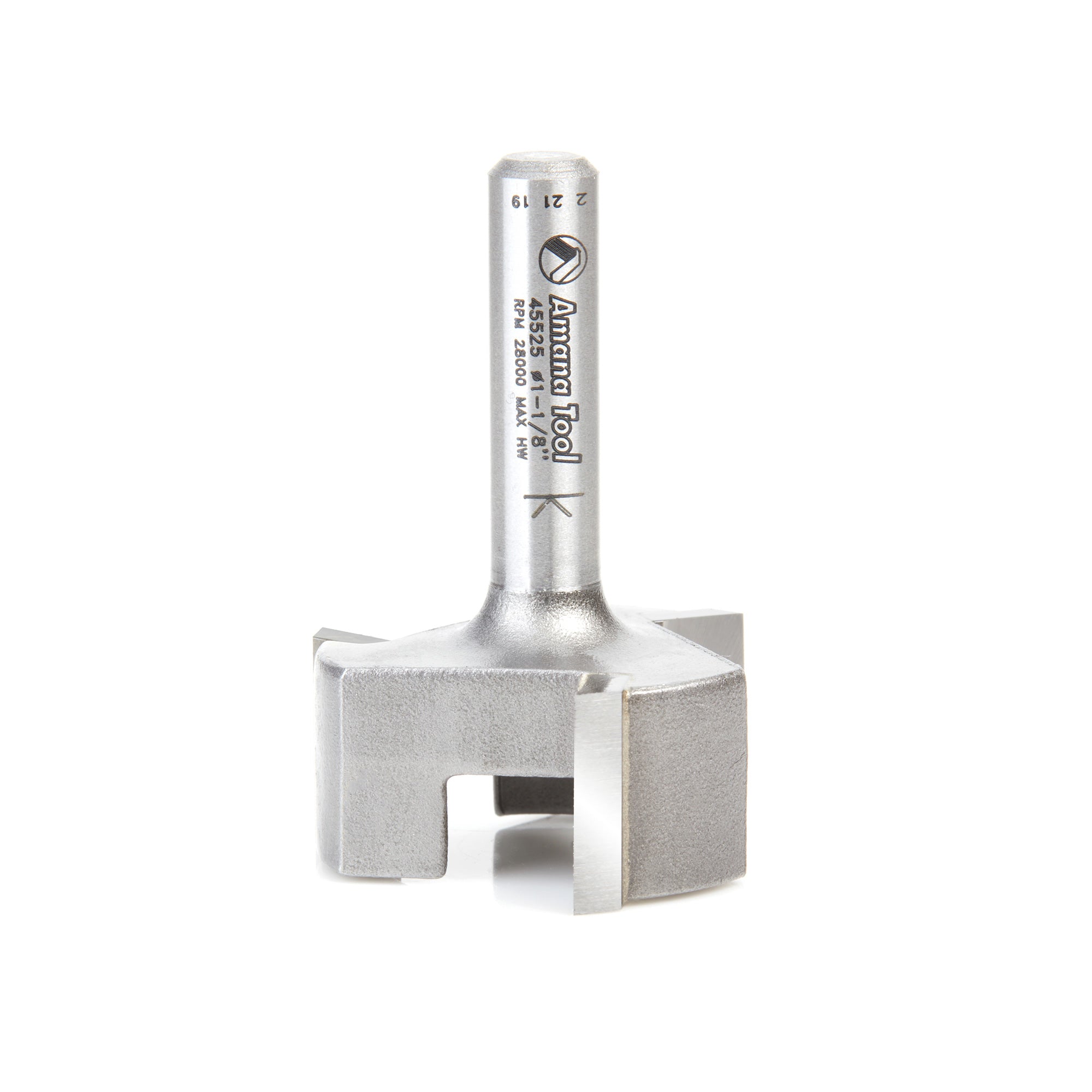

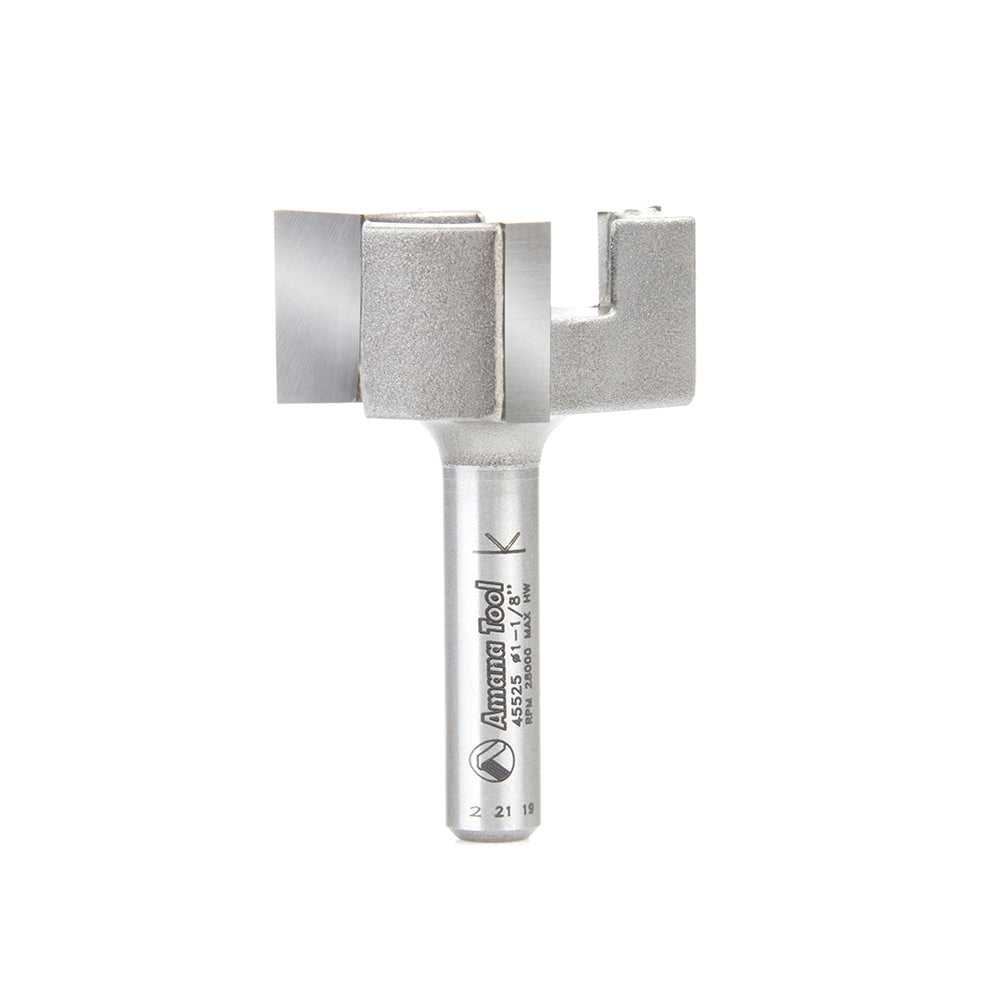

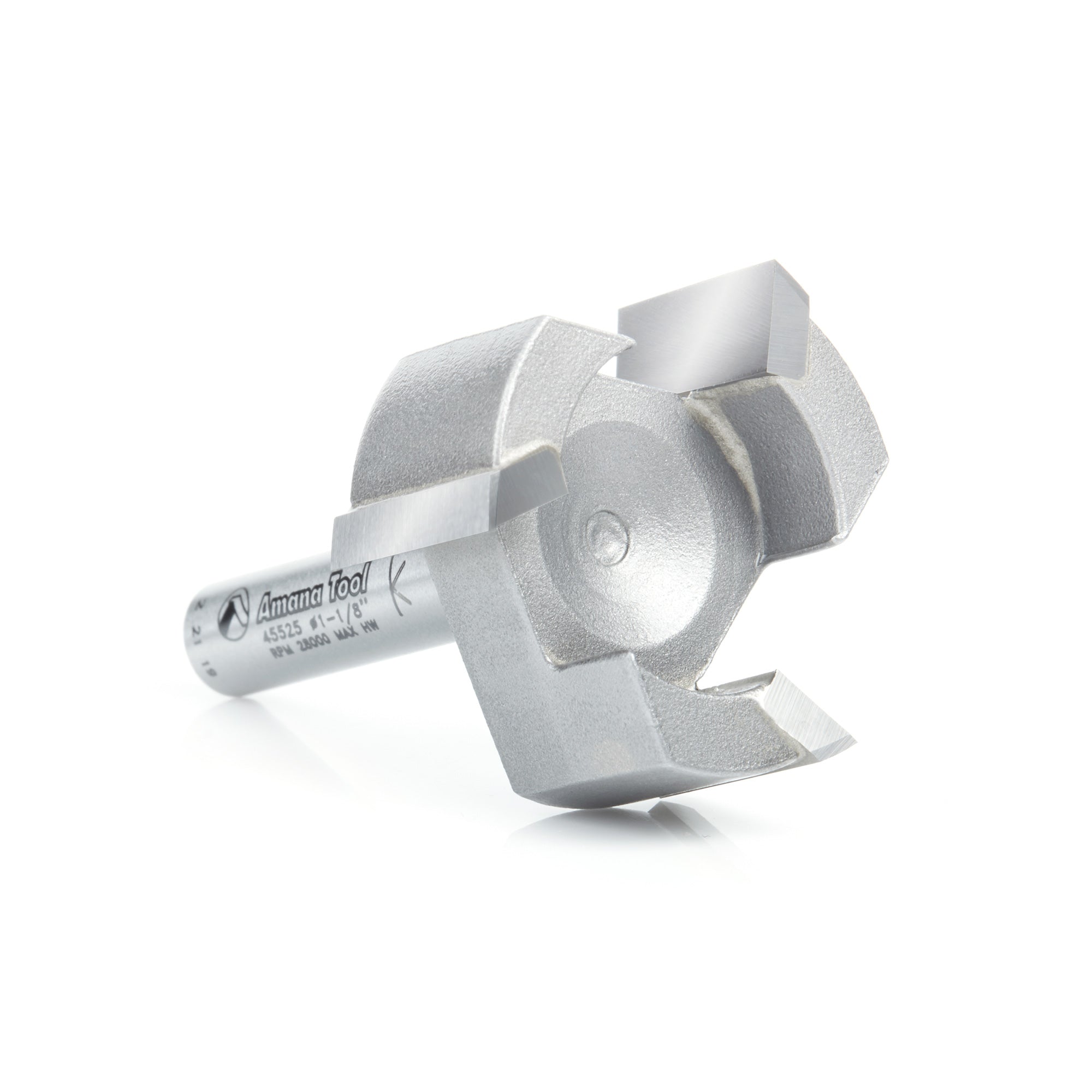

Amana 45525 Carbide Tipped Spoilboard Cutter, 1-1/8" Diameter, 1/4" Shank
Amana 45525 Carbide Tipped Spoilboard Cutter, 1-1/8" Diameter, 1/4" Shank
Designed for efficient surfacing and rabbeting applications, this Amana carbide-tipped spoilboard router bit is ideal for CNC spoilboard resurfacing, slab flattening and panel planing. The 28.6mm (1-1/8") diameter cutting head allows fast material removal while still being compact enough to work cleanly into tighter areas.
The three-flute carbide cutting edges deliver smooth, efficient cutting performance across a wide range of materials. This makes it particularly useful for resurfacing MDF spoilboards, flattening large glue-ups, or machining rebates and slots where a flat-bottomed cut is required.
The bit is also suitable for router sled machines, making it a great option for flattening large slabs and panels. When using with a router sled, ensure the sled is fully stable and square for best results.
For users machining plastics such as acrylic, it is recommended to run lower spindle RPM with an adjusted feed rate to prevent melting or adhesion of material to the cutter.
A Fusion 360 compatible tool file is available for download to simplify CNC setup and programming.
Key Features
- 28.6mm (1-1/8") carbide-tipped cutting diameter

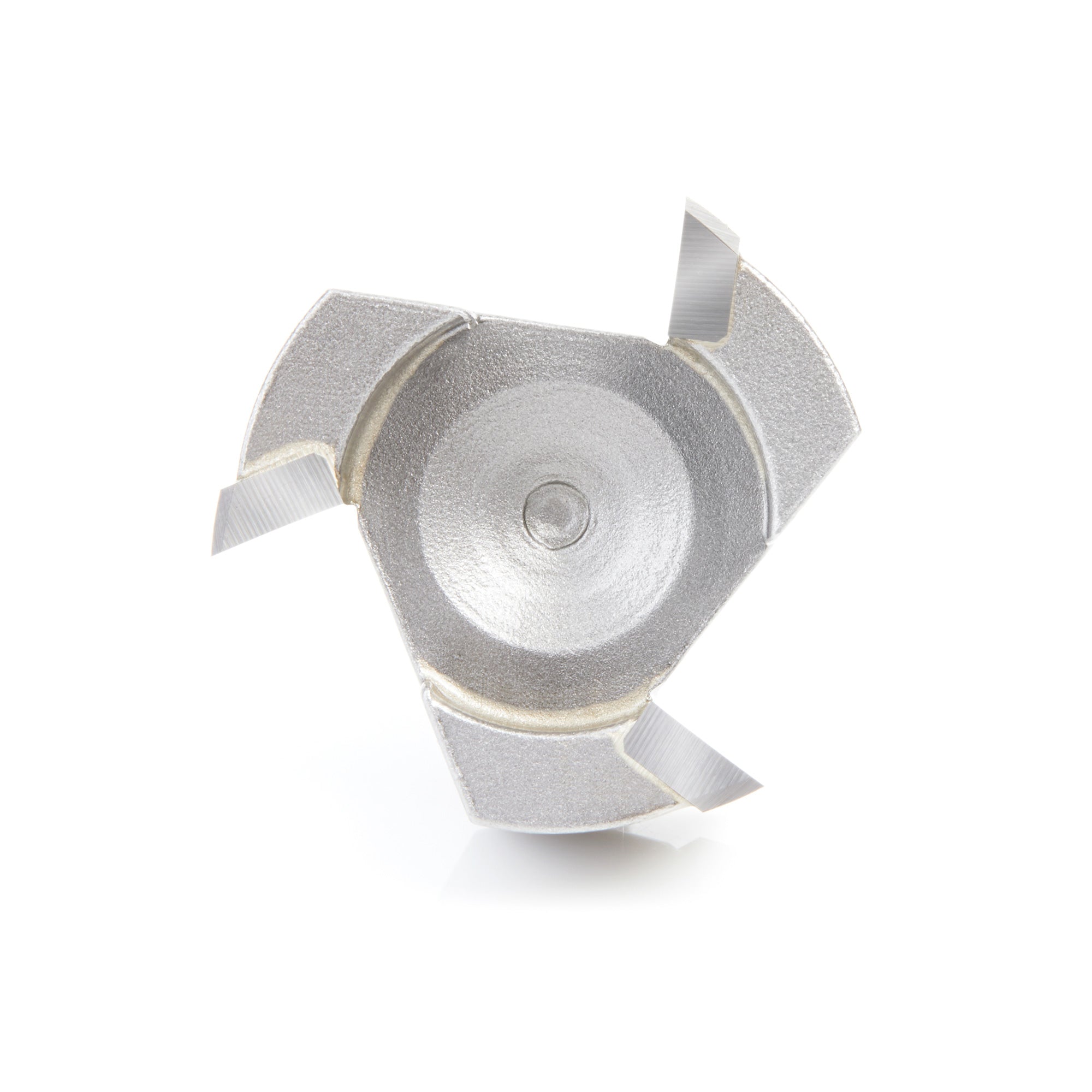

- Three-flute design for smooth, efficient material removal
- 1/4" shank suitable for many CNC routers and handheld routers
- Designed for spoilboard resurfacing, surfacing and rabbeting
- Ideal for CNC machines and router sled flattening systems
- High-quality carbide grade for clean cutting performance
- Efficient material removal for large surface machining
Ideal Applications
- Resurfacing CNC spoilboards
- Planing large glued-up panels on CNC machines
- Flattening slabs using router sled systems
- Surfacing timber slabs and workpieces
- Rabbeting and slotting operations
Suitable Materials
- MDF
- Fiberboard
- HDF / LDF
- Chipboard
- Hardwood and softwood
- Balsa core materials
- Plastic and acrylic (use lower RPM and adjusted feed rates)
Specifications
- Diameter (D): 1-1/8" (28.6mm)
- Cutting Height (B): 1/2"
- Shank (d): 1/4"
- Overall Length (L): 1-13/16"
- Flutes: 3
- Maximum RPM: 28,000
A versatile surfacing and rabbeting bit designed for fast, accurate material removal on CNC machines and router sled systems.
