Carbatec 10" Combination Thicknesser Jointer

Carbatec 10" Combination Thicknesser Jointer

Product Code:
TJ-250P
$2,249.10
$2,499.00 $2,249.10
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $562.28
All woodworking machines require effective dust extraction to ensure quality work and longevity of the machine itself. Failure to connect your machine to a suitable dust collector may affect your warranty.
Please note: Bulky items are not eligible for free shipping. Delivery costs for these products will vary depending on the size of the item and the delivery location. Shipping will be calculated and confirmed during the checkout process.
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
Call centre hours: 9am - 5pm AEST Mon - Fri. Closed weekends & public holidays
1800 658 111
Call us
View full details
Product Details

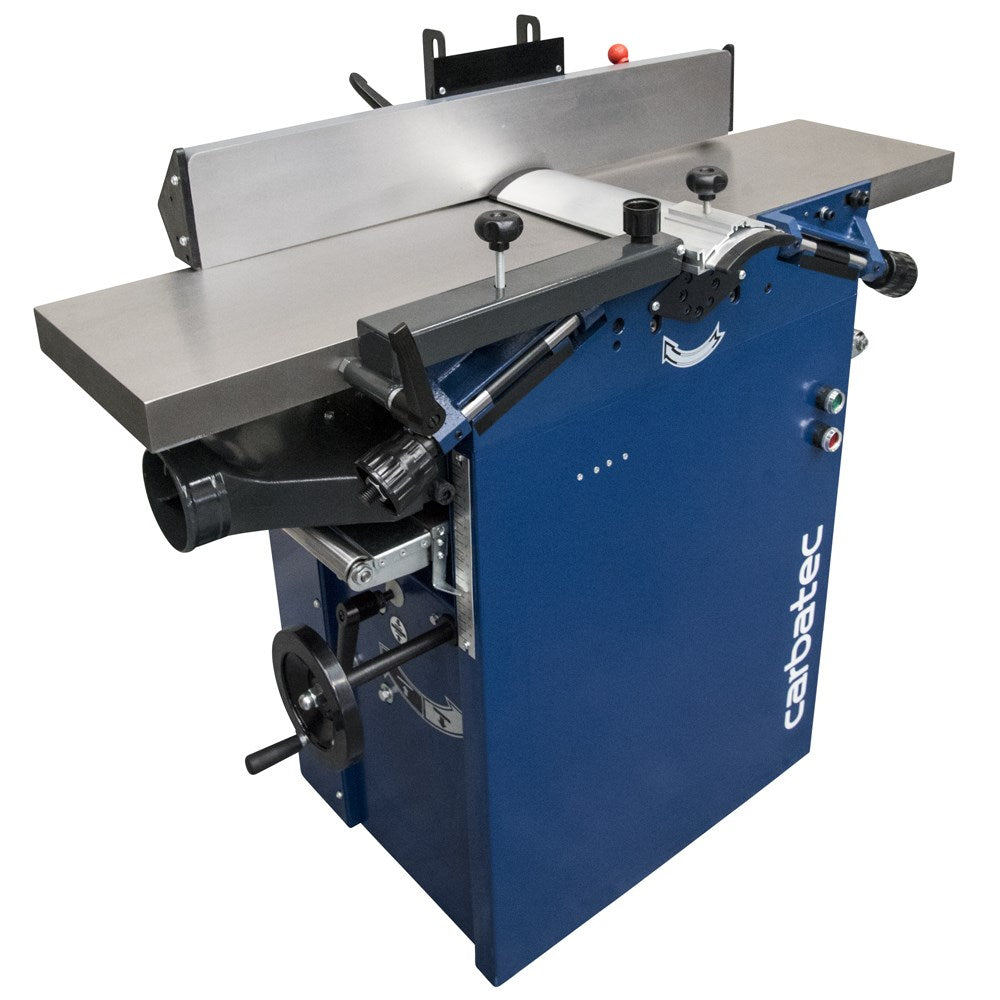

Carbatec TJ-250P Planer/Thicknesser (Formerly AW106PT)

We’ve updated the look and product code of our AW106PT to the new TJ-250P, but rest assured—this machine retains the exact same proven specifications as our trusted original model.

Designed as an economical take on the European-style planer/thicknesser, the TJ-250P is a true workshop space saver. The flip-up tables allow quick conversion to thicknesser mode, while the noise-dampening slots help reduce operating noise for a more comfortable working environment.

A serrated steel infeed roller and urethane outfeed rollers ensure smooth, consistent feeding. The European-style alloy cutterhead guard provides excellent timber access during planing while maintaining maximum safety when used with push blocks. For optimal performance, we strongly recommend pairing this machine with a minimum 2HP dust collector, ensuring efficient chip extraction and a cleaner workspace.

The 3-knife straight cutterhead uses easily removable HSS knives that can be sharpened. Keeping a spare set of blades on hand allows for quick changeovers, minimising downtime and maximising productivity.

Key Features

  • 10" (250 mm) capacity
  • Powerful 1,500W (2 HP) induction motor
  • Cast iron jointing tables for superior stability

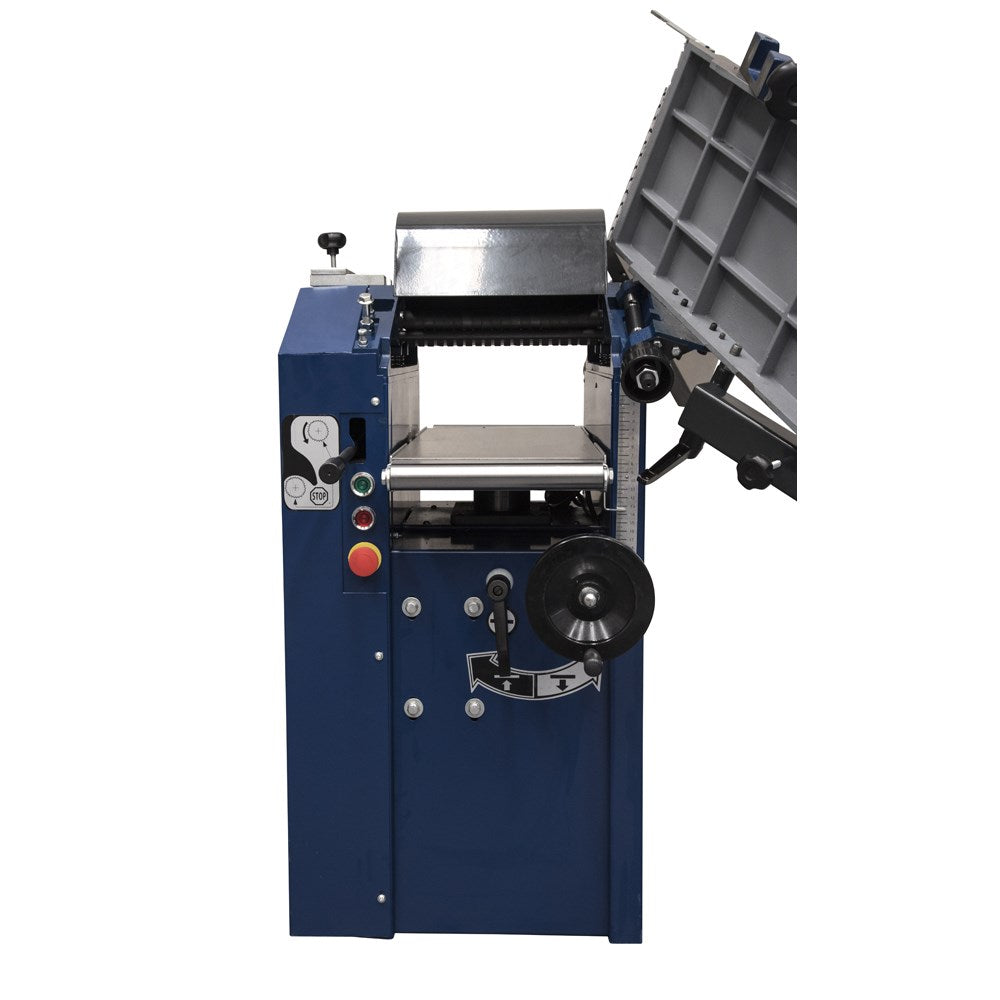

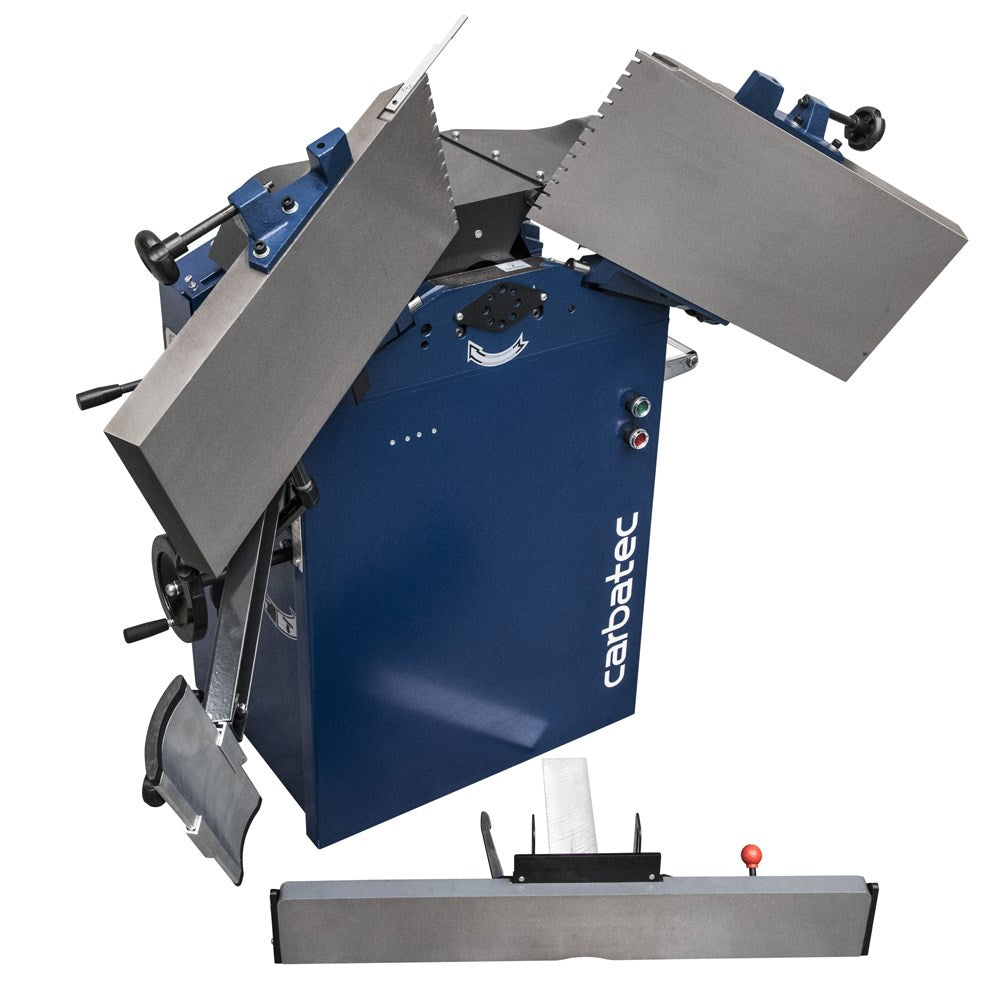

  • Flip-up top table for fast conversion to thicknesser mode
  • 3 HSS knives for efficient, clean cutting
  • 4" (100 mm) dust port

Updated name, unchanged reliability. A space-saving workhorse built to plane, thickness, and perform day after day.

Additional information
15 specs...
Cutterhead
Straight 3 knife
Dust Ports Size
1 x 100 mm (4")
Feed Rate
8m/min
Fence Type Features
Cast Iron +/- 45° & 90° stops
Material
Cast iron head & Table
Maximum Depth Of Cut
2 mm at 250 mm wide
Maximum Material Width
250 mm
Motor
1500W (2HP) Induction -10A Plug
Nett Weight
150 kg
Roller Type
Serrated Steel Infeed / Solid Steel Outfeed
Shipping Weight
165 kg
Size
(Table) 250x1190 mm
Switch Type
Magnetic NVR
Warranty
2 years
Workshop Footprint WxDxH
1100 x 800 x 1000 mm
1 file...
Instruction Manual
