Veritas Beam Compass Heads

Veritas Beam Compass Heads

Product Code:
05N50-01

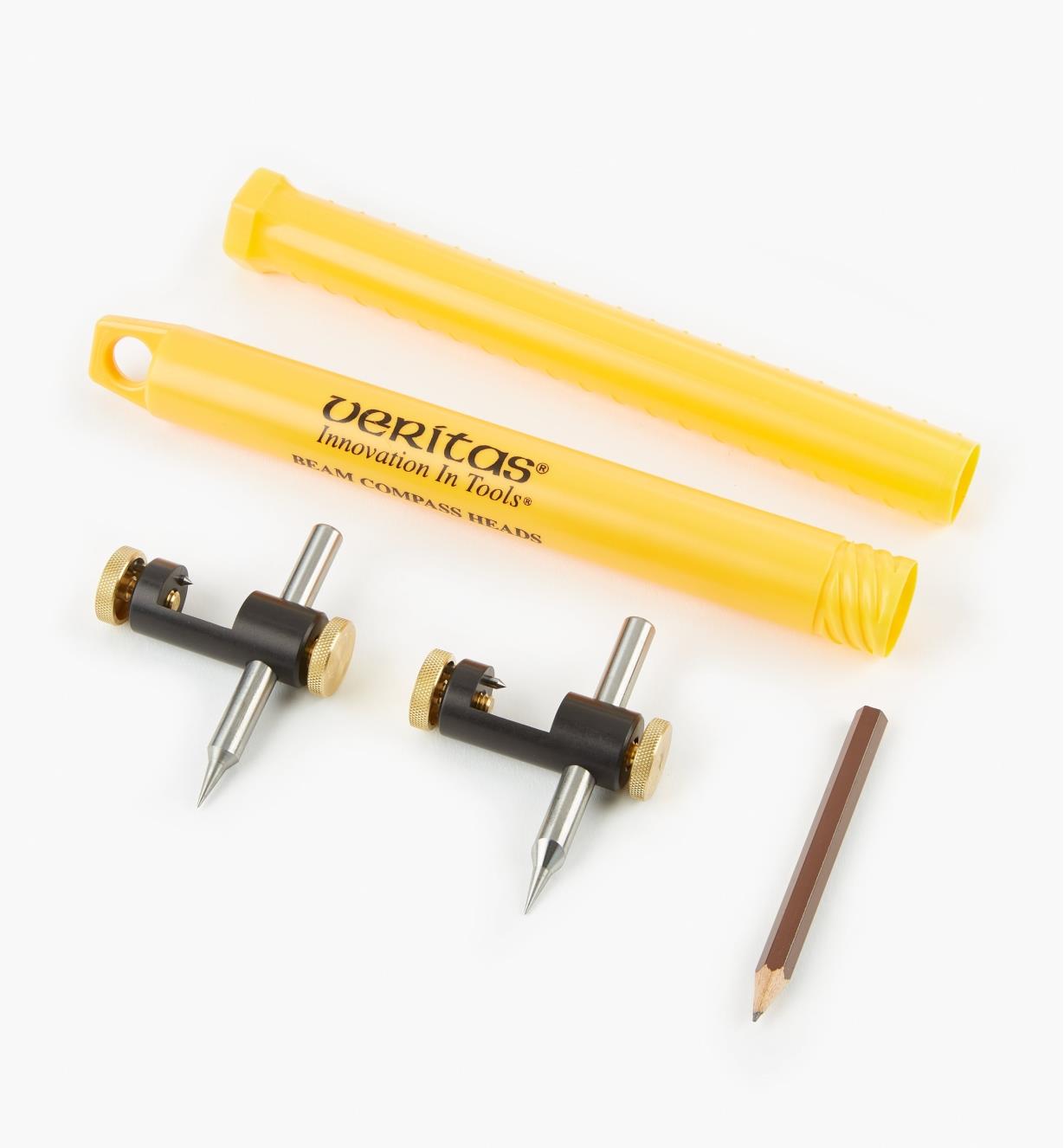

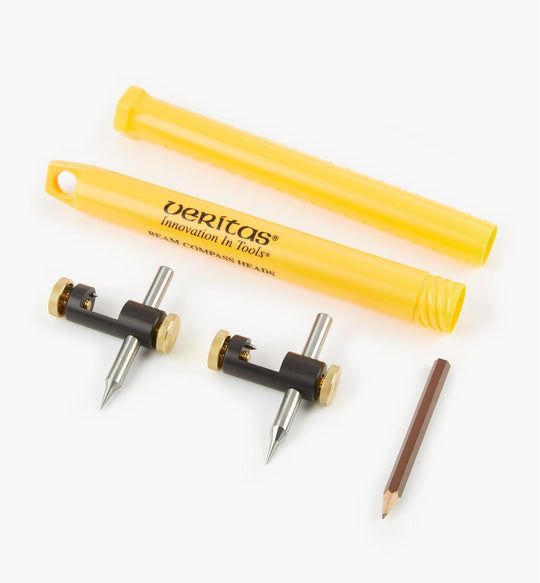

Using a regular compass for small circles is OK, but for projects involving large circles or arcs, our beam compass heads are ideal.
The aluminum heads clamp onto a piece of wood from 5/8" to 3/4" thick, creating a compass whose radius is limited only by the length of stock you have at hand. Each brass clamping knob holds the head securely to the beam using a trapped pin that prevents pivoting and shifting. The pins withdraw as the clamping knob is backed off. The heads need only be clamped approximately as one of the points has an eccentric tip that can be used to achieve 1/8" of fine adjustment. Both points have been hardened and can be used to mark hard surfaces such as steel plate, sheet metal or aluminum.
Also included is a small pencil for marking wood and wallboard. The heads, points and pencil all pack into the slim tubular hard-shell case for storage in a toolbox.
A simple yet highly useful layout tool.
Made in Canada.

$123.00
$0.00 $123.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $30.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Using a regular compass for small circles is OK, but for projects involving large circles or arcs, our beam compass heads are ideal.
The aluminum heads clamp onto a piece of wood from 5/8" to 3/4" thick, creating a compass whose radius is limited only by the length of stock you have at hand. Each brass clamping knob holds the head securely to the beam using a trapped pin that prevents pivoting and shifting. The pins withdraw as the clamping knob is backed off. The heads need only be clamped approximately as one of the points has an eccentric tip that can be used to achieve 1/8" of fine adjustment. Both points have been hardened and can be used to mark hard surfaces such as steel plate, sheet metal or aluminum.
Also included is a small pencil for marking wood and wallboard. The heads, points and pencil all pack into the slim tubular hard-shell case for storage in a toolbox.
A simple yet highly useful layout tool.
Made in Canada.
