BOW XT L-Fence

Bow XT4 L-Fence: Precision Pattern-Cutting and Guiding for Your XTender Fence

Turn your Bow XTender Fence into a full pattern-cutting and guiding system for the table saw and bandsaw. The XT4 L-Fence gives you rigid dual L-brackets, a clear acrylic guide plate and an integrated follower, so you can make safer duplication cuts, repeatable tapers and controlled curves without building a jig from scratch. Set it up in minutes and get straight to work with results you can repeat time after time.

Because the XT4 slides into the XTender T-track with T-bolts, you get a rigid, precise mount and reliable alignment on every cut. On the table saw, the blade runs captured beneath the fence and behind your workpiece for controlled duplication, while the clear acrylic plate keeps your cut line visible as it supports the stock. Move to the bandsaw and the built-in relief divot positions the blade correctly for guided cutting, with an adjustable follower to help stop you drifting into your layout lines in heavy-grain timber.

Key Features

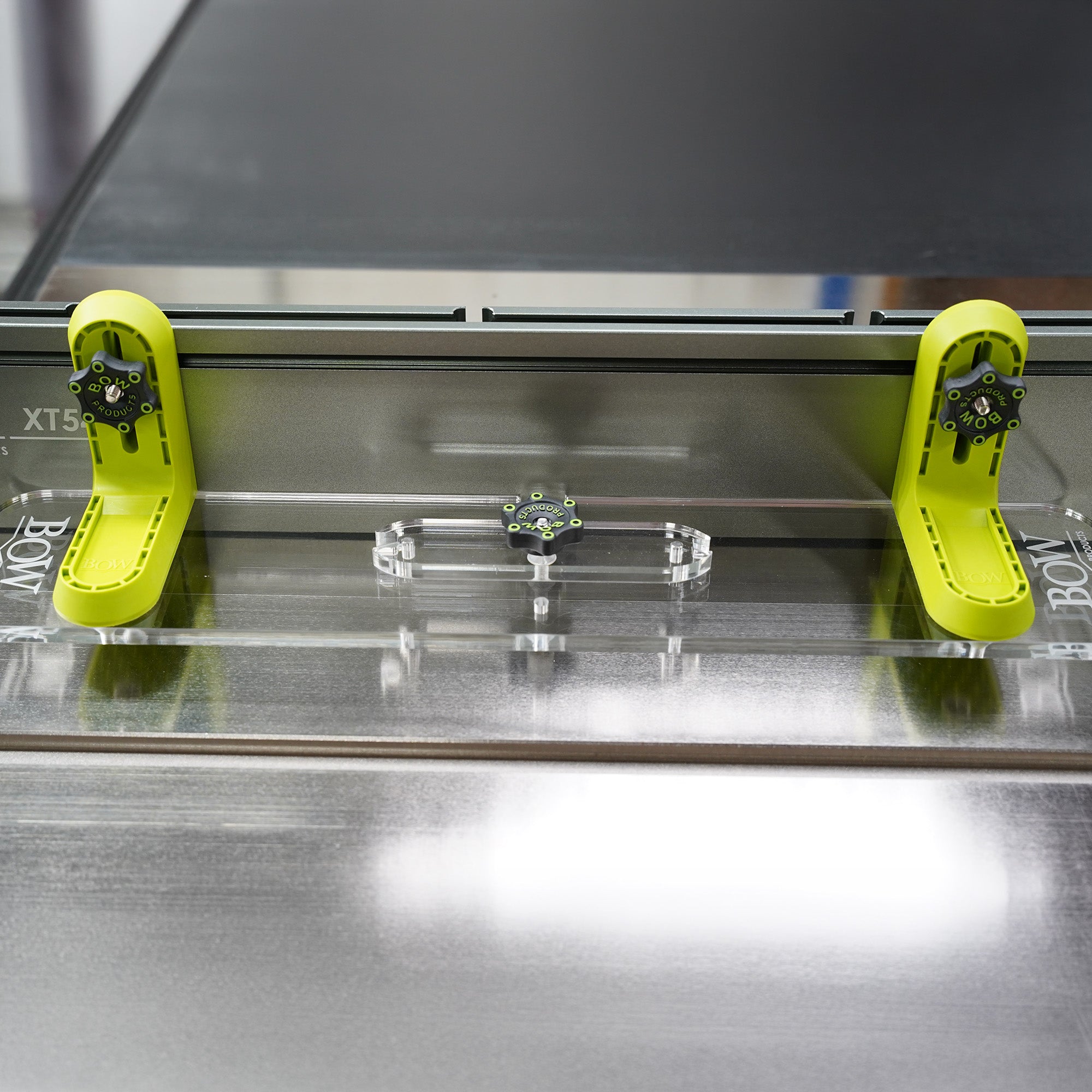

• XTender-only precision fit: Slides into the XTender T-track with T-bolts for fast install, rigid mounting and repeatable alignment every session.

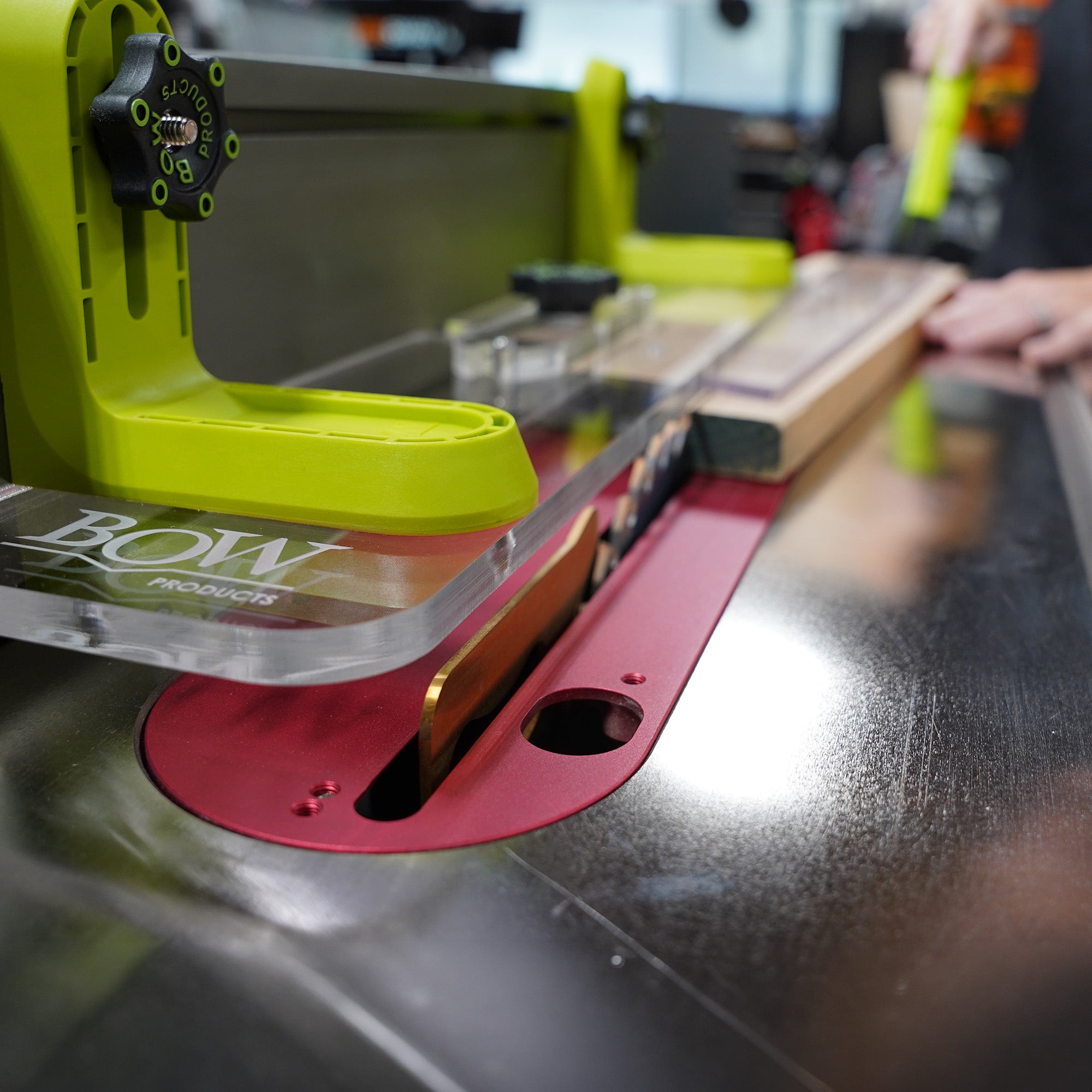

• Blade capture for safer pattern cuts: On the table saw, the blade runs captured beneath the fence and behind the workpiece for controlled, confident duplication.
• Clear acrylic guide plate: A transparent plate keeps your cut line visible while fully supporting the workpiece.
• Adjustable height control: A simple vertical slot lets you set the fence about 1/16" above your stock for a smooth, consistent feed.
• Built-in stop capability: Position it in front of the blade for repeatable crosscuts while keeping material clear of the rip fence.
• Short-fence advantage: The fence stops at the blade, sliding-saw style, to help reduce binding on short parts.

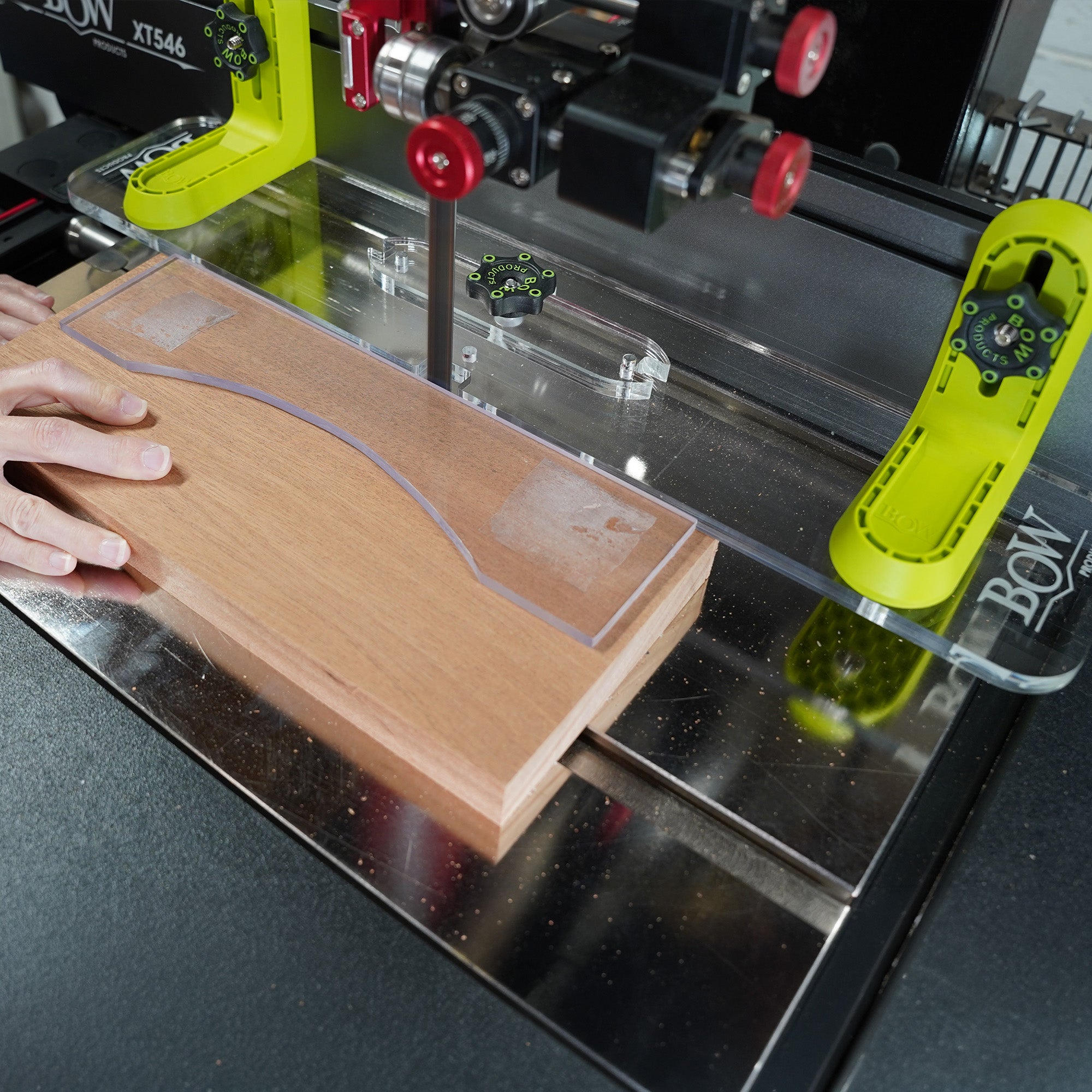

• Bandsaw-optimised relief divot: The acrylic plate includes a divot that positions the bandsaw blade correctly for guided cutting.
• Adjustable guide follower: The follower installs under the fence to help prevent drifting into layout lines, with 1/4" and 3/8" blade support.

Main Applications

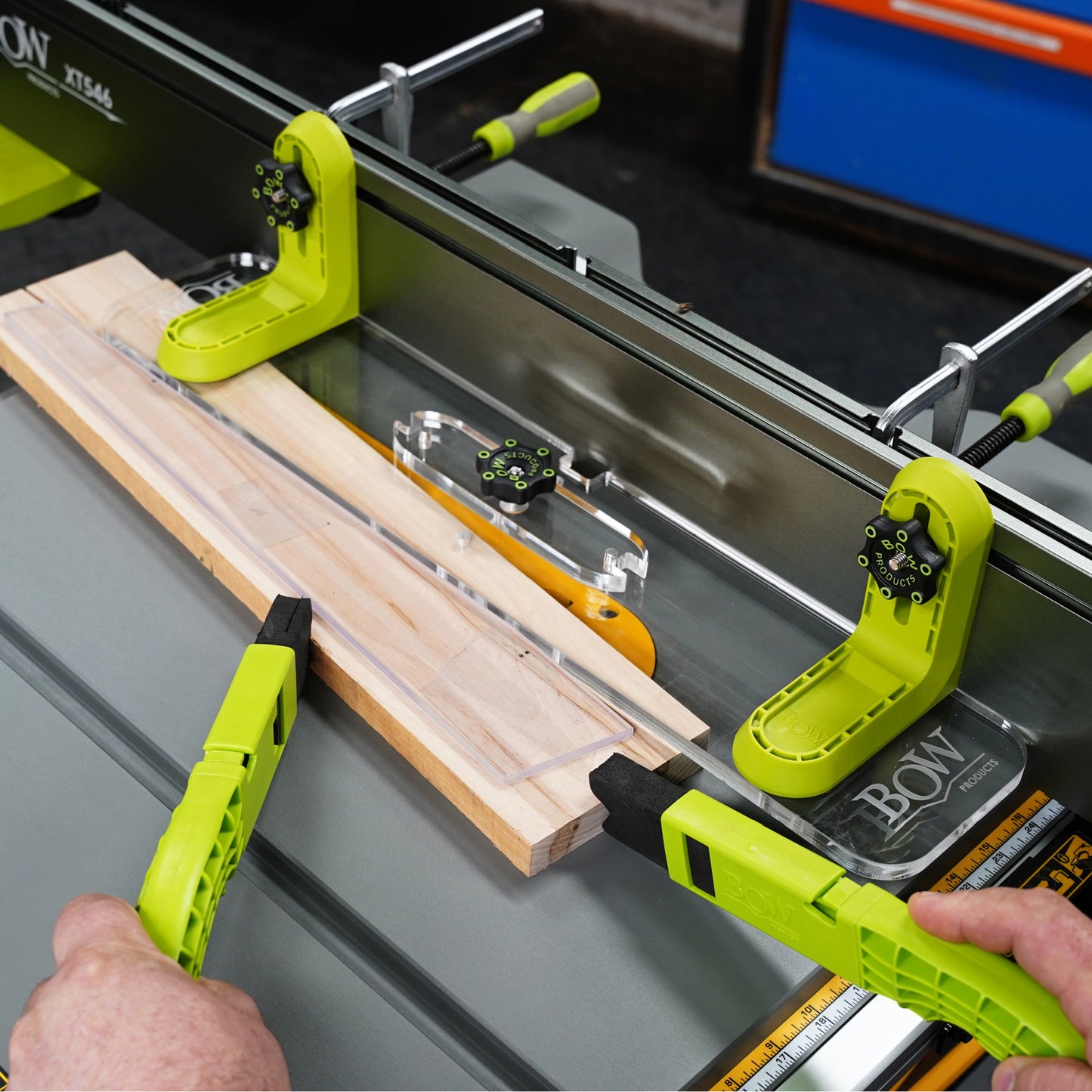

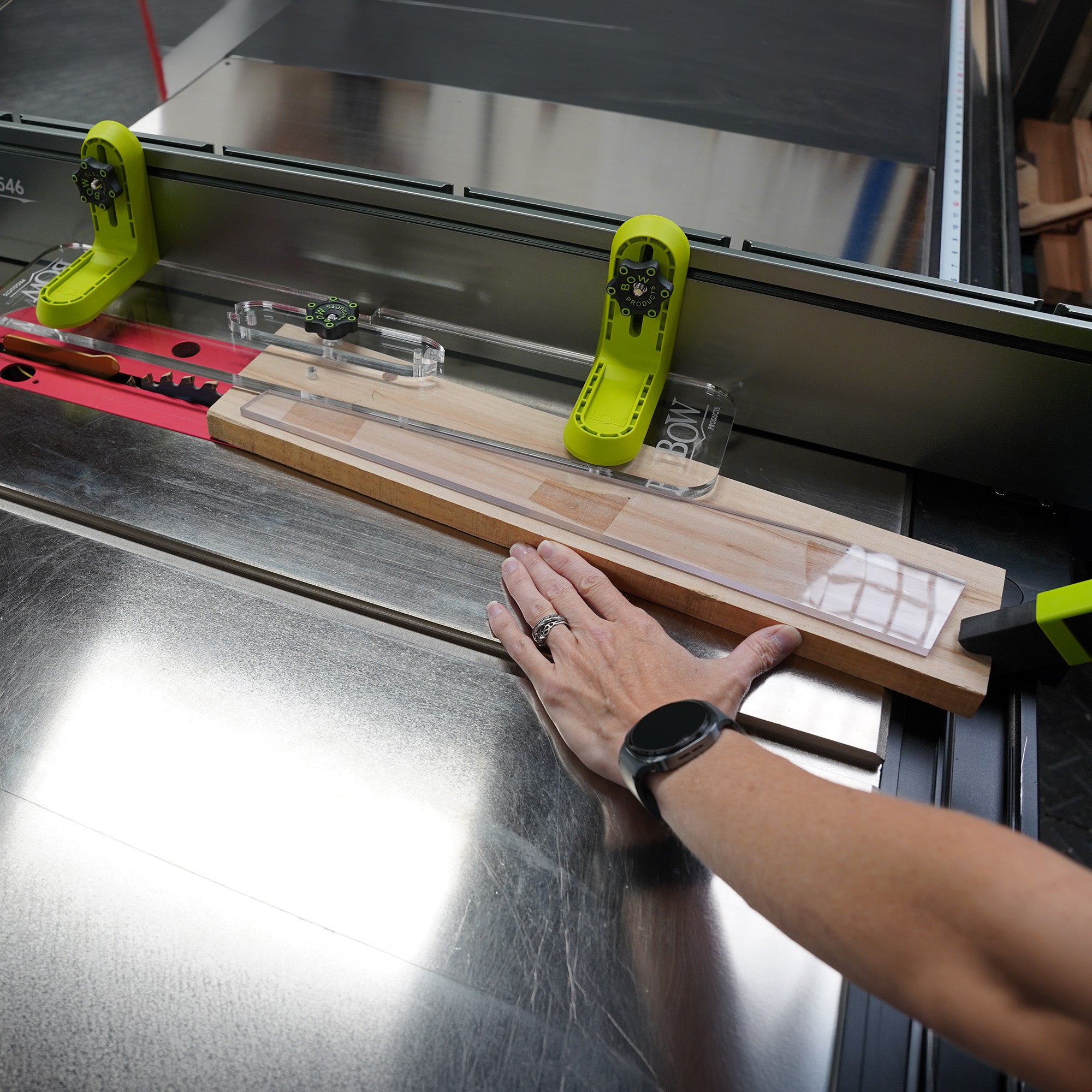

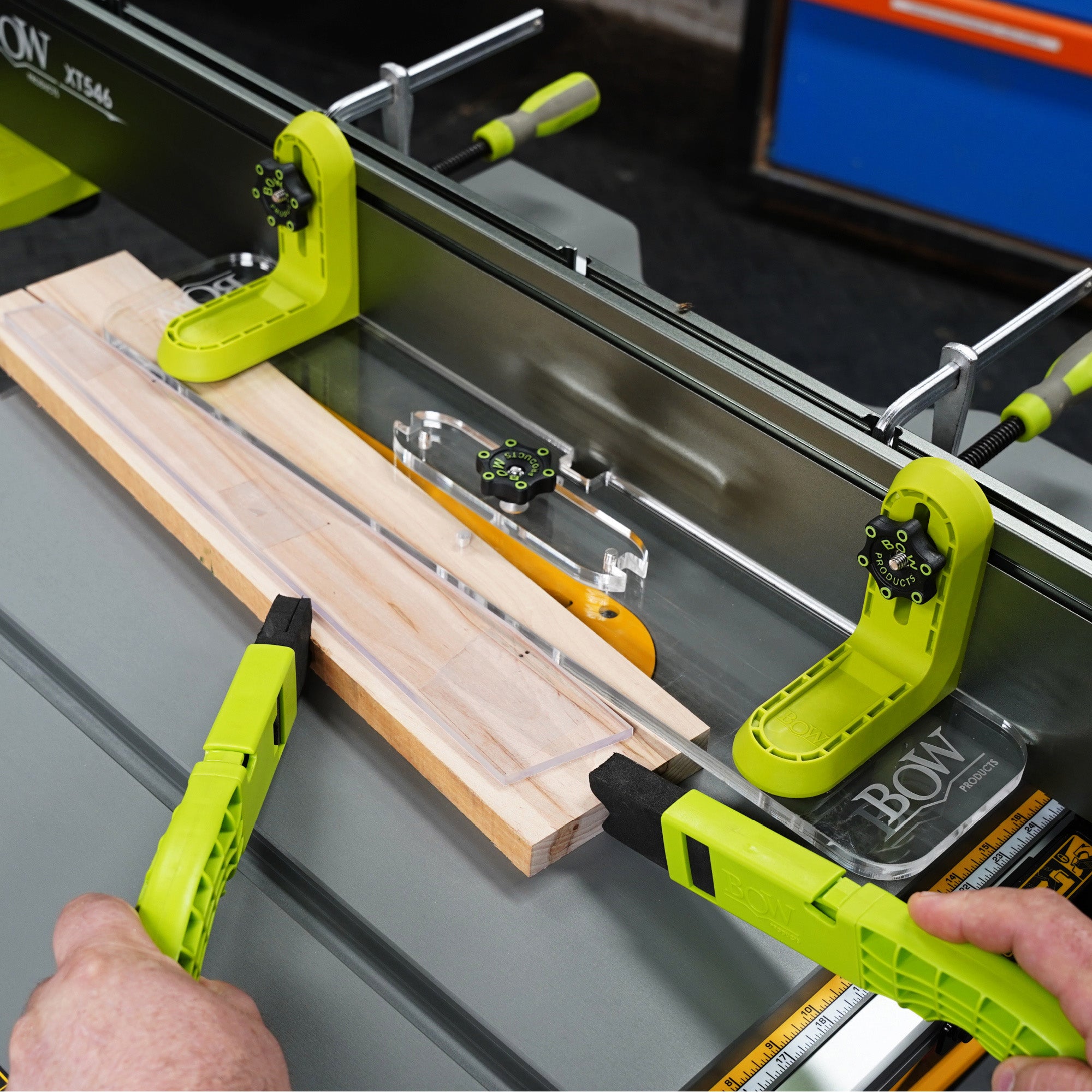

• Template and pattern duplication on the table saw for matching parts.
• Tapered edge and face cuts with repeatable accuracy.
• Repetitive short crosscuts using the stop positioning.
• Safe duplication of small angled parts (pair with a mitre gauge for angle control).
• Bandsaw rough-out prior to routing, leaving 1/64"–1/32" for a fast, clean finish.
• Controlled radius and curved cuts using the follower.
• Cleaner results in timbers prone to burning or tear-out.

Inclusions

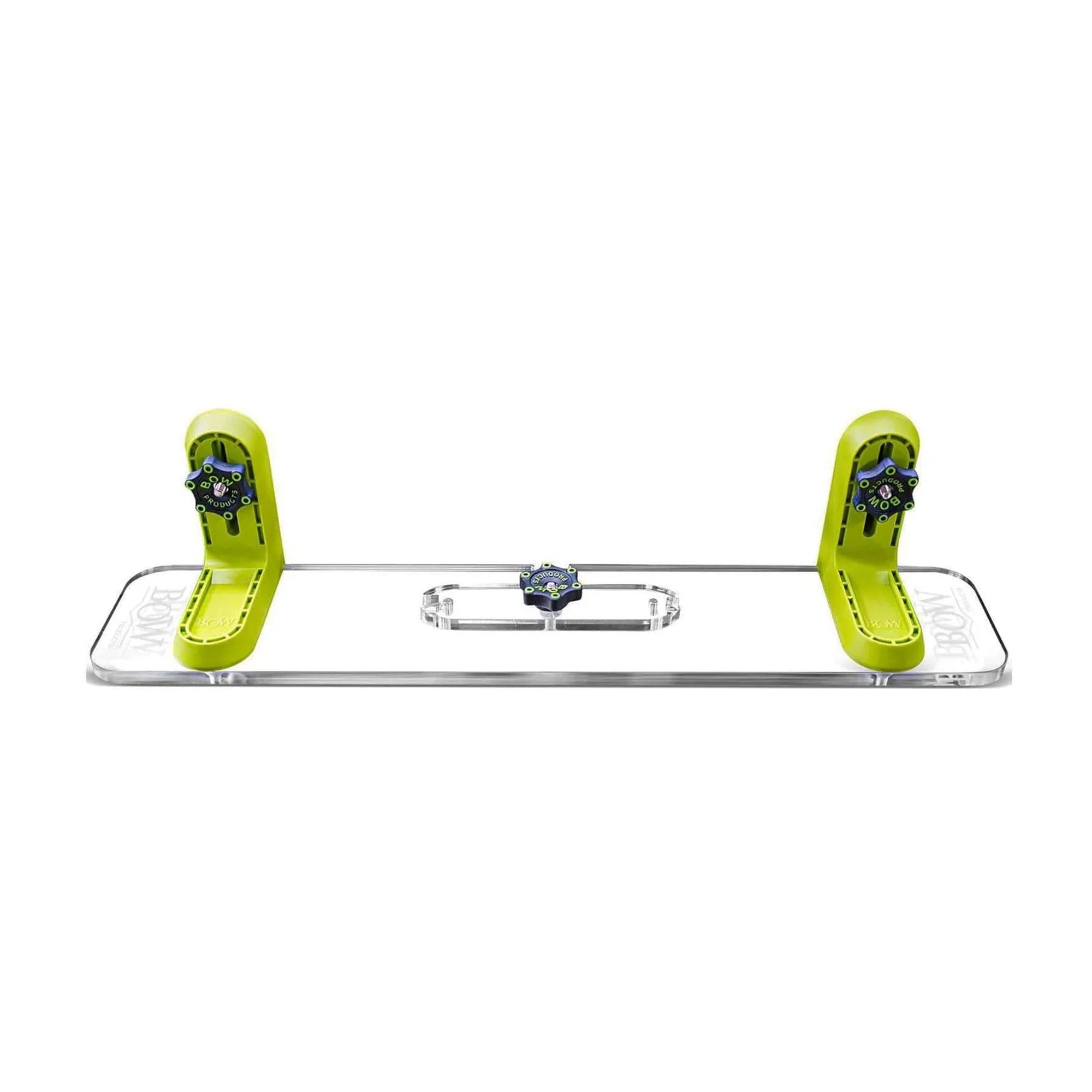

• Two precision L-brackets
• Clear acrylic L-Fence guide plate (with bandsaw relief divot)
• Adjustable dual-position guide follower (1/4" & 3/8" blade support)
• Two T-bolts
• Three Bow knobs
• Four small machine screws
• One large machine screw
• All required XTender mounting hardware

Ready to cut cleaner patterns, tapers and curves without building a jig? Add the Bow XT4 L-Fence to your cart today and get precise, repeatable results from your XTender Fence System.
