Carbatec 150mm ER-16 Collet Forstner Bit Extension

150mm ER-16 Collet Extension — Reach Deeper Into Your Lathe Work

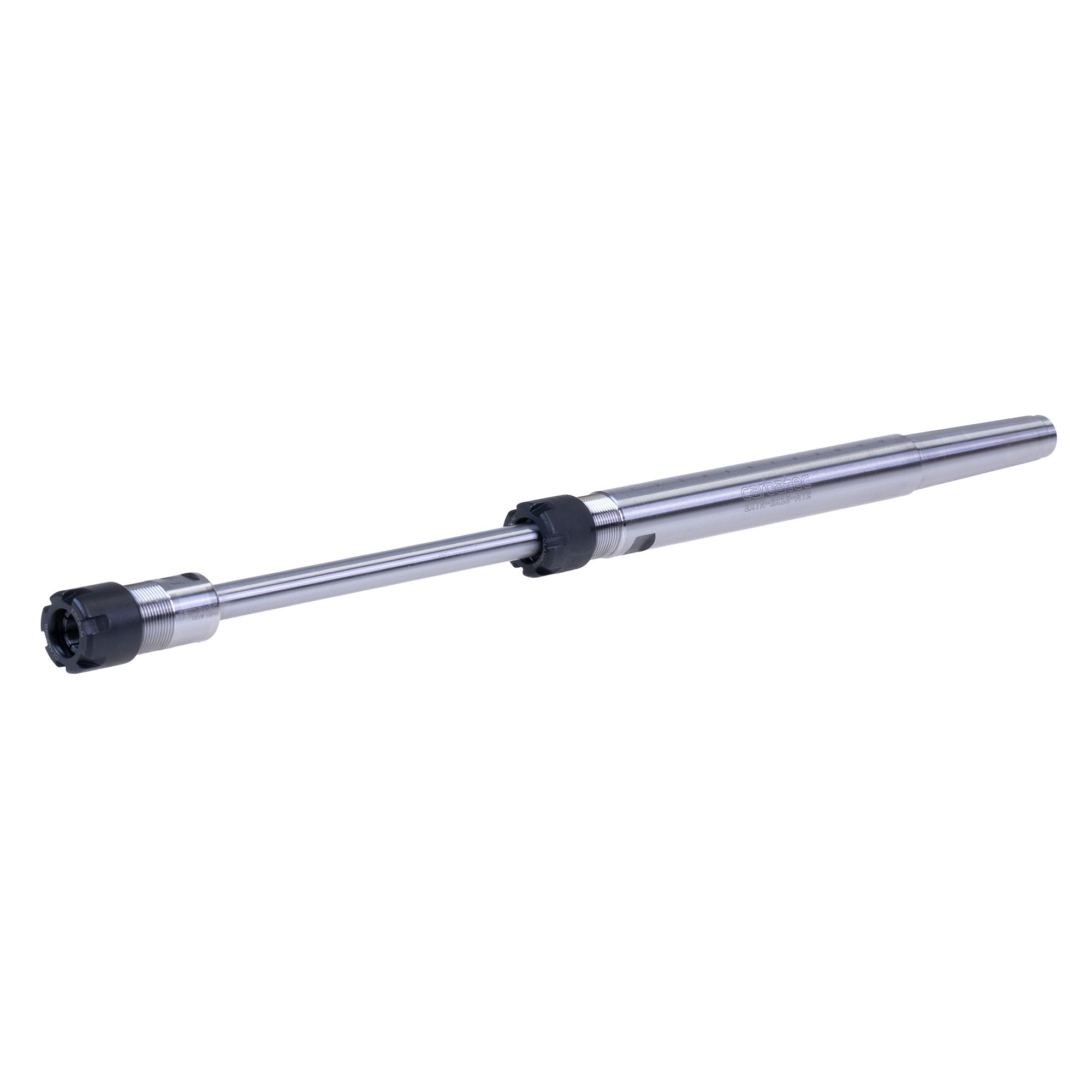

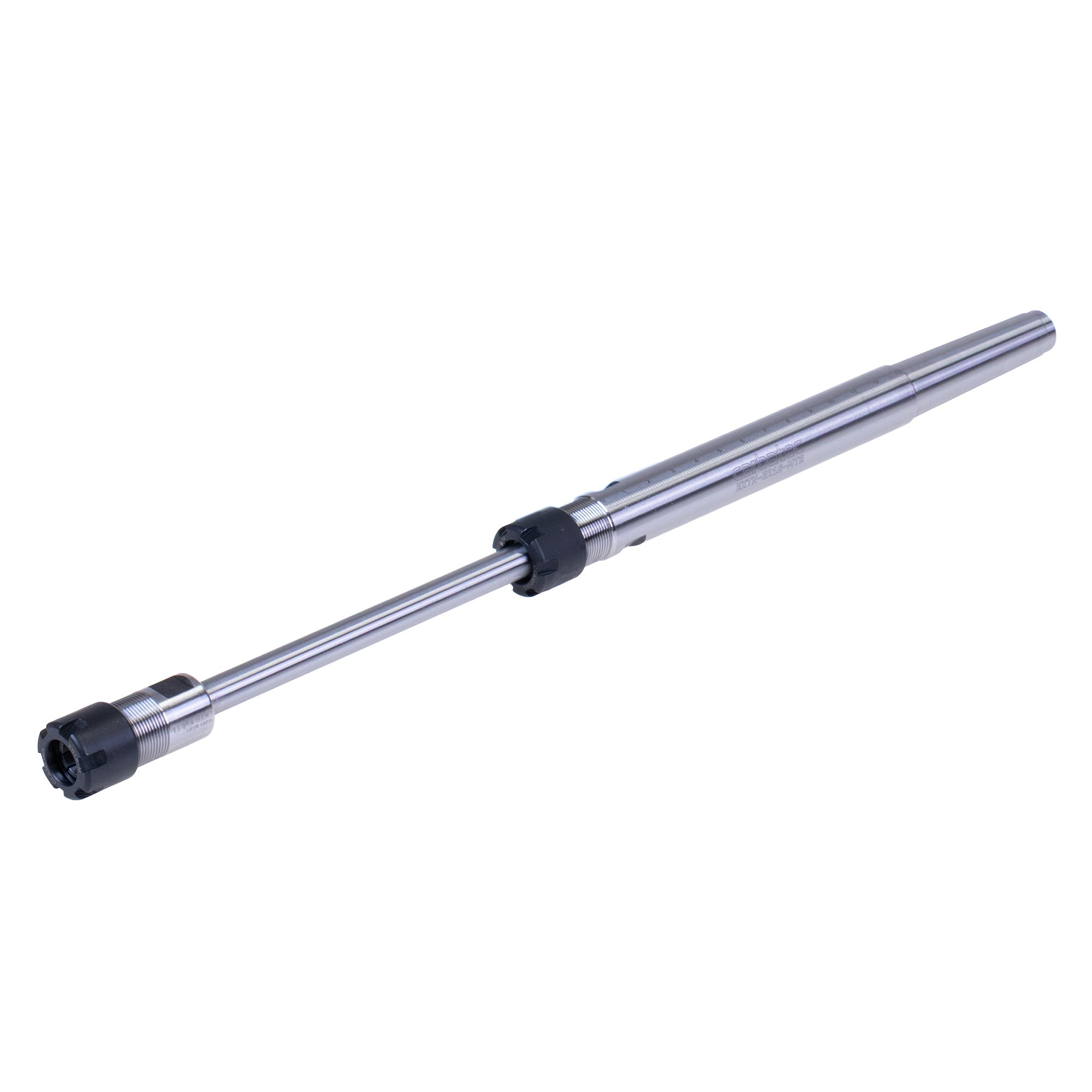

When your turning project calls for serious depth, this 150mm ER-16 Collet Extension delivers. It's purpose-built to pair with your EXTN-ER16-MT2 Lathe extension bit, giving you a combined 280mm of reach so you can tackle deep recesses that standard setups simply can't manage.

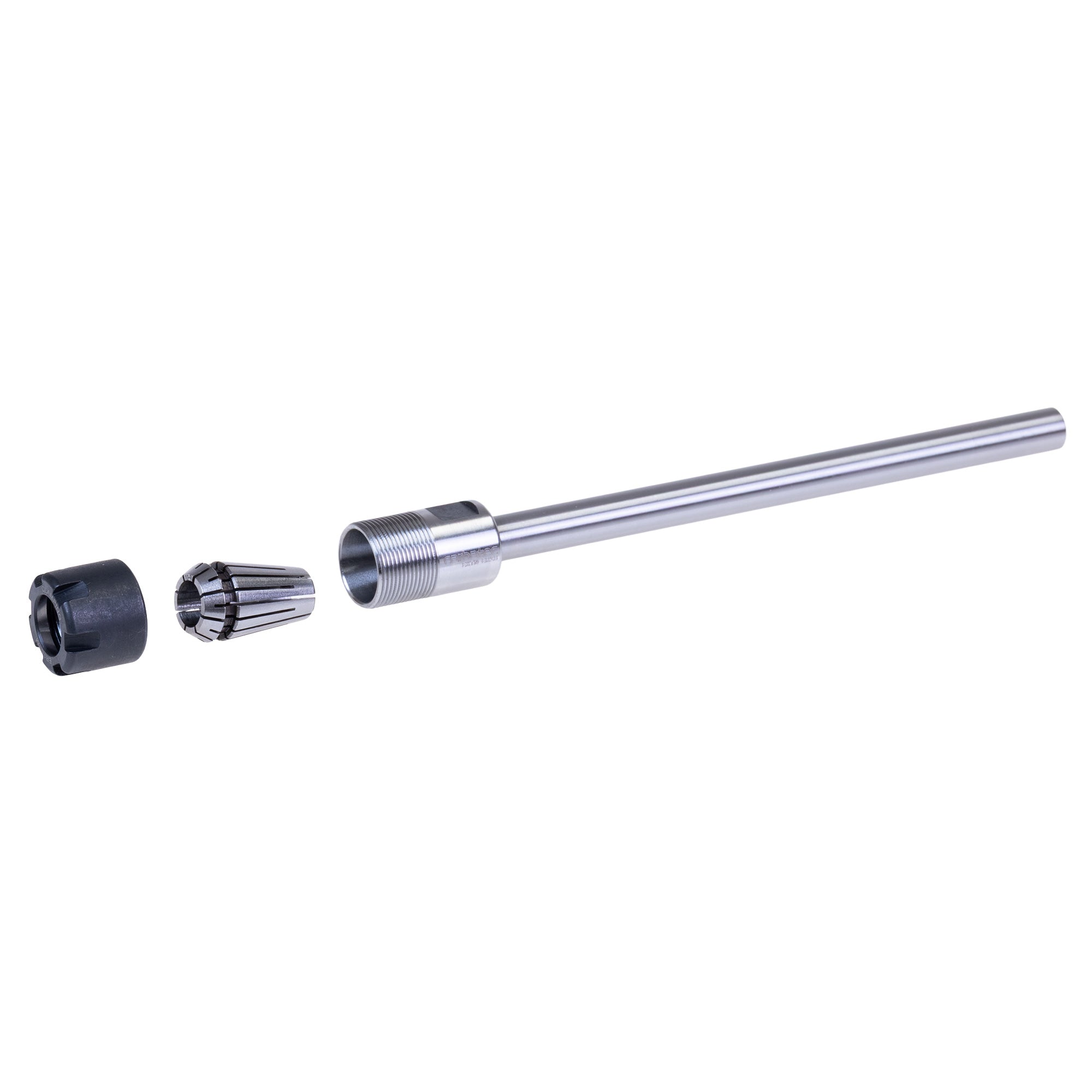

The 10mm main shaft slots straight into the 10mm collet on your ER16-MT2 unit. That frees up the 8mm collet from your original set, plus the extra 10mm collet included here, so you can clamp a wide range of shank sizes with confidence. Thanks to the way collets grip, you'll also handle slight manufacturing tolerance variance without any fuss.

Key Benefits

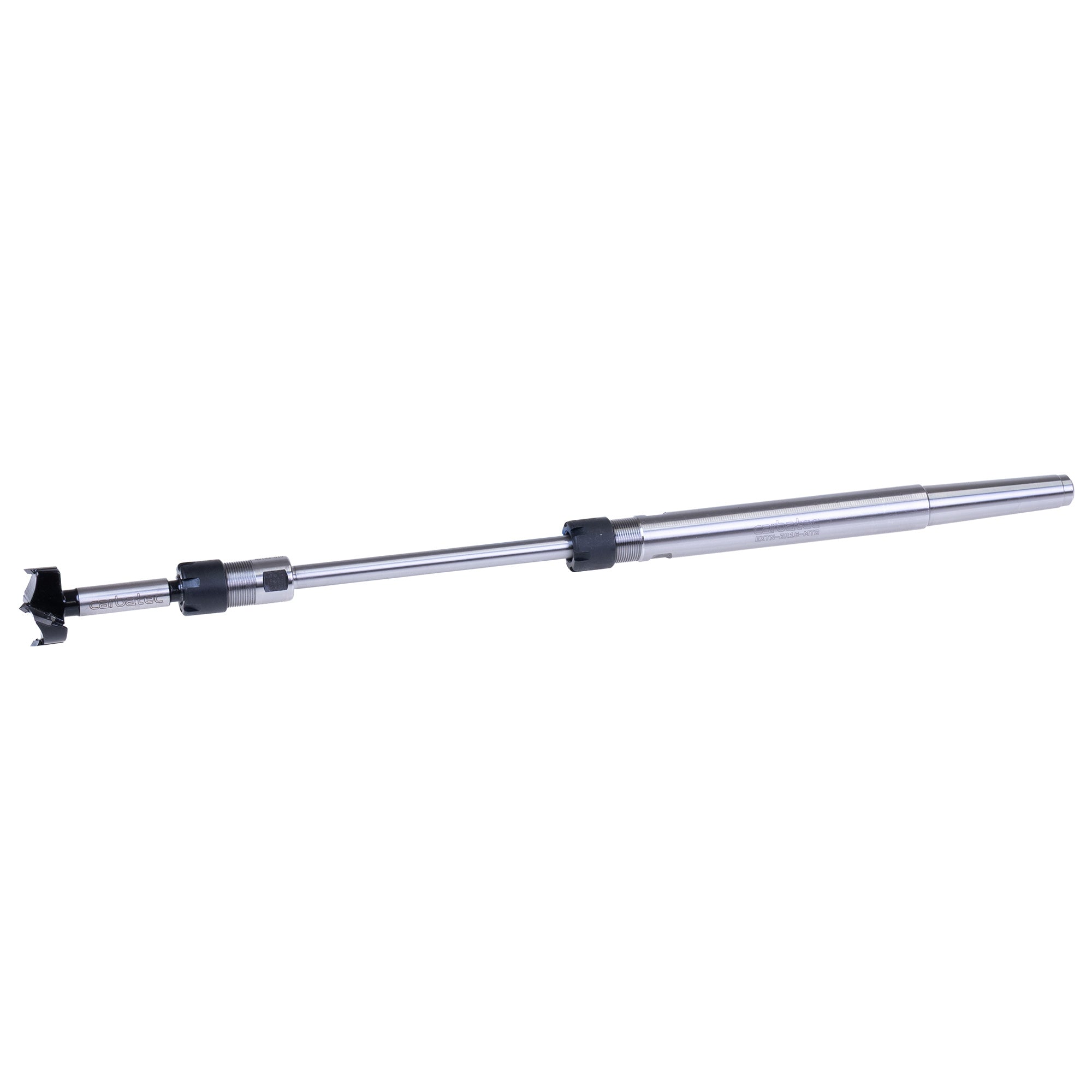

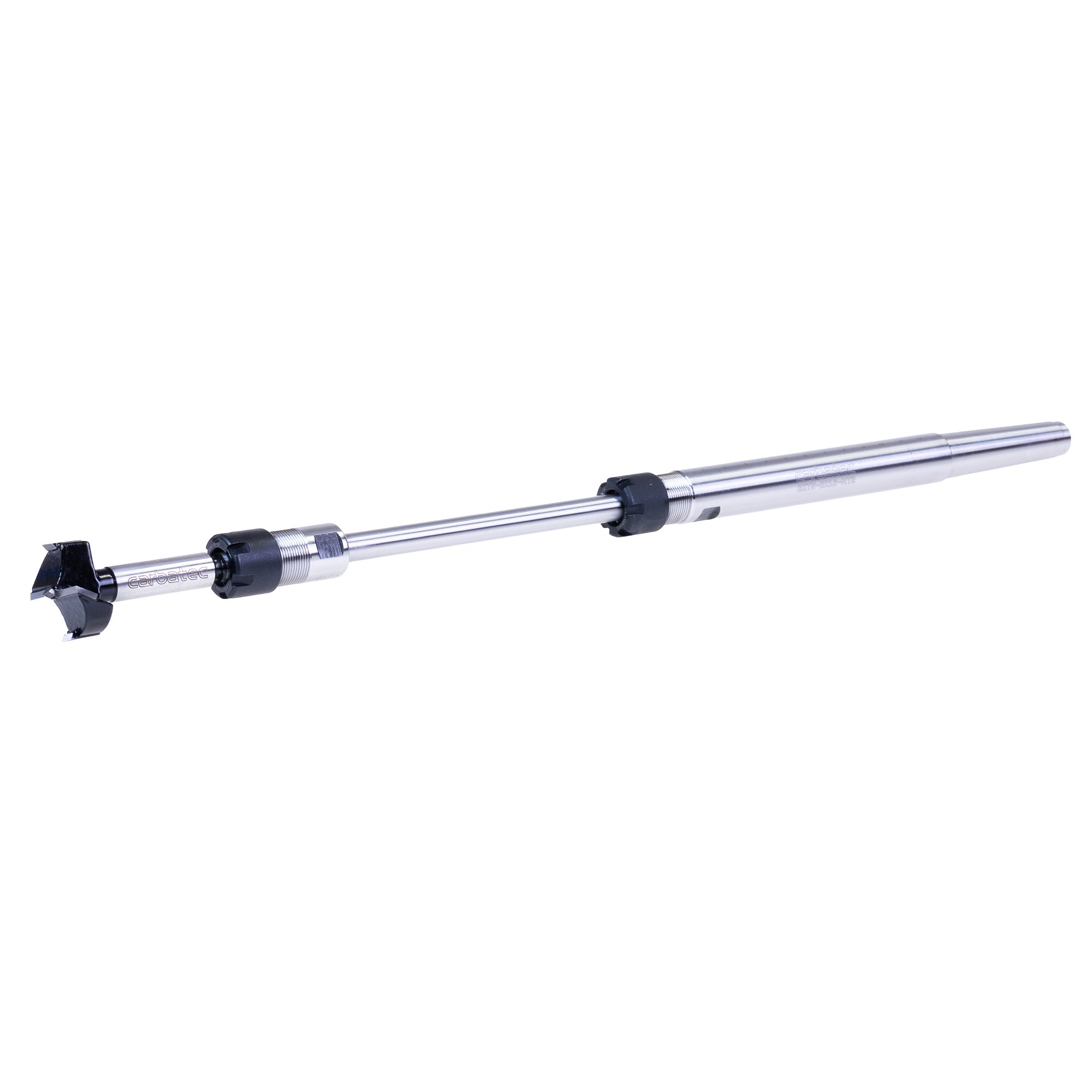

• 280mm of combined reach when paired with your EXTN-ER16-MT2, so you can bore deep into hollow forms and recesses with ease.

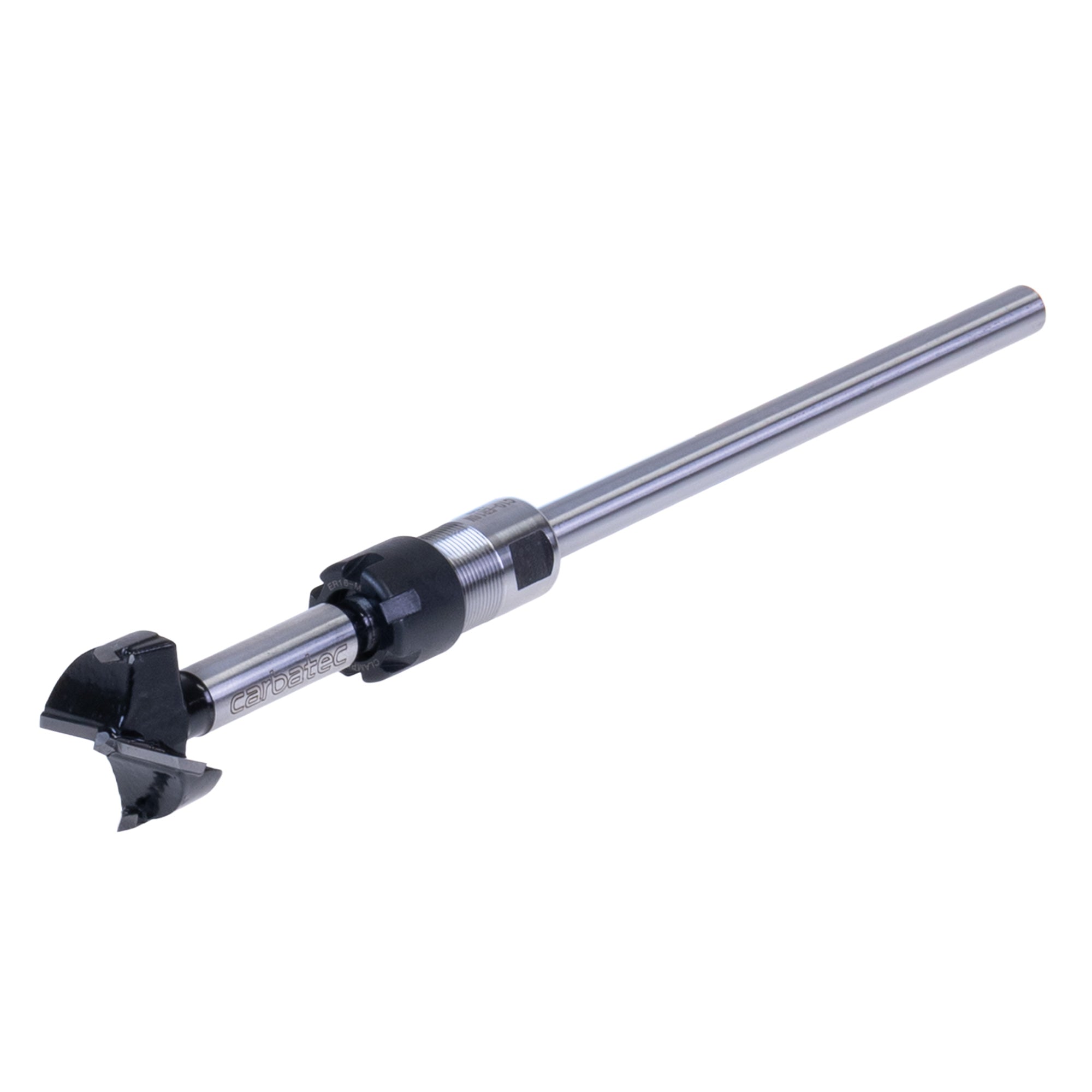

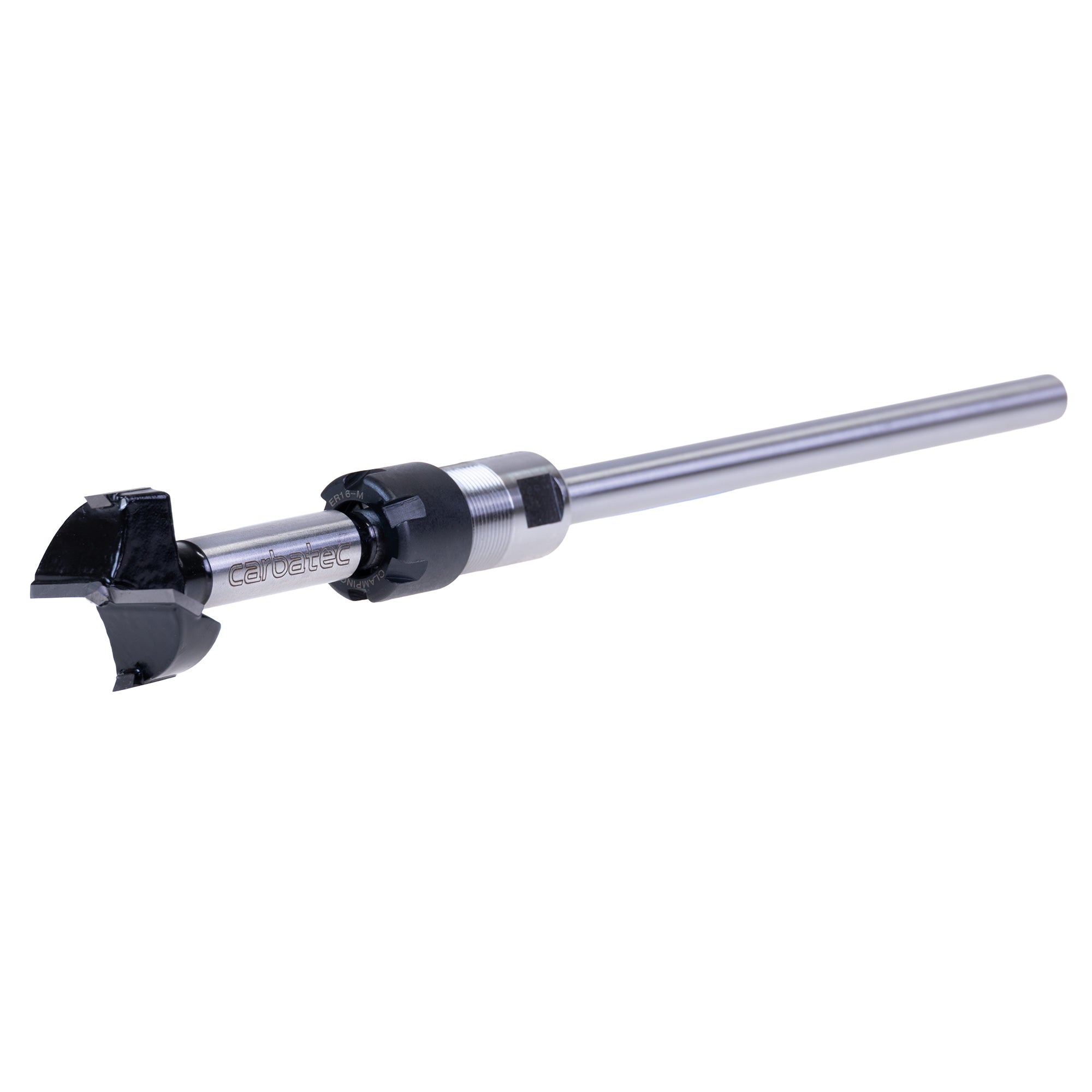

• Secure collet clamping that holds 8mm, 10mm, 5/16" and 3/8" shank Forstner bits firmly and true.
• Flexible setup — run it as a lathe extension, or use it standalone in a power drill or drill press for 10mm or 3/8" shank bits.
• Forgiving fit that accommodates slight shank tolerance variance, keeping your bits centred and steady.
• Broad bit compatibility with traditional Forstner, Sawtooth, and our Tri-Grind Series Tungsten Forstner bits.
• Expandable for drill use with an optional 8mm collet (sold separately) to unlock 8mm and 5/16" shank bits.

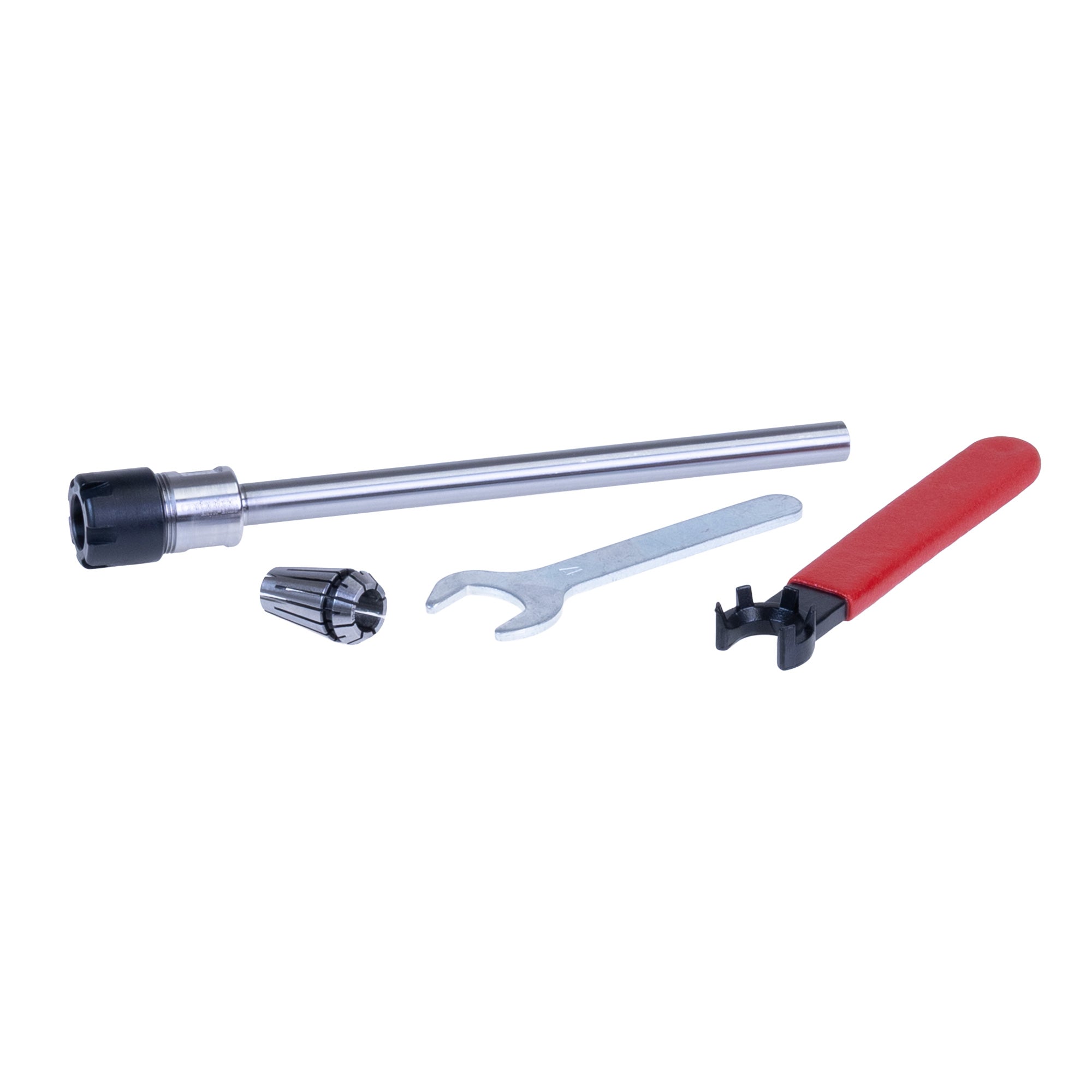

Inclusions:

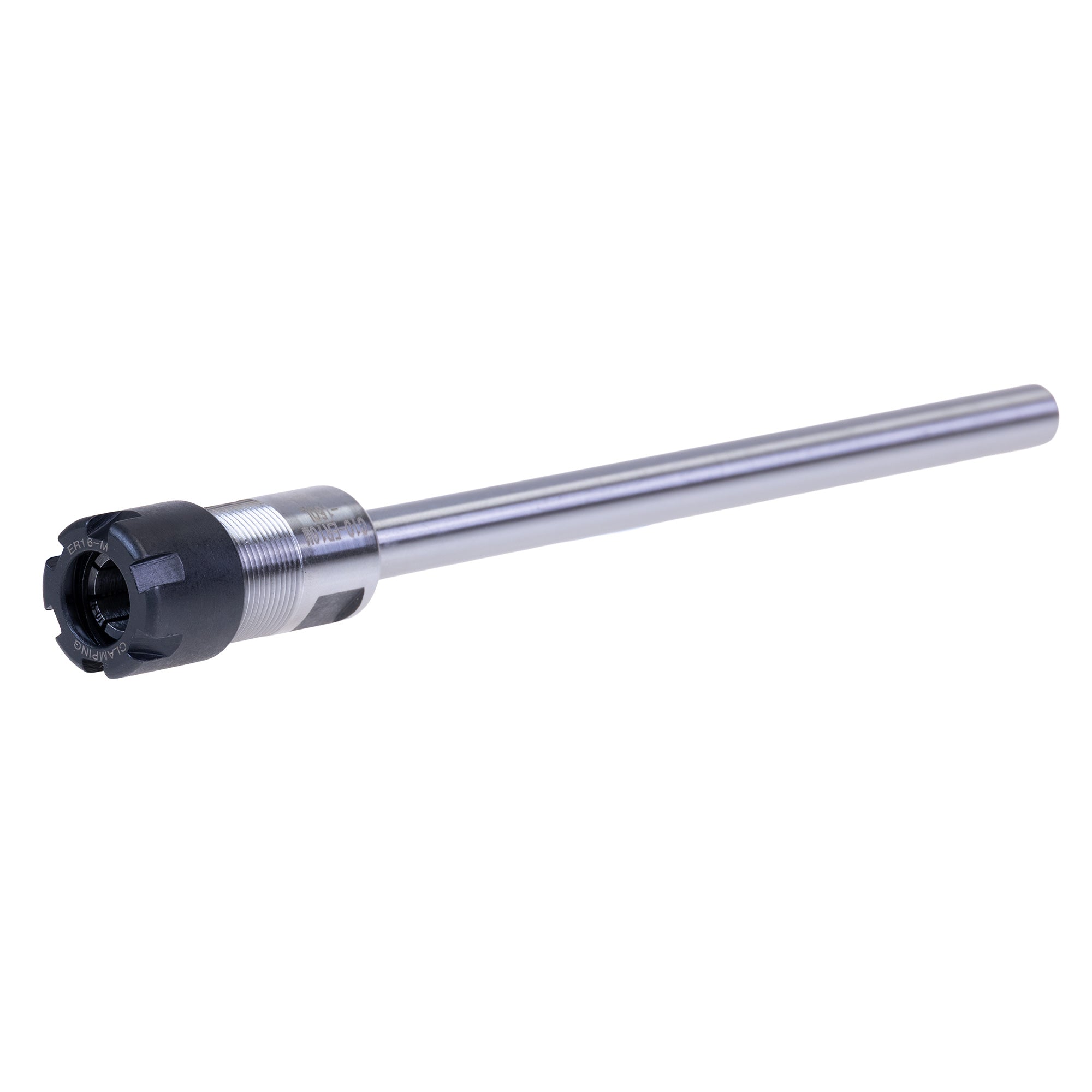

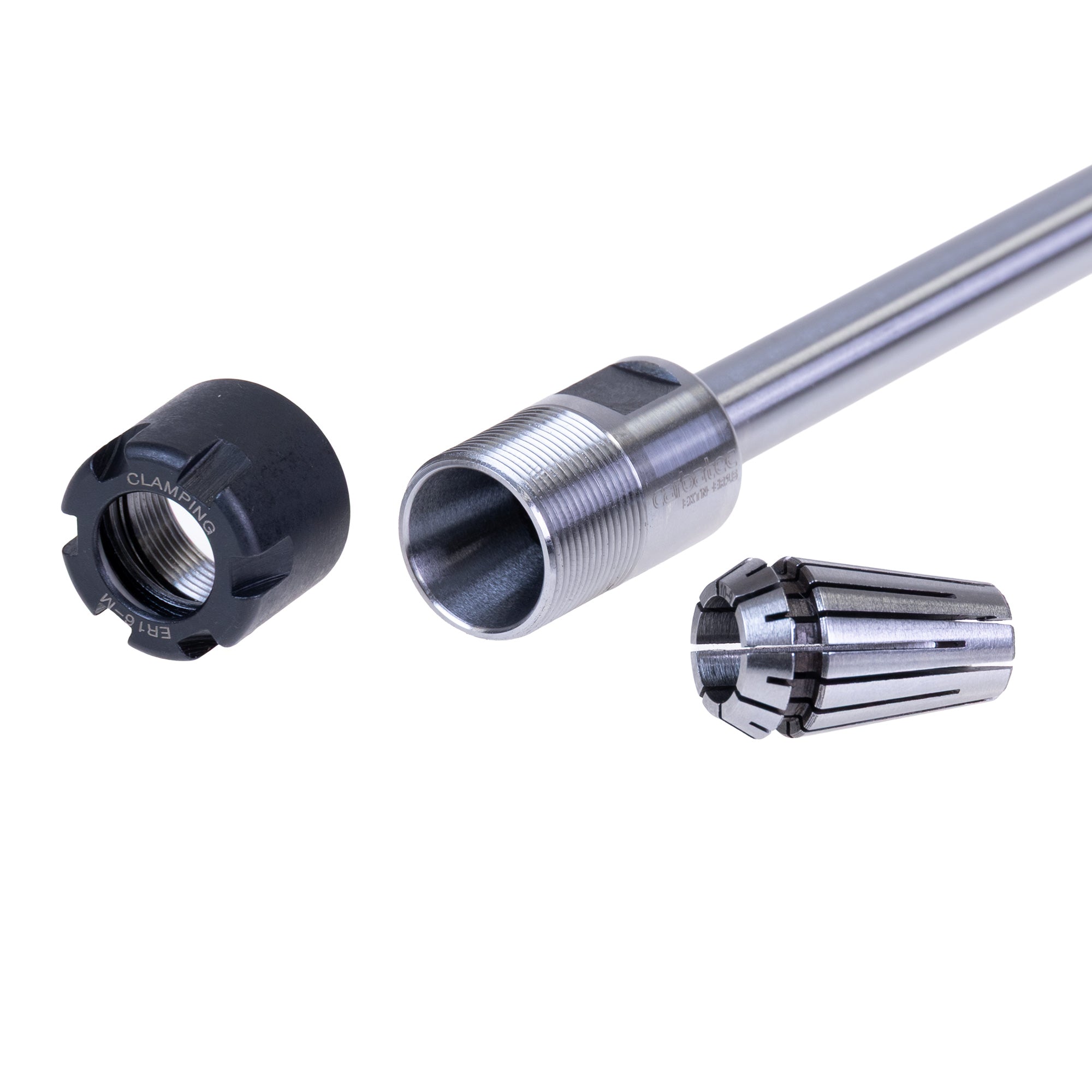

• 1 x 150mm extension
• 1 x 10mm collet
• 2 x collet spanners

Main Applications

• Salt and pepper grinder bodies
• Deep hollow forms and vessels
• Recessed boring on the lathe where extra reach matters
• Drill press or power drill boring with 10mm or 3/8" shank bits

Take on your most ambitious deep-drilling projects with the precision and control you've earned. Whether you're hollowing grinders or shaping deep forms, this extension keeps your bits steady and true. Add it to your kit today and turn those tricky deep recesses into a straightforward job.

NB: For use with a minimum 22mm Forstner bit diameter, to clear the collet nut.
