Carbatec 230mm Tri-Grind Forstner Bit Extension

Carbatec 230mm "Tri-Grind" Forstner Bit Extension. Extra Reach That Holds True

Got a deep recess that standard setups just can't reach? This 230mm "Tri-Grind" Forstner Bit Extension gives you serious drilling depth, with a clever shank that grips beautifully no matter how you mount it. It's a genuine best-of-both-worlds design, engineered to hold securely in a chuck, a collet, or a grub screw mount.

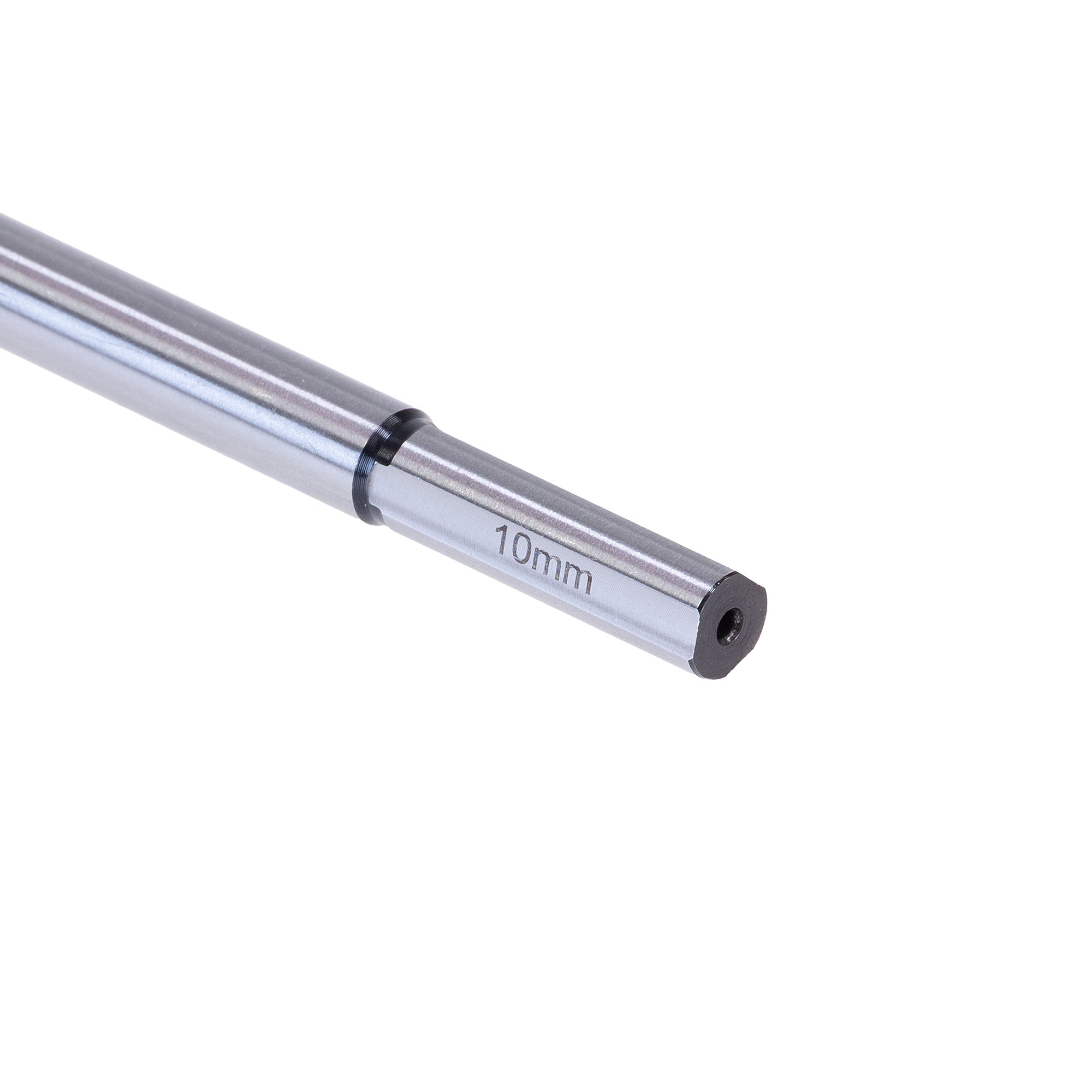

The secret is in the "Tri-Grind" shank itself. Three flat facets deliver superb non-slip, torquey grip in a standard 3-jaw drill chuck. The three rounded faces between them self-centre beautifully in a collet-style chuck, while in a 10mm bore grub screw mount, the flat face gives the grub screws something solid to bite, and the opposing rounded face sits flush against the bore for true-centre every time.

Key Benefits

• Versatile "Tri-Grind" shank grips securely in a 3-jaw chuck, self-centres in a collet chuck, and seats true in a grub screw mount, so it performs no matter your setup.

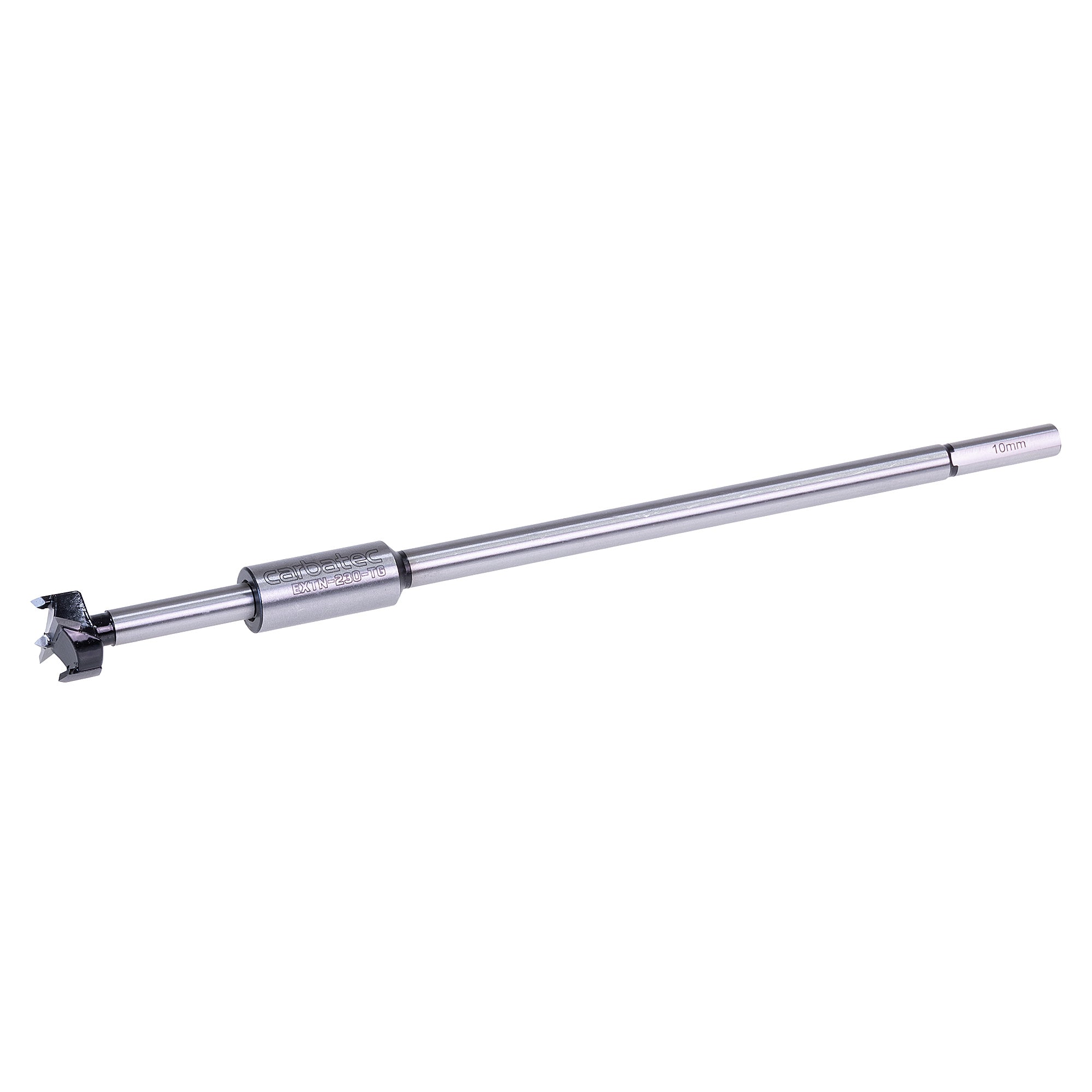

• 230mm drilling extension capacity for sinking Forstner bits deep into your turning and boring projects (overall length is longer).

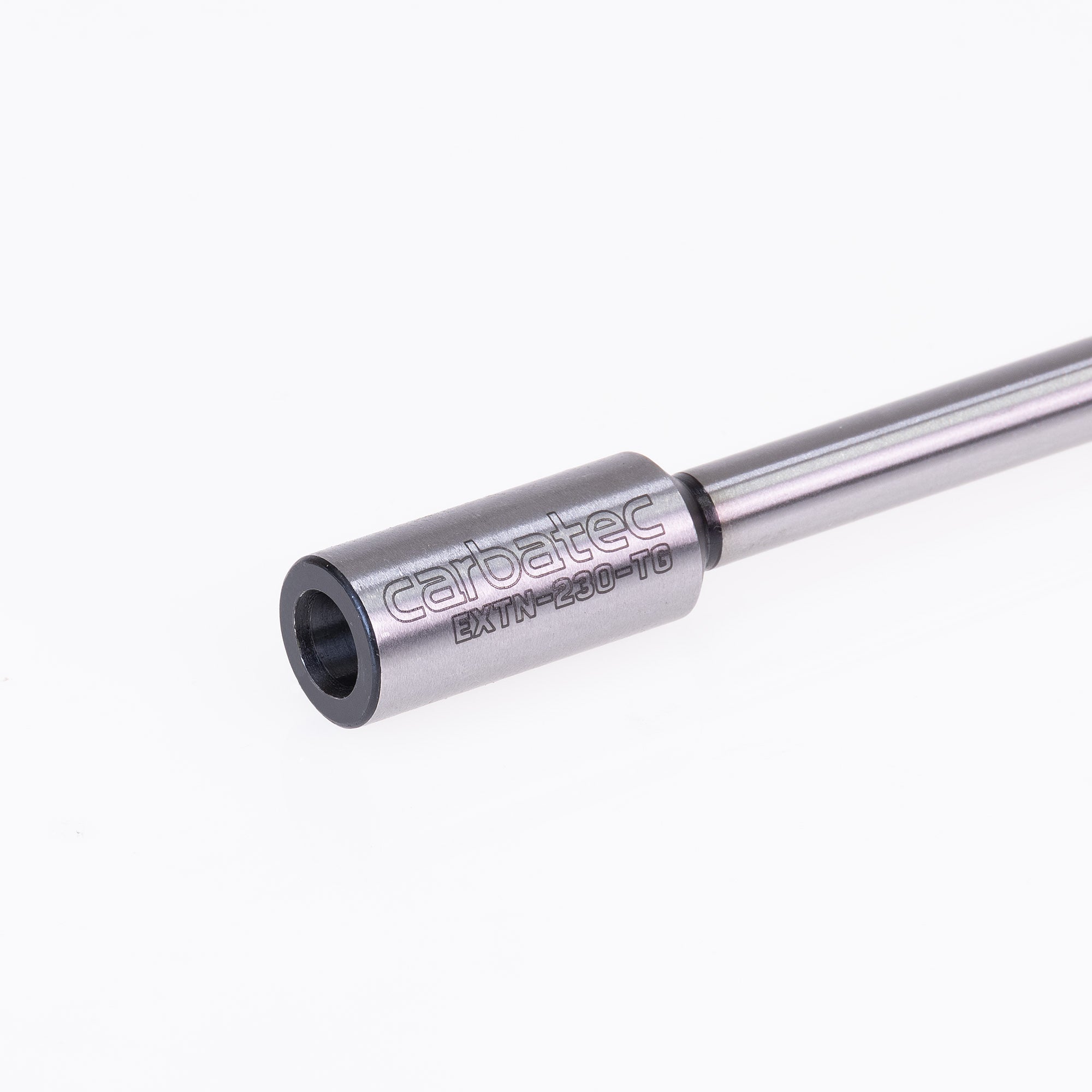

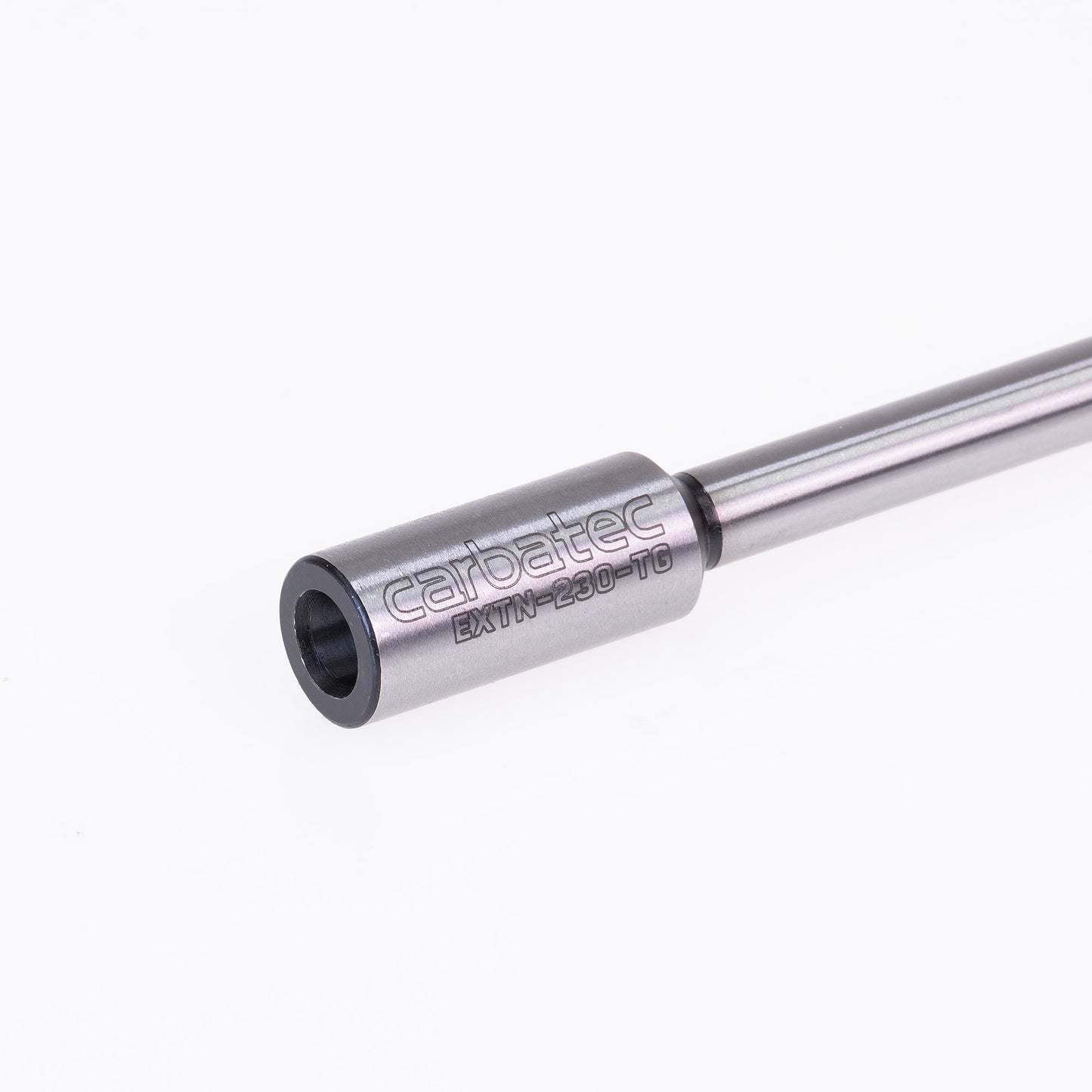

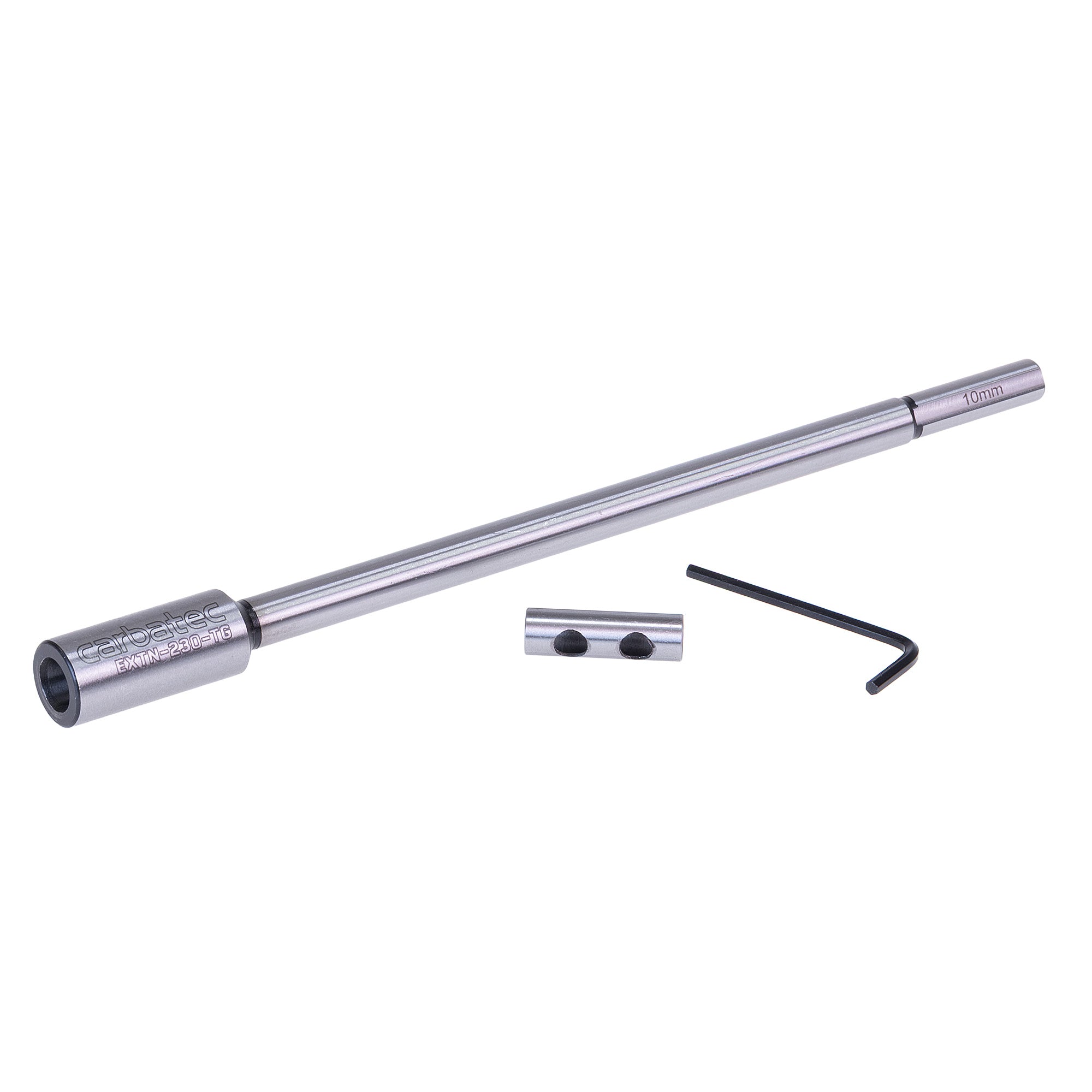

• 10mm bore with twin large grub screws for a firm, confident hold on your bits.

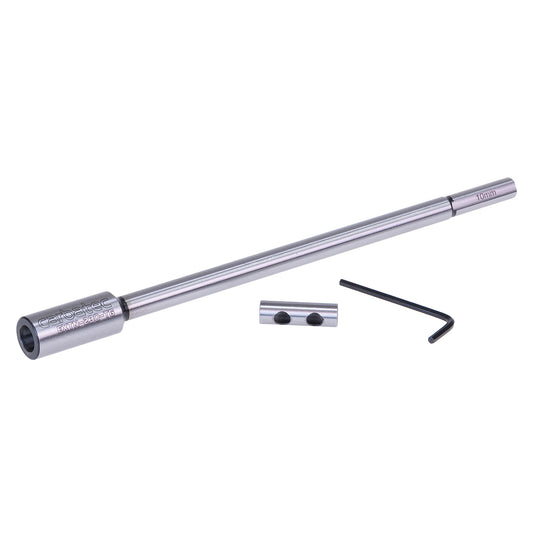

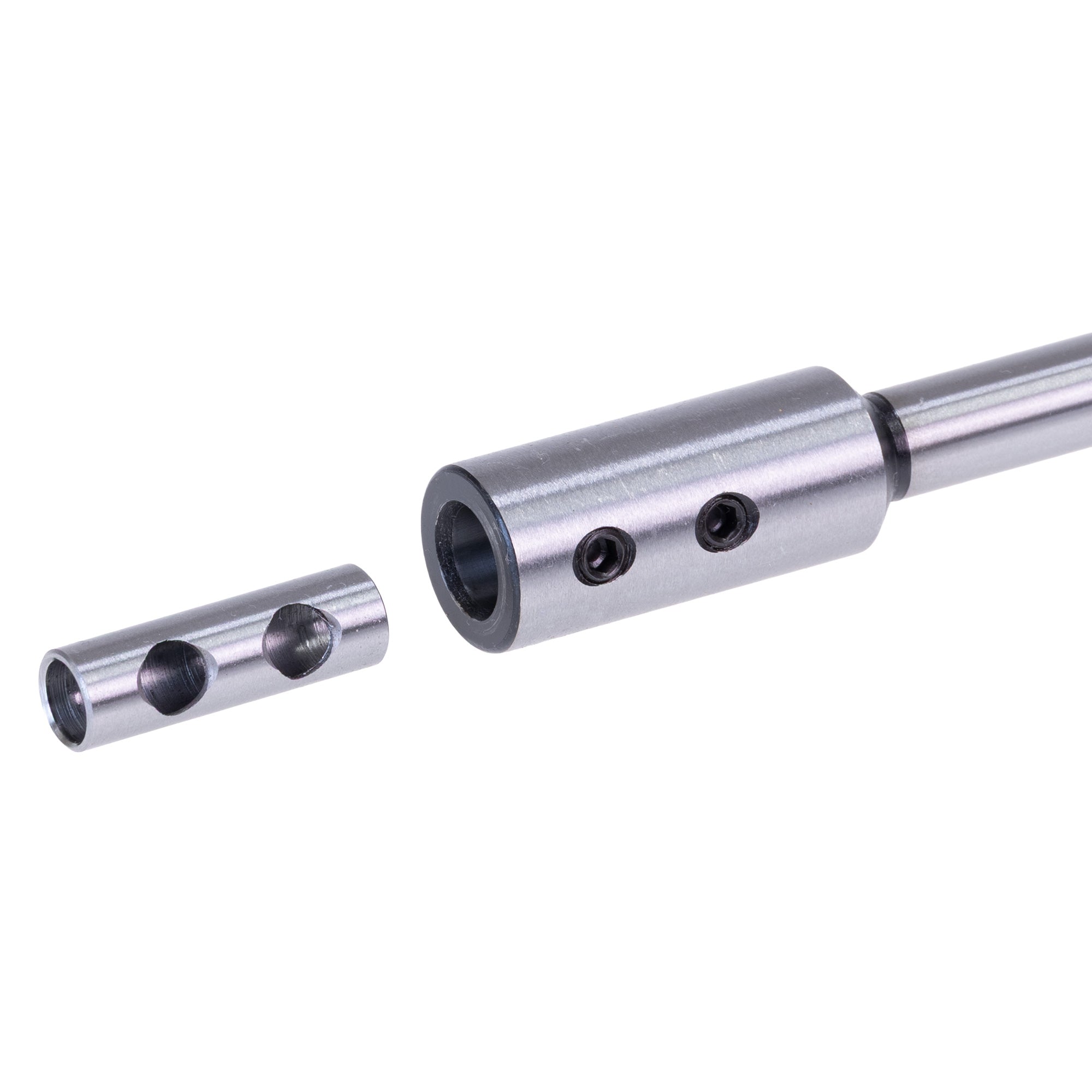

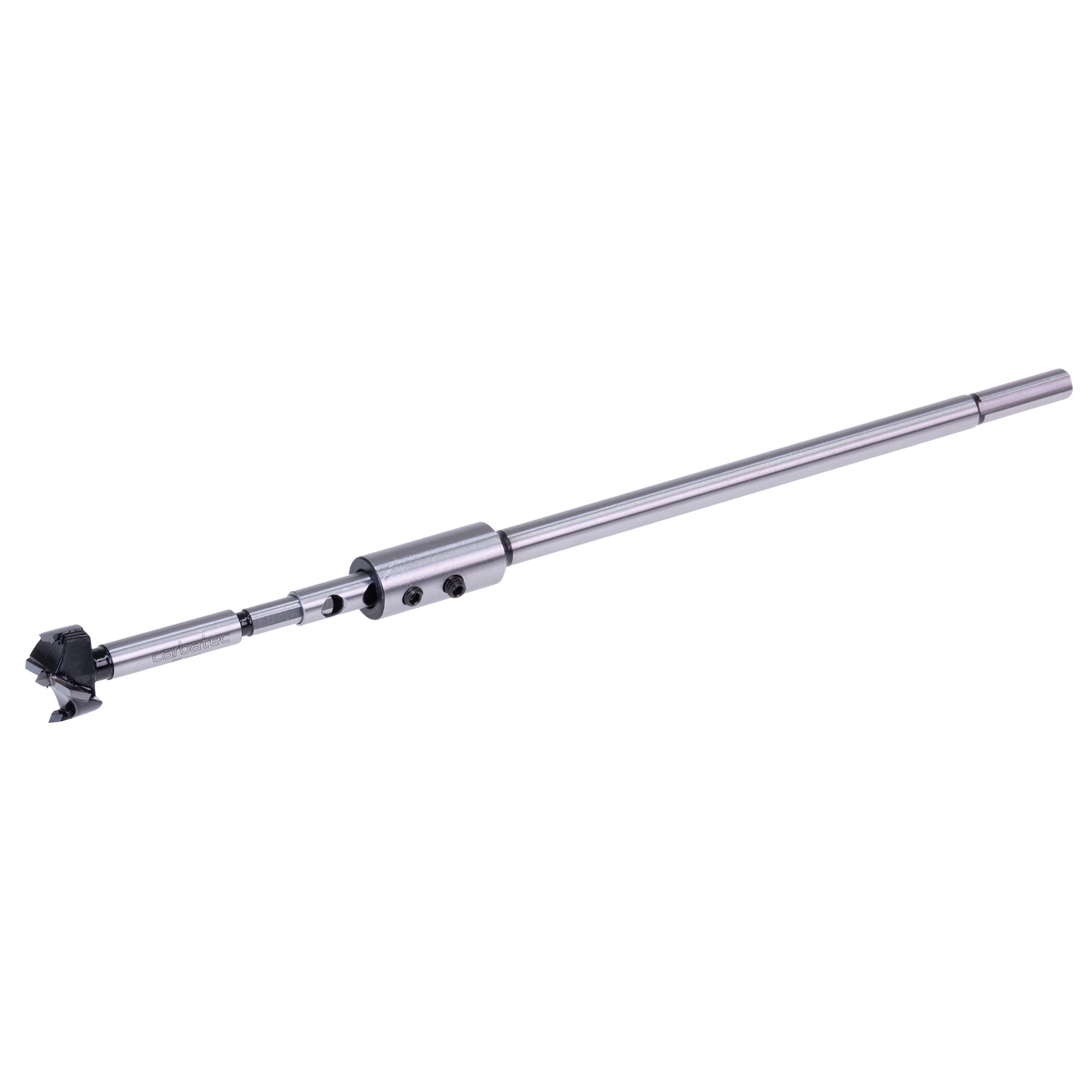

• 8mm sleeve with twin grub screw holes to suit smaller shank bits with ease.
• Broad compatibility with 10mm or 8mm shank Forstner bits, standard round shank or "Tri-Grind", as found on our Tungsten Carbide Tipped Forstner bits.

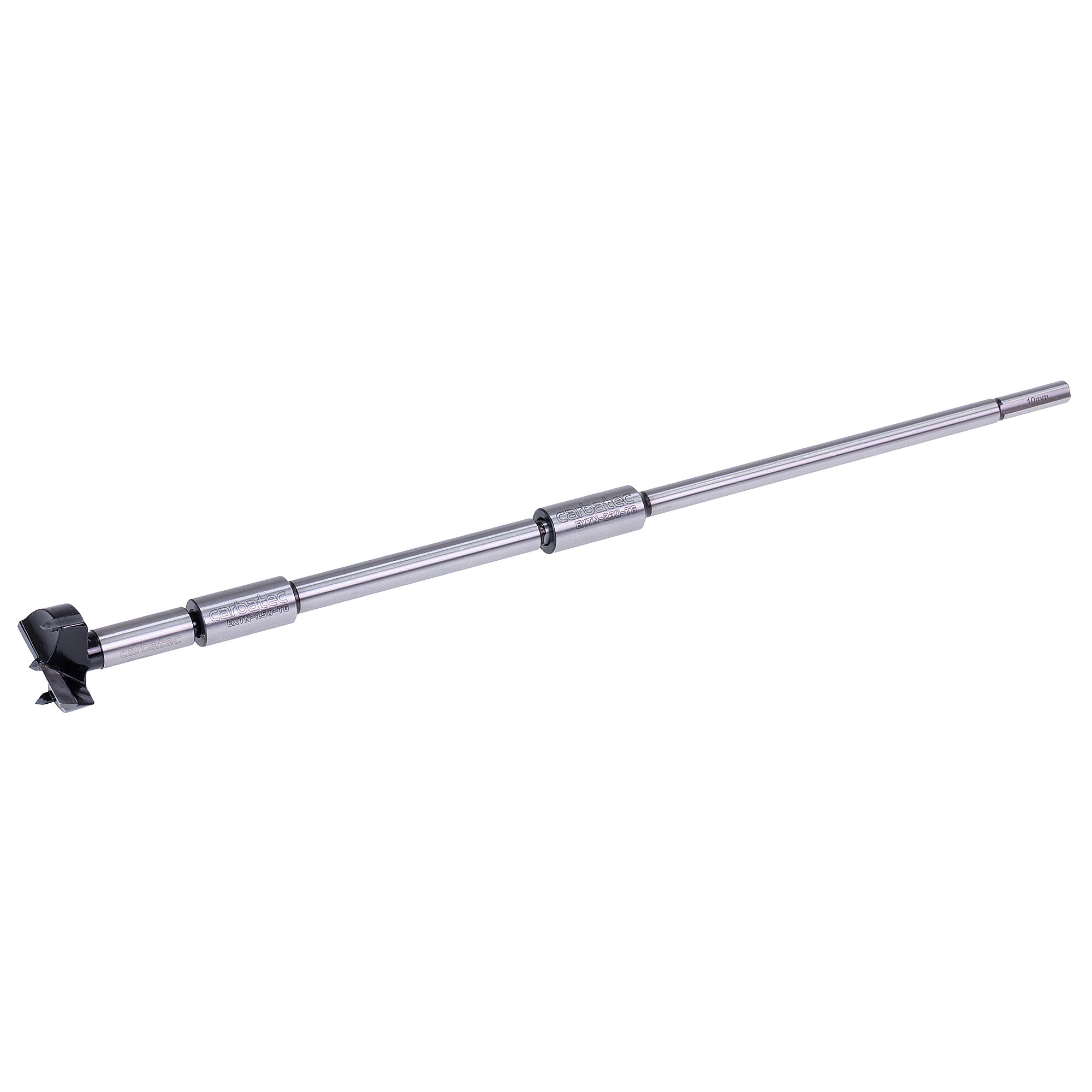

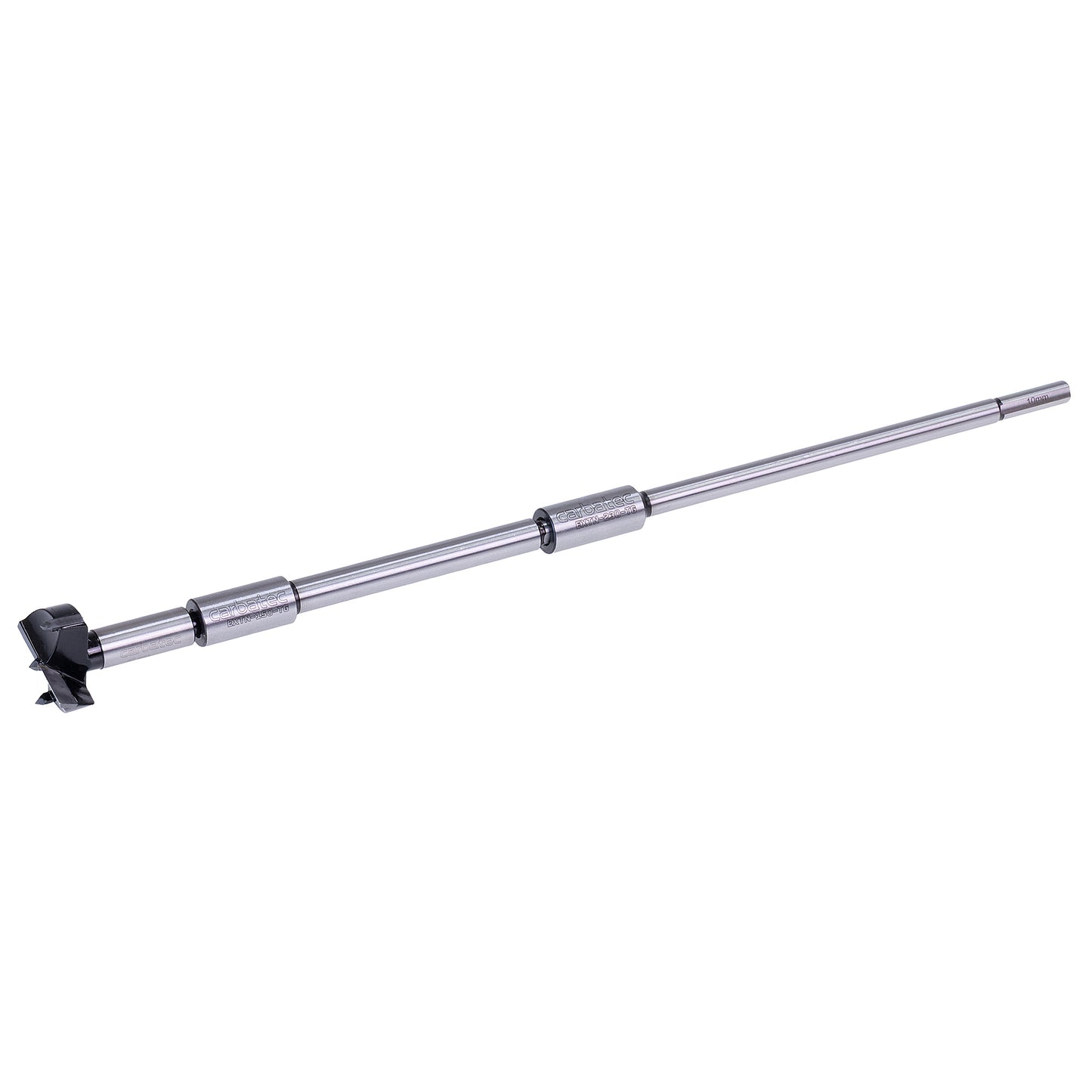

• Stackable design use it on its own, or stack it inside another extension for extra-long drilling reach.

Main Applications

• Deep recess and hollow form drilling on the lathe
• Salt and pepper grinder bodies, vases and vessels
• Boring with 10mm or 8mm shank Forstner bits in a drill chuck, collet chuck, or grub screw mount
• Extra-long drilling when stacked with a second extension

Whatever your chuck or mount, this extension grips properly and bores true, so you can focus on the work, not the setup. Reach deeper into your most ambitious projects and add the 230mm "Tri-Grind" Extension to your kit today.

NB: For use with a minimum 22mm diameter bit, to clear the head. These extensions are not designed for 3/8" (9.5mm) shank bits, if that's what your Forstner bits require, take a look at our ER-16 Series Extensions instead.
