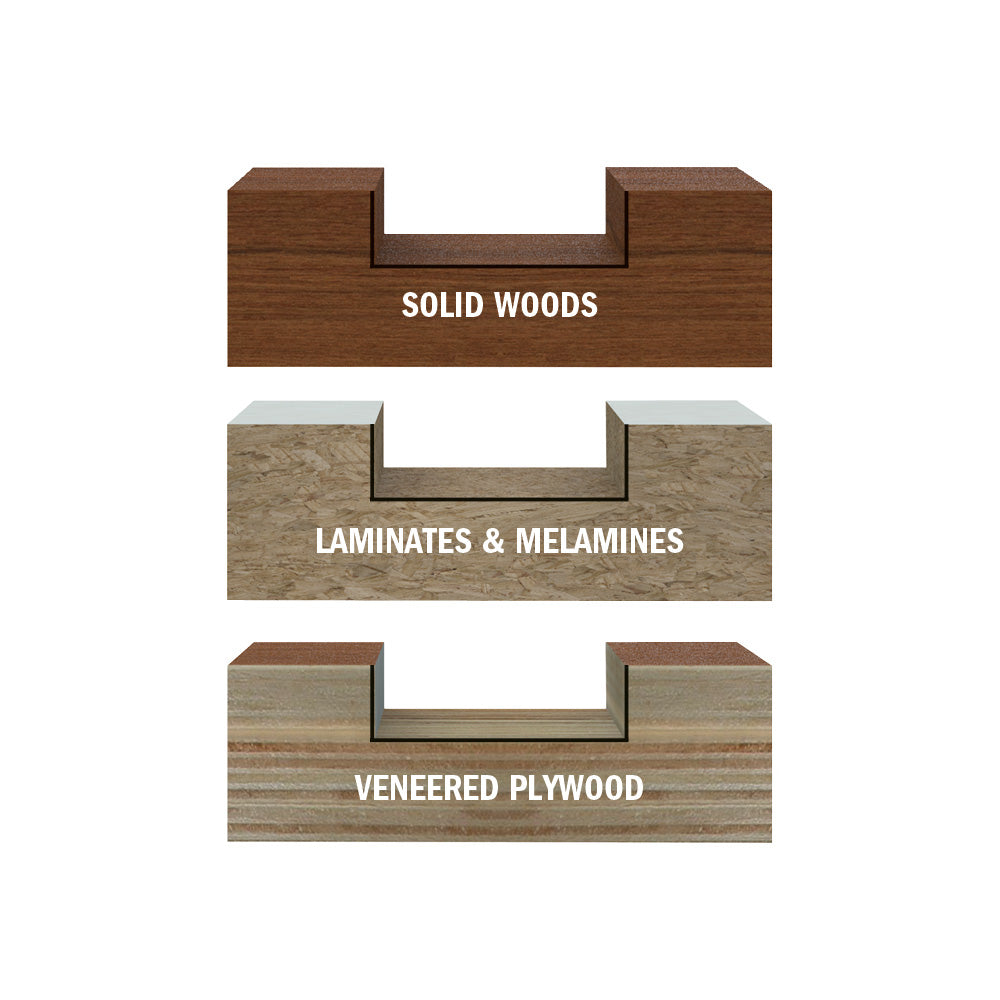

NEW 2021 MODEL!CMT's new and improved Dado design features CMT's Orange Shield coating that protects from heat build-up, gumming and corrosion; innovative setting points for accurate alignment of the chipper blades; along with an ATB + FTG grind geometry for crisp edges and flat channel rebates and trenches.It also meets the requirements for SAWSTOP use according to their guidelines (no anti-kickback shoulders and non-solid, two wing chippers).Dados or rebates offer a great deal of strength to any joint in woodworking. Once setup, a Dado set is possibly the fastest way of cutting dados on Dado capable cabinet saws.

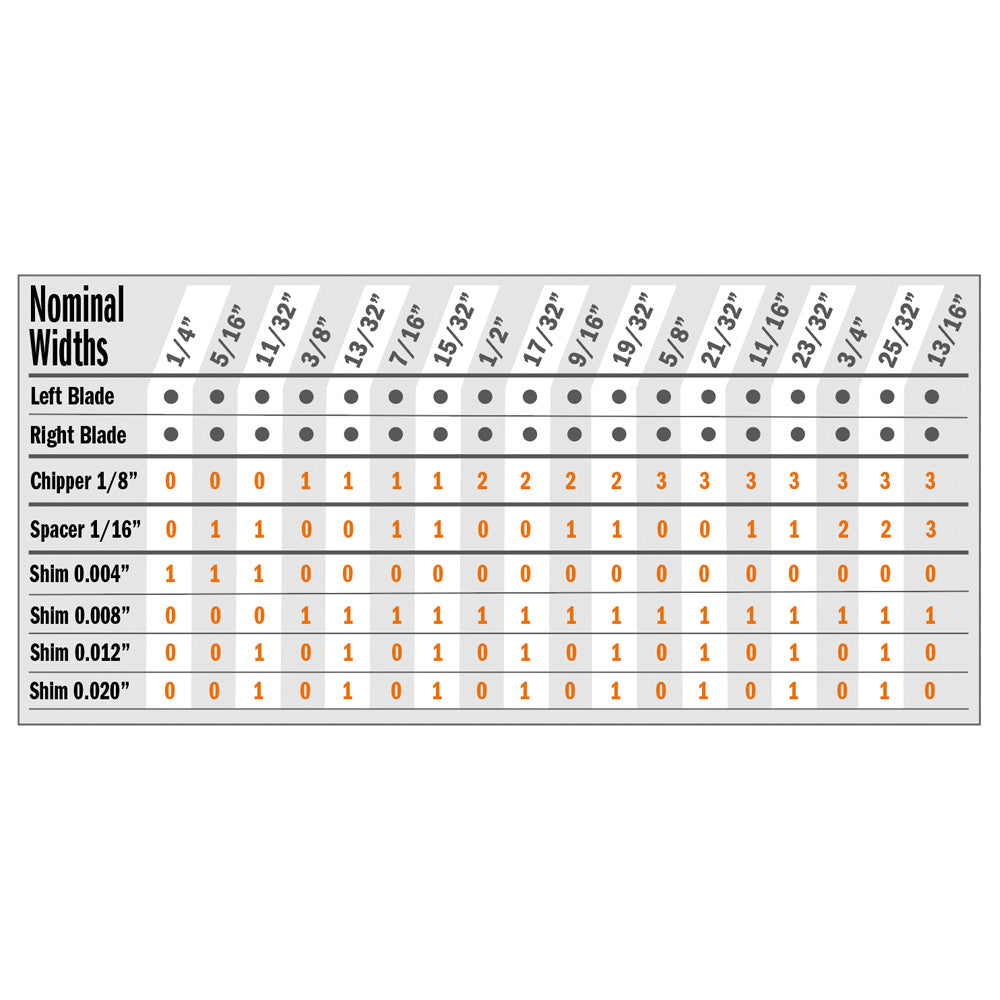

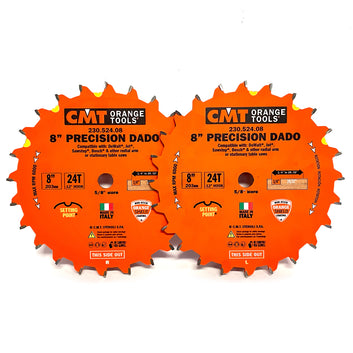

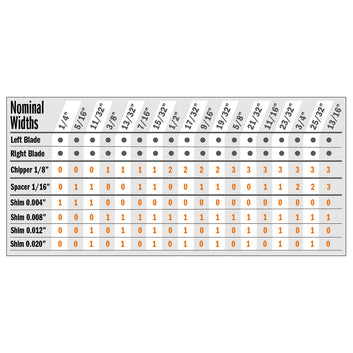

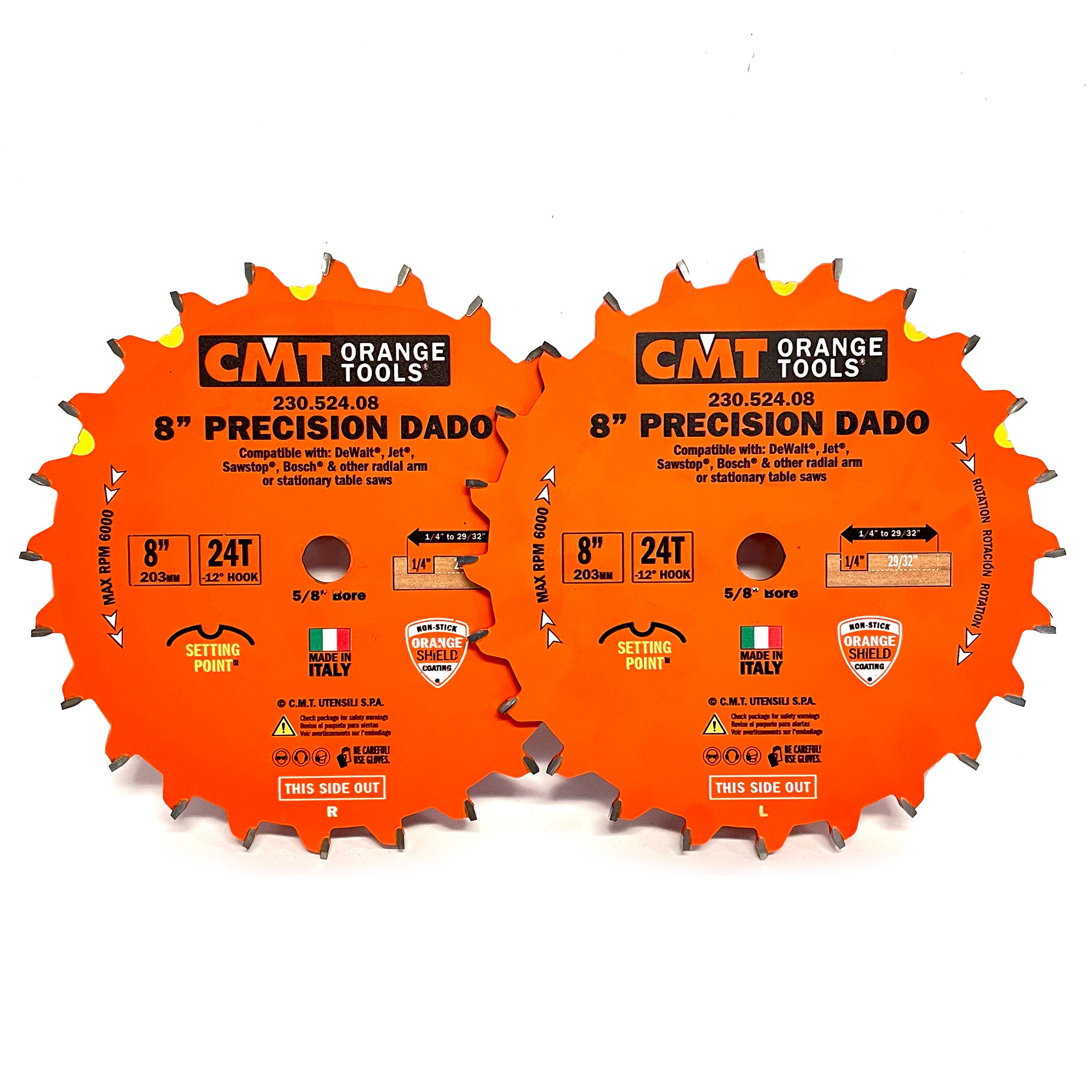

Two 24T outer blades, one left oriented, one right, are coupled with 3 x two-wing chippers and a stack of shims - the shim set included allow cuts between 6.35mm and 23mm (1/4" to 29/32").
CMTs Precision Dado set offers a splinter free way of creating dados at the right width using a combination of included shims and chipper blades to match the width to the job at hand. Capable of more than just dados to house a shelf, these blades can assist with joints such as half lap joints, box joints (over-sized finger or knuckle joints), tongue and groove joinery, tenons for mortise and tenon joinery as well as so much more. All this makes this set an ideal accessory for any dado friendly table saw.
Safety tip: These blades are not used to cut through the entire depth of the timber, rather only part way through - so push blocks should be used to keep hands and fingers away from the "blind" cut.*NB: Unlike a single circular saw blade, dado sets can not be used with arbor reducing bushes. It is therefore imperative that you purchase the set with a bore diameter that matches your machine arbor. Available in 5/8" or 30mm bore diameters.
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
• NEW 2021 MODEL

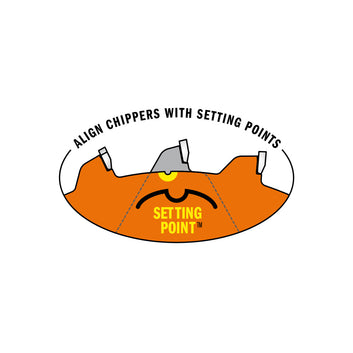

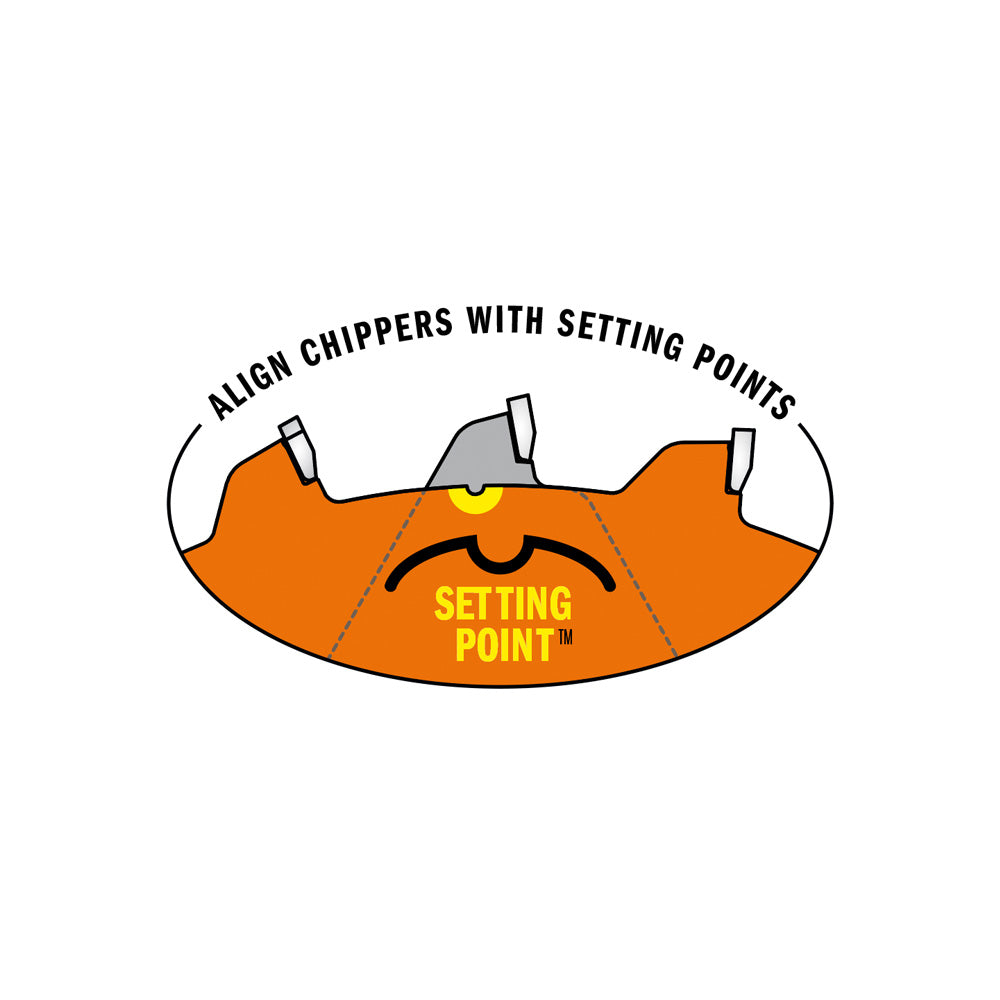

• Innovative setting points for alignment of chipper blades

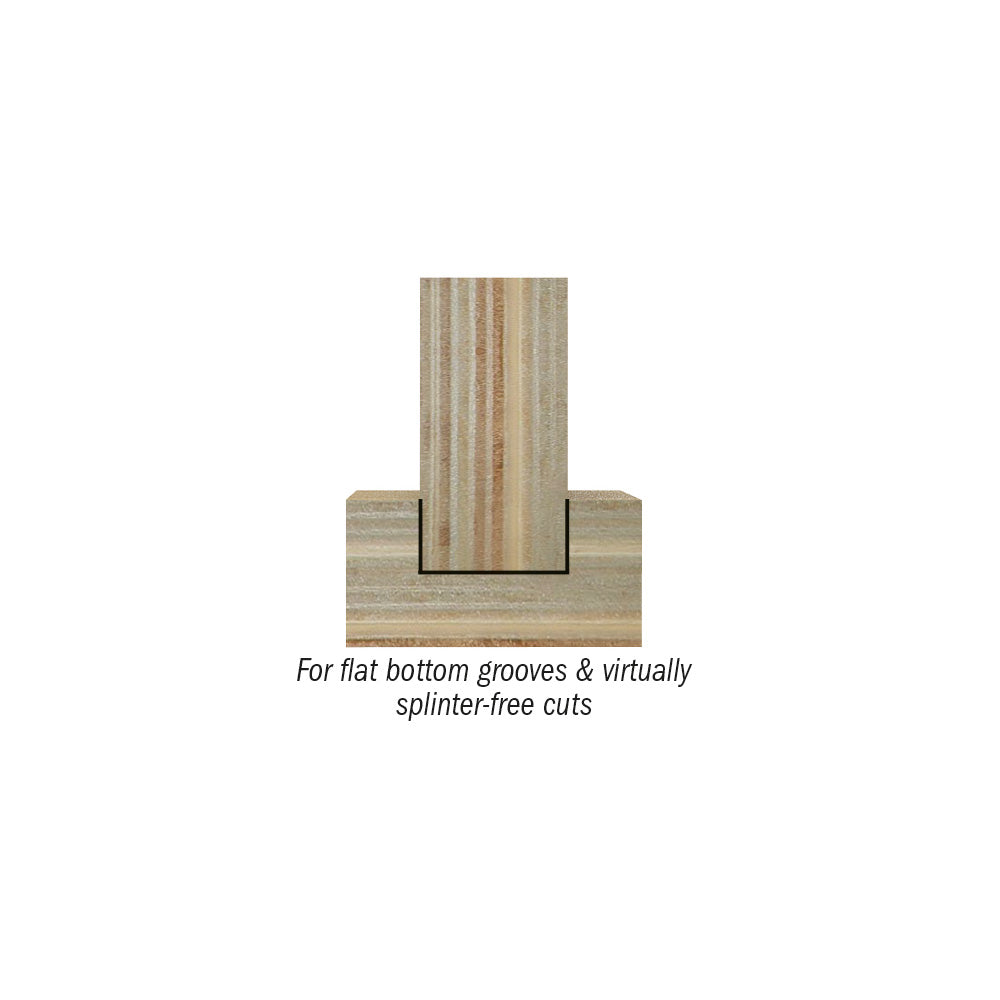

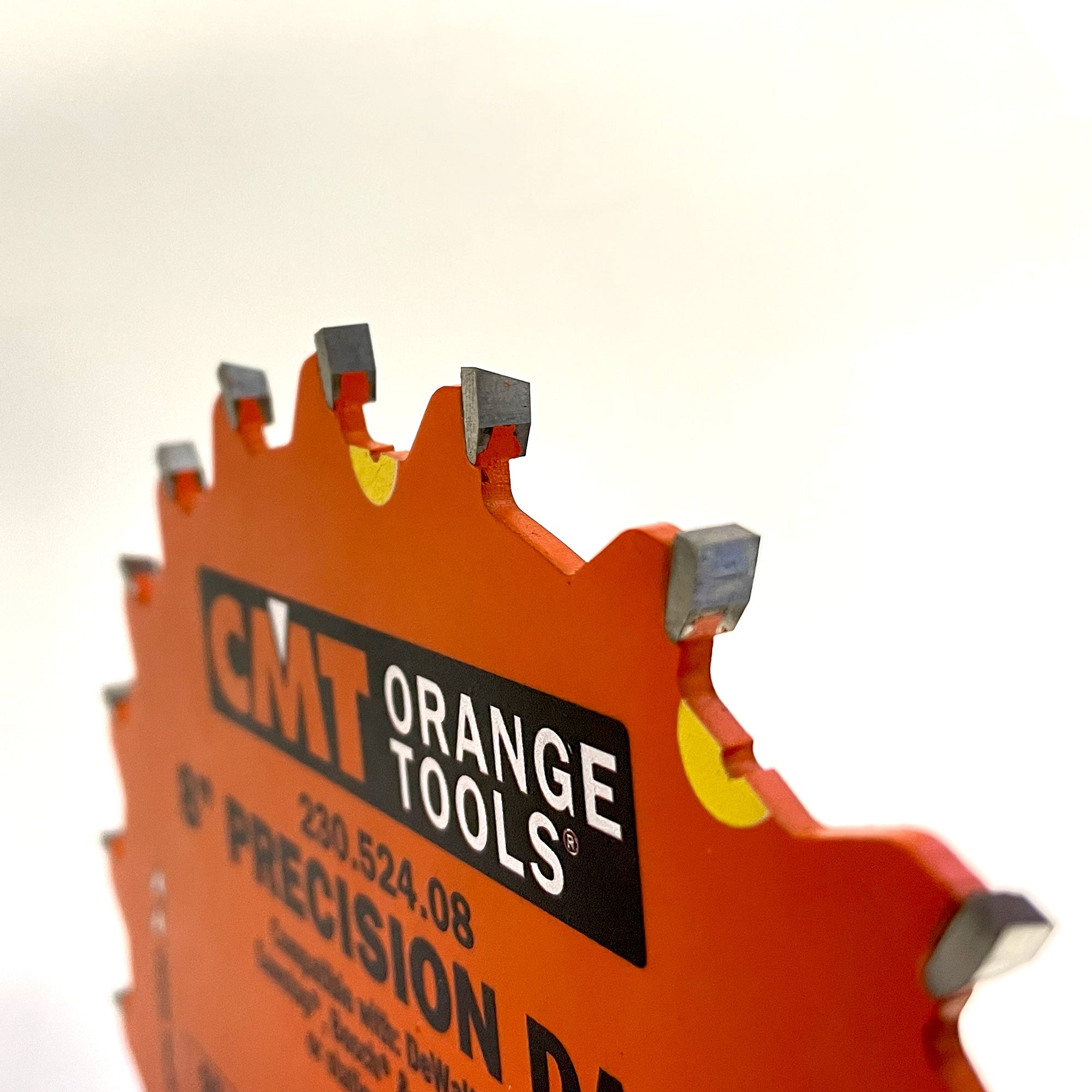

• ATB + FTG grind for excellent cutting efficiency, clean edges and flat bottom trenches
• 24T Main blades with 2 Wing Chipper Blades

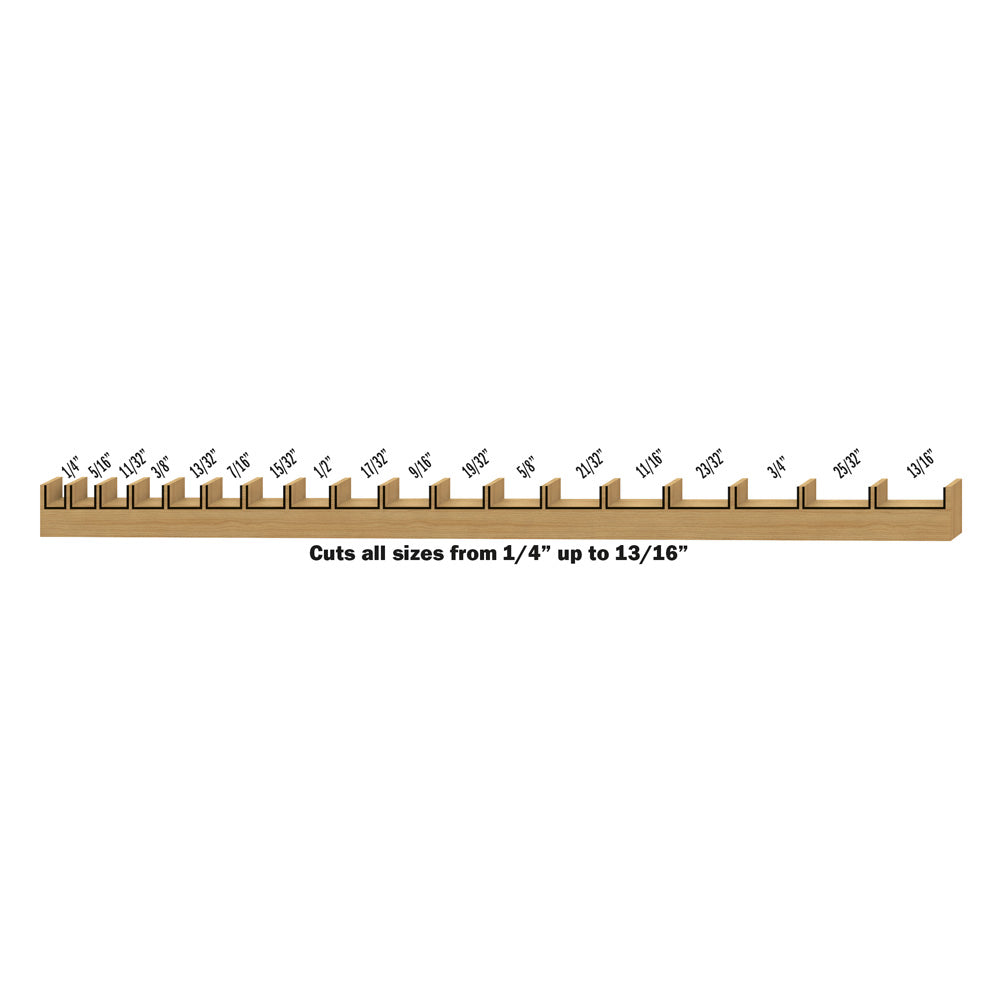

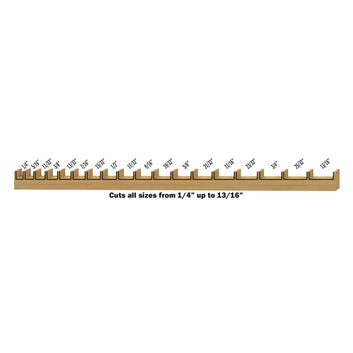

• Dados from 6.35mm to 23mm (1/4" to 29/32")
• This model has a 5/8" bore diameter

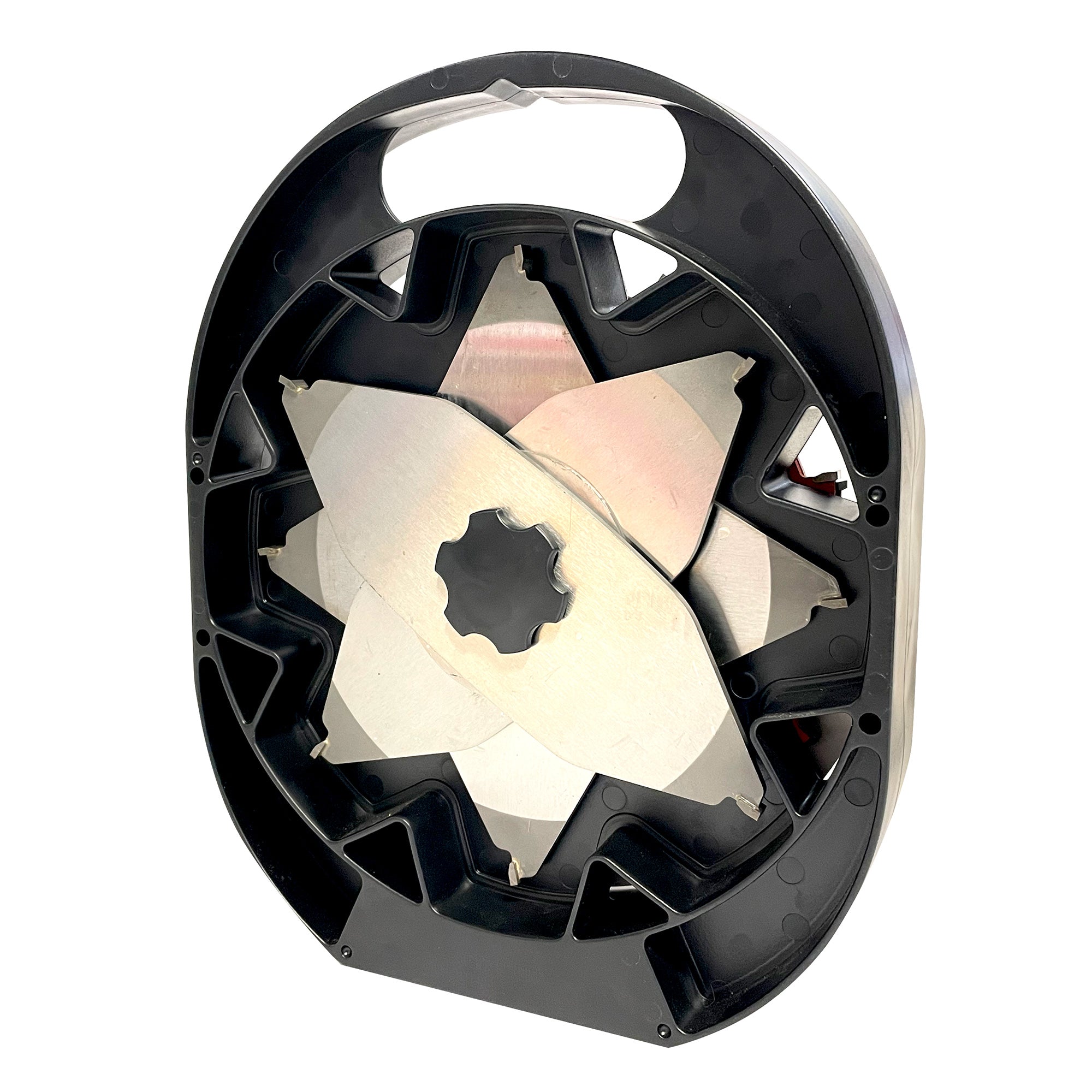

• Supplied in a hard storage case
Additional information
8 specs...
Arbor Diameter
15.87 mm (5/8")
Bit Cut Diameter
203 mm
Blade Diameter
200 mm

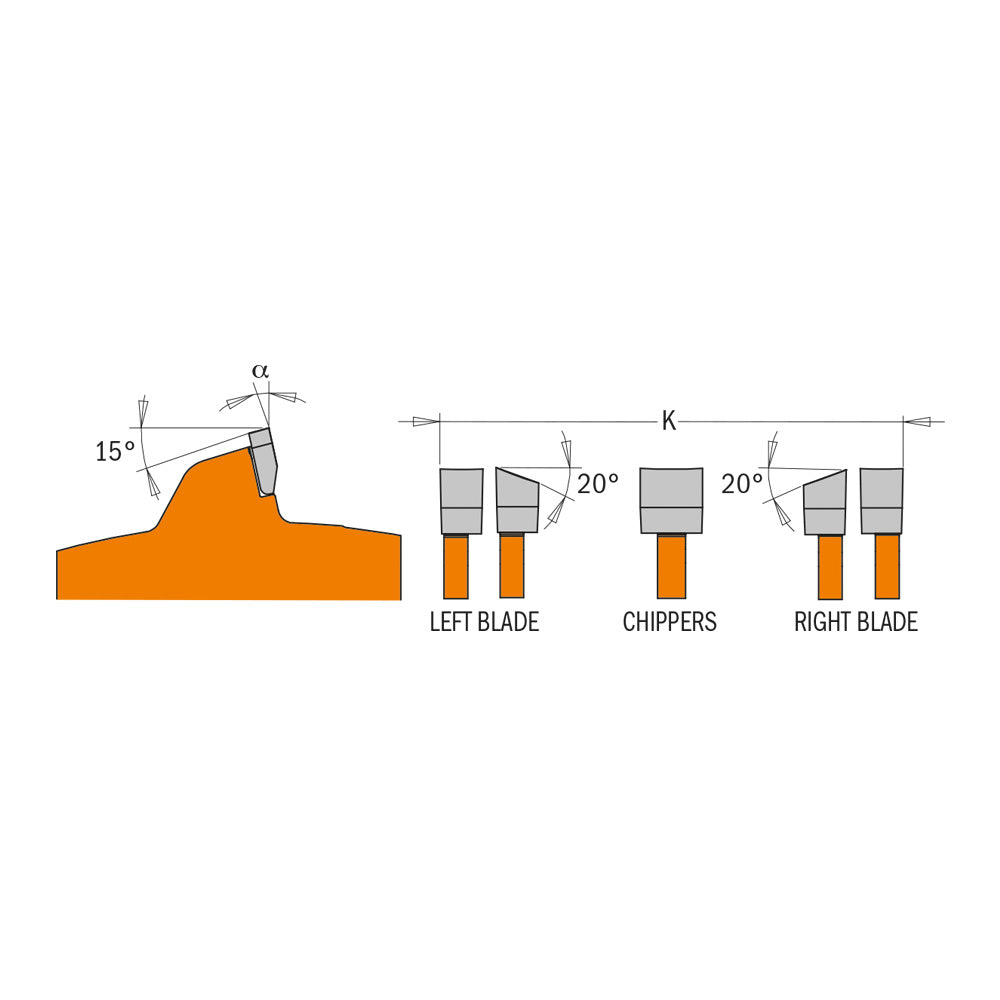

Blade Grind Type and Angle
20° ATB + FTG
Blade Hook Angle
-5°
Blade Kerf
6.35 mm to 22.23 mm
Blade Tooth Count
24
Blade Use and Type
Dado Set
