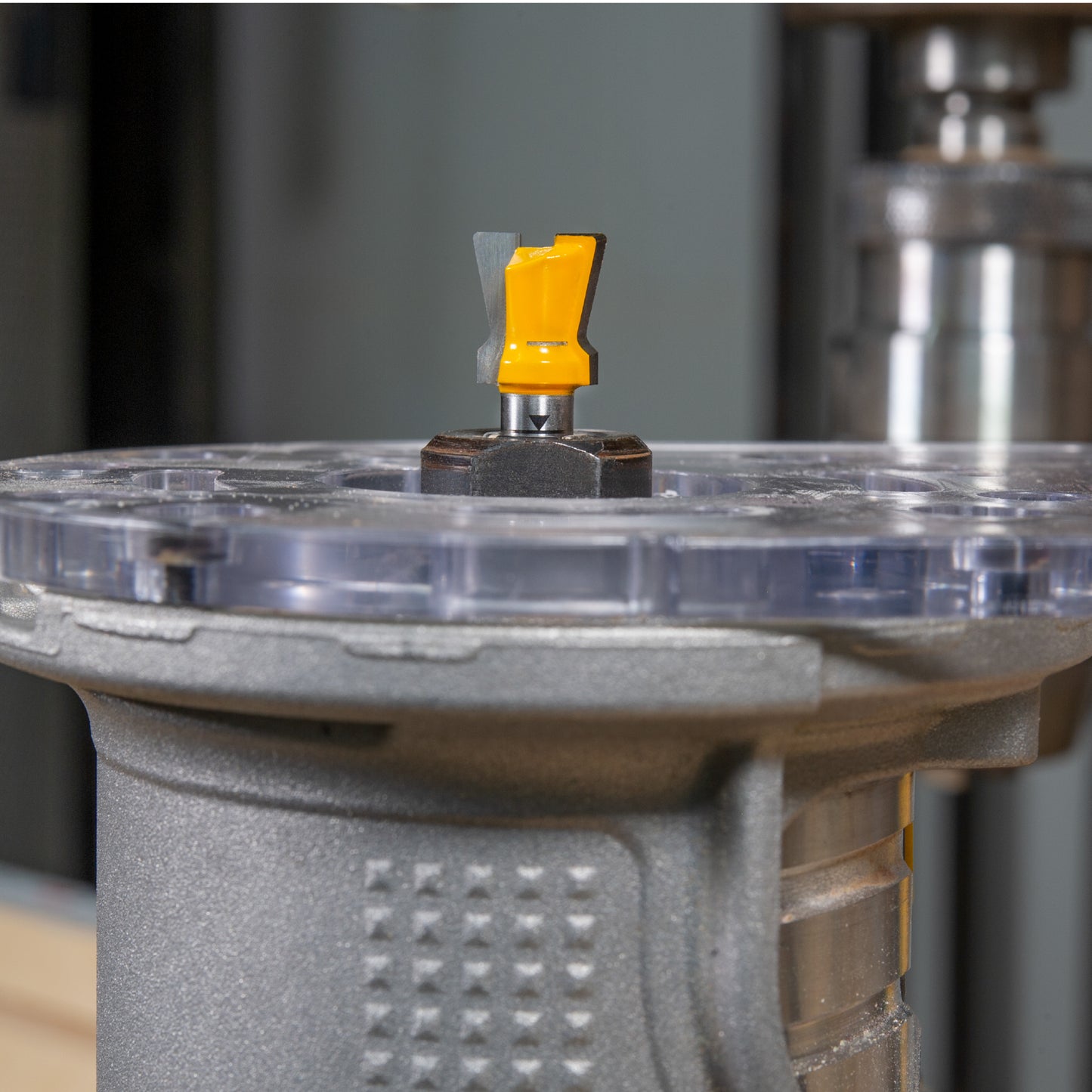

Microjig Matchfit dovetail router bit (1/4" shank)

Experience Cleaner Cuts and Stronger Jigs

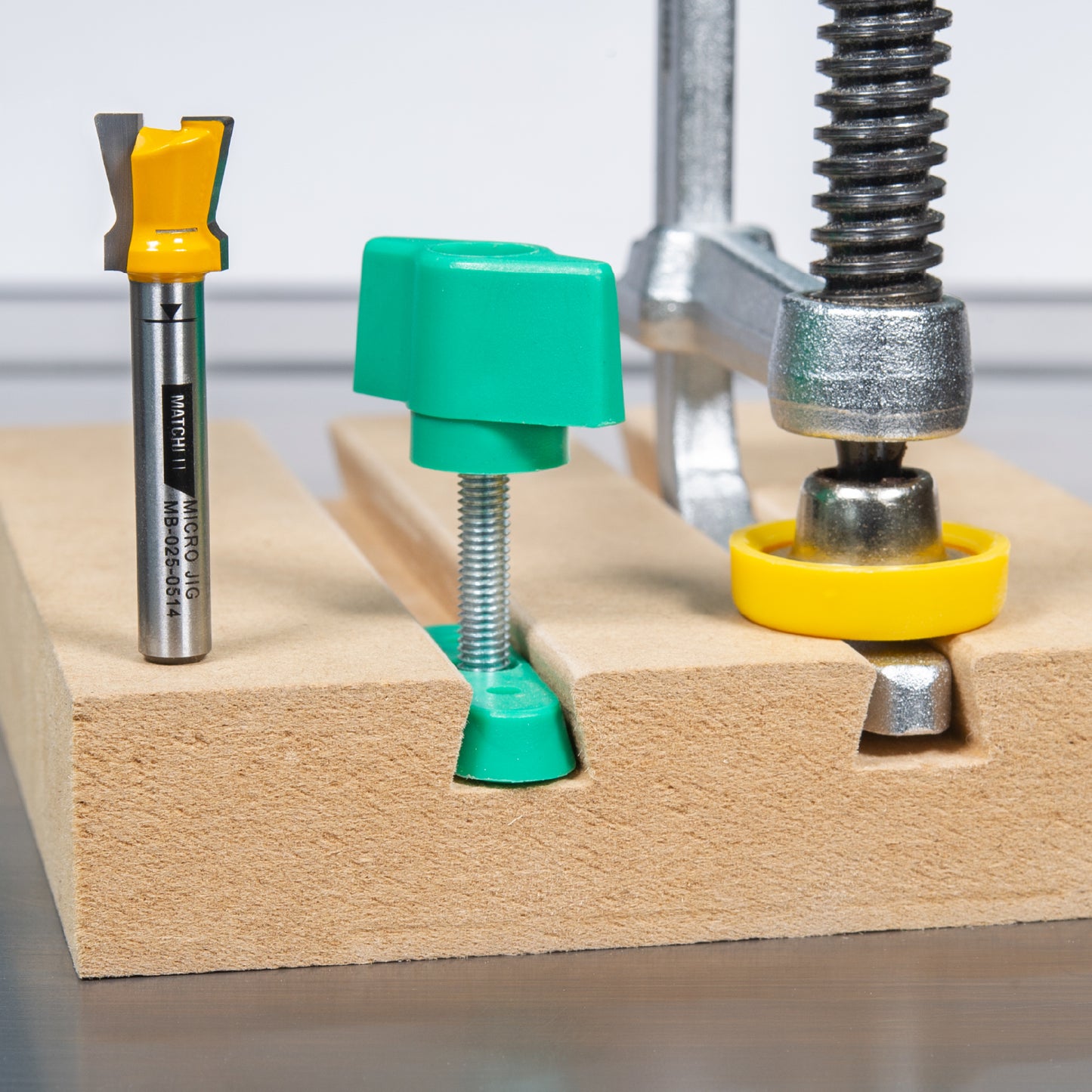

Unlock the full potential of your MATCHFIT system with the MATCHFIT Dovetail Router Bit. While it cuts the standard 12.7mm (1/2") 14-degree profile you need for your MATCHFIT hardware and clamps, this bit is engineered with unique features that make your woodworking smoother, safer, and more precise. Designed specifically for the woodworker who values quality finishes, this bit routes incredibly clean grooves that require minimal sanding, saving you time and effort on every project.

The secret lies in the details. The 8-degree down-shear design utilises the bit's rotation to evacuate chips and dust efficiently, reducing friction and heat for a cleaner cut. It features rounded corners at both the top and bottom of the profile. The 0.8mm (1/32") bottom round-over strengthens the groove—crucial when working with plywood to prevent ply separation—while the 1.6mm (1/16") top round-over prevents tear-out and fuzz. Plus, the laser-etched depth guide and safety line take the guesswork out of setup, ensuring you get the perfect depth and collet grip every time.

Key Features:

• Cleaner Cuts: The 8-degree down-shear design clears chips and reduces heat, resulting in smoother grooves with less friction.
• Less Sanding: A top round-over feature prevents surface tear-out, leaving you with a clean finish right off the router.
• Stronger Grooves: The bottom round-over design reinforces the groove, minimising the risk of material separation in plywood and composites.

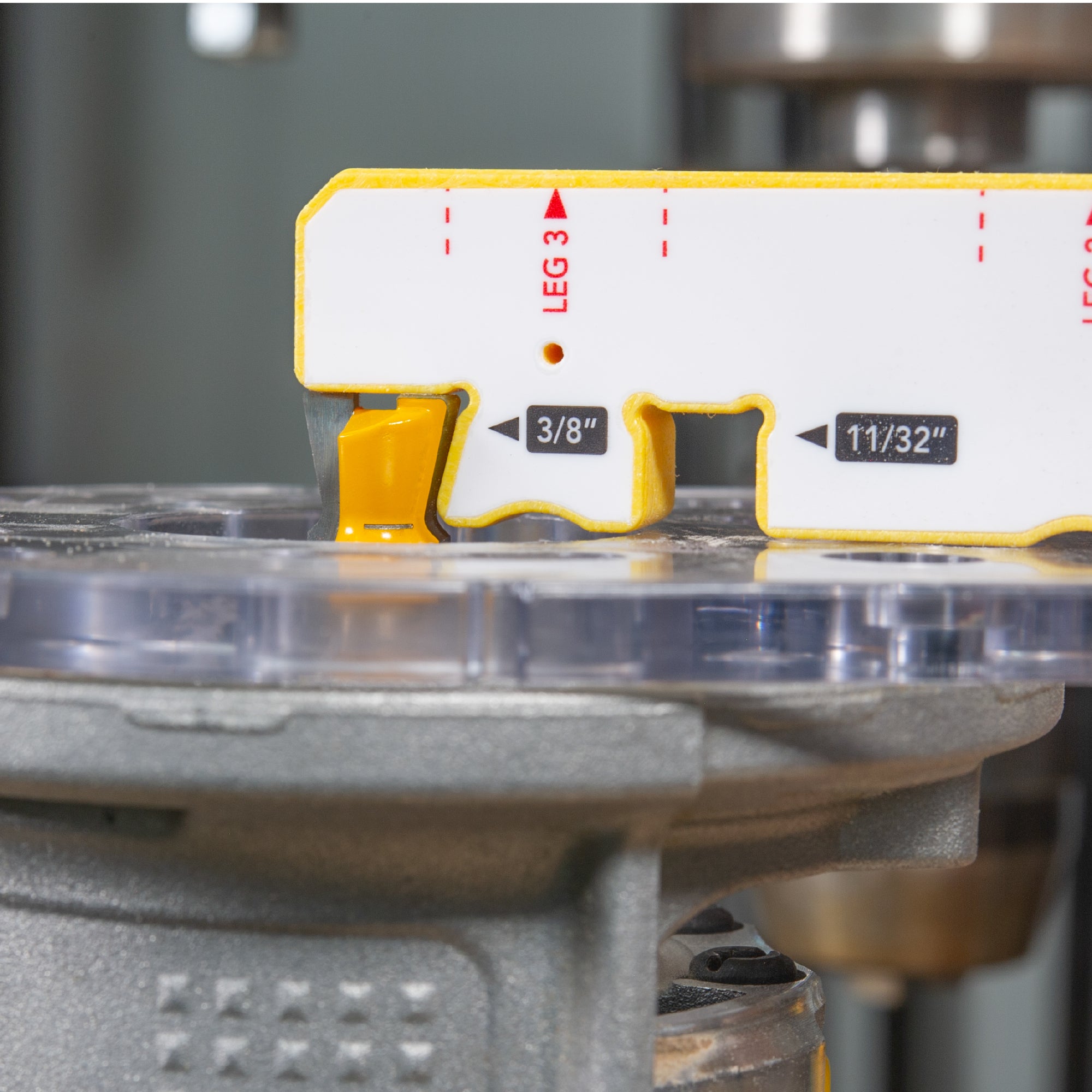

• Easy Setup: A laser-cut depth guide line allows you to set the perfect 9.5mm (3/8") cutting depth instantly without measuring tools.
• Enhanced Safety: The router collet safety line clearly indicates the correct insertion depth, reducing vibration and the risk of the bit loosening.

What's In The Box?

• (1) MATCHFIT Dovetail Router Bit

A true MICROJIG Innovation, designed to give you the precision and durability you need to build with confidence.
