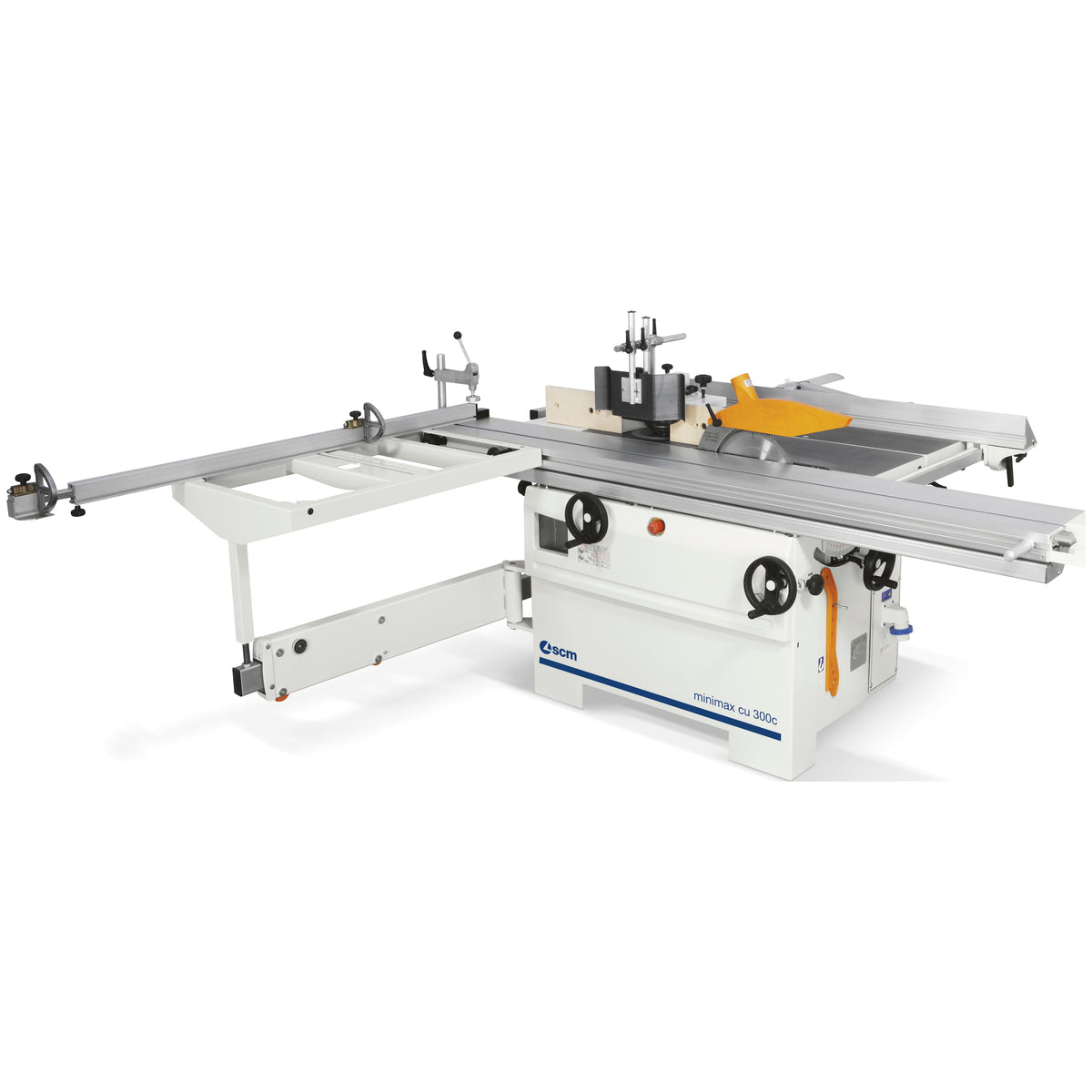

SCM Minimax Classic CU300C26X Combination Machine - Three phase

European precision for serious workshop performance

The Minimax CU300 Classic is a professional European combination machine built for accuracy, reliability, and long-term performance. Designed for workshops that demand versatility without compromise, it combines a sliding table saw, spindle moulder, jointer, and thicknesser into one robust, space-efficient system.

At its core is a heavy-duty cast iron structure, engineered to deliver vibration-free operation and exceptional durability. With three independent motors, one dedicated to each operating group, the CU300 Classic provides consistent power across all machining functions, even under demanding workloads.

The sliding table saw features a scoring blade for clean, splinter-free cuts on solid timber and veneered panels, while the spindle moulder offers three speeds for precise profiling. Planing operations are equally refined, with a 300 mm jointer and thicknesser designed for smooth, accurate material preparation.

Key Features

• Sliding table saw with scoring blade
• Euro-style rip fence with precision adjustment
• Extendable guide rails with flip stops
• Spindle moulder with three selectable speeds
• 300 mm jointer with oversized fence
• 300 mm thicknesser
• Three independent motors for optimal power delivery

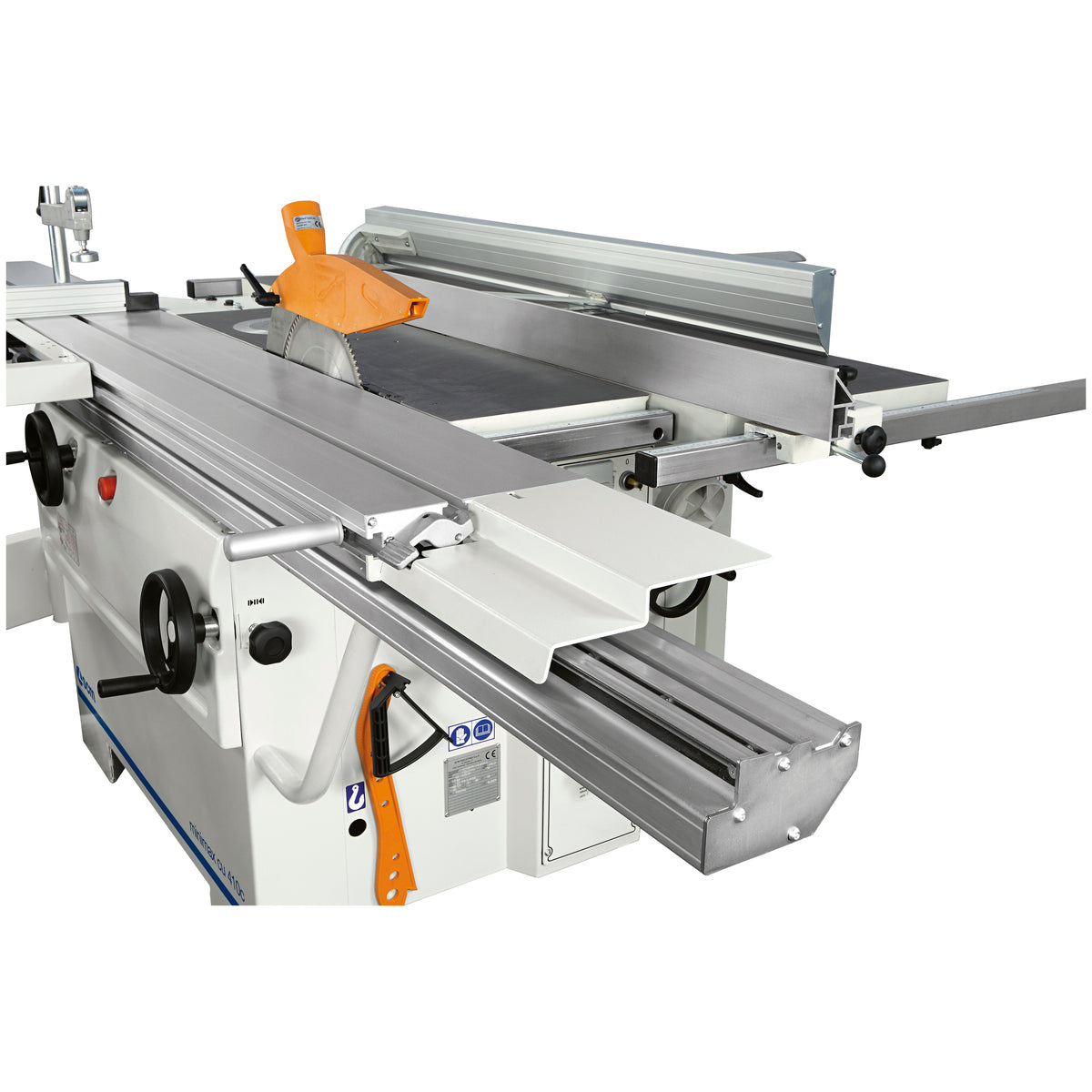

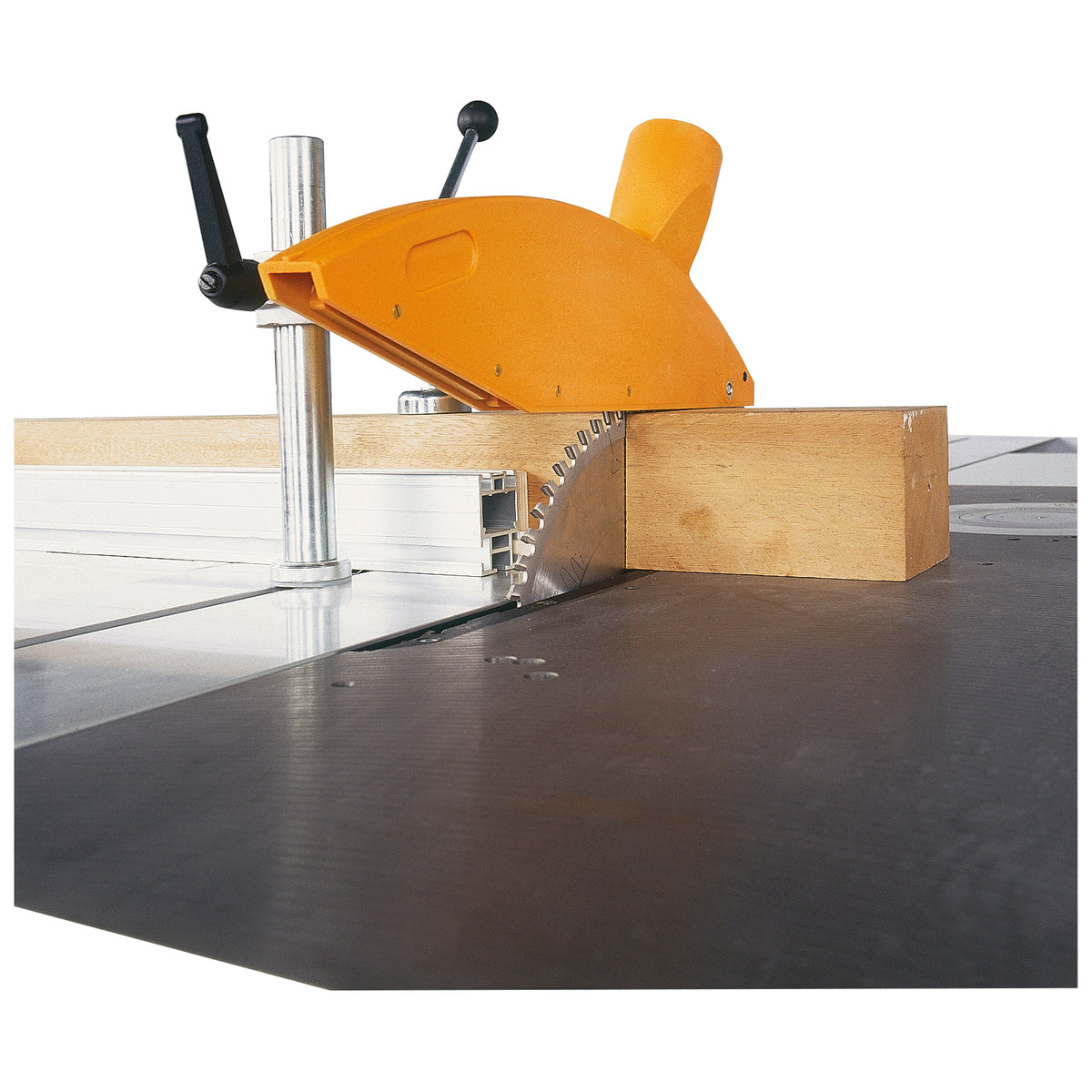

Outstanding Sawing Performance

The advanced saw unit accepts blades up to 315 mm in diameter, delivering a cutting height of up to 100 mm even with the scoring blade installed. This allows effortless cutting of thick solid timber, panels, and veneered materials with professional accuracy.

Professional-Grade Construction

• Heavy cast iron machine structure for stability and longevity
• Fully enclosed cast iron housing protects internal components from dust and debris
• Built for continuous workshop use

Precision Spindle Moulding

• Micrometric fence adjustment for fine control
• Vertical and horizontal pressers for safe, accurate machining
• Three-speed spindle for versatility across cutter profiles

Optimised Planing & Thicknessing

• 72 mm diameter cutter block with 3 knives
• Adjustable thicknesser feed roller pressure for different timber types
• Helical-toothed infeed roller for consistent stock feed
• Sandblasted steel outfeed roller for superior surface finish

Exceptional Accessibility & Safety

Changeovers between surfacing and thicknessing are fast and ergonomic, with surfacing tables opening inward at 90 degrees simultaneously. The thicknesser accommodates workpieces up to 230 mm high, while the redesigned dust conveyor improves both safety and extraction efficiency.

One machine. Total control. Professional results.
