CMT Kitchen Jig

CMT Kitchen Jig

Product Code:
CMT650

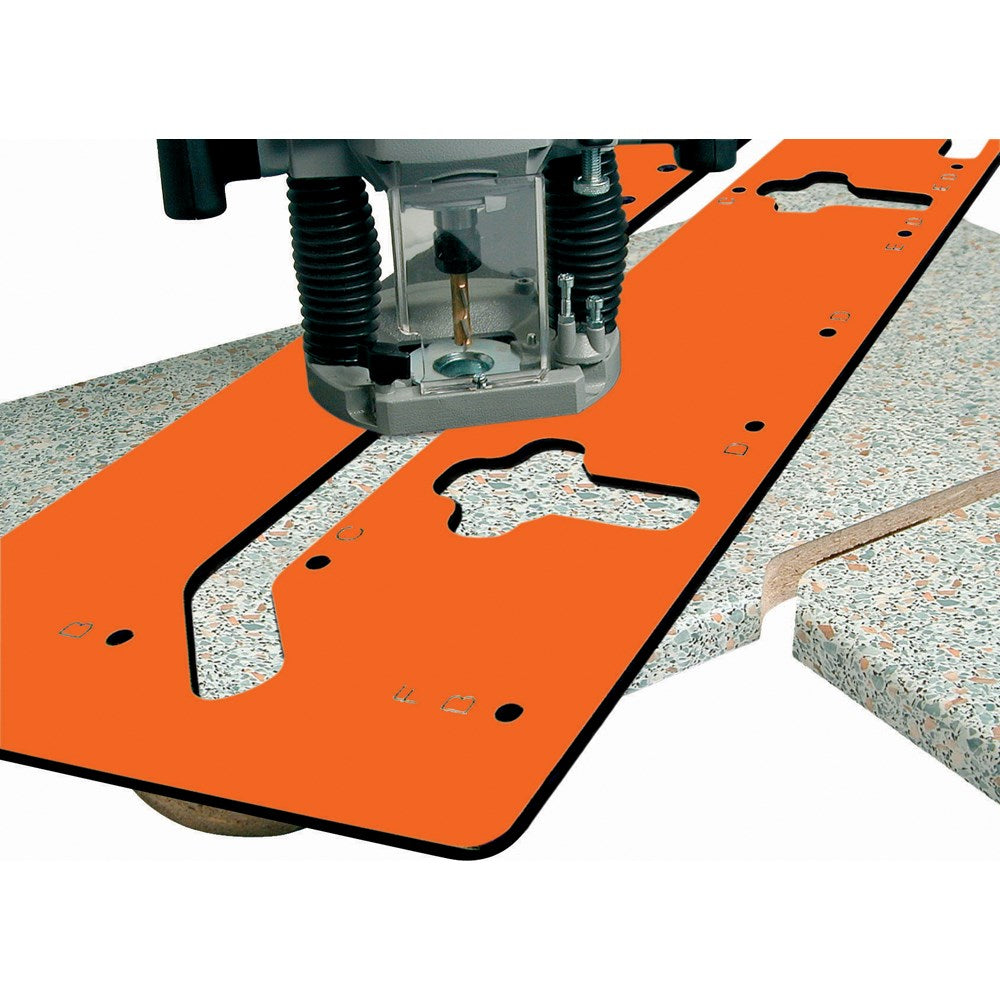

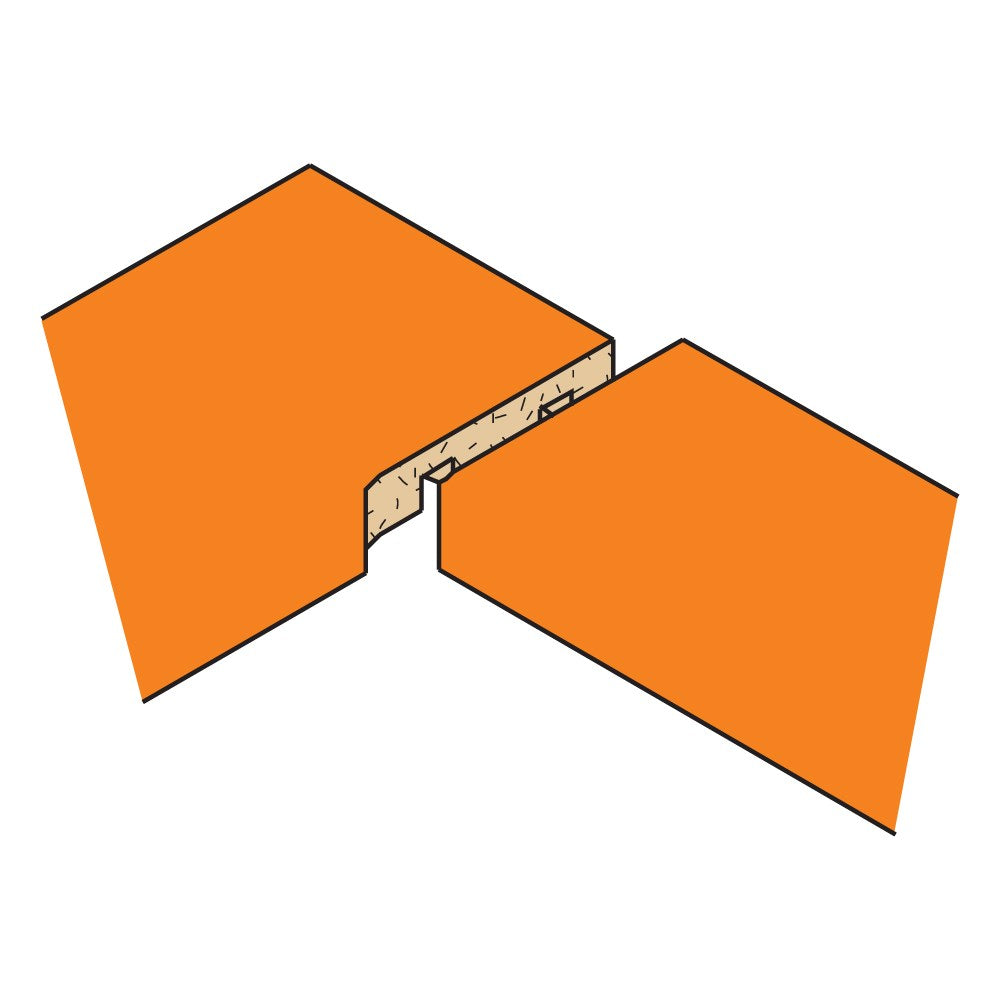

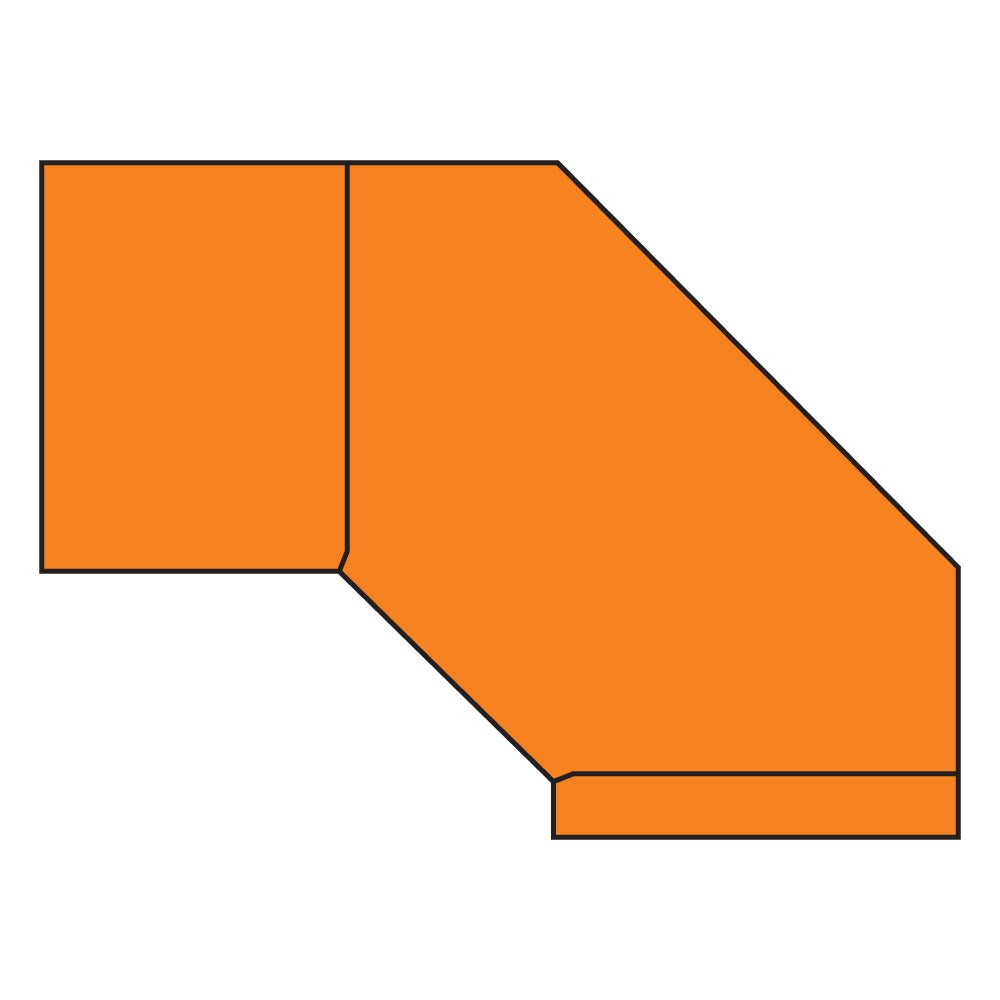

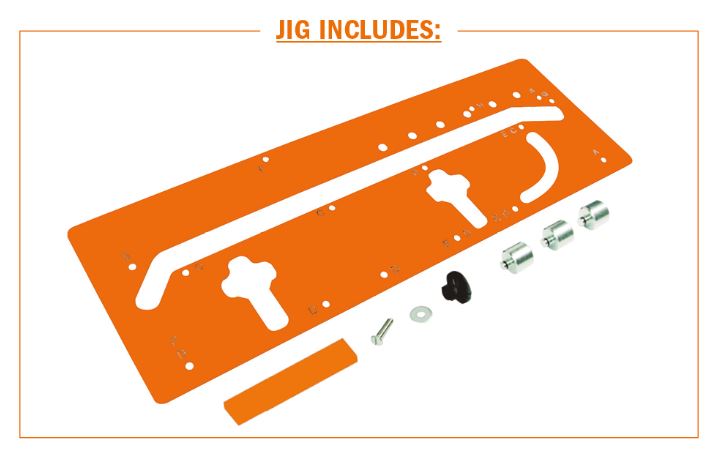

The CMT650 Template Jig is designed for joining kitchen bench tops at 45 and 90 in sizes from 420mm to 650mm. Made from stable phenolic resin so is thick enough to be stable, and not lose depth of cut with the router bit. The template also has facility for routing panel bolt recesses so that hardware can be fitted in minutes, these recesses are for joining the two benchtops together. Can be used with either of two cutters listed below - CMT straight cutter 812-620-11 is suitable for tops up to 32mm thick, CMT replaceable tip cutter 652-621-11 is suitable for tops up to 50mm thick, with the replacement cutter being 790-500-01.Weight: 4.3Kg.Jig Includes:1 phenolic template.3 zinc-coated steel location bush.1 adjustable end stop.1 instruction manual.Jig Requires:1/2 router30mm guide bush12mm straight bitTwo clamps to hold the jig from moving.

$392.00
$0.00 $392.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $98.00
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Template made of stable and hardened materialFor 90° and 45° jointsIntegrated templates for rounding over and chamfering edgesExtra location bush for worktop width of 600mmTwo integrated templates for panel bolt recessesDelivered with a clear and comprehensive instruction manual
