Veritas Quick Release Sliding Tail Vice

Veritas Quick Release Sliding Tail Vice

Product Code:
05G30-01

Installing a tail vise is notoriously difficult, usually requiring a section of workbench to be cut away and rebuilt around a complicated vise mechanism. Not so with this one. It can be quickly incorporated into a new bench construction or easily retrofitted to an existing bench without major surgery.

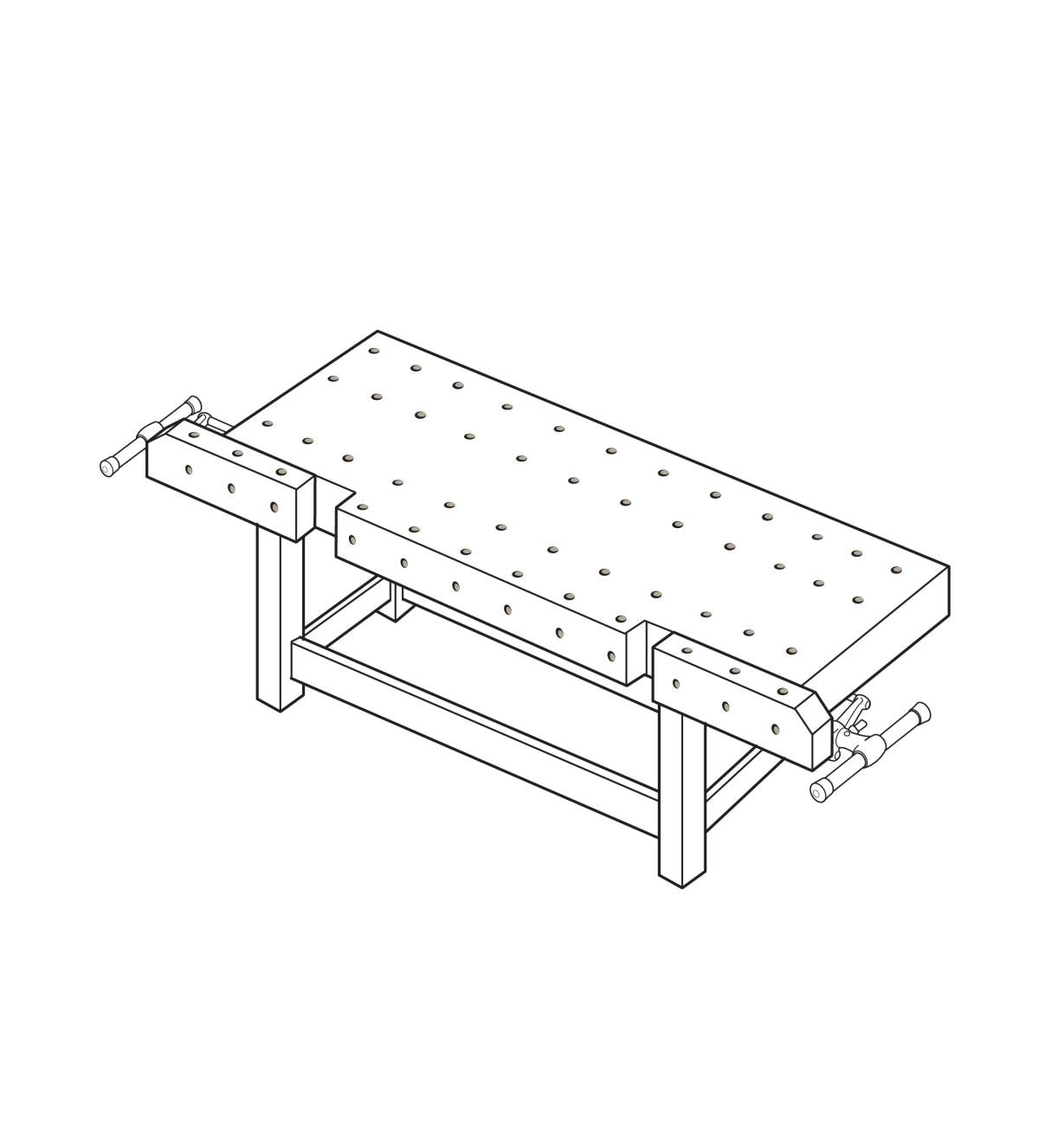

The end plates are symmetrical, so you can install the T-handle and quick-release lever in a right- or left-handed orientation, allowing the vise to be mounted at either end of the bench.

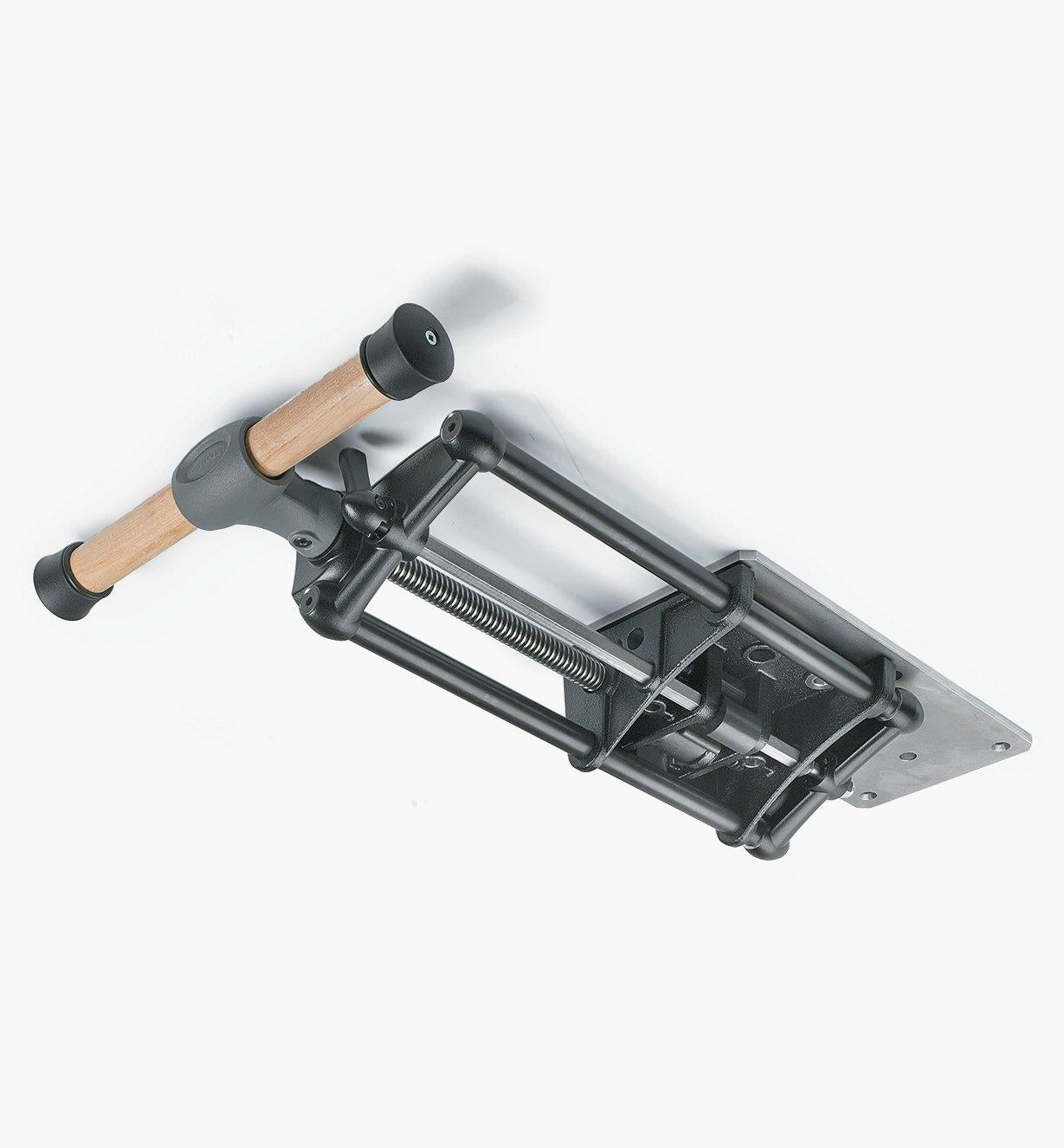

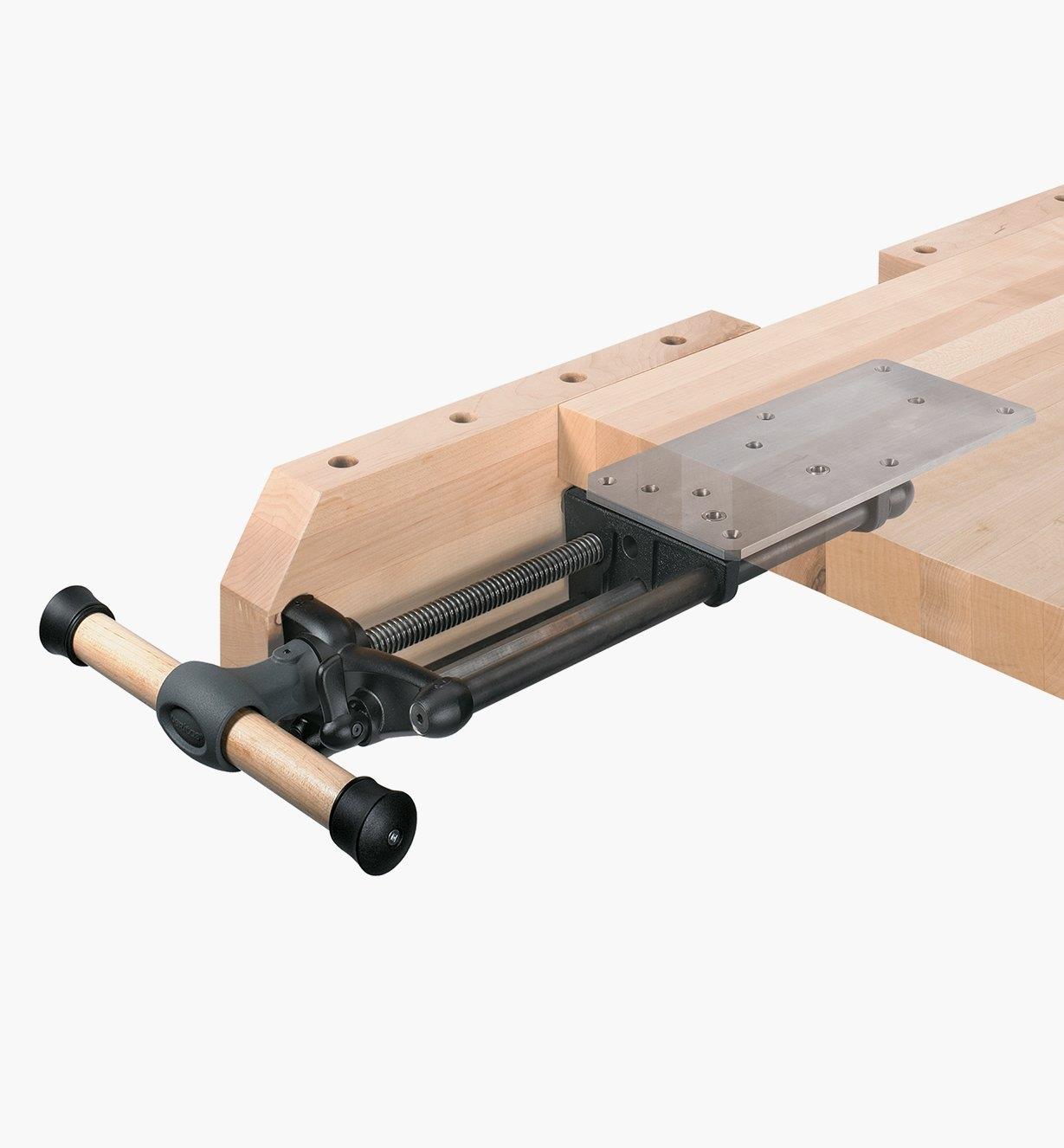

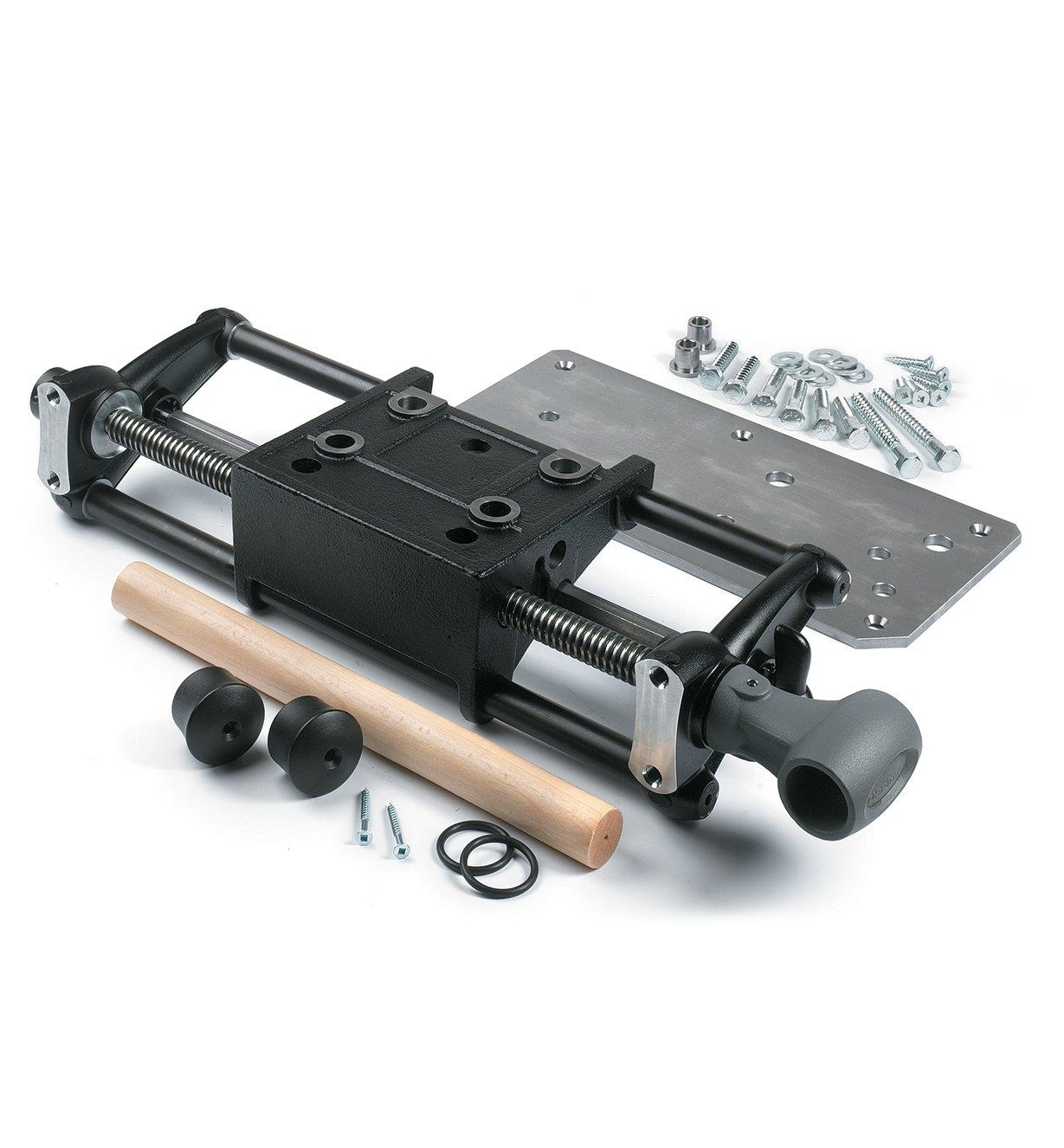

Installation is straightforward: using the included hardware, attach the mounting plate to the underside of the bench, then register and secure the vise mechanism to the plate. Using wood that you supply, add a custom-made jaw the same thickness as the bench skirt.

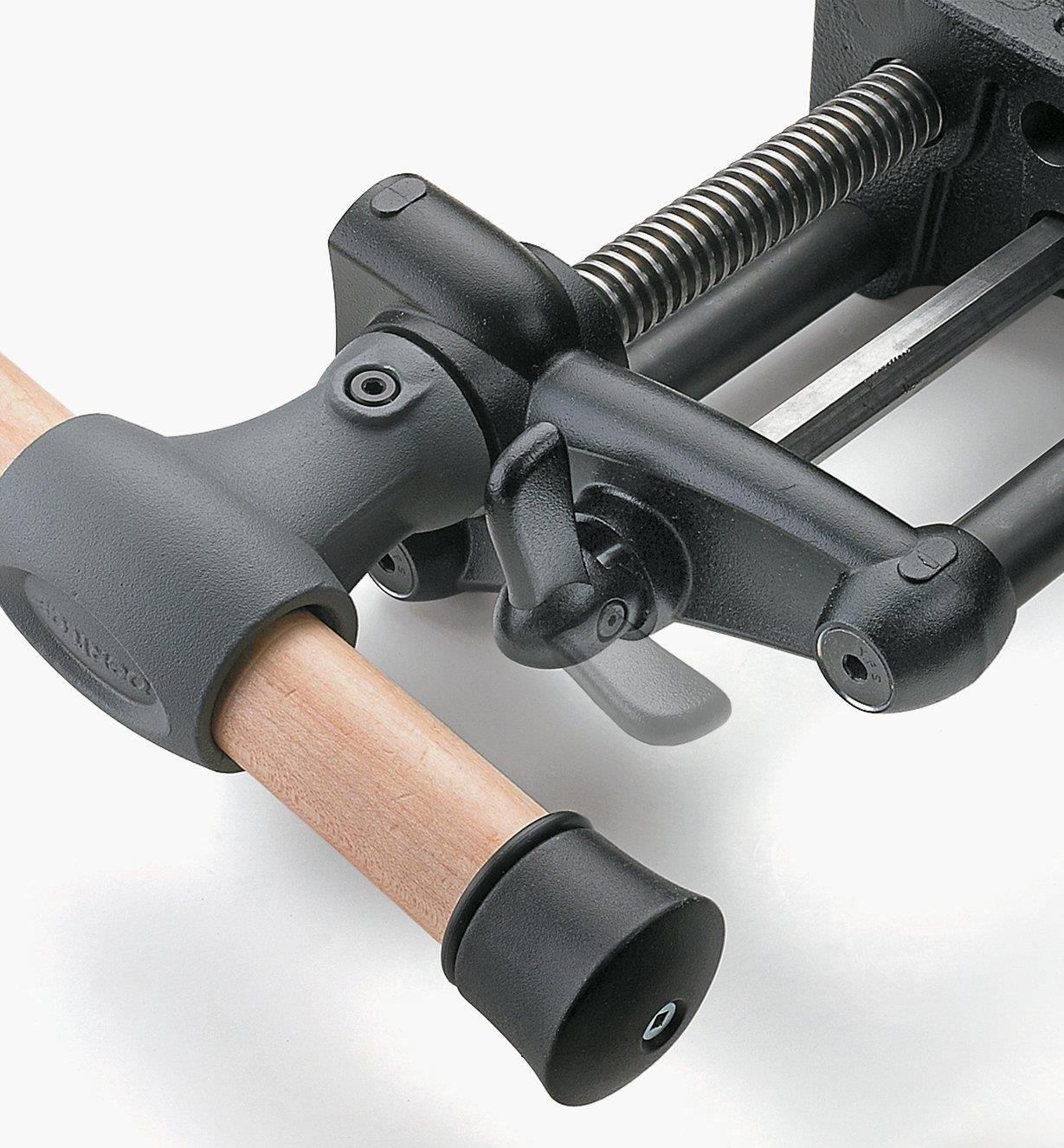

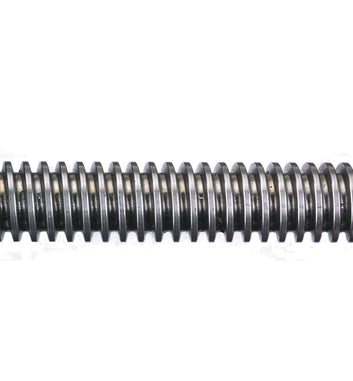

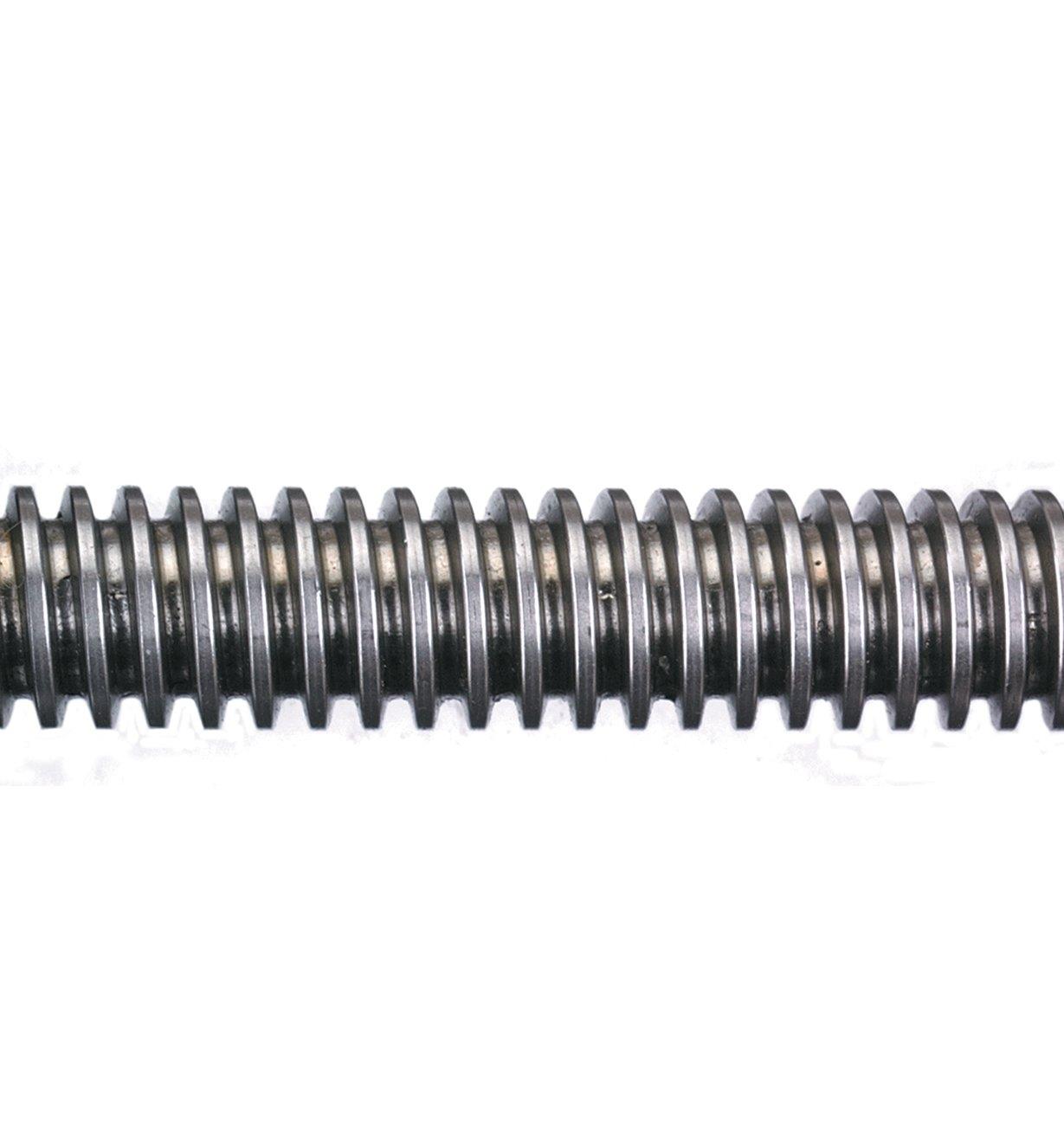

The quick-release mechanism has a simple on-off lever that engages or disengages the Acme-threaded screw, which can apply force (up to 300 lb) in both clamping as well as spreading applications - something not possible with any other quick-release tail vise.

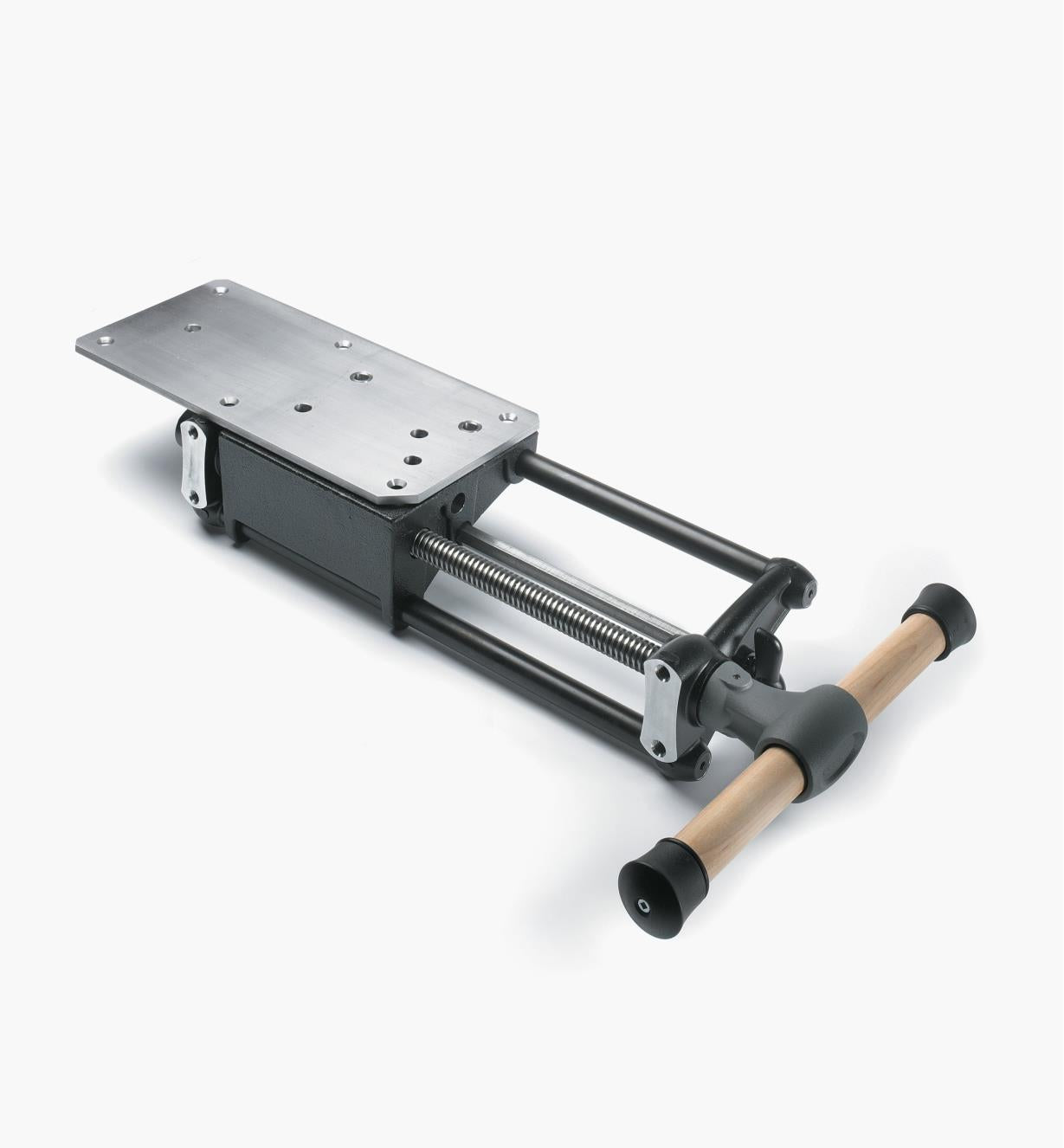

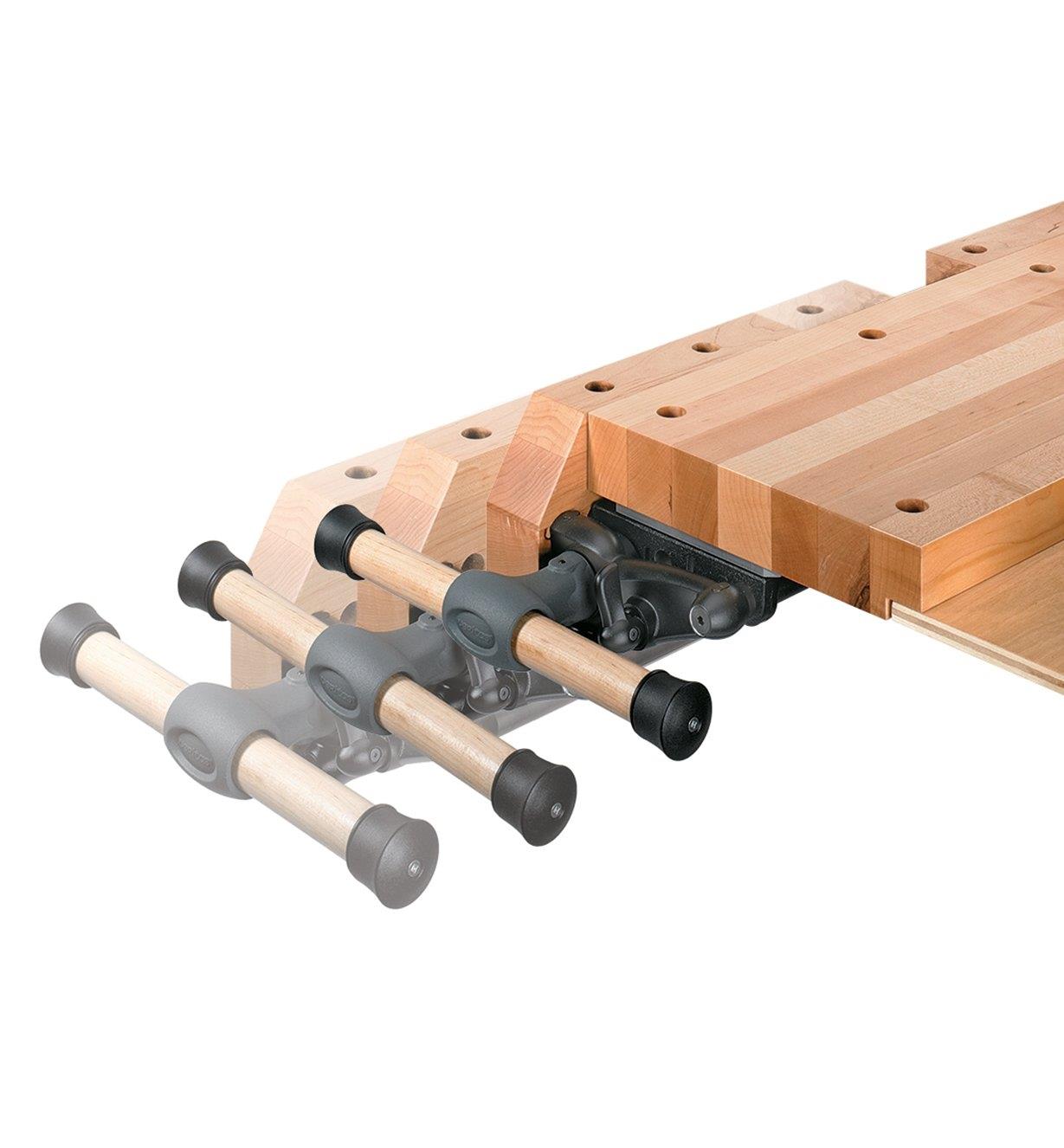

Maximum travel is 7 3/4". The body is ductile iron with zinc-alloy end plates, steel shafts and guide rods, and a maple handle. Requires an unobstructed mounting area at least 17" 6 1/2" on the underside of the bench top.
Made in Canada. Patented.

$733.00
$0.00 $733.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $183.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Installing a tail vise is notoriously difficult, usually requiring a section of workbench to be cut away and rebuilt around a complicated vise mechanism. Not so with this one. It can be quickly incorporated into a new bench construction or easily retrofitted to an existing bench without major surgery.
The end plates are symmetrical, so you can install the T-handle and quick-release lever in a right- or left-handed orientation, allowing the vise to be mounted at either end of the bench.
Installation is straightforward: using the included hardware, attach the mounting plate to the underside of the bench, then register and secure the vise mechanism to the plate. Using wood that you supply, add a custom-made jaw the same thickness as the bench skirt.
The quick-release mechanism has a simple on-off lever that engages or disengages the Acme-threaded screw, which can apply force (up to 300 lb) in both clamping as well as spreading applications - something not possible with any other quick-release tail vise.
Maximum travel is 7 3/4". The body is ductile iron with zinc-alloy end plates, steel shafts and guide rods, and a maple handle. Requires an unobstructed mounting area at least 17" × 6 1/2" on the underside of the bench top.
Made in Canada. Patented.
