Rockler Mini Deluxe Panel Clamps, 2-Pack

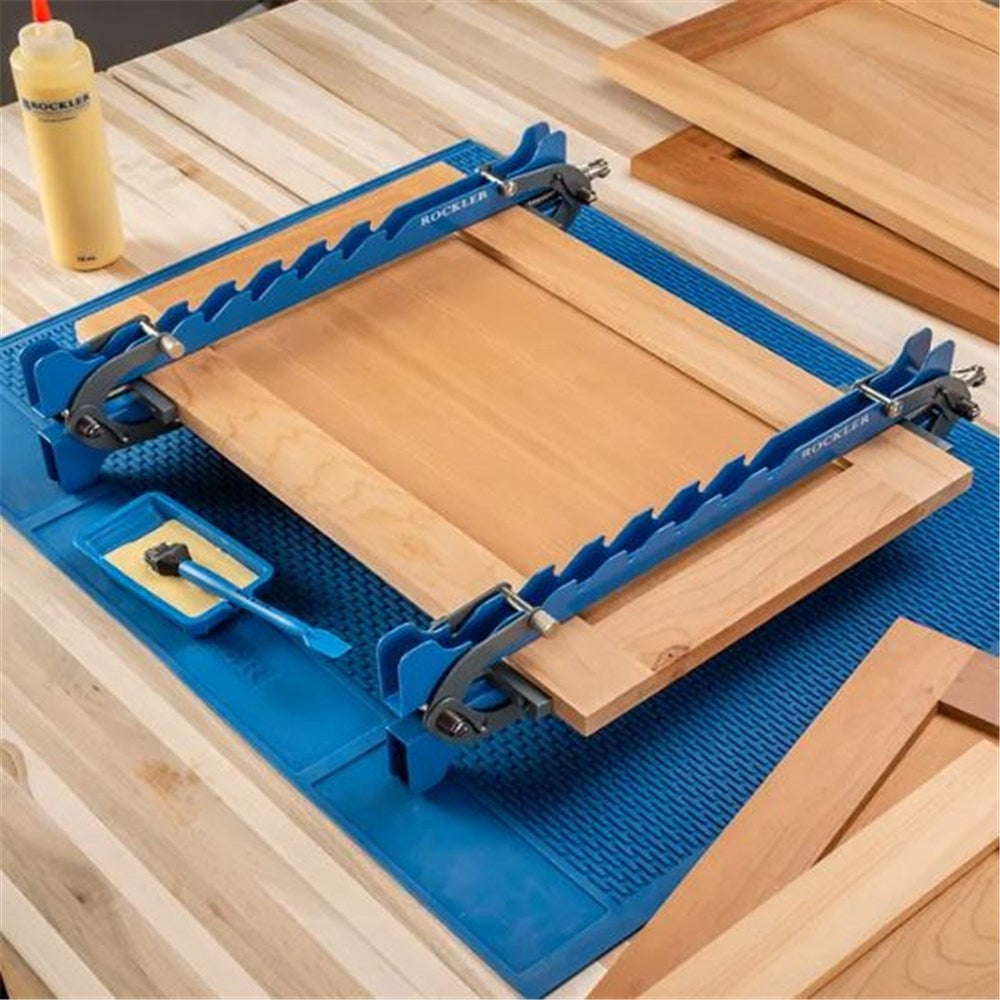

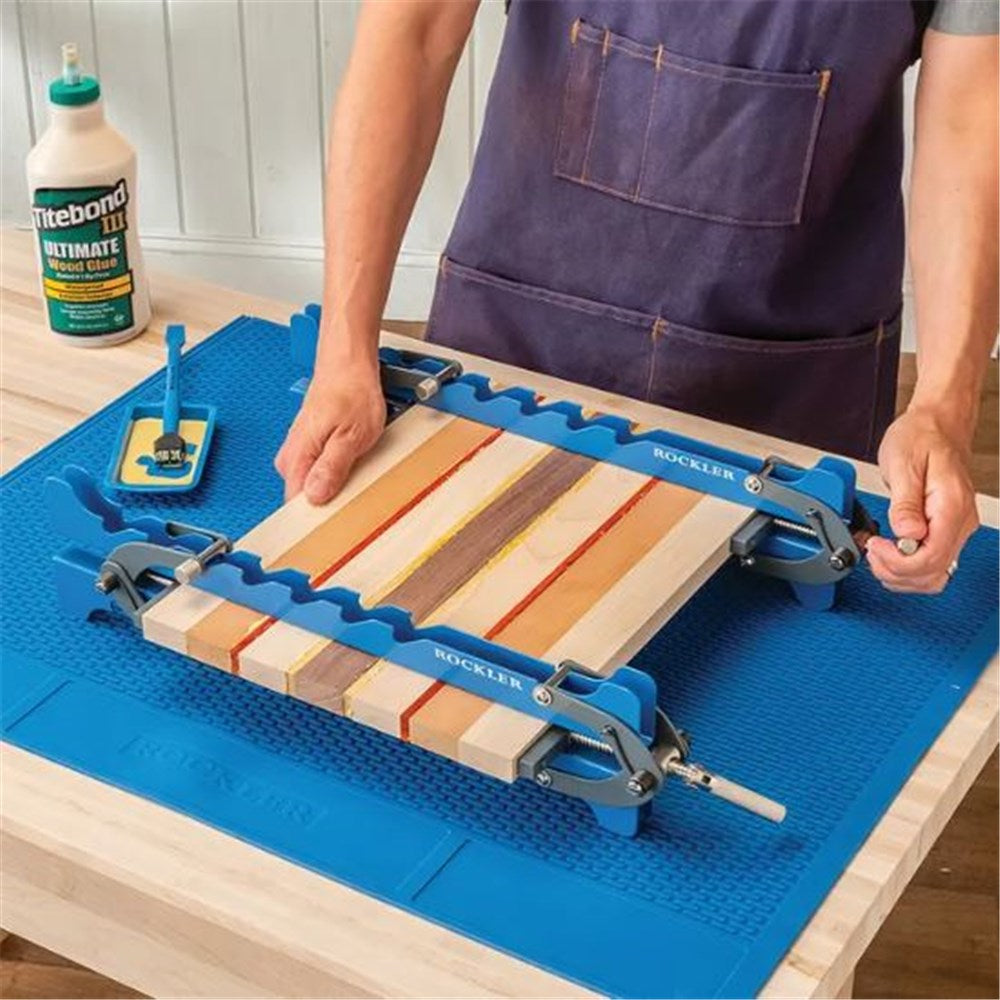

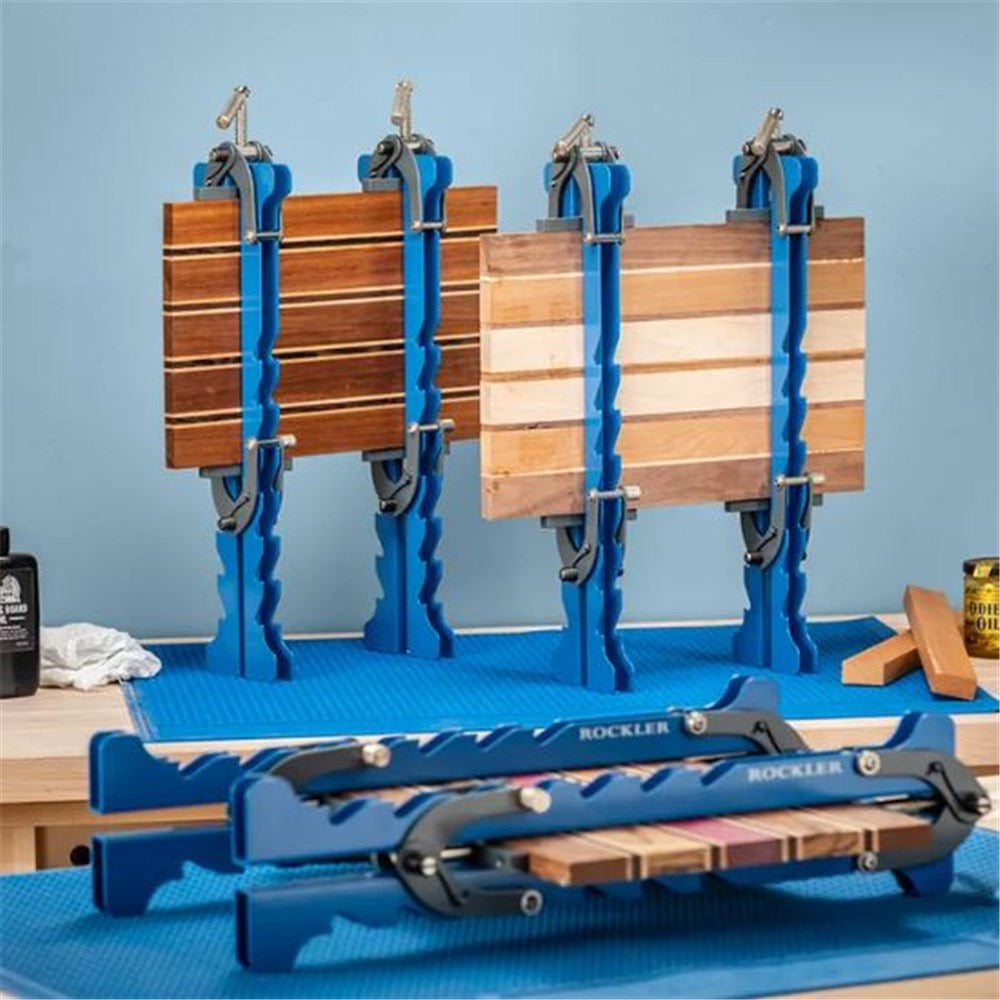

The Rockler Mini Deluxe Panel Clamps bring you all the benefits of their popular larger clamps, but in a smaller package optimized for scaled-down projects like cutting boards, small- to medium-sized panel glue-ups and assembling frame-and-panel doors. They're built to the same rugged specifications, from thick steel, with scissor-action couplers that apply pressure from all sides—only the size is different.

Since the clamps sandwich your panel, they force the panel flat and the joints flush, saving you loads of sanding time. There is also no need to stagger your clamps top and bottom. Use to join panels from 1/2'' to 1-1/2'' thick and up to 16'' wide.

• Clamp Rail Dimensions: 0.83'' wide x 1.7'' high x 19'' long, made from 1.8mm thick steel
• Thickness Capacity: 1/2'' to 1-1/2'' thick
• Panel Width Capacity: 5-1/2'' to 16'' wide
• Storage rack included

Mini Deluxe Panel Clamp Details:

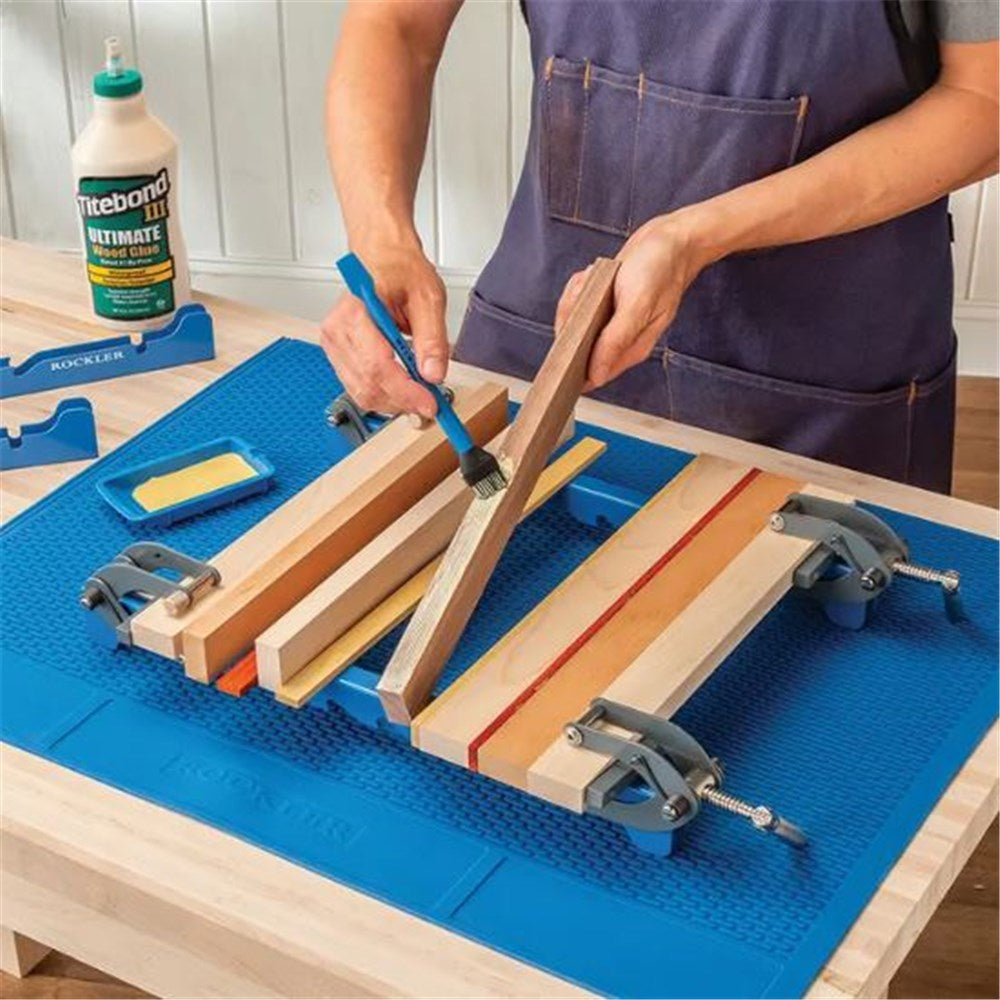

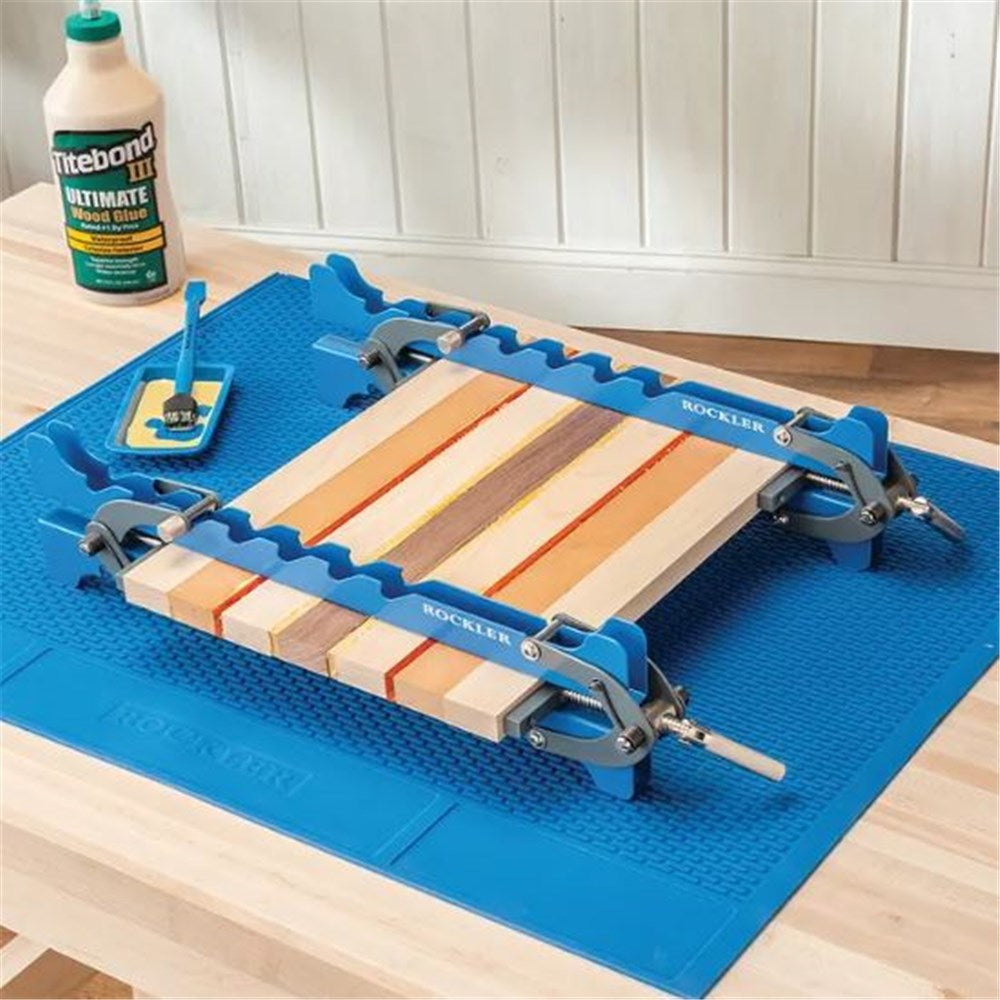

• Powerful four-way pressure clamps boards being edge glued to form a perfectly flat panel—no more bowing!
• Accepts panels from 1/2'' to 1-1/2'' thick and 5-1/2'' to 16'' wide—great for cutting boards and frame-and-panel door assembly

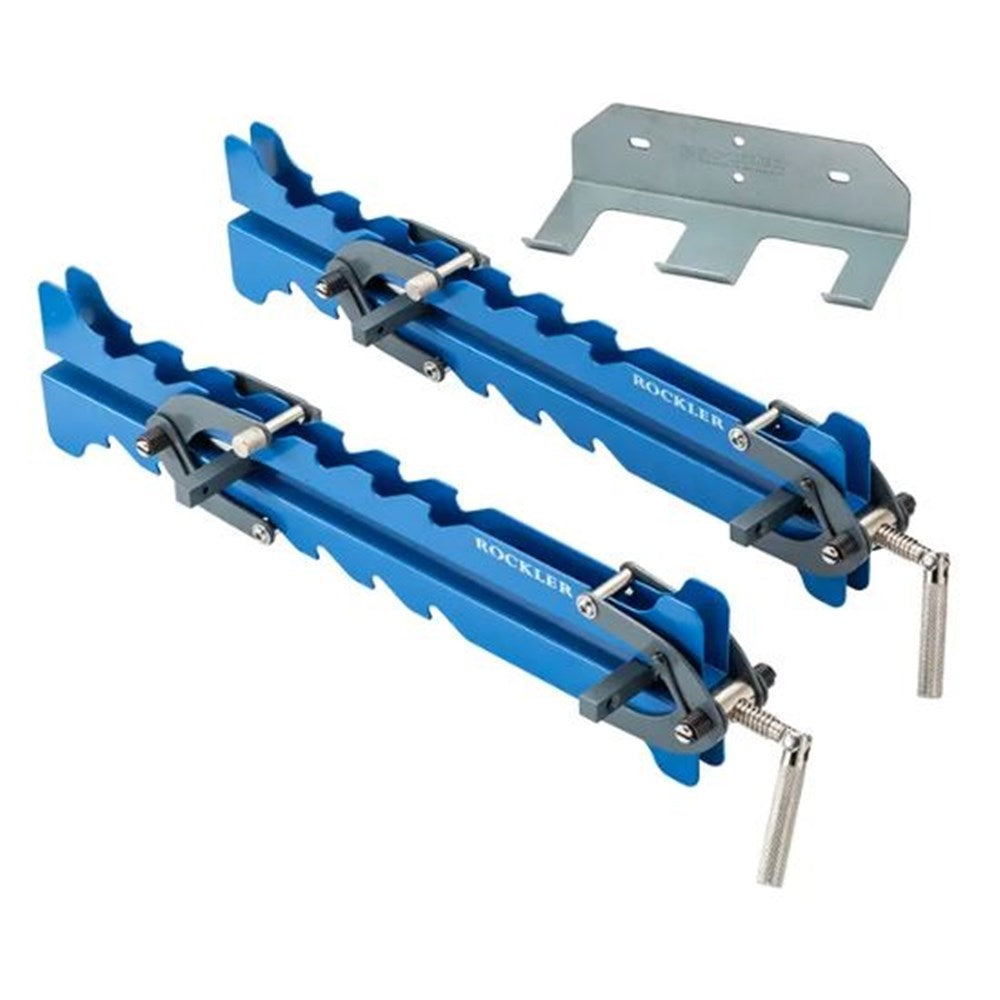

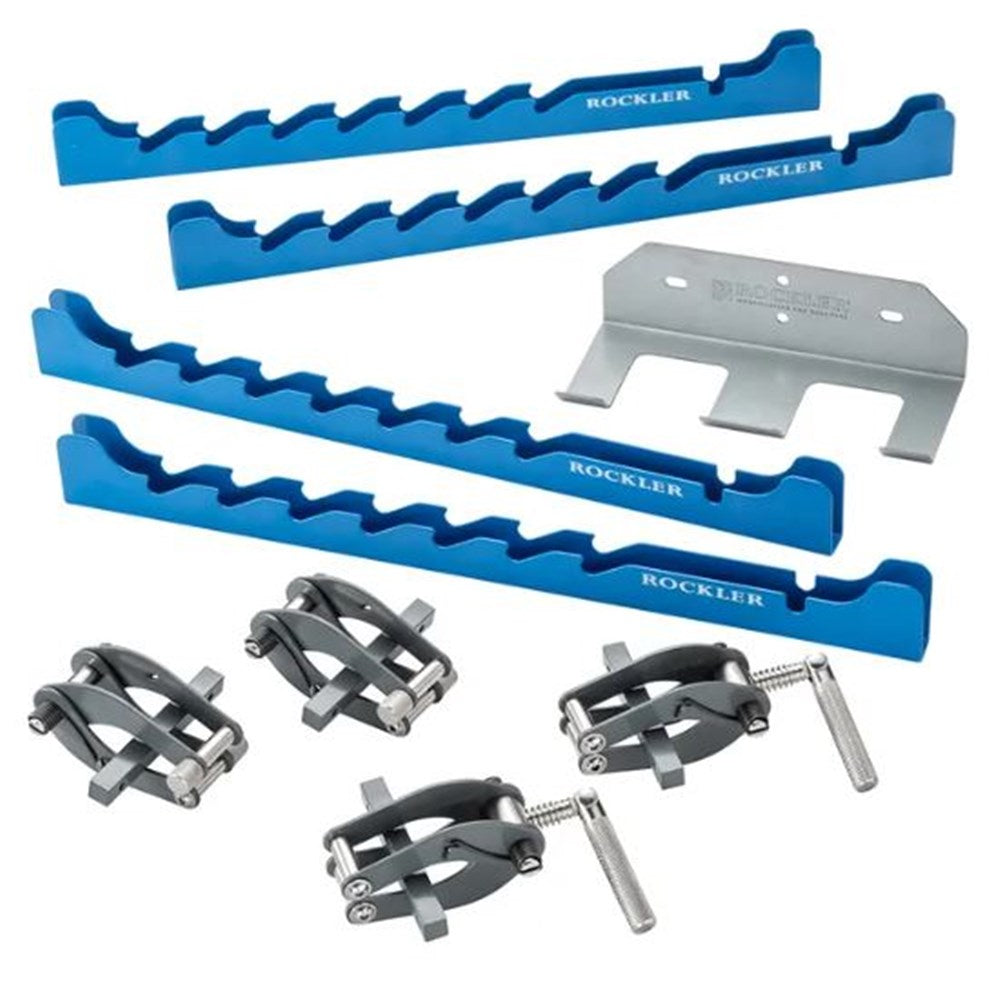

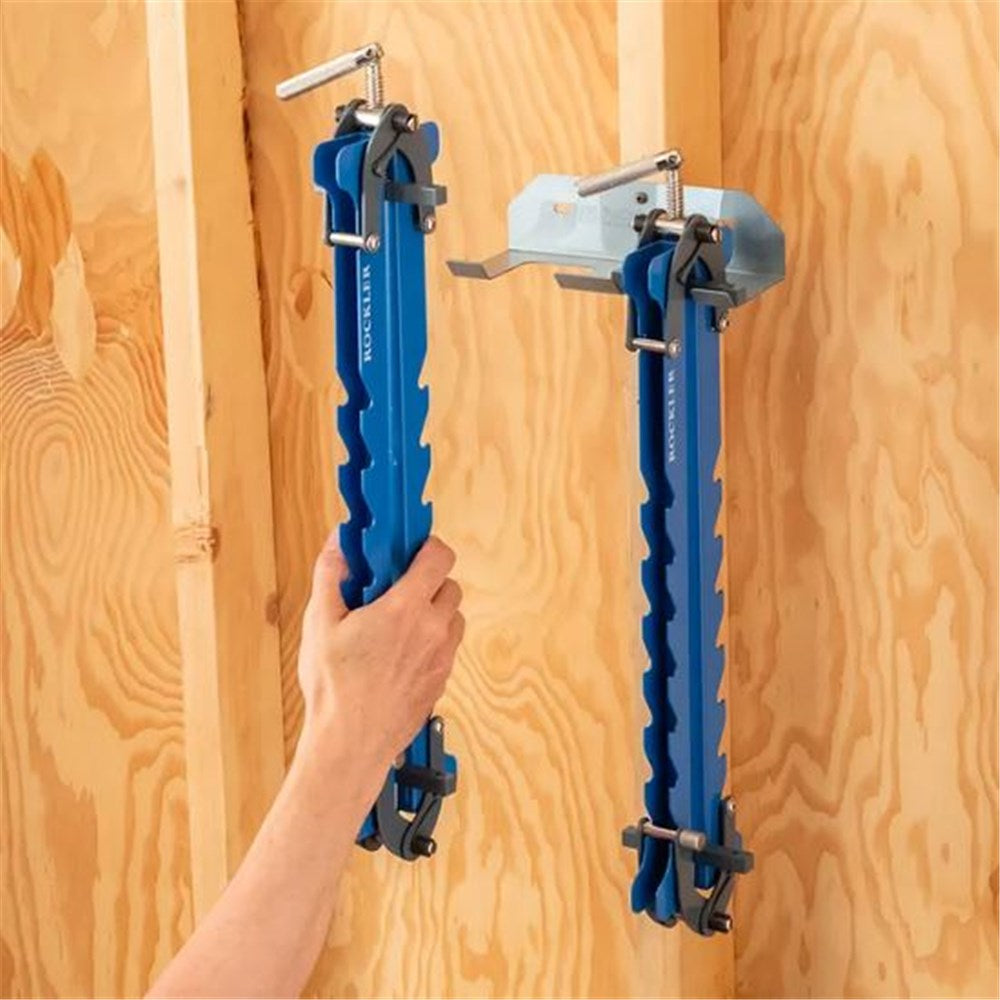

• Includes two Mini Deluxe Panel Clamps, plus a convenient wall rack for hanging the clamps!
• Sawtooth pattern makes it easy to adjust the clamp to fit your project
• Integrated feet in rails provide clearance for easier adjustment
• Rails are made from 1.8mm-thick steel with durable powder-coat finish
• Headstock and tailstock assemblies also powder-coated; Acme-threaded rod and handle have zinc coating

IMPORTANT: To achieve good results, it is critical that the top and bottom pins of the tailstock jaw assembly are positioned in corresponding notches in the top and bottom rails. For example, if the top tailstock pins are in the third slot from the back of the clamp in the top rail, the bottom pins must be in the third slot from the back of the clamp in the bottom rail. This will keep the rails aligned and ensure that pressure is delivered vertically and horizontally at right angles.
