Veritas Right Hand Shooting Plane with PM-V11 Blade

Veritas Right Hand Shooting Plane with PM-V11 Blade

Product Code:
05P54-71

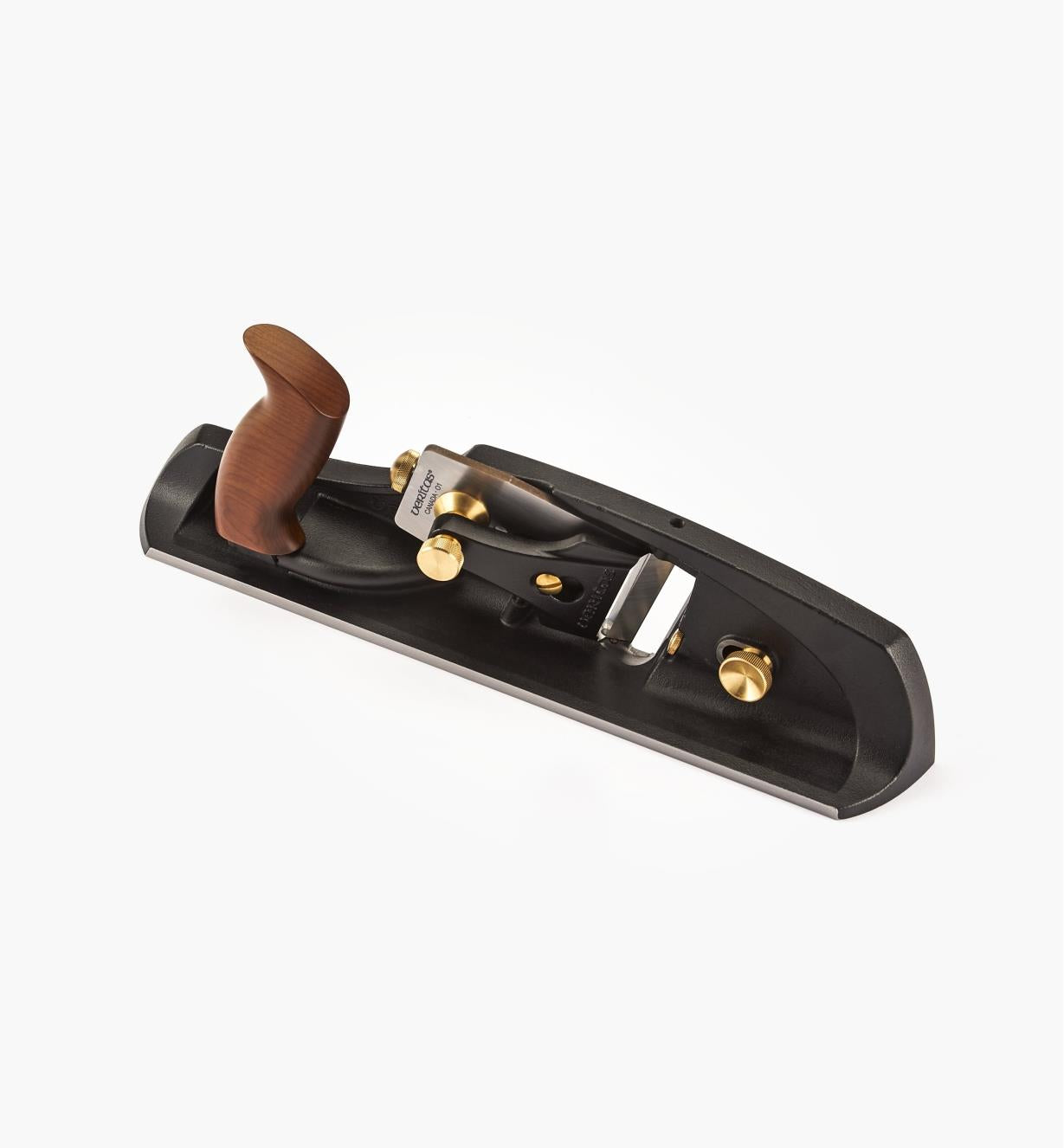

The mass of this plane, combined with its long base and low center of gravity, makes it both stable and effective. At 7 3/4 lb and just under 16" long, it is a substantial plane; you will appreciate the authority it provides when shooting.

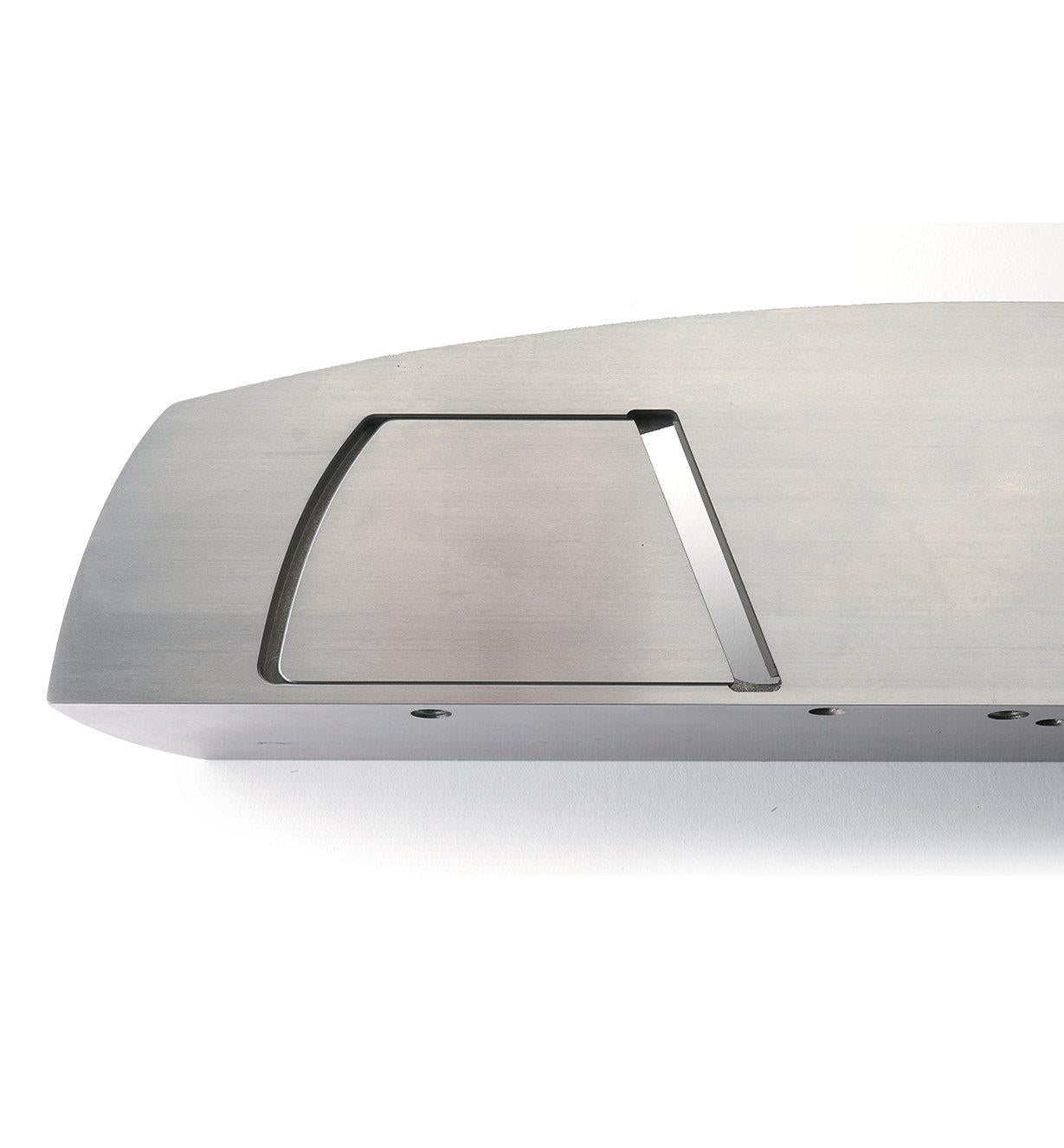

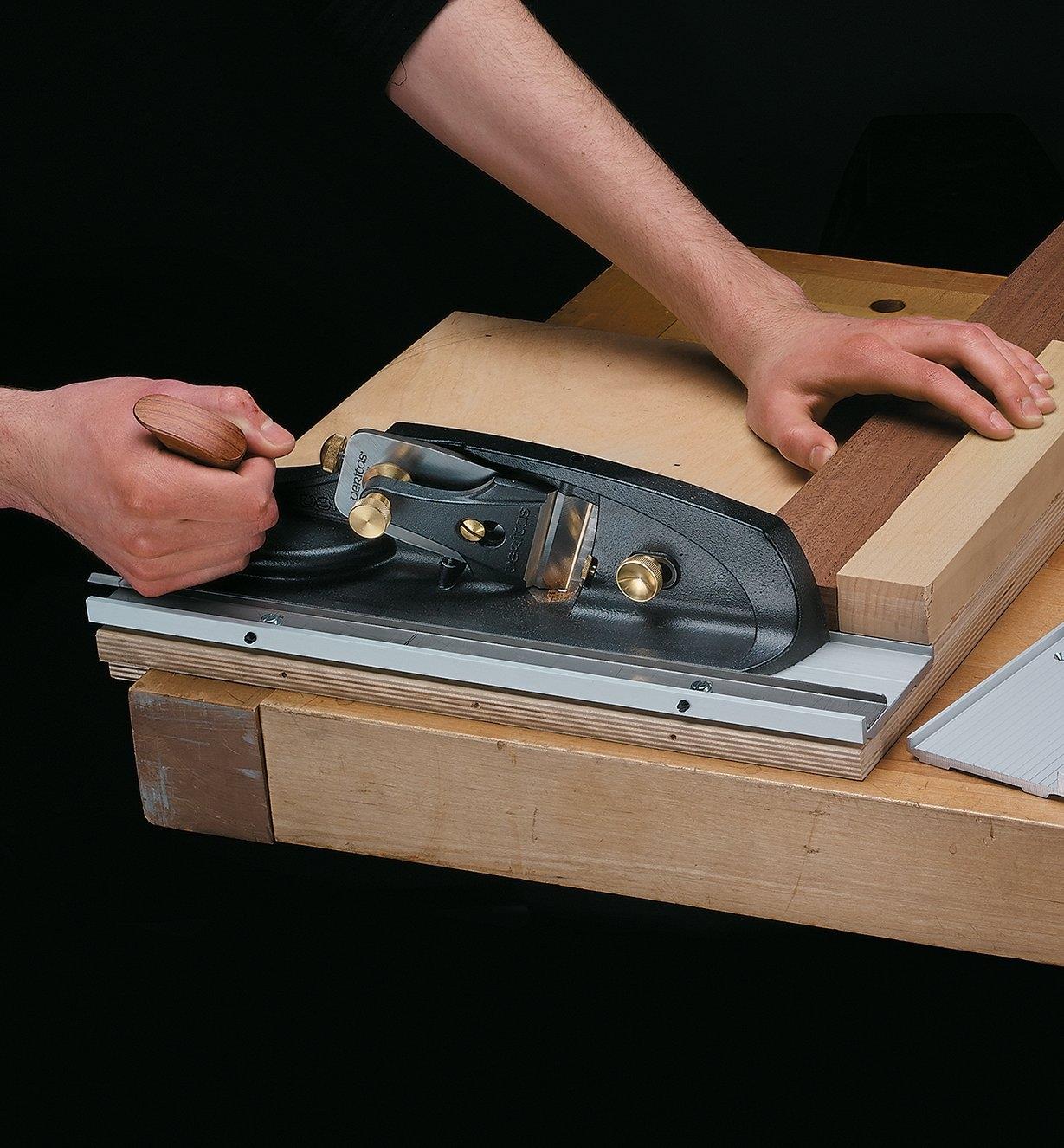

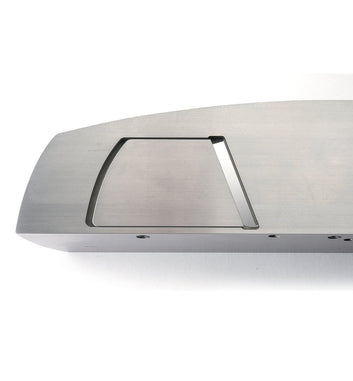

The body is fully stress-relieved, ductile cast iron, with a sole and running surface machined flat and square to one another; the 2 1/8" wide running surface fits the classic Stanley #52 chute board. Three set screws let you compensate for slight inaccuracies in a wooden shooting board by adjusting the blade square to the workpiece.

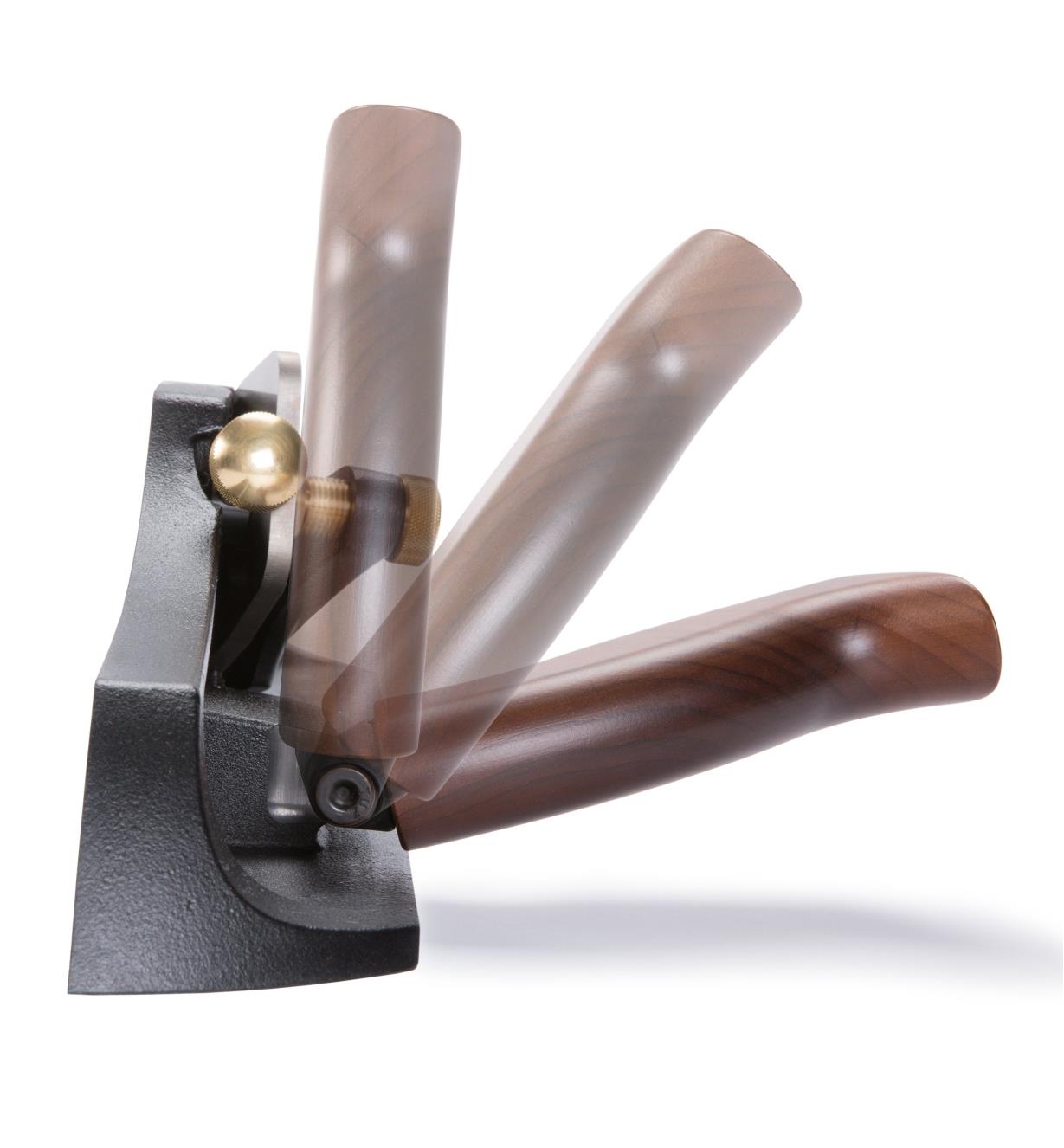

Loosening a brass locking knob allows you to adjust the mouth opening, while a stop-screw retains mouth settings and prevents contact between the blade and movable toe. You can set the adjustable rear tote at a comfortable angle for use with the sole upright or facing down.
A bevel-up plane, it has a bed skewed 20 to reduce cut resistance and make a shearing cut that leaves a clean finish on end grain. Combined with the 12 bed angle and 25 blade bevel, this yields an effective cutting angle of 35.
Includes a lapped blade, made of PM-V11 tool steel, which we find offer the best performance at low bevel angles. It uses the same 2 1/4" wide blades as our other bevel-up planes. A Norris-style mechanism combines feed and lateral adjustments for easy, precise blade setting.
Also available in a left-hand version (05P55-71).
Made in Canada. Patented.

$693.00
$0.00 $693.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $173.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

The mass of this plane, combined with its long base and low center of gravity, makes it both stable and effective. At 7 3/4 lb and just under 16" long, it is a substantial plane; you will appreciate the authority it provides when shooting.
The body is fully stress-relieved, ductile cast iron, with a sole and running surface machined flat and square to one another; the 2 1/8" wide running surface fits the classic Stanley #52 chute board. Three set screws let you compensate for slight inaccuracies in a wooden shooting board by adjusting the blade square to the workpiece.
Loosening a brass locking knob allows you to adjust the mouth opening, while a stop-screw retains mouth settings and prevents contact between the blade and movable toe. You can set the adjustable rear tote at a comfortable angle for use with the sole upright or facing down.
A bevel-up plane, it has a bed skewed 20° to reduce cut resistance and make a shearing cut that leaves a clean finish on end grain. Combined with the 12° bed angle and 25° blade bevel, this yields an effective cutting angle of 35°.
Includes a lapped blade, made of PM-V11 tool steel, which we find offer the best performance at low bevel angles. It uses the same 2 1/4" wide blades as our other bevel-up planes. A Norris-style mechanism combines feed and lateral adjustments for easy, precise blade setting.
Also available in a left-hand version (05P55-71).
Made in Canada. Patented.
