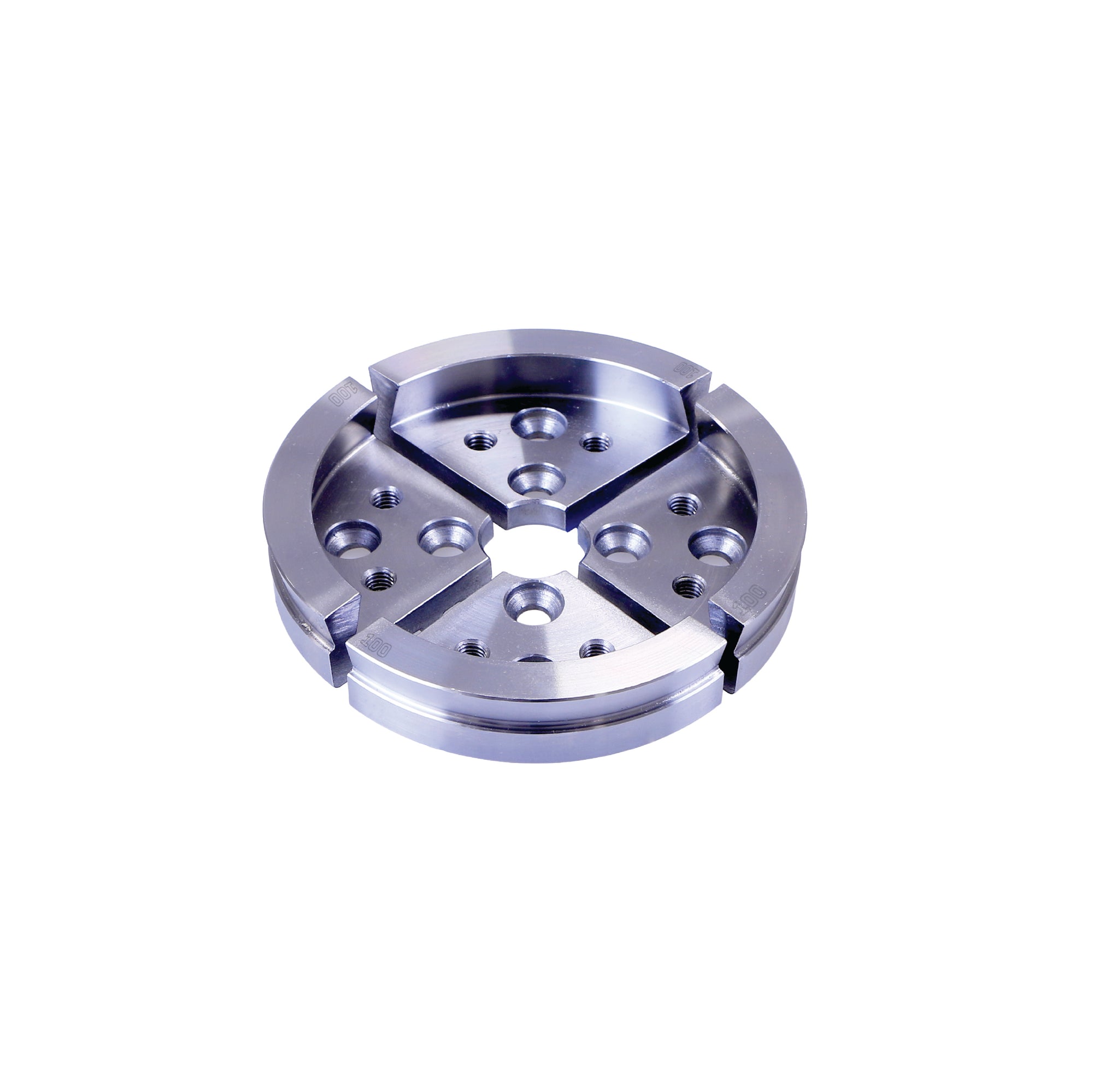

Carbatec Scroll Chuck 100mm Dovetail Jaw Set

Carbatec 100 mm Dovetail Profile Jaws – Precision for Medium to Large Turning Projects

Precision CNC machined, the Carbatec 100 mm Dovetail Jaws are designed to fit perfectly on Carbatec Scroll Chucks. Expanding on the standard 50 mm set, these jaws provide a secure and versatile solution for medium to larger turning projects, with safe operation at speeds up to 680 RPM.

Key Features & Capacity

• Internal Clamping: 56–77 mm square stock, 78–99 mm round stock. Optimal foot diameter is 85 mm, with up to 12 mm depth for maximum jaw contact. Supports bowls up to 310 mm in diameter.
• Expanding Grip Hold: 97–118 mm; ideal recess diameter 97 mm with full 9 mm depth. In this configuration, bowls up to 360 mm diameter and 125 mm depth/thickness can be turned.

Why Choose 100 mm Dovetail Jaws?

• Precision CNC machining ensures secure and consistent clamping.
• Expands your chuck’s capacity for medium to large projects.
• Versatile internal and expanding hold options for a wide range of bowl sizes.

Important: Capacities are intended as a guideline only. Always follow proper training and safe woodturning practices.
