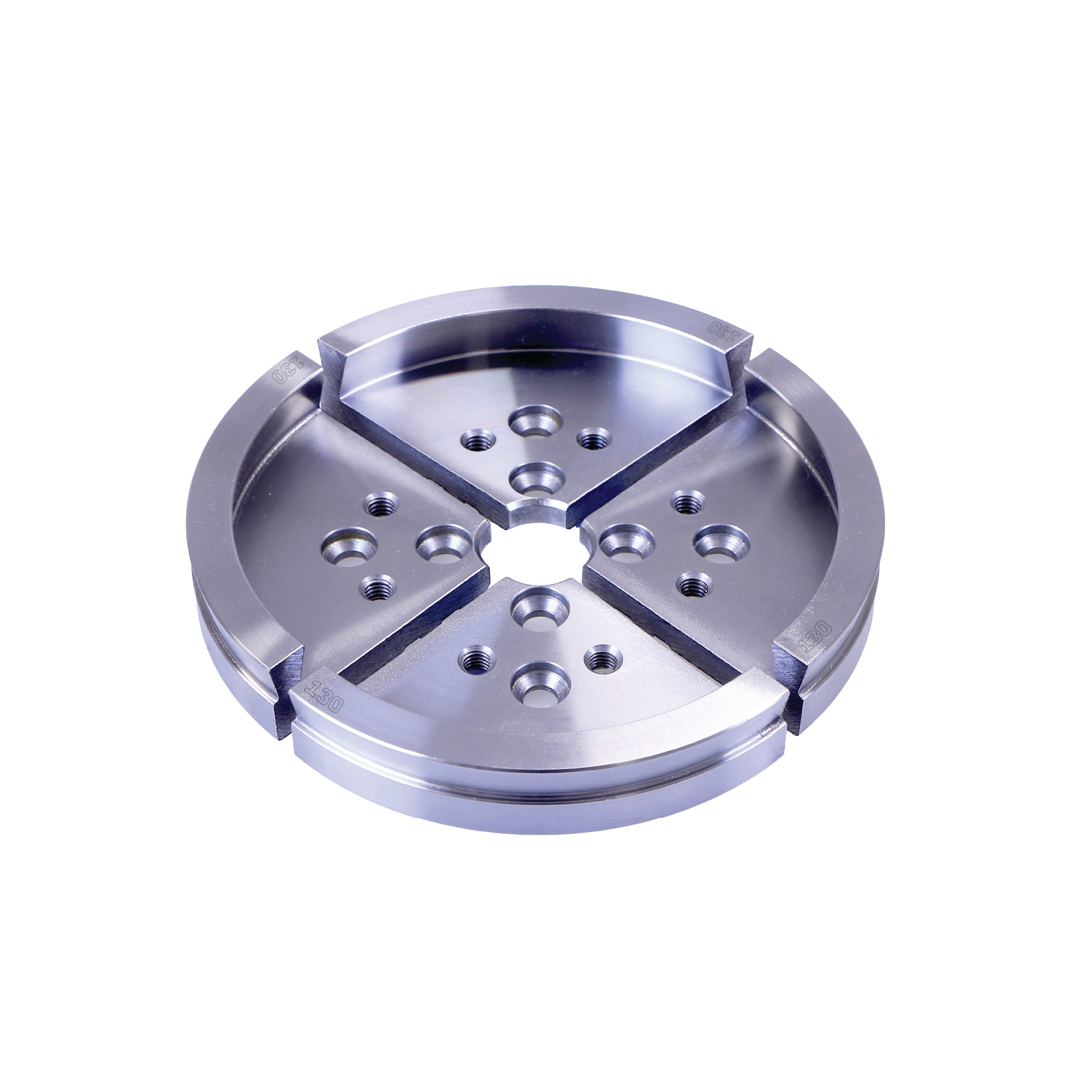

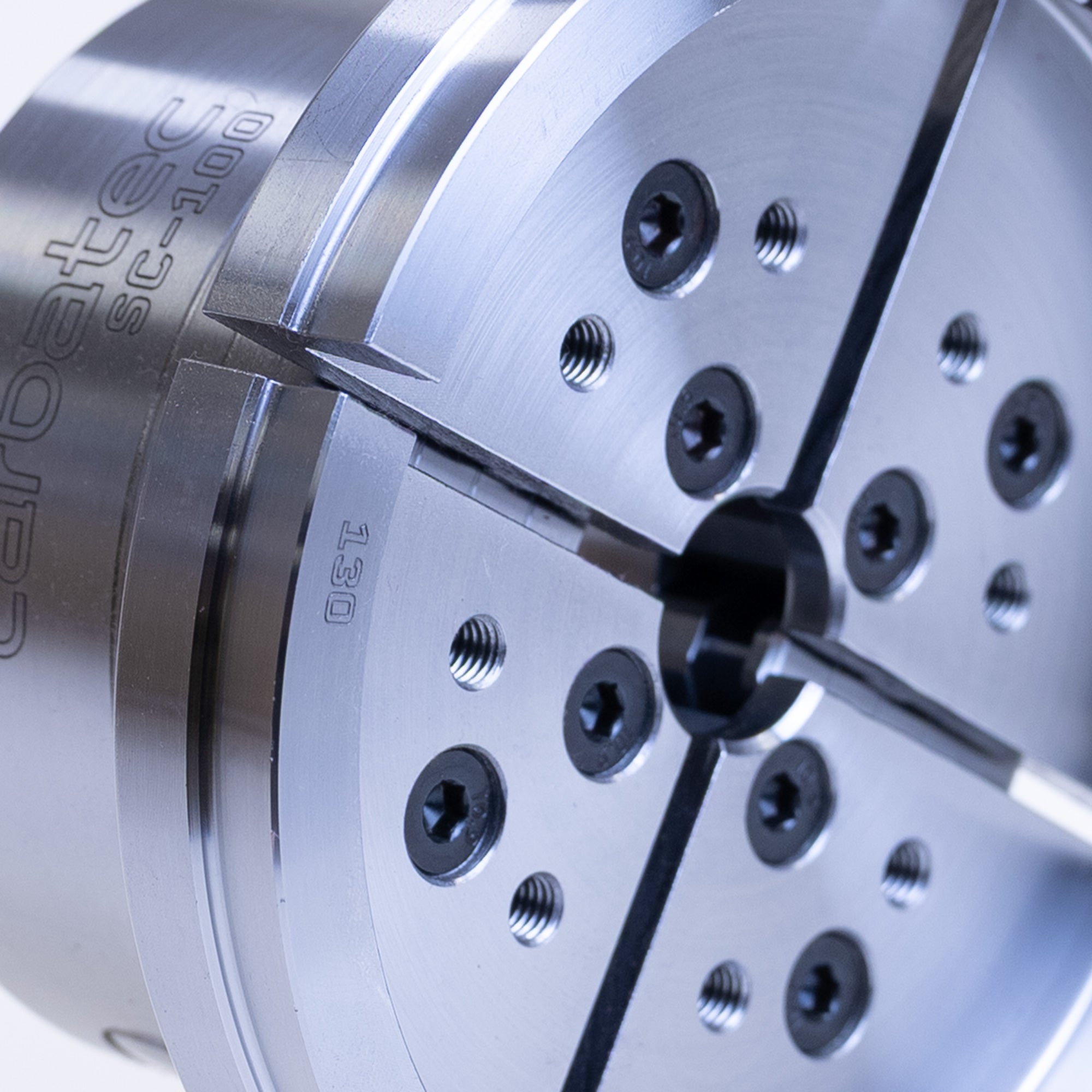

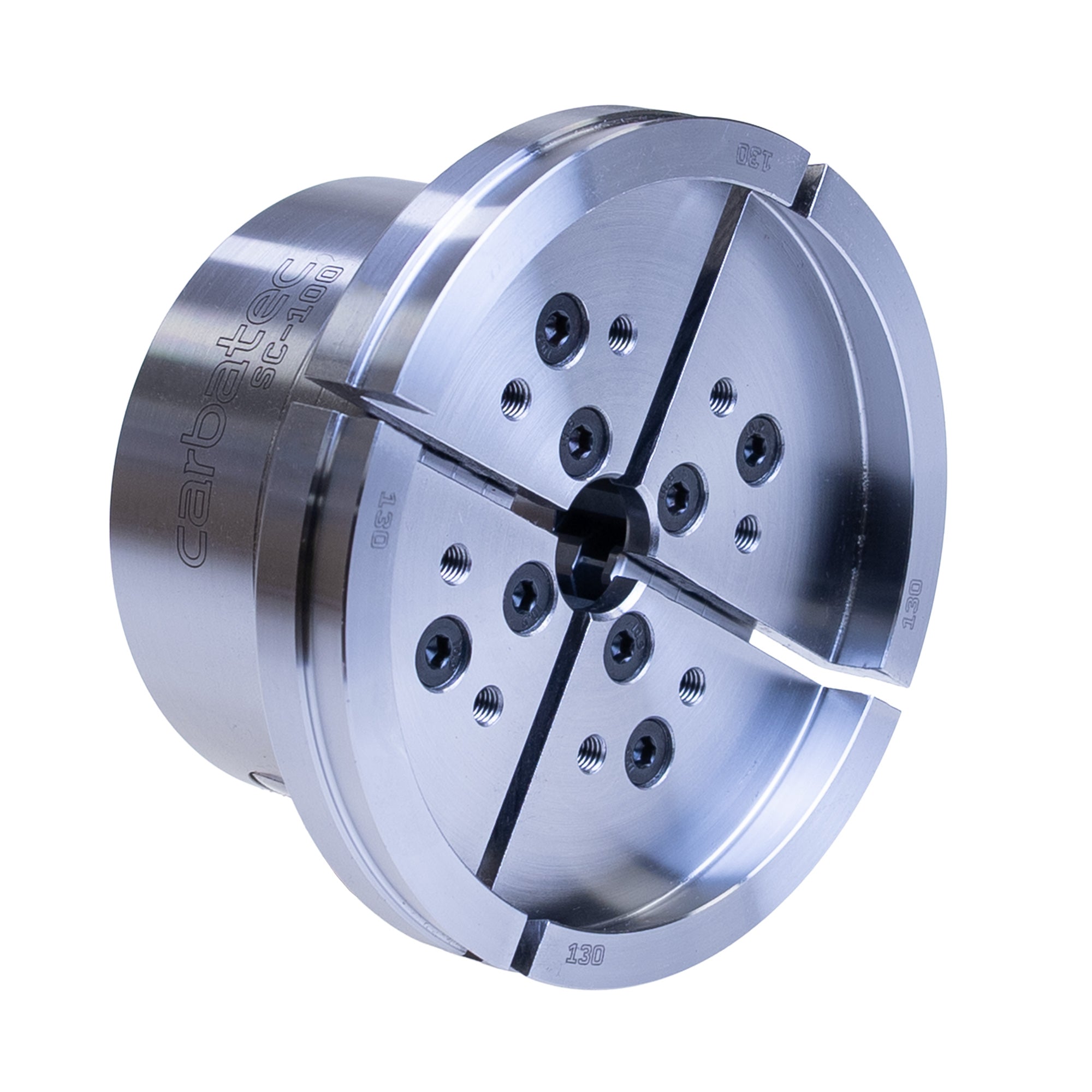

Carbatec Scroll Chuck 130mm Dovetail Jaw Set

Carbatec 130 mm Dovetail Profile Jaws – For Large Turning Projects

Precision CNC machined, the Carbatec 130 mm Dovetail Jaws are engineered to fit perfectly on Carbatec Scroll Chucks. As the largest jaw set in our range, they provide secure mounting for your biggest turning projects, with safe operation at speeds up to 400 RPM.

Key Features & Capacity

• Internal Clamping: 77–97 mm square stock, 107–128 mm round stock; optimal foot diameter 109 mm, up to 12 mm depth for maximum jaw contact. Supports bowls up to 750 mm in diameter.
• Expanding Grip Hold: 127–147 mm; best recess diameter 128 mm with full 9 mm depth. In this configuration, bowls up to 750 mm diameter and 75 mm deep can be turned.
• Steeper Dovetail Pitch: Ensures a secure, stable hold on larger projects.

Why Choose 130 mm Dovetail Jaws?

• Precision CNC machining guarantees consistent, secure clamping.
• Large capacity handles even your biggest bowls and projects.
• Expanding grip design provides versatility for a wide range of diameters.

Important: These measurements are intended as a guideline only. Proper training and safe woodturning practices should always be followed.
