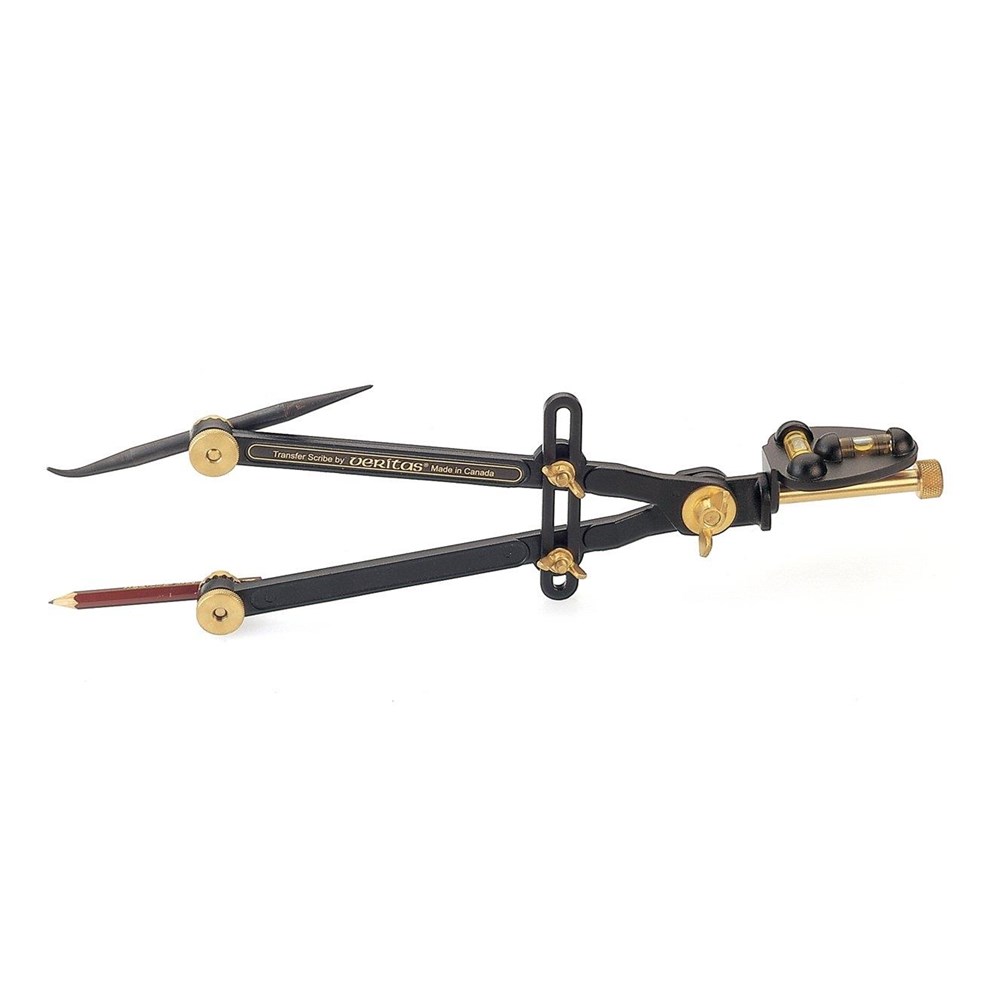

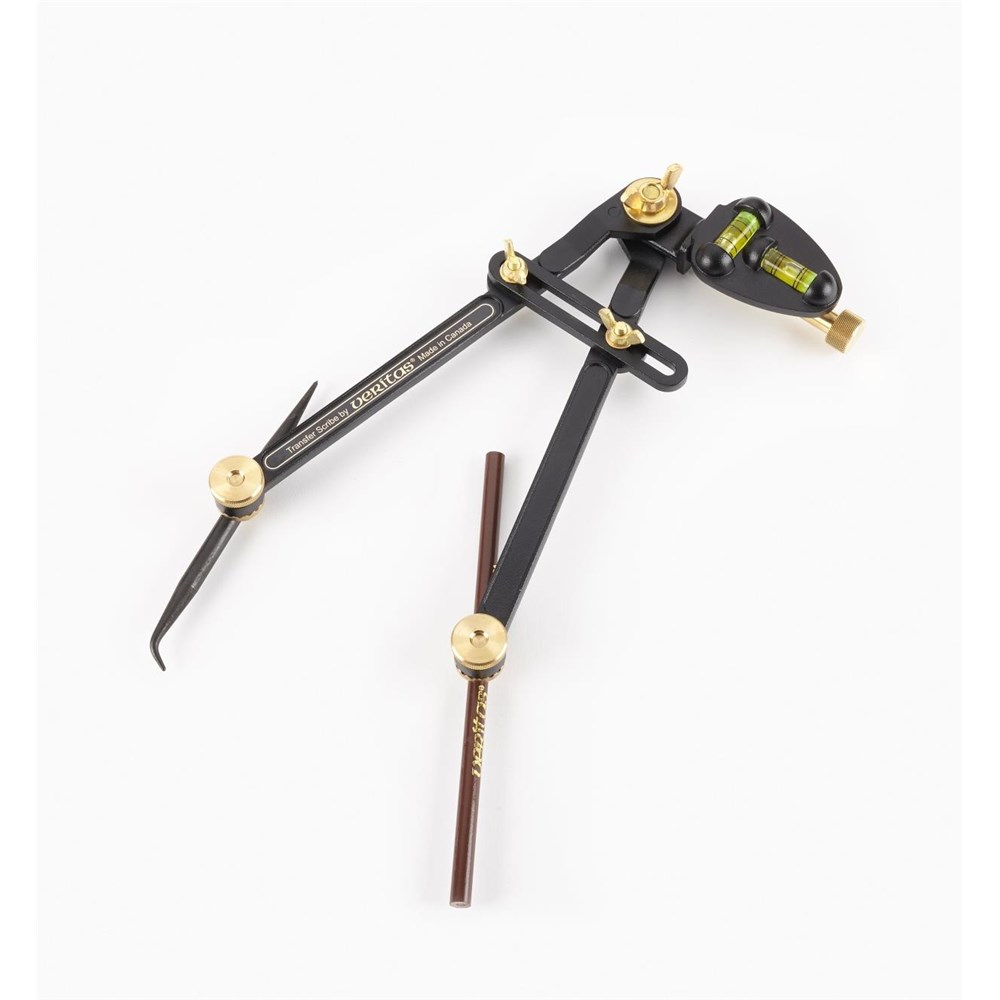

Veritas Transfer Log Scribe

Product Code: 05U05-01

$262 inc GST
In Stock Low Stock Out Of Stock Please See Attributes
Buy Quantity Price (each) You Save %
Increase value Decrease value
Quantity In Cart:

Tags Veritas
Download PDF
  • Details
  • Specifications

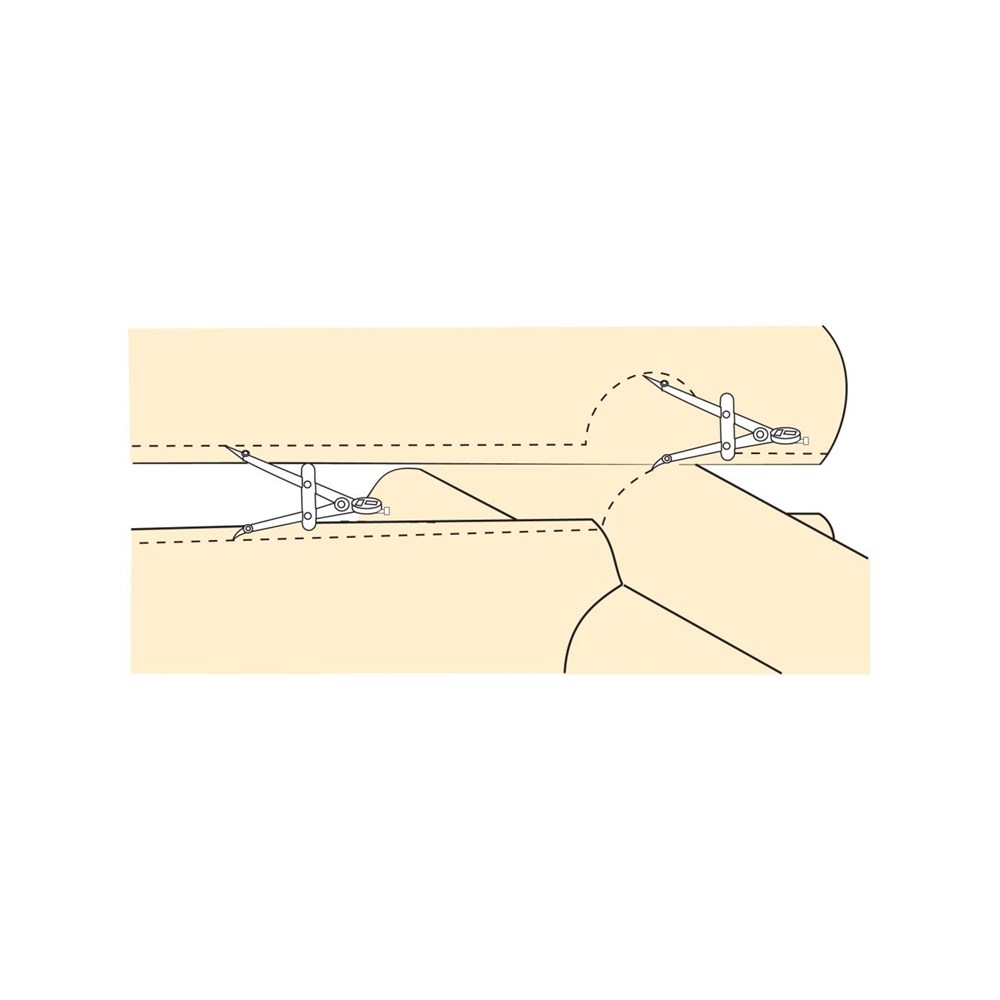

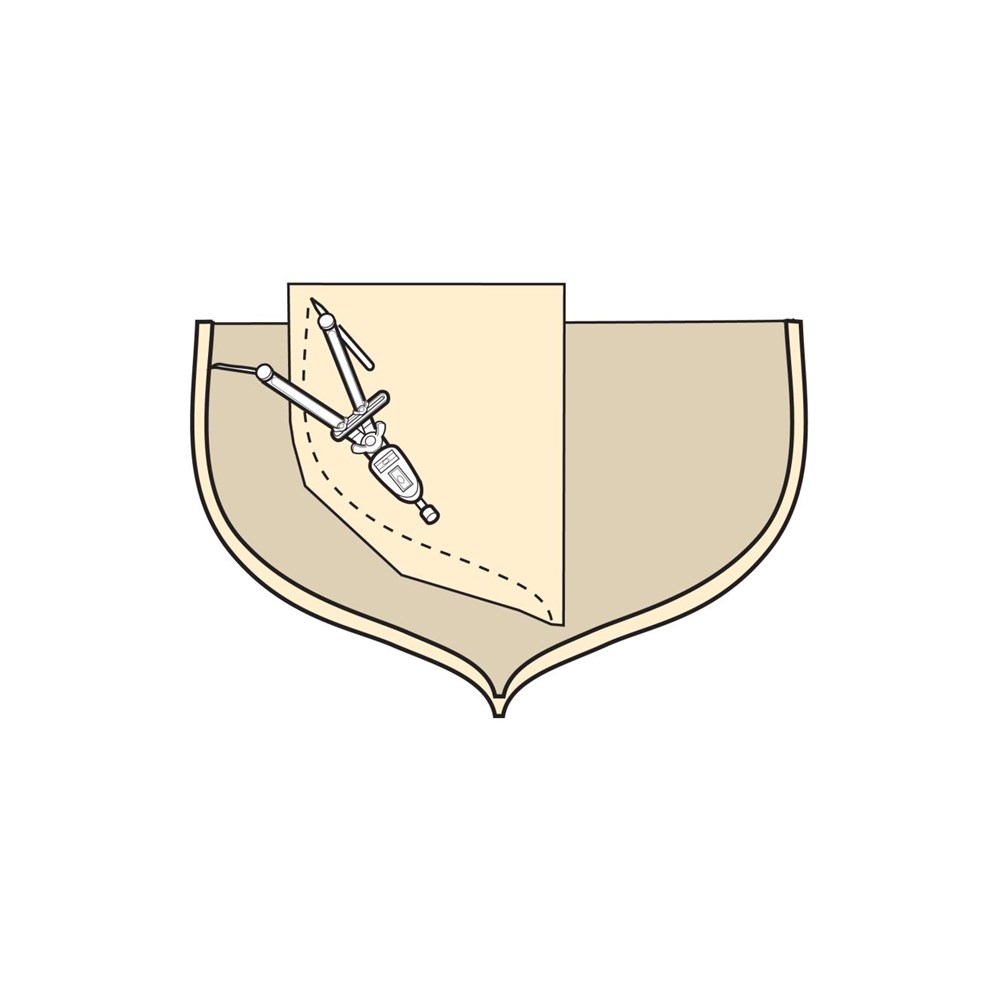

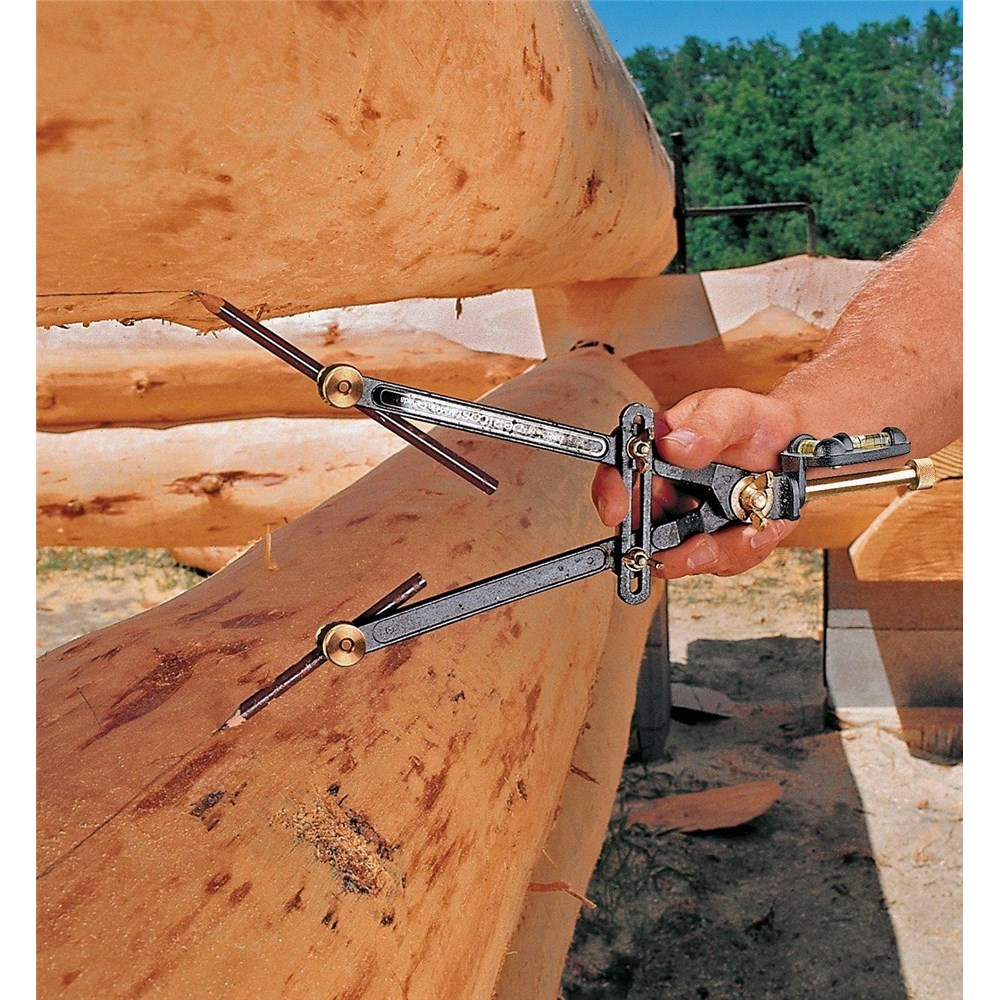

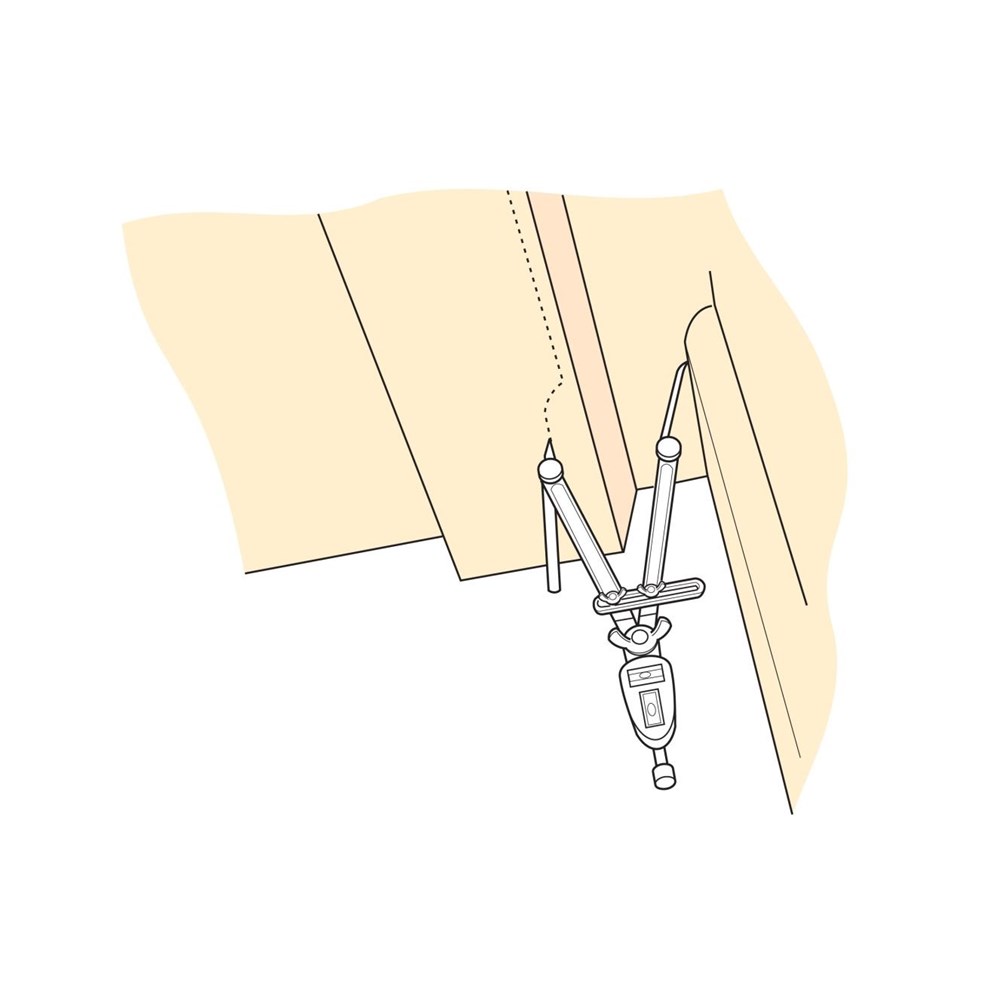

This tool is used for transferring the contours of one shape onto another. This is what makes it an ideal log scribe; but it also makes it an excellent carpenter's scribe. It can translate that not-so-straight 100 year old wall profile onto a cabinet panel; letting you get a perfect match. Very tight fits become standard when using it as a transfer scribe. With a maximum capacity of 12inch; it is calibrated so that any opening can be used once the double bubbles are set for a given pin and pencil projection. The rotatable double-level post can be adjusted and locked in any position on either axis. The pointed end of the steel pin is for compass work - the blunt curved end is non-marring for transfer scribing. Other components are non-corroding brass and zinc aluminium alloy. Usable with any standard pencil; it comes with a purple indelible pencil that marks well with light pressure.
Brand Veritas
